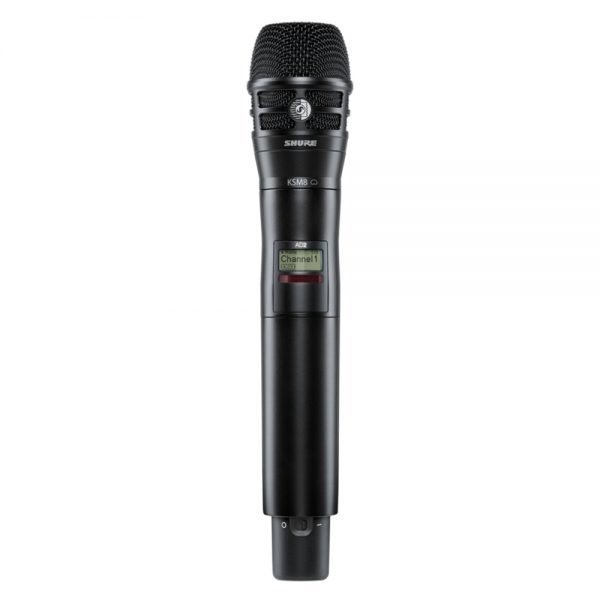

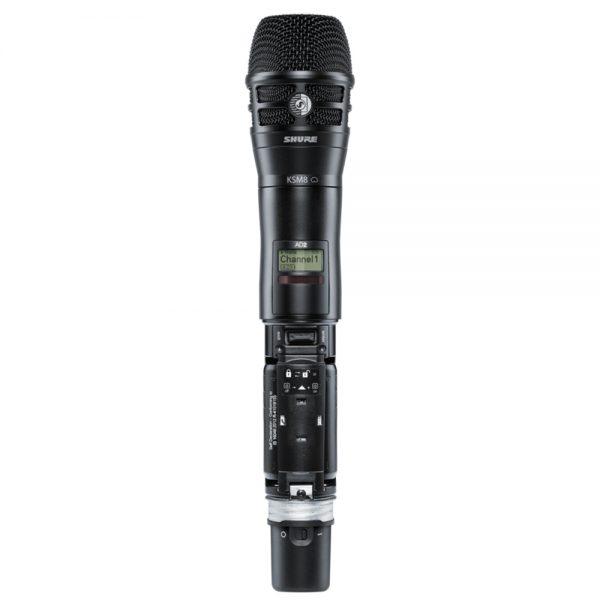

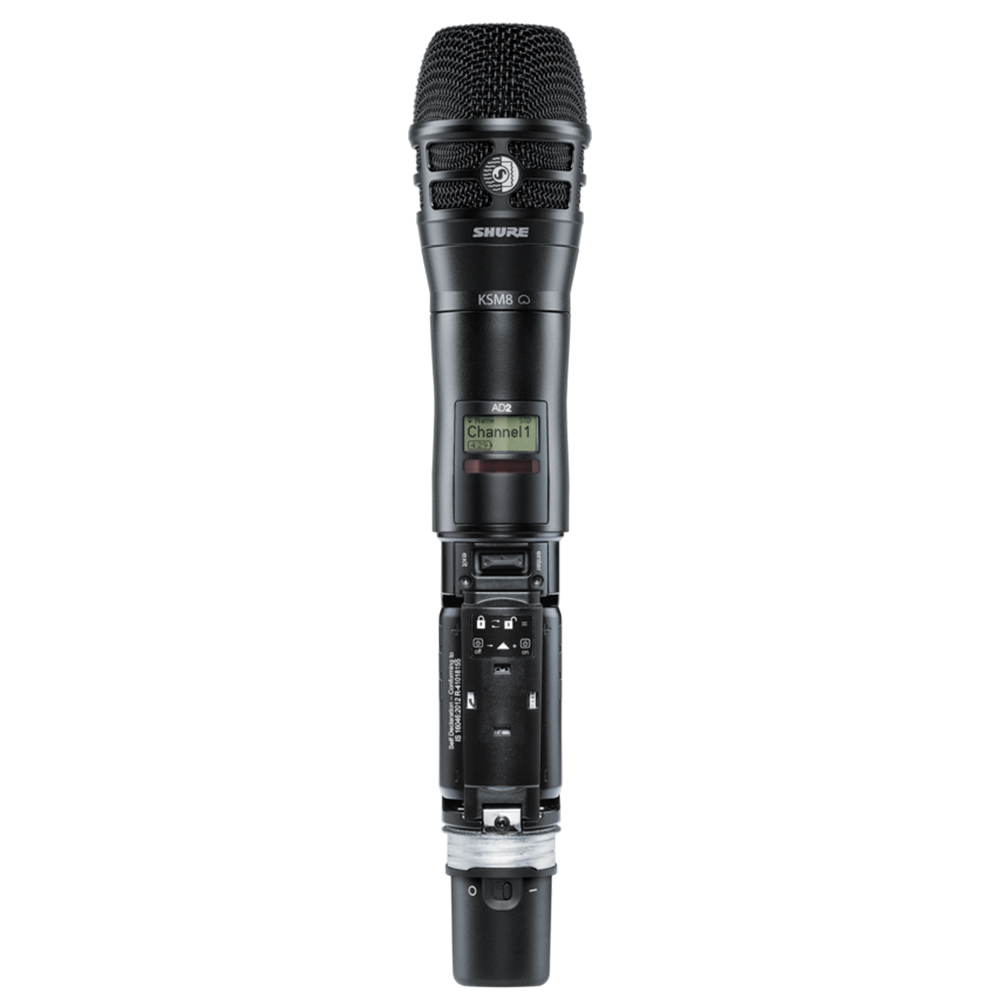

Shure – AD2/KSM8 Handheld Wireless Microphone Transmitter

Shure

AD2/KSM8 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, rechargeable power with dockable charging, and black or nickel finish options.

SKU: SHUAD2KSM8 Categories: , , , ,
Clear

Description

The AD2/KSM8 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD2/KSM8 puts professional-quality wireless digital audio within reach.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Feature Quick View

  • Works with Axient® Digital Wireless Systems
  • Features the KSM8 cartridge
  • Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
  • Includes AD2/KSM8, microphone clip, zipper bag, 2 AA batteries, and user guide
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Rugged metal construction in black or nickel finish
  • Backlit LCD with easy-to-navigate menu and controls
  • Low-profile, lockable power switch
  • Encryption-enabled, secure transmission
  • AA or SB900A lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 0.34 kg
Specifications

Mic Offset Range: –12 to 21 dB (in 3 dB steps)
Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime @ 10 mW:
Shure SB900A: >11 hours
Alkaline: 8 hours
See Battery Runtime Chart
Dimensions: 256 mm × 51 mm (10.1 in. × 2.0 in.) L × D
Weight: 340 g (12.0 oz.), without batteries
Housing: Cast aluminum
Audio Input

Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD:
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF Output

Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Axient Digital Proprietary
Power:
2 mW, 10 mW, 35 mW
See Frequency Range and Ouput Power table, varies by region

Downloads

Data Sheet Download
User Guide Download
