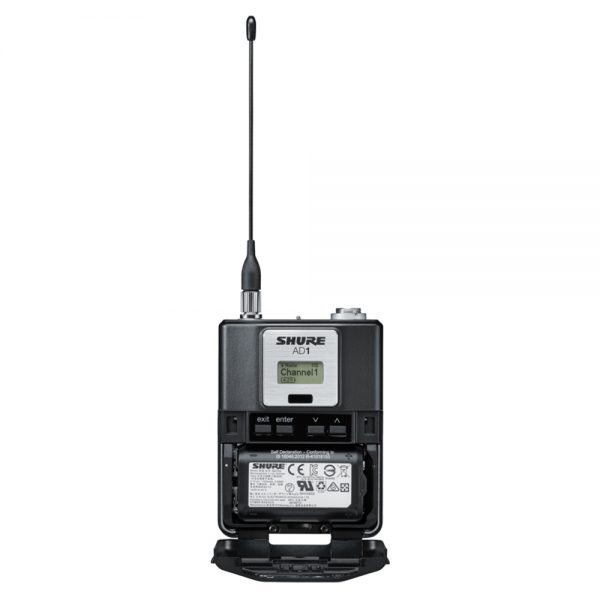

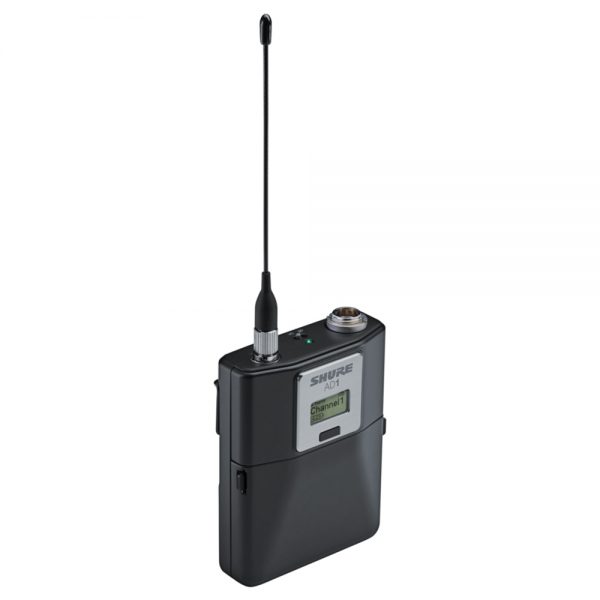

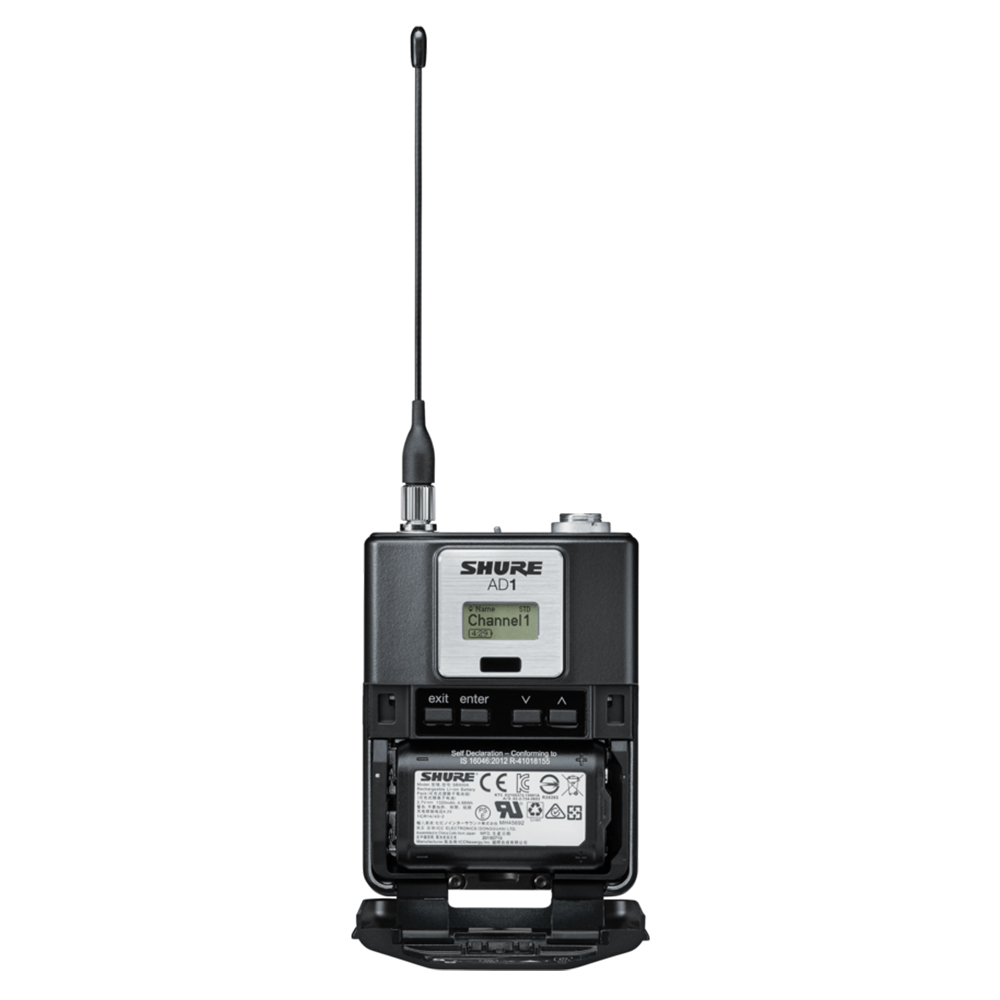

Shure – AD1 Bodypack Transmitter

Shure

The AD1 is a wireless bodypack transmitter compatible with Axient® Digital Wireless Systems.

SKU: N/A Categories: , , , ,
Clear

Description

AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Feature Quick View

  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

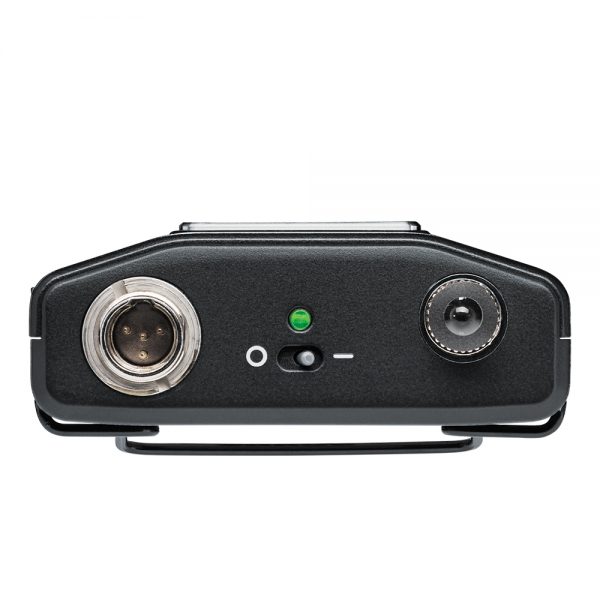

  • Two connector options: TA4 and LEMO3
  • Detachable ¼-wave antenna
  • AA or SB900A lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 0.15 kg
Specifications

Mic Offset Range: ­12 to 21 dB (in 1 dB steps)
Battery Type: Shure SB900B Rechargeable Li­Ion or LR6 AA batteries 1.5 V
Battery Runtime @ 10 mW:
Shure SB900B up to 8 hours
alkaline up to 8 hours
See Battery Runtime Chart
Dimensions: 86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
Weight: 155 g (5.0 oz.), without batteries
Housing: Cast Metal
Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input

Connector: 4-Pin male mini connector (TA4M) or Lemo Connector
Configuration: Unbalanced
Impedance:
4-Pin male mini connector (TA4M): 910 kΩ
Lemo Connector: 8.2 kΩ
Maximum Input Level 1 kHz at 1% THD:
Pad Off: 8.5 dBV ( 7.5 Vpp)
Pad On: 20.5 dBV ( 30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥ +20
-­120 dBV, A­weighted, typical
RF Output

Connector: SMA
Antenna Type: 1/4 wave
Impedance: 50 Ω
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing:
Standard Mode 350 kHz
High Density Mode 125 kHz
varies by region
Modulation Type: Shure Axient Digital Proprietary
Power: 2 mW, 10 mW, 35 mW
See Frequency Range and Output Power table, varies by region
Specific Absorption Rate (SAR): < 0.20 W/kg
