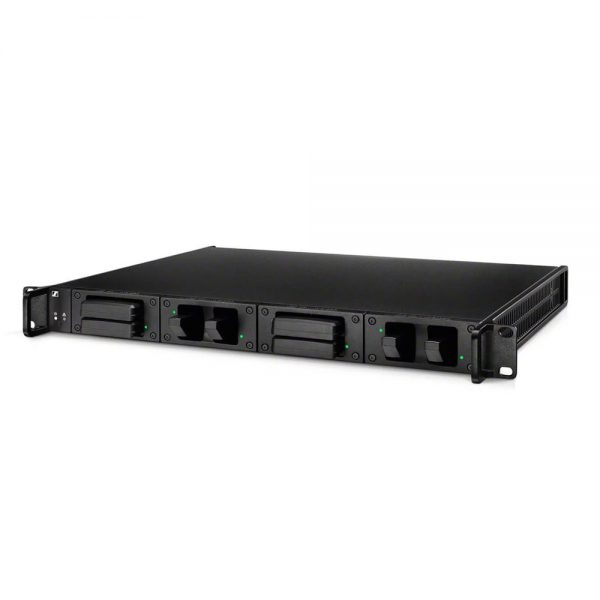

Sennheiser – L 6000 Front leftSennheiser – L 6000 Front left

Sennheiser – L 6000 Charging Station

Sennheiser

L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-color LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.

SKU: SEN507300 Categories: , , , ,

Description

Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods. The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted. Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).

Feature Quick View

  • 19 inch charging station in 1 RU
  • Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
  • Quick overview of charging status with three-color LEDs
  • Intelligent charging control with four fans for optimum cooling
  • Storage mode keeps battery packs in optimum charge condition for longer storage periods
  • Integrates into the Wireless Systems Manager

What’s in the box

  • 1 L 6000
  • 1 Mains Cable (EU, UK or US plug)
  • 4 Dummy Cover incl. Screws
  • Quick Guide
  • Safety Guide
  • 2 Sticker
  • 4 Rubber Feet

Additional information

Weight 5.1 kg
Product

Display: Multi-colored
Ambient Conditions

Operating Relative Humidity: Max. 90 % at 40 °C
Battery & Power

Charging Time: BA 60: 80 %: approx. 1:15 h, 100%: approx. 2:30h
Power Consumption: Max. 85 W
Charging Current: 2 A
Charging Voltage: 4.2 V
Technology

Network Protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Dimensions

Dimensions: 44 x 483 x 373 mm
Height (mm): 175
Length (mm): 550
Master Carton Weight (g): 0
Weight (g): 5.1 kg
Width (mm): 435
Master Carton Height (mm): 0
Master Carton Width (mm): 0
Package Depth: 435
Package Height: 175
Package Weight: 6240
Package Width: 550
