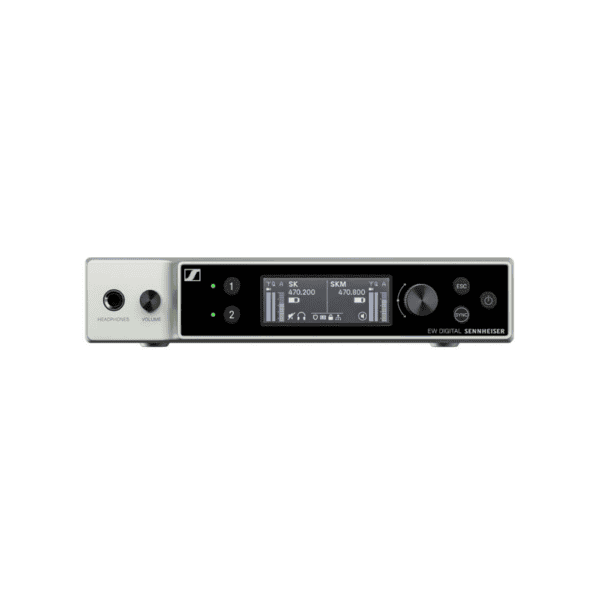

Sennheiser - EW-DX EM 2 Rack ReceiverSennheiser - EW-DX EM 2 Rack Receiver

Sennheiser – EW-DX EM 2 | Rack Receiver

Sennheiser

Two-channel digital half-rack (9,5″) receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES-256 encryption and redundant power supply via Power over Ethernet (PoE).

SKU: N/A Categories: , , ,
Clear

Description

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.

Features

  • Two-channel digital half rack (9.5″) in rugged metal housing
  • Up to 88 MHz switching bandwidth
  • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • 134 dB input dynamic range – no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
  • Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM – Available in mid-2023) and 3rd party media control systems via plug-in
  • Power over Ethernet (PoE IEEE 802.3af Class 3)
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure transmission of confidential content using AES 256 encryption
  • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing – even without RF knowledge
  • Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
  • Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
  • Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
  • Selective headphone output with volume control on front panel
  • Extended menu settings such as custom frequency list, selectable sync parameter and walk test
  • External PSU 12V/1A
  • Worldwide usage (specific frequencies subject to local RF regulations)

What’s in the box

  • EW-DX EM 2
  • GA 3 rack mount kit
  • EW-D Power Supply with country adapters
  • 2 rod antennas
  • 4 rubber feet

Additional information

Product

Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Frequency Specifications

Audio Frequency Response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
Acoustic Properties

Dynamic Range: 134 dB
Ambient Conditions

Operating Relative Humidity: 5 – 95 % (non-condensing)
Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F)
Dimensions

Dimensions: 212 x 44 x 189 mm
Height (mm): 73
Length (mm): 405
Master Carton Height (mm): 258
Master Carton Length (mm): 420
Master Carton Weight (g): 611.558
Master Carton Width (mm): 435
Weight (g): approx. 1000 g (without antennas and power supply)
Width (mm): 350
Package Depth: 350
Package Height: 73
Package Weight: 2688
Package Width: 405
