Description

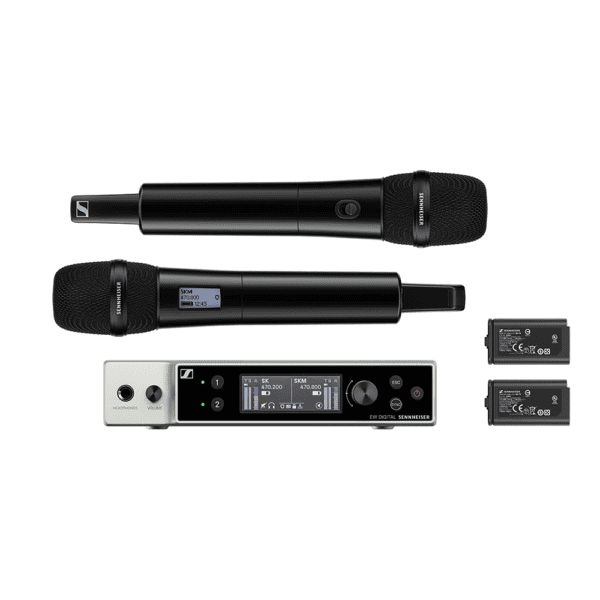

This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX
EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.
Features EW-DX EM 2
- 2 channel half rack (9.5’)
- Up to 88 MHz switching bandwidth
- PoE IEEE 802.3af Class 3
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Secure AES 256 encryption
- External PSU 12V/1A
- All-metal housing
Features
- 134 dB input dynamic range – no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing – even without RF knowledge
- Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM – Available in mid-2023) and 3rd party media control systems via plug-in
- Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
- Secure transmission of confidential content using AES 256 encryption
- Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
- Function buttons – control all the transmitter settings directly from the handheld including button lock function
- Persistent E-Ink display for “always on” information – parameters visible on screen even when taking out batteries
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Up to 88 MHz switching bandwidth
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Digital audio trim
- Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
- Sennheiser Standard Capsule Interface – compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
- Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
- Worldwide usage (specific frequencies subject to local RF regulations)
What’s in the box
- EW-DX EM 2 rack receiver
- 2 EW-DX SKM-S handheld transmitter
- 2 MMD 835 microphone module
- EW-D Power Supply with country adapters
- 2 BA 70 rechargeable battery packs
- 2 MZQ 1 microphone clamp
- 2 rod antennas
- GA 3 rack mount Kit
- 4 rubber feet
