Sennheiser - EW-D SKM-S BASE SETSennheiser - EW-D SKM-S BASE SET

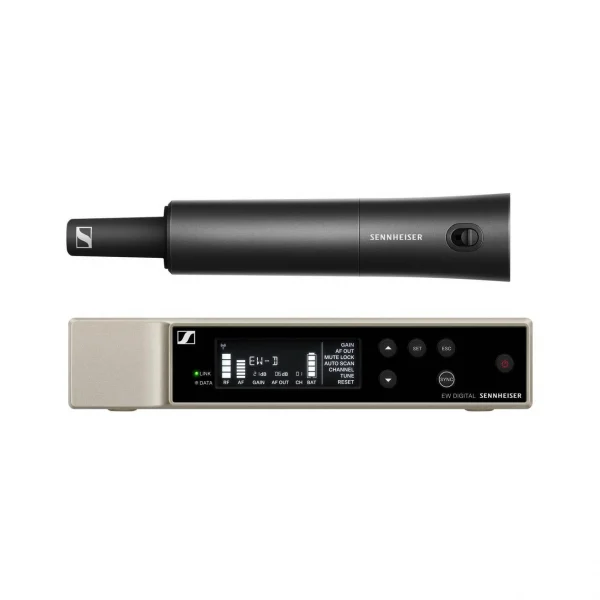

Sennheiser – EW-D SKM-S BASE SET

Sennheiser

Base Set for digital wireless applications featuring sationary receiver and handheld transmitter for use with a wide range of Evolution Wireless Digital microphone heads.

Clear

Description

Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

What’s in the box

  • EW-D EM rack receiver
  • EW-D SKM handheld transmitter
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Additional information

Product

Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Frequency Specifications

Audio Frequency Response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs

Acoustic Properties

Audio Output Level: 18 dBu max.

Ambient Conditions

Operating Relative Humidity: 5 – 95 % (non-condensing)
Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F)

Electrical Properties

Transmission Power: BLE: max. 10 mW EIRP

Dimensions

Dimensions: 212 x 44 x 189 mm
Height (mm): 73
Length (mm): 405
Master Carton Height (mm): 258
Master Carton Length (mm): 420
Master Carton Weight (g): 611.558
Master Carton Width (mm): 435
Weight (g): approx. 1000 g (without antennas and power supply)
Width (mm): 350
Package Depth: 350
Package Height: 73
Package Weight: 2861
Package Width: 405
