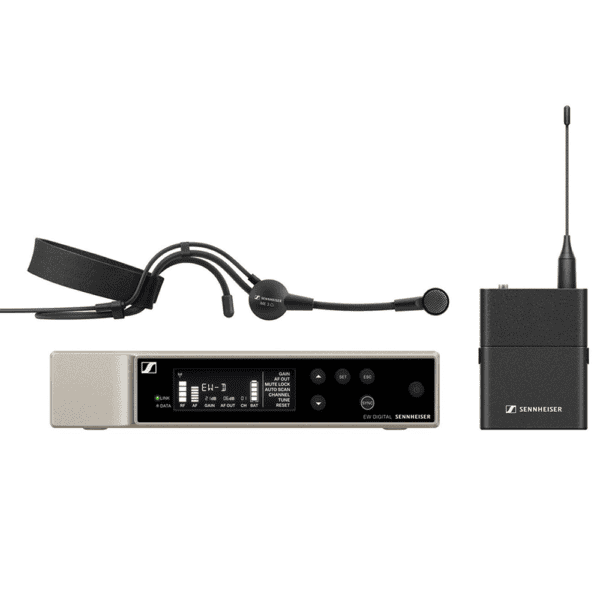

Sennheiser – EW-D ME3 Headmic Set

All-in-one digital wireless lavalier set for those who sing or speak featuring Sennheiser’s renowned ME 3 cardioid headset microphone.

SKU: N/A Categories: , ,
Clear

Description

Versatile and feature-rich digital wireless system for those who speak or presentt that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Additional information

Specifications

Frequency range
470.2 – 526 MHz
552 – 607.8 MHz
520 – 576 MHz
606.2 – 662 MHz
630 – 662 MHz
662 – 693.8 MHz
823.2 – 831.8 MHz & 863.2 – 864.8 MHz
925.2 – 937.3 MHz
1785.2 – 1799.8 MHz

THD, total harmonic distortion
≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature
-10 °C – +55 °C (14 °F – 131 °F)

Audio frequency response
20 Hz – 20 kHz (-3 dB) @ 3 dBfs

System Latency
1.9 ms

Operating relative humidity
5 – 95 % (non-condensing)
EW-D EM

Dimensions
212 x 44 x 189 mm

Weight
approx. 1000 g (without antennas and power supply)

Current consumption
≤ 300 mA

Input voltage range
11 – 13 V ⎓

Audio output level
18 dBu max.

Transmission power
BLE: max. 10 mW EIRP
ME 3

Connector
3.5 mm jack

Frequency response
50 to 18,000 Hz

Max. sound pressure level
150 dB

Cable length
approx. 1.60 m

Pick-up pattern
cardioid

Sensitivity in free field, no load (1kHz)
1.6 mV/Pa

Transducer principle
pre-polarized condensor microphone
EW-D SK

Dimensions
63 x 80 x 20 mm (without antenna)

Weight
approx. 120 g

Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Current consumption
< 300 mA

Input voltage range
2.0 – 4.35 V

Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP

Downloads

Data Sheet Download
