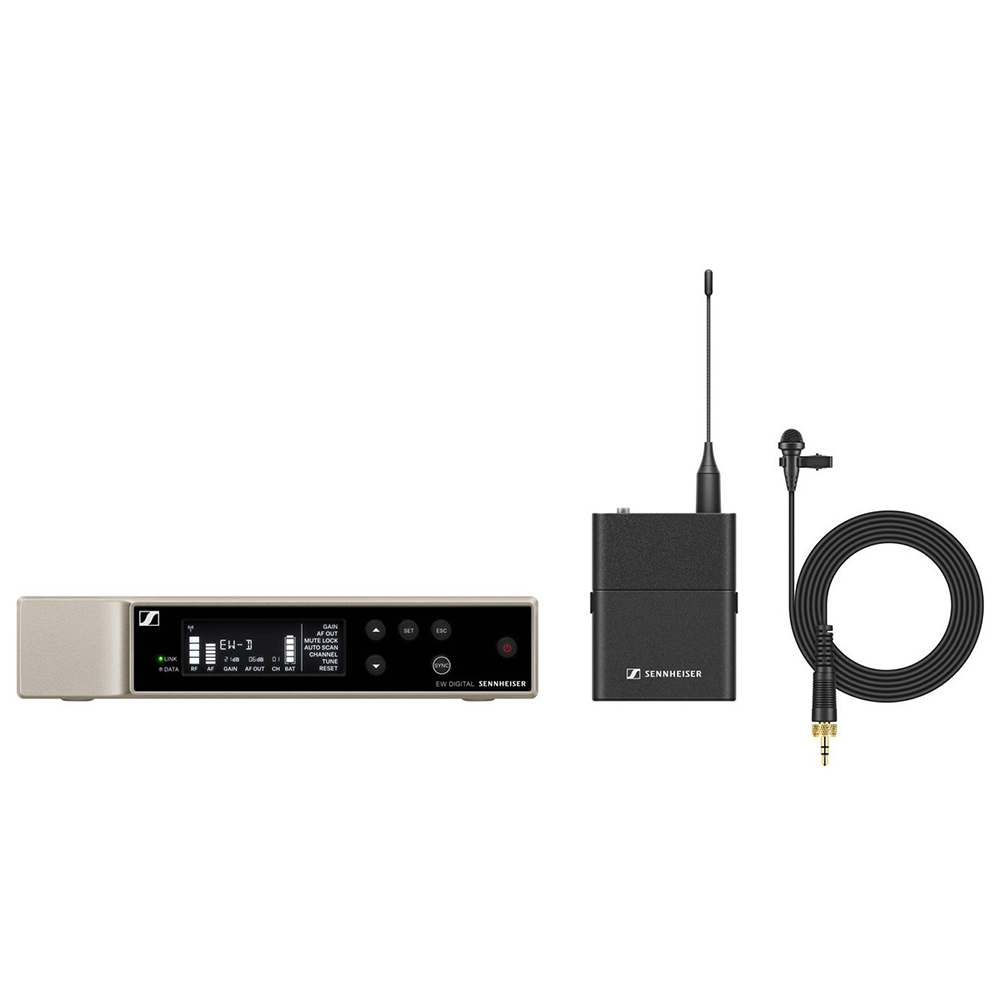

Sennheiser – EW-D ME2 SET

All-in-one digital wireless lavalier set for those who speak featuring Sennheiser’s renowned ME 2 omni-directional clip-on microphone.

SKU: N/A Categories: ,
Clear

Description

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility suit perfectly for daily use on stage.

Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

What’s in the box

  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter
  • ME 2 lavalier microphone (omni-directional)
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Additional information

Specifications

Frequency range
470.2 – 526 MHz
520 – 576 MHz
552 – 607.8 MHz
606.2 – 662 MHz
630 – 662 MHz
662 – 693.8 MHz
823.2 – 831.8 MHz & 863.2 – 864.8 MHz
925.2 – 937.3 MHz
1785.2 – 1799.8 MHz

THD, total harmonic distortion
≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature
-10 °C – +55 °C (14 °F – 131 °F)

Operating relative humidity
5 – 95 % (non-condensing)

Audio frequency response
20 Hz – 20 kHz (-3 dB) @ 3 dBfs

System Latency
1.9 ms

EW-D EM

Dimensions
212 x 44 x 189 mm

Weight
approx. 1000 g (without antennas and power supply)

Current consumption
≤ 300 mA

Input voltage range
11 – 13 V ⎓

Transmission power
BLE: max. 10 mW EIRP

Audio output level
18 dBu max.

EW-D SK

Dimensions
63 x 80 x 20 mm (without antenna)

Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Current consumption
< 300 mA

Input voltage range
2.0 – 4.35 V

Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP

Weight
approx. 120 g

ME 2

Cable length
approx. 1.60 m

Connector
3.5 mm jack

Frequency response
50 to 18,000 Hz

Max. sound pressure level
130 dB

Transducer principle
pre-polarized condensor microphone

Pick-up pattern
omni-directional

Sensitivity in free field, no load (1kHz)
17 mV/Pa

Equivalent noise level
32 dB

Power supply
7.5 V

Downloads

Data Sheet Download
