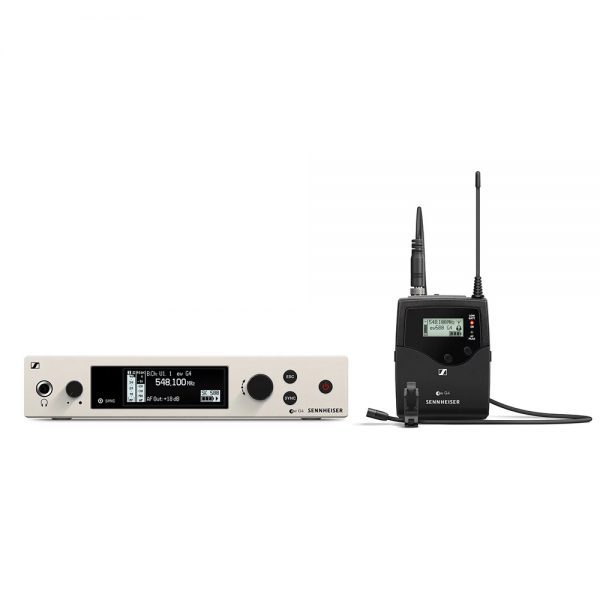

Sennheiser - EW 500 G4-MKE2 Reciver shown with body packSennheiser - EW 500 G4-MKE2 Reciver shown with body pack

Sennheiser – EW 500 G4-MKE2

Sennheiser

Rugged all-in-one wireless system for broadcasters and presenters. Set consists of 1 SK 500 G4 bodypack, 1 MKE 2 Gold Lavalier mic, 1 EM 300-500 rackmount receiver and 1 GA3 rack kit.

SKU: SENEW-500-G4-MKE2 Categories: , , ,
Clear

Description

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups. The pro‘s choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Feature Quick View

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What’s in the box

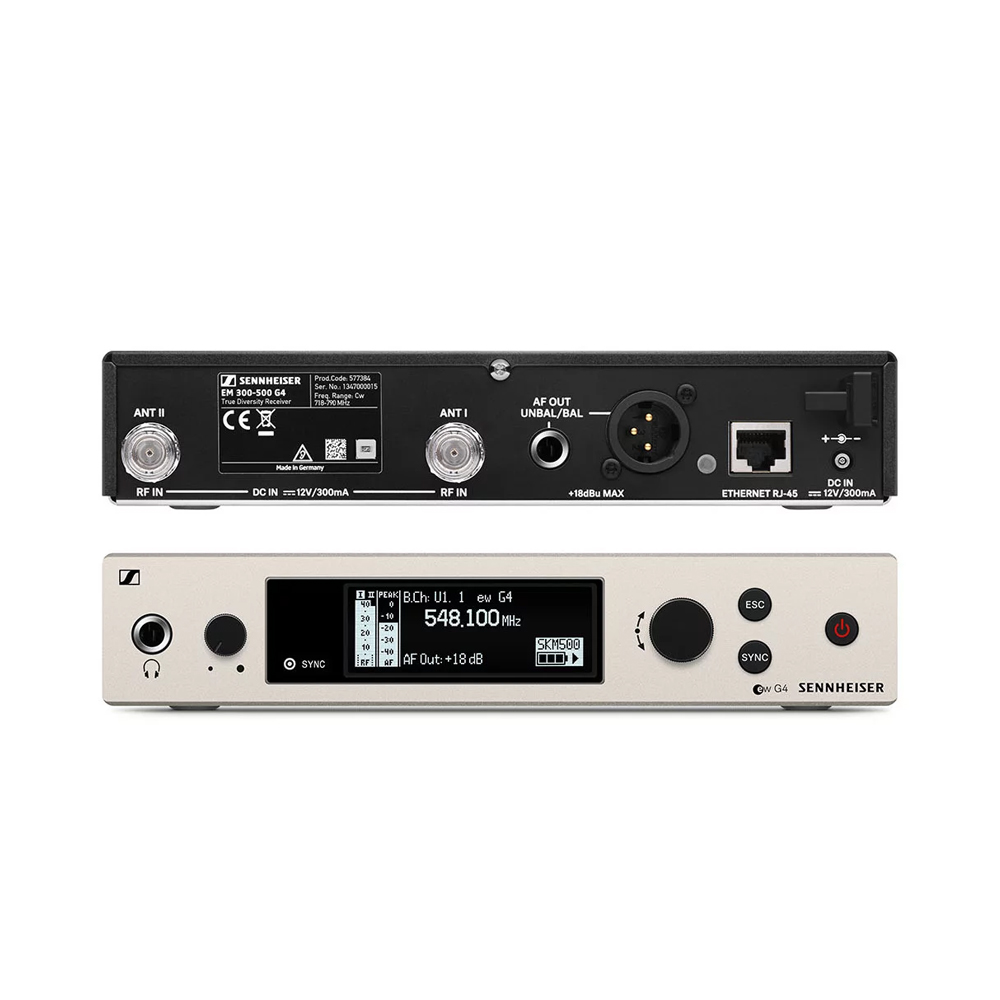

  • EM 300-500 G4 true diversity receiver

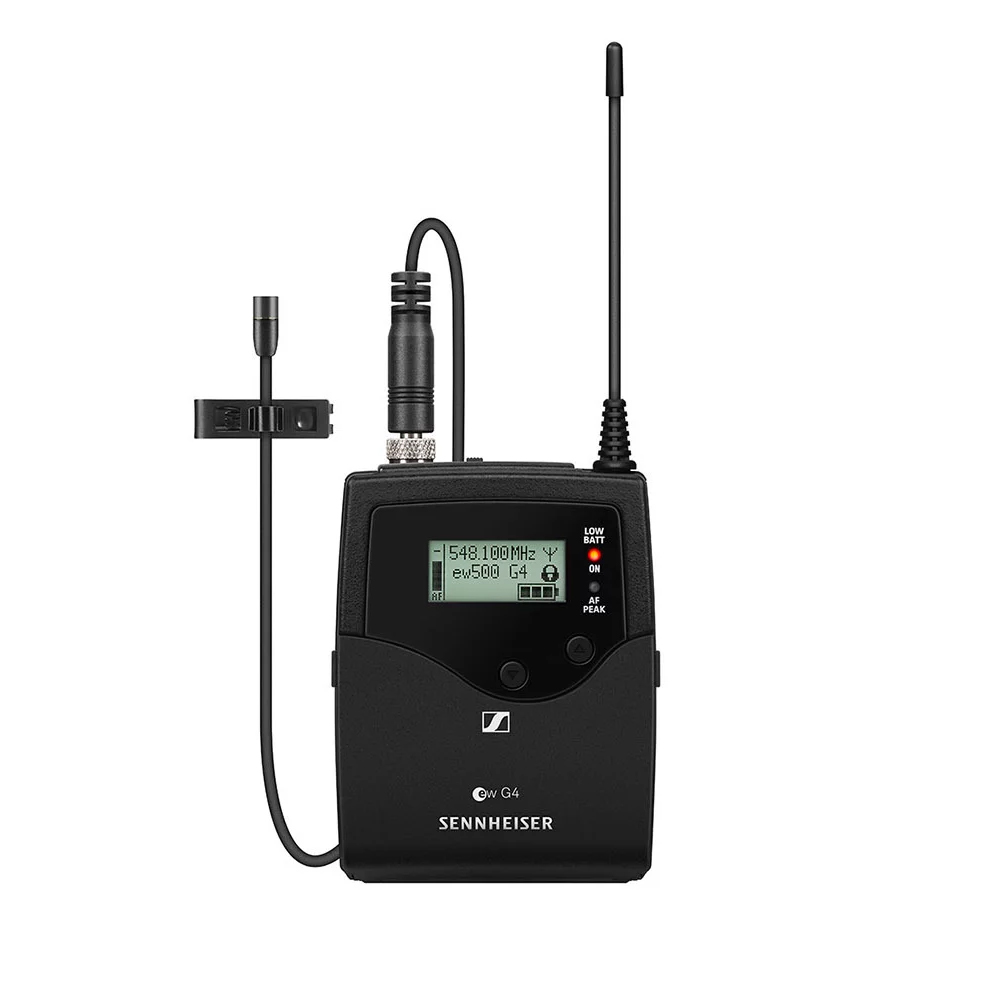

  • SK 500 G4 bodypack transmitter

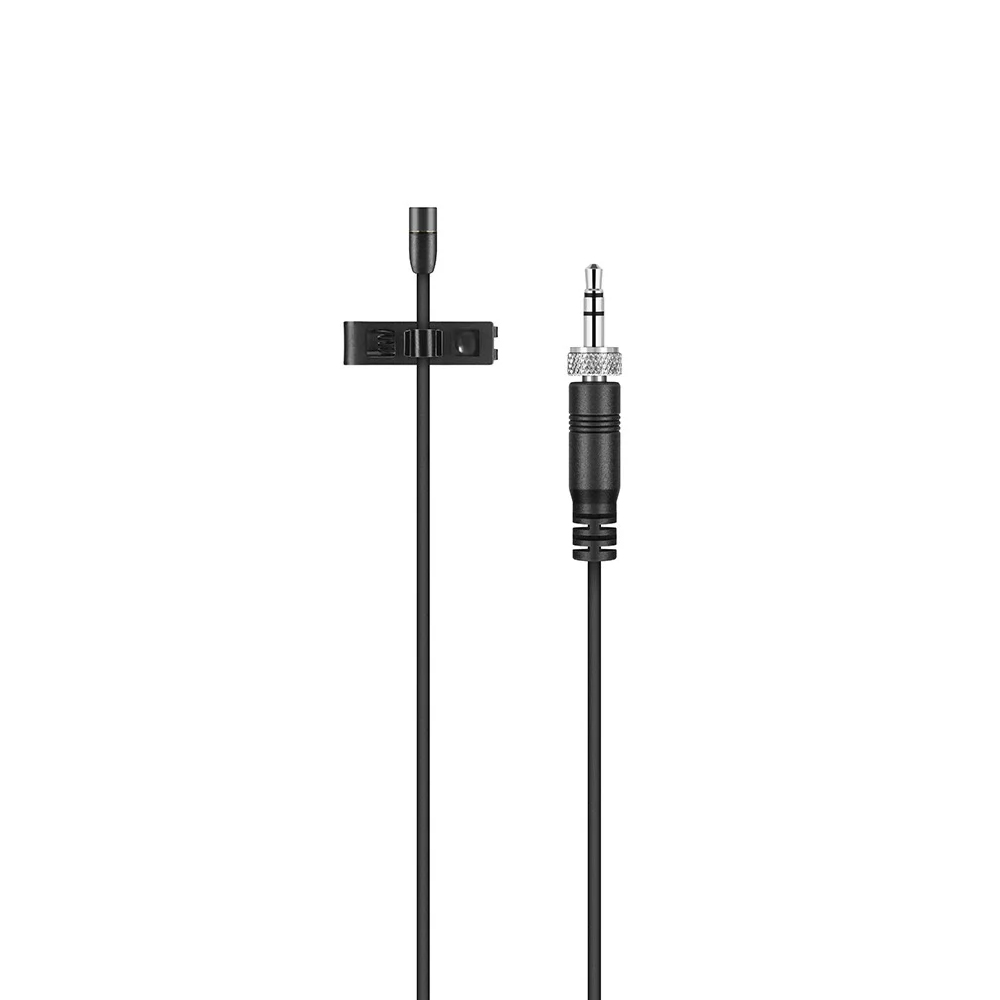

  • MKE 2 clip-on microphone
  • GA 3 rackmount set
  • 2 AA batteries
  • 2 rod antennas
  • power supply
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Additional information

Product

Polar Pattern: Omnidirectional
Receiver Principle: True diversity
RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
Total Harmonic Distortion: ≤ 0.9 %
Transducer principle: pre-polarized condensor microphone
Frequency Specifications

AF Frequency Response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Frequency response: 20 to 20.000 Hz ± 3 dB
Acoustic Properties

Equivalent Noise Level: 26 dB
Max_Sound_Pressure_Level: 142 dB
Signal_to_Noise_Ratio: ≥ 115 dBA
Squelch: 5 to 25 dBμV in steps of 2 dB
Inputs/Outputs

Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu
Battery & Power

Battery Operating Time: Typically 8 h
Electrical Properties

Input Impedance: 40 kΩ, unbalanced / 1 MΩ
Dimensions

Dimensions: Approx. 202 x 212 x 43 mm
Height (mm): 73
Length (mm): 405
Master Carton Height (mm): 258
Master Carton Length (mm): 420
Master Carton Weight (g): 611.558
Master Carton Width (mm): 435
Weight (g): Approx. 980 g
Width (mm): 350
Package Depth: 350
Package Height: 73
Package Weight: 2762.86
Package Width: 405
Cable Length: approx. 1.60 m
