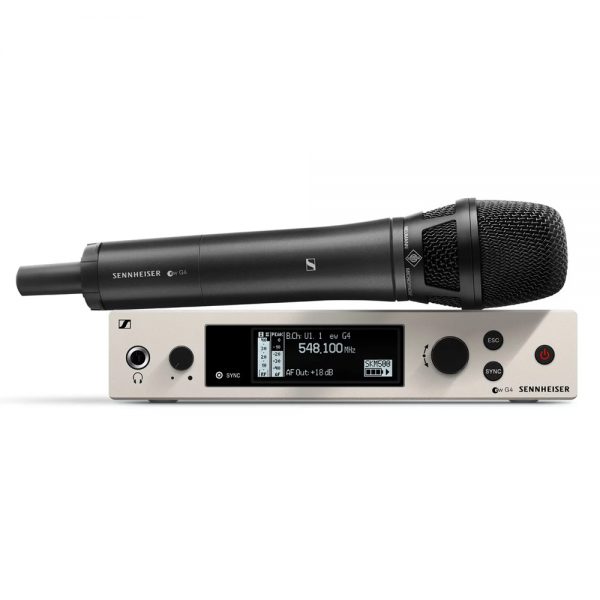

Sennheiser - ew 500 G4-KK205 mic and reciverSennheiser - ew 500 G4-KK205 mic and reciver

Sennheiser – ew 500 G4-KK205

Sennheiser

The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The KK 205 is a premium quality capsule head for professional Sennheiser handheld transmitters, now available with the evolution wireless G4 500 Series.

SKU: SENEW-500-G4-KK205 Categories: , , ,
Clear

Description

The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The Neumann super-cardioid condenser capsule KK 205 offers true Neumann sound, combined with Sennheiser G4 wireless transmission to provide you the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance. The ew 500 G4 is highly flexible. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

Feature Quick View

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems

Whats in the box

  • EM 300-500 G4 rackmount receiver

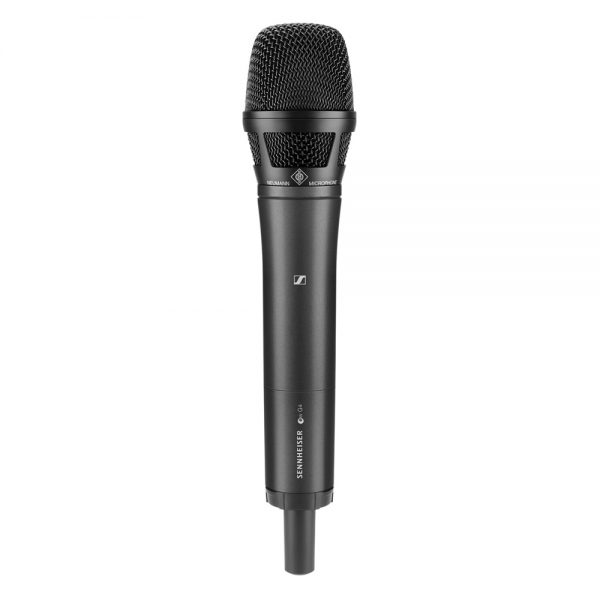

  • SKM 500 G4 handheld transmitter
  • KK 205 super-cardioid condenser capsule
  • NT 2-3 power supply
  • GA3 rack kit set
  • Microphone clamp

Additional information

Weight 0.98 kg
Product

Receiver Principle: True diversity
RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
Total Harmonic Distortion: ≤ 0.9 %

Frequency Specifications

AF Frequency Response: 80 – 18,000 Hz

Acoustic Properties

Max Sound Pressure Level: 150 dB
Signal to Noise Ratio: ≥ 115 dBA
Squelch: 5 to 25 dBμV in steps of 2 dB

Inputs/Outputs

Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu

Battery & Power

Battery Operating Time: Typically 8 h

Electrical Properties

Sensitivity: 2.8 mV/Pa

Dimensions

Dimensions: Approx. 202 x 212 x 43 mm
Weight (g): Approx. 980 g

Downloads

Data Sheet Download
