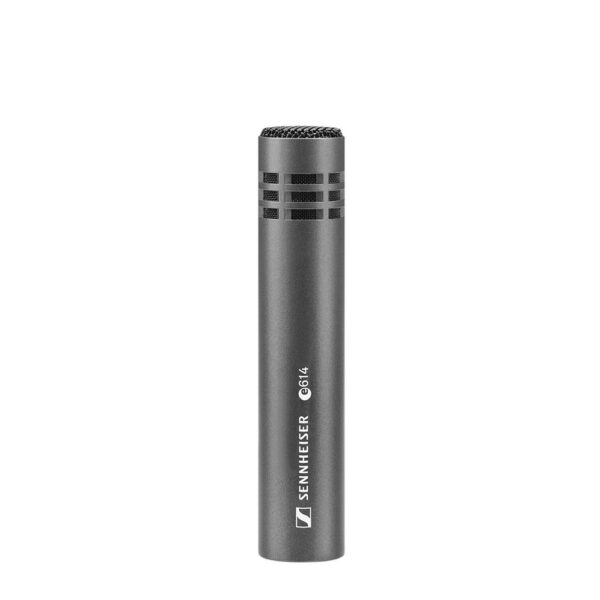

Sennheiser – E614 Polarized Condenser Microphone

Sennheiser

Super-cardioid electret condenser microphone for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording.

SKU: SEN009895 Categories: , , , ,

Description

The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.

Features

  • 40-20,000 Hz
  • Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
  • Captures the shimmer and the contact of sticks, mallets and hands
  • Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern

In the Box

  • e 614
  • Microphone pouch
  • Microphone clip MZQ 100

Additional information

Weight 0.93 kg
Product

Polar Pattern: Supercardioid
Transducer principle: pre-polarised condenser microphone
Warranty AMER: 10

Frequency Specifications

Frequency response: 40 – 20000 Hz

Acoustic Properties

Equivalent Noise Level: 24 dB(A)

Battery & Power

Phantom Powering: 12 – 52 V / 3 mA

Electrical Properties

Nominal Impedance: 50 Ω
Min_Terminating_Impedance: 1000 Ω

Dimensions

Dimensions: Ø 20mm, L = 100mm
Height (mm): 80
Length (mm): 260
Master Carton Height (mm): 288
Master Carton Length (mm): 584
Master Carton Weight (g): 527.558
Master Carton Width (mm): 584
Weight (g): 73 g
Width (mm): 120
Package Depth: 120
Package Height: 80
Package Weight: 329
Package Width: 260

Downloads

Data Sheet Download
User Guide Download
Quick Start Guide Download
