Roxx – NEO

Roxx

A powerful 40W RGBL fixture with 8° TIR lens for intense output and seamless color mixing. IP65 rated, segment controllable, and wireless-ready with CRMX and Bluetooth. Optional filters and accessories available for full customization.

SKU: ROX14202001 Categories: , , ,

Description

Crafted with precision, the fixture features a specially developed 8° TIR lens, ensuring high illuminance even over extended distances while guaranteeing seamless color mixing for captivating displays. Enhance your lighting setup further with optional magnetic filters, offering a range of circular and elliptical beam angles, along with a smoked clear filter tailored for impeccable camera applications.

NEO boasts a CRI and TLCI of up to 85, ensuring accurate color reproduction that breathes life into your surroundings. Four controllable segments provide unparalleled customization, empowering you to tailor your lighting to suit any scenario.

Built to withstand the elements, NEO has a certified IP65 rating, making it suitable for both indoor and outdoor use. The additional DC input allows for easy connection to standardized battery packs, transforming the fixture into a mobile powerhouse for on-the-go lighting needs.

Features

  • 24 x 40W RGBL LED´s create enormous 38.525lx @ 5m (5600K calibrated)
  • The specially developed 8° TIR lens enables high illuminance even at long distances and guarantees homogeneous color mixing
  • Optional magnetic filters enable various circular and elliptical beam angles, as well as a smoked clear filter for perfect camera applications
  • CRI & TLCI of up to 85 over the entire color range
  • Four controllable segments
  • IP65 rated for Indoor & Outdoor use
  • Integrated CRMX transceiver and Bluetooth module for wireless DMX setup according to industry standard and direct control via ROXX app
  • Integrated Near Field Communication (NFC) enables addressing and configuration of fixtures wirelessly and even when fixture power is not present.
  • The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high ambient temperatures
  • Linear CTC control from 2000K – 10.000K
  • User-friendly 2” TFT display with backlighted buttons, and direct access for dimmer, CCT, gels, App control und CRMX functions
  • Integrated handles on head and Yoke allow the device to be carried comfortably
  • Multiple mounting locations for creative rigging options & floor mount
  • 16-bit dimming control for smooth, perfect fades
  • Adjustable PWM frequencies up to 25kHz guarantee flicker-free camera operation

Available Accessories

  • Omega Bracket ST
  • 8-Way Barndoor
  • Filterframe
  • Filterframe Smoked Clear
    • 10° very narrow
    • 15° narrow
    • 40° medium
    • 80° wide
    • 60°x10° Horizontal
    • 10°x60° Vertical
  • Casetec Case 4fach
  • Amptown Case 4fach

Please discuss any required accessories with your account handler after you have received your quote.

Additional information

Photometrics

LED expected lifetime: 50.000 hours
Lightsource: 24x 40W RGBL
Type of optical system: TIR lens
LED PWM Frequency: selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz
Beam angles @ Full (50%): 8° (native)
Maximum Field angles @ Full (10%): 15° (native)
Color temperature range: 2000-10.000K
CRI/Ra @ 5600K: 85
TLCI @ 5600K: 85
Luminous flux @ Full (RAW): 27.225 lm (918W)
Luminous flux @ 5600K (Normal CRI): 26.183 lm (721,5W)
Luminous flux @ 5600K (High CRI): 16.627 lm (389,4W)
illuminance Lux @ 5m / 16,4ft (@ Full): 38.525 lx / 3579 fcd
illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI): 36.865 lx/ 3425 fcd
illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI): 23.124 lx / 2148 fcd
Efficancy @ Full (max): 29,7 lm/W
Dimensions & Weight

IP class: IP 65
IK class: IK08
Body material: Aluminum, Nylon
Lens material: Tempered glass front
Net dimensions: 545 x 340 x 210 mm
(w x h x d):
Net dimensions: 21,46 x 13,39 x 8,27 inches
inches (w x h x d):
Net weight: 15,4kg / 33,95 lbs
(including Yoke):
Tilt: 220°
Tilt Locking System: Locking system including angle indicator
Electrical Data

AC Power, max: 90 – 285V 50/60Hz
AC Power, nominal: 100 – 240V 50/60Hz
Electrical protection: Overload protection with automatic recover
Max. power consumption: 988W
Standby Power: 11,2W
Power Thru max. @ 100V: 2A (ETL) / 5A
Power Thru max. @ 230V: 7A (ETL) / 10A
Power Linking: 1 unit @ 230V / 0 units @ 100V
Power Factor: PF 0.993@ 100V / PF 0.977@ 230V
Power Supply Unit: Inbuilt auto-ranging electronic switch-mode
DC Power In: 24-34V
Operation & Controller

DMX channels: 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 19CH RGB, 23CH RGB, 4CH DIRECT, 9CH DIRECT, 21CH DIRECT, 26CH DIRECT, 17CH HSI, 16CH PURE, 29CH PURE, 28CH FULL ACCESS, 44CH FULL ACCESS
DMX modes: 15
Protocol: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
: USITT DMX512A
: RDM ANSI E1.20
: Bluetooth Low Energy (BLE)

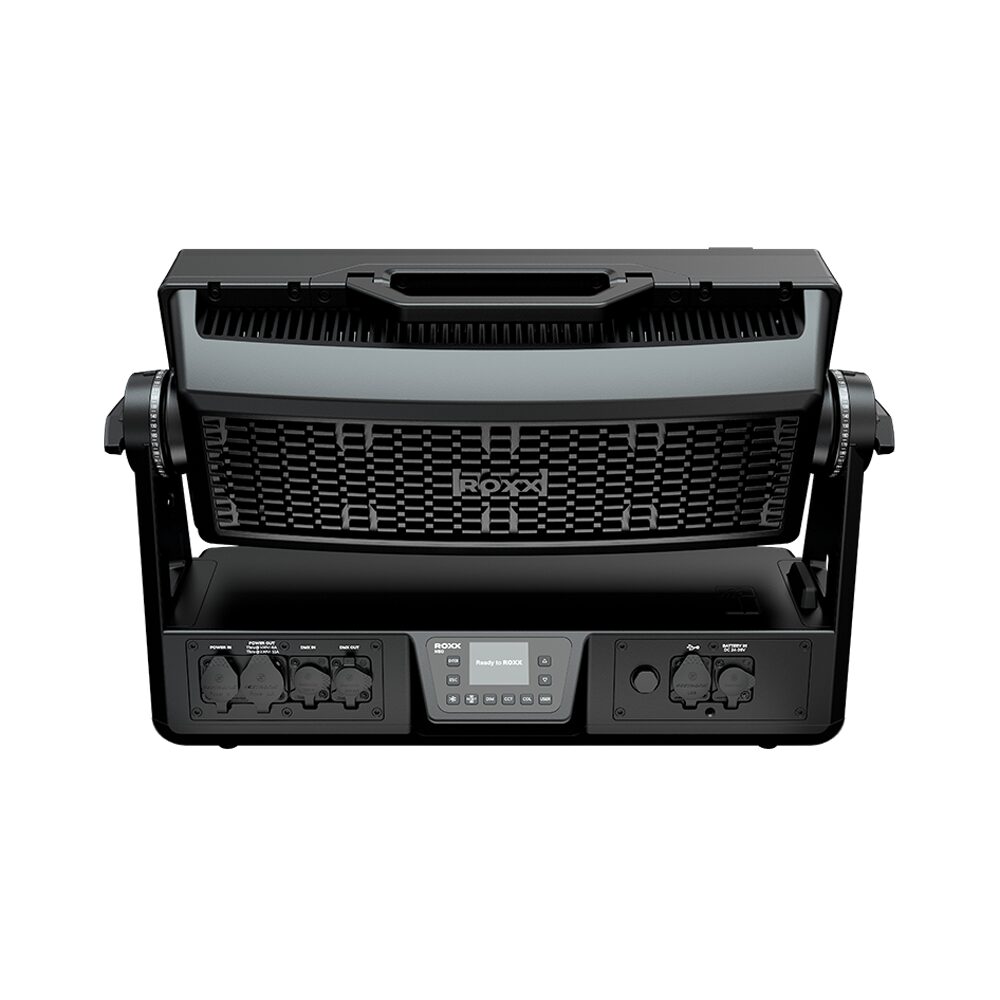

Setting and addressing: 2.0″ TFTdisplay / 10 controls
: Near Field Control (NFC)
: RDM ANSI E1.20
Standalone mode: Auto Program, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX: Lumen Radio transmitt & receive function (CRMX)
indicator: 2.0″ TFT display
controls: 10 backlighted controls
Strobe: 0-30Hz
DMX I/O: IP65 XLR 5-pin male/female
Power I/O: TRUE1 compatible input & link-thru sockets
USB Firmware Update: IP65 USB socket
Installation

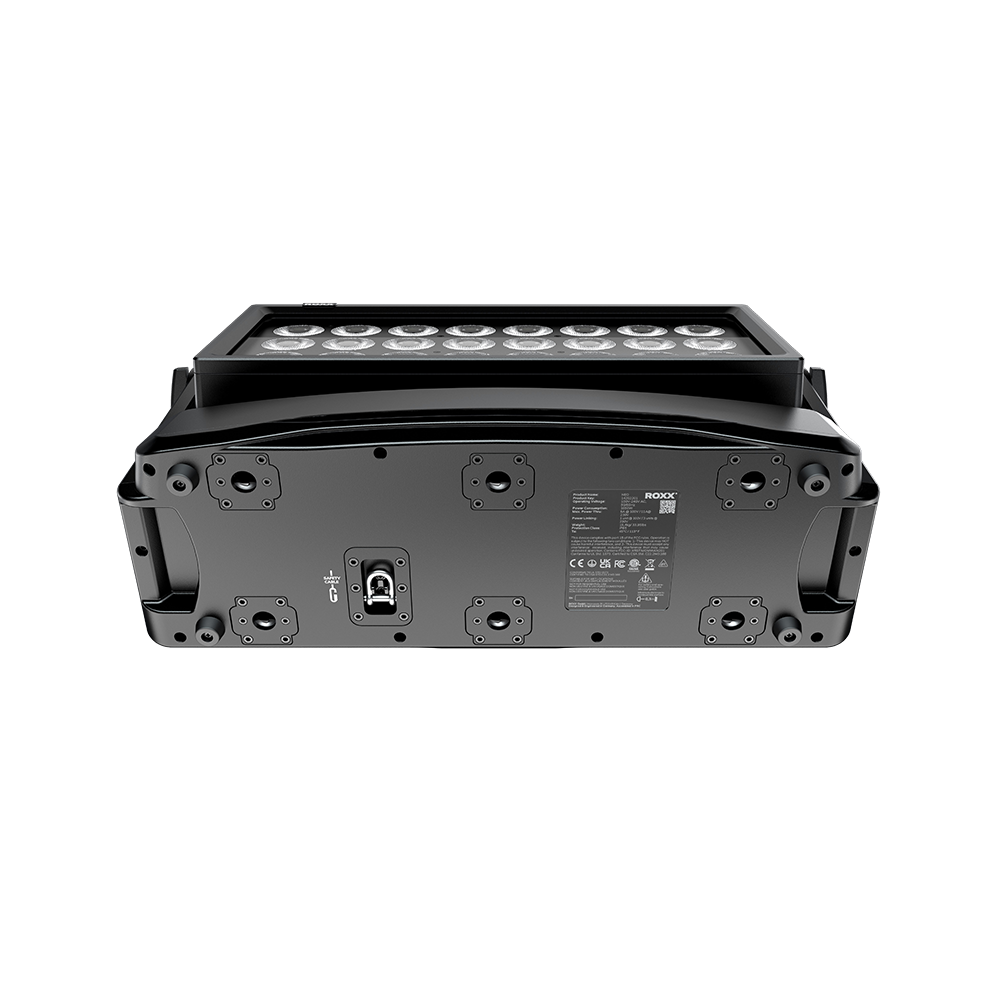

Mounting point on fixture bottom side: 3x 1/4 turn Omega Bracket

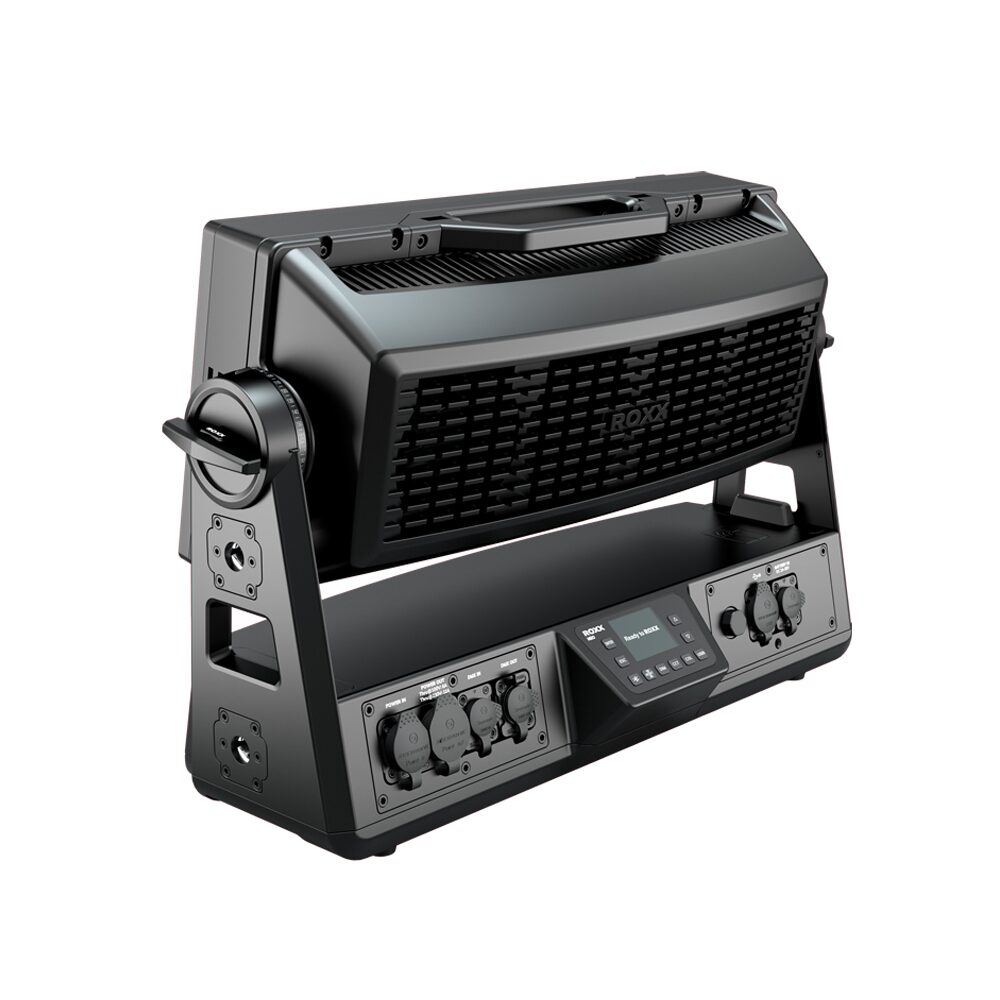

Mounting point on fixture Yoke side: 1x 1/4 turn Omega Bracket
Orientation: Any
Rigging possibilities: hanging direct
Safety features: 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires
Minimum distance from flammable materials: 0,3 meters (11,8 inch)
Thermal Characteristics

Cooling: Active, Forced Air, Temperature-regulated
Humidity (max.): 0.95
Temperature range, Operating: -40°C to 45°C
Temperature range, Start-up: -20°C to 45°C
Temperature range, Storage: -40°C to 80°C
Thermal Protection: Automatic overtemperature protection
Included / Optional

Included items: 2 m power cable
Optional Accessories: Multiple magnetic filters (circular / elliptical, smoked-clear), 8-Way Barndoor, Omega Bracket ST
Color options: Black – RAL 9004 (Standard)
Conformity

CE – 2014/30/EU: EMC Directive
EN 55103-2
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
CE – 2014/35/EU: Low Voltage Directive
EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive
2011/65/EU
ETL C/US
FCC
UKCA
