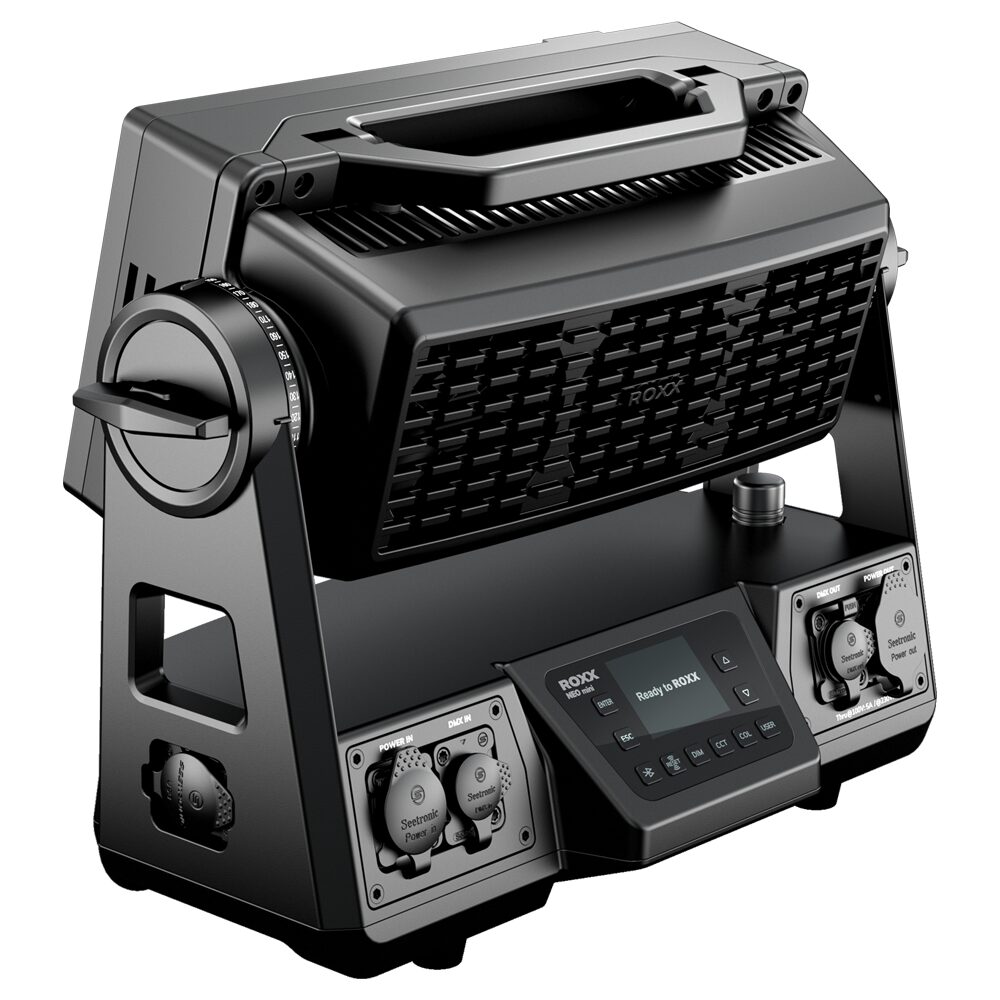

Roxx - NEO mini Front right compact high output wash pannelRoxx - NEO mini Front right compact high output wash pannel

Roxx – NEO mini

Roxx

The NEO mini delivers over 20,000lm from 10x60W RGBL LEDs in a lightweight 7.7kg IP65 housing. Features wireless CRMX, NFC setup, high CRI, and optional filters for versatile indoor/outdoor use.

SKU: ROX14201001 Categories: , , ,

Description

NEO mini is a very compact but powerful IP65 rated washlight with 10x60W RGBL LEDs, it delivers impressive brightness equivalent to industry standards.

Weighing just 7.7kg, it delivers more than 20.000lm, flexible and time-saving control options and is the perfect choice for a wide range of applications.

The CRI/Ra value of up to 85 ensures accurate color reproduction and the specially developed 8° TIR lens enables high illuminance even at long distances.

From live events, exhibitions to TV productions, it’s used in applications where space and weight are an issue, without compromising light output or quality.

Incredible output while lightweight

10x60W LED’s deliver more than 20.000lm, while the device itself remains compact and weighs just 7.7 kg.

Copper heat pipe cooling system

The specially developed copper heat pipe cooling system guarantees stable luminous intensity even at high temperatures.

High CRI and TLCI

High CRI & TLCI of up to 85 for accurate color reproduction.

Features

  • 10x60W RGBL LEDs deliver 20.000lm
  • Linear CTC control from 2000K – 10.000K
  • The NEO mini only weighs 7.7kg while delivering the same output as other, much bigger fixtures
  • Optional magnetic filters enable various circular and elliptical beam angles for perfect camera applications
  • High CRI & TLCI of up to 85 for accurate color rendering
  • The specially developed copper heatpipe cooling system guarantees stable luminous intensity even at high ambient temperatures
  • IP65 rated for Indoor & Outdoor use
  • Integrated CRMX transceiver and Bluetooth module for wireless DMX setup according to industry standard and direct control via ROXX app
  • Integrated Near Field Communication (NFC) enables addressing and configuration of fixtures wirelessly and even when fixture power is not present

Available Accessories

  • Omega Bracket ST
  • NEO mini 8-Way Barndoor
  • NEO mini Filterframe
    • 10° very narrow
    • 15° narrow
    • 40° medium
    • 80° wide
    • 60°x10° Horizontal
    • 10°x60° Vertica
  • NEO mini Casetec Case 6 pcs.
  • NEO mini Amptown Case 6 pcs.

Please discuss any required accessories with your account handler after you have received your quote.

Additional information

Photometrics

LED expected lifetime: 50.000 hours
Lightsource: 10x 60W RGBL
Type of optical system: TIR lens
LED PWM Frequency: selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz
Beam angles @ Full (50%): 8° (native)
Maximum Field angles @ Full (10%): 16° (native)
Color temperature range: 2000-10.000K
CRI/Ra @ 5600K: 85
TLCI @ 5600K: 74
Luminous flux @ Full (RAW): 20.681 lm (677,6W)
Luminous flux @ 5600K (Normal CRI): 20.210lm (533,1W)
Luminous flux @ 5600K (High CRI): 14.699lm (299,8 W)
illuminance Lux @ 5m / 16,4ft (@ Full): 22.739lx
illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI): 22.297lx
illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI): 15.863lx
Efficancy @ Full (max): 49 lm/W
Dimensions & Weight

IP class: IP 65
IK class: IK08
Body material: Aluminum, Nylon
Lens material: Tempered glass front
Net dimensions: 367,5 x 261,5 x 174,5 mm
(w x h x d):
Net dimensions: 14,47 x 10,30 x 6,87 inches
inches (w x h x d):
Net weight: 7,7 kg/16,97 lbs
(including Yoke):
Tilt: 220°
Tilt Locking System: Locking system including angle indicator
Electrical Data

AC Power, max: 90 – 285V 50/60Hz
AC Power, nominal: 100 – 240V 50/60Hz
Electrical protection: Overload protection with automatic recover
Max. power consumption: 674W @ 100V / 644W@ 230V
Standby Power: 13,4W
Power Thru max. @ 100V: 5A (ETL) / 8A
Power Thru max. @ 230V: 9A (ETL) / 12A
Power Linking: 3 units @ 230V / 1 unit @ 120V
Power Factor: PF0.996 @ 100V / PF0.979 @ 230V
Power Supply Unit: Inbuilt auto-ranging electronic switch-mode
Operation & Controller

DMX channels: 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 11CH RGB, 15CH RGB, 4CH DIRECT, 8CH DIRECT, 9CH DIRECT, 12CH DIRECT, 17CH DIRECT, 12CH HSI
DMX modes: 12
Protocol: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
: USITT DMX512A
: RDM ANSI E1.20
: Bluetooth Low Energy (BLE)
Setting and addressing: 2.0″ TFTdisplay / 10 controls
: Near Field Control (NFC)
: RDM ANSI E1.20
Standalone mode: Auto Program, Color Macro, Quick Color, Tunable White, User Color
Wireless DMX: Lumen Radio transmitt & receive function (CRMX)
indicator: 2.0″ TFT display
controls: 10 backlighted controls
Strobe: 0-30Hz
DMX I/O: IP65 XLR 5-pin male/female
Power I/O: TRUE1 compatible input & link-thru sockets
USB Firmware Update: IP65 USB socket
Installation

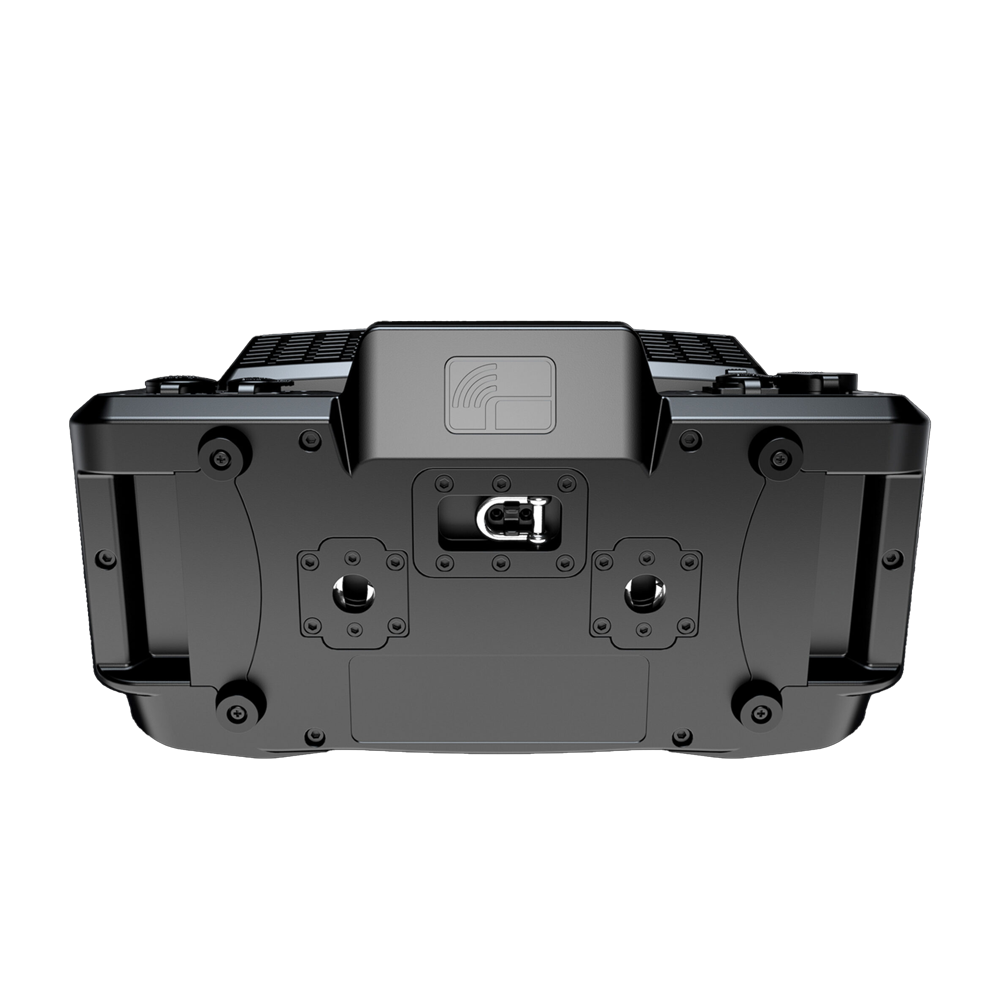

Mounting point on fixture bottom side: 1x 1/4 turn Omega Bracket
Orientation: Any
Rigging possibilities: hanging direct
Safety features: 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires
Minimum distance from flammable materials: 0,3 meters (11,8 inch
Thermal Characteristics

Cooling: Active, Forced Air, Temperature-regulated
Humidity (max.): 0.95
Temperature range, Operating: -40°C to 45°C
Temperature range, Start-up: -20°C to 45°C
Temperature range, Storage: -40°C to 80°C
Thermal Protection: Automatic overtemperature protection
Included / Optional

Included items: 2 m power cable
Optional Accessories: Multiple magnetic filters (circular / elliptical), 8-Way Barndoor, Omega Bracket ST
Color options: Black – RAL 9004 (Standard)
Conformity

CE – 2014/30/EU: EMC Directive
EN 55103-2
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
CE – 2014/35/EU: Low Voltage Directive
EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive
2011/65/EU
ETL C/US
FCC
UKCA
