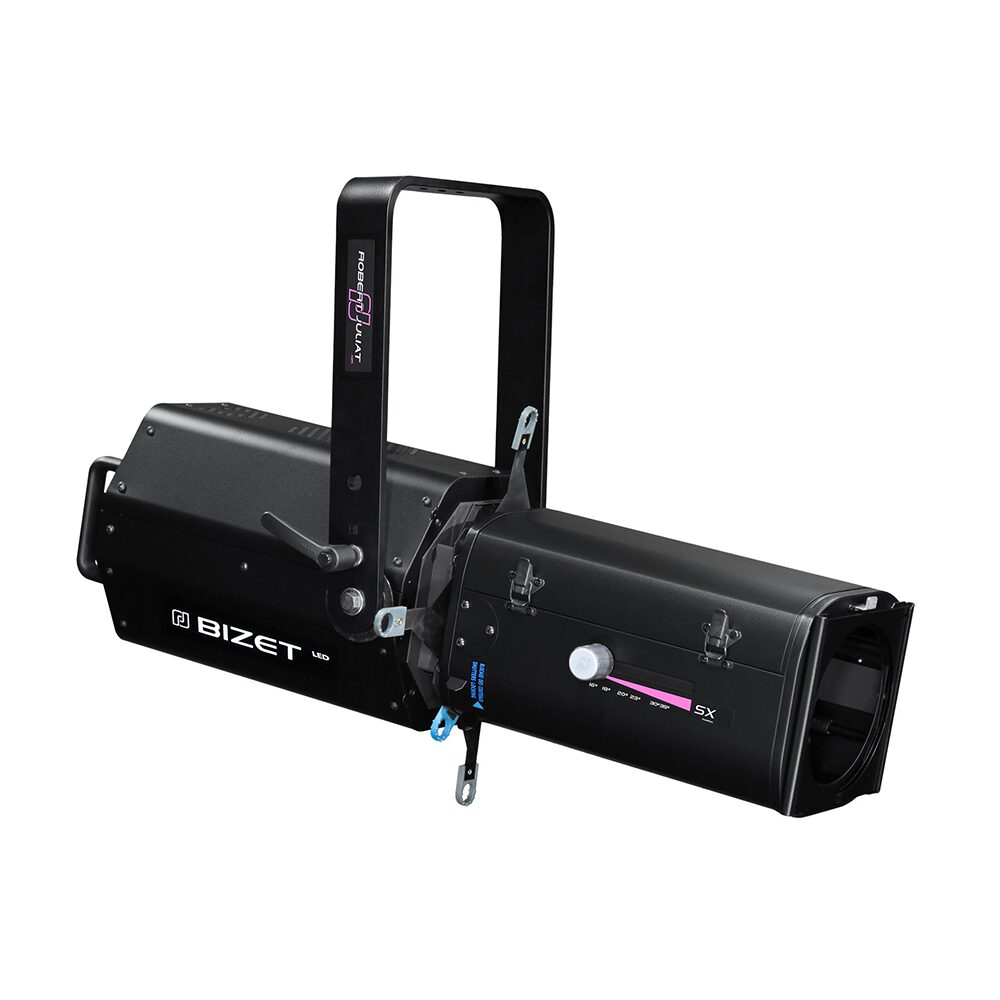

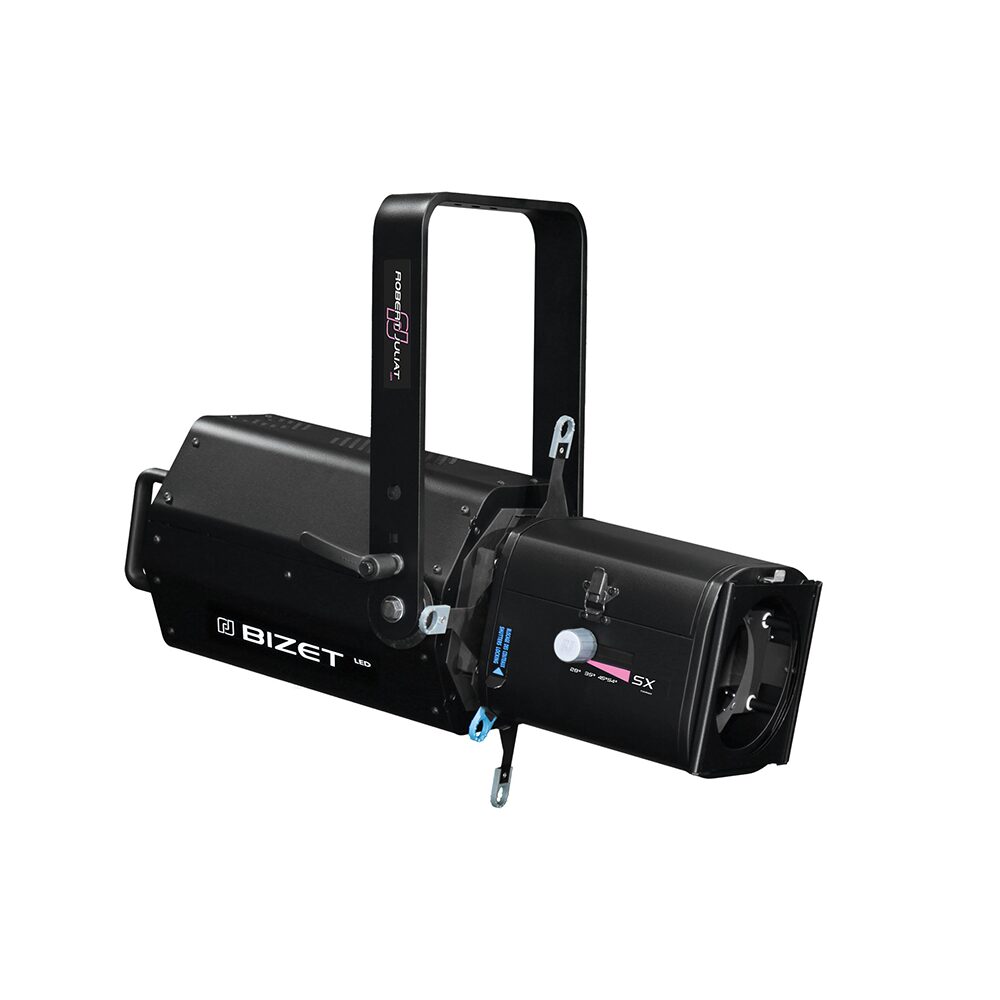

Robert Juliat – BIZET 670SX 500W LED

Robert Juliat

The Bizet 670SX is a powerful 500W tunable white LED profile, delivering output beyond a 2500W halogen with CRI 96–98. Offering color temperatures from 3000K to 6300K, it ensures flawless whites at any setting. Designed for FOH use, it features three zoom ranges, silent operation, and compatibility with SX lens tubes. Control options include DMX, RDM, Art-Net, and sACN, with advanced Ethernet node functions for seamless integration.

SKU: N/A Categories: , , ,
Clear

Description

The Bizet 670SX profile spot is a mighty replacement for the 2000W Halogen profile series, while offering remote adjustment of the colour temperature up to 6300K (with an output exceeding a 2500W profile spot with colour correction).

It features a 500W tunable white LED source which is used at full power whatever the colour temperature chosen, guarantying high quality whites (CRI of 96-98 and TM30 Rf of 94-96).

The lamp house new design makes it compatible with Robert Juliat 600SX and 700SX Series profile lens tubes.

It is ideal for all long-throw front of house applications in medium to large venues.

Features

  • Tunable White from 3000 to 6300 Kelvin
  • Built-in electronic flicker-free PS
  • 3 variable zoom options: 28°-54°, 16°-35° and 11°-26°
  • Silent operation
  • Compatible with DMX, RDM, Art-Net, sACN protocols
  • Advanced Ethernet node functionalities (compatible with RDM, LLRP, Zeroconf protocols)
  • Display and keyboard for local setup
  • Lamp house available for upgrade of existing tungsten fixtures (611SX, 613SX, 614SX, 713SX and 714SX)

Additional information

Source

VW Models:
Lamp type: LED
Power: 500 W
CW Models:
Lamp type: LED
Power: 600 W
Optics

VW Models:
Type: Zoom
Range: 28° to 54° (Field angle) – Focal length: 86 – 160 mm
Range: 16° to 35° (Field angle) – Focal length: 131 – 268 mm
Range: 11° to 26° (Field angle) – Focal length: 197 – 415 mm

CW Models:
Type: Zoom
Range: 28° to 54° (Field angle) – Focal length: 86 – 160 mm
Range: 16° to 35° (Field angle) – Focal length: 131 – 268 mm
Range: 11° to 26° (Field angle) – Focal length: 197 – 415 mm
Gel filter

All Models:
Shape: Square
Standard size: 180×180 mm (7.1×7.1 in)
Optional size: 185×185 mm (7.3×7.3 in)
Gobo

Size: A
Material: Metal, Glass
Photometrics

See Data Sheets
Remote control

All Models:
Data protocol: USITT DMX512-A RDM/Art-Net/sACN
Data IN connector: 5 pins XLR male + etherCON RJ45
Data OUT connector: 5 pins XLR female
Construction

VW Models:
Housing: Steel sheet – Aluminium
Colour: Black
Cooling: Low noise variable fan
Maximum ambient temperature (Ta): 40°C (104°F)
Maximum case temperature (Tc): 90°C (194°F)
Total heat dissipation: 2 017 BTU/h
Ingress Protection (IP) rating: IP20

CW Model:
Housing: Steel sheet – Aluminium
Colour: Black
Cooling: Low noise variable fan
Maximum ambient temperature (Ta): 40°C (104°F)
Maximum case temperature (Tc): 98°C (208.4°F)
Total heat dissipation: 2 406 BTU/h
Ingress Protection (IP) rating: IP20
Power input

Type: removable power cord with compatible powerCON® TRUE1 connector (included)
Cable: H07RNF 3G1.5
Length: 3 m (9.8 ft)
Power connector: CEE 7/7 (2P+E NF/Schuko)
Power Supply Unit

VW Models:
PSU: Internal – Electronic PSU – Flicker free with PFC
Control: Local / DMX
Protection: Mains: 2x 10A 1P1D breaker – UL /
Power thru: compatible powerCON® TRUE1 – Maximum of 5 units (230 V) / 2 units (120 V)

CW Model:
PSU: Internal – Electronic PSU – Flicker free with PFC
Control: Local / DMX
Protection: Mains: 2x 10A 1P1D breaker – UL /

Downloads

Data Sheet Bizet 673SX VW Download
Data Sheet Bizet 674SX VW Download
Data Sheet Bizet 671SX VW Download
Data Sheet Bizet 673SX CW Download
Data Sheet Bizet 674SX CW Download
Data Sheet Bizet 671SX CW Download
