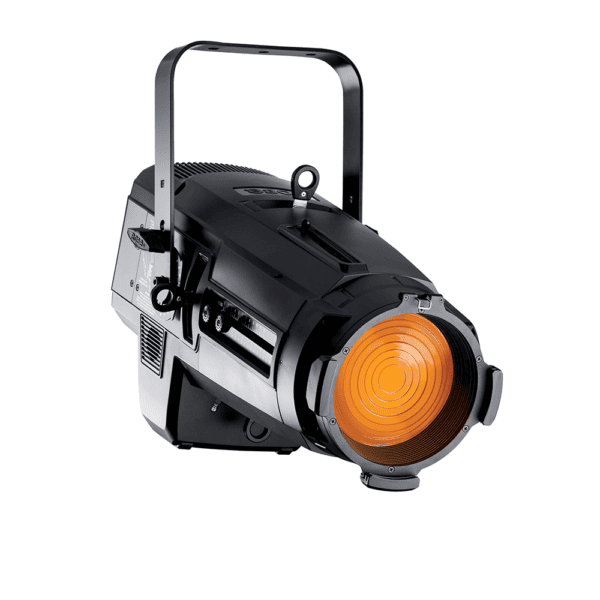

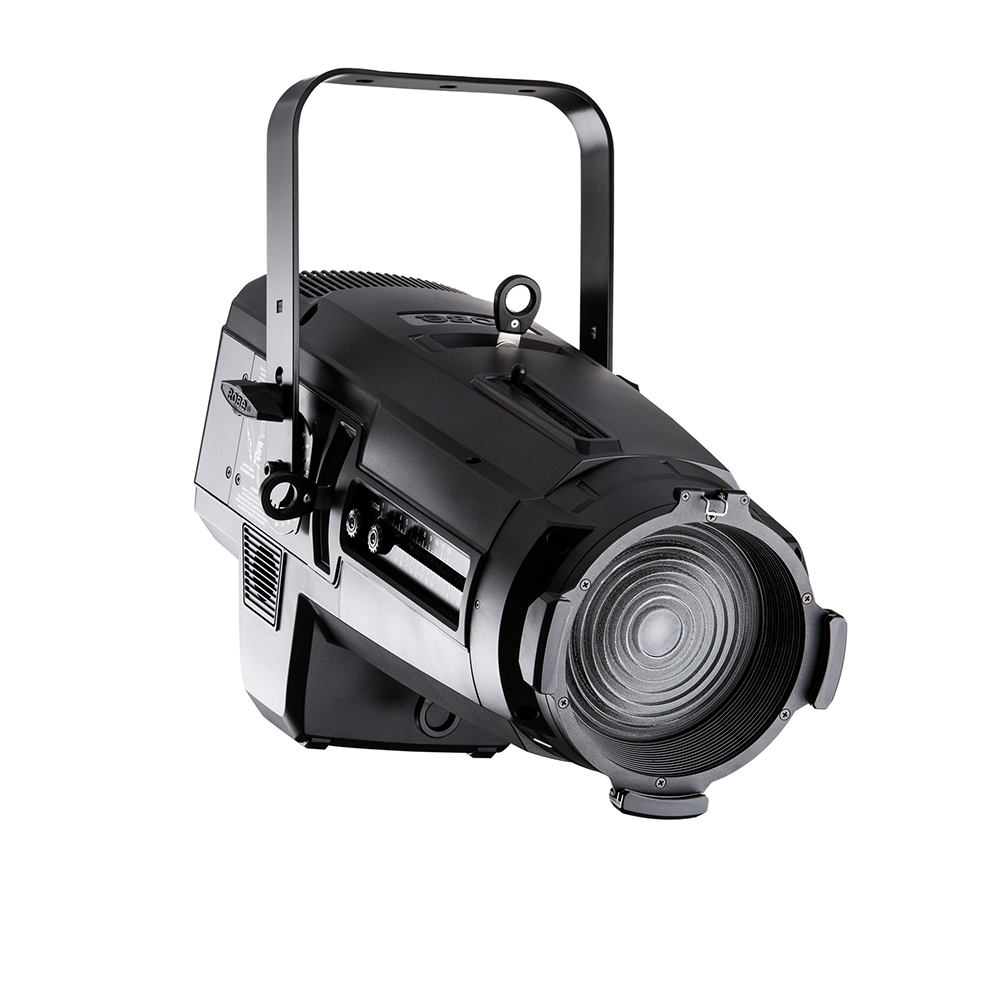

Robe – T11 Fresnel

Robe

The unique T11 Fresnel™ delivers both superb performance and total generic flexibility!

Features

  • Light source TE™ 350W Multi-Spectral LED engine
  • Light output 10.085 lm, CRI 95+, + – Green Correction Function, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K up to 25.000Hz
  • Zoom range manual 5°- 60°
  • Effects Manual internal barndoors, Frost
SKU: ROB10028101 Categories: , , ,

Description

Building on the superb MSL™ (Multi-Spectral Light) colour concept, and innovative TE™ technology, our static T11 Fresnel™ maintains the exceptional colour finesse of the phenomenally successful T-Series. With a fast, interchangeable front lens system, the T11 Fresnel™ offers absolute, cost-effective flexibility while delivering superb optical quality.

With the MSL-TE™ 350W LED Engine generating over 10.085 lm from the Fresnel fixture and all the advantages of cost, exchange or replacement, this LED technology provides identical colour characteristics, responses, and control of T-Series luminaires, giving absolute colour consistency across your Robe lighting installation.

A virtually controlled CCT range of 2.700K to 8.000K (extended range 1.800K – 10.000K), calibrated whites, and tungsten emulation gives precise control, while we ensure skin tones are perfectly rendered due to T11’s high TLCI and TM30-18 ratings and exceptional CRI of 95+.

Capitalizing on the benefits of TRANSFERABLE ENGINES to address the need for task-specific LED solutions, we introduce two additional TRANSFERABLE ENGINE options. The TE™ 350 LED DL (Daylight) White 6.000 K engine boasts a CRI of 97 and yields over 5.700 lm, while the TE™ 350 LED TGW (Tungsten White) White 3.200 K engine delivers over 4.500 lm with a CRI of 97, as measured in an integrating sphere.

High-definition optics deliver the classically soft Fresnel style beam, with a wide-ranging 5-60° zoom range.

Our innovative manual shuttering system, functioning as an internal barn door, is both accurate and easy to use. Fitted in the fixture is a manual 1° MagFrost™ for instant softening, with a 5° MagFrost™ stored on the magnetic holder within the fixture. Other optional frosts are available.

The unobtrusive T11 Fresnel is specifically designed to operate in any noise-sensitive environment, with TV studio use enhanced via Cpulse™ flicker-free software and a dedicated plus and minus green channel control.

Utilizing the rapid-change front lens system, the T11 Fresnel™ quickly transforms into a Profile or PC fixture for total luminaire flexibility without the cost of separate generic purchases.

Video

T11 Product Video Teaser

T11. The three into one generic solution.

Additional information

Source

Light source type: MSL-TE™ 350W LED Engine (Patented)

LED Engine output: 16.700 lm

Colour rendition:

CRI: 95, CRI R9: 96, TM30-18 Rf: 92, TM30-18 Rg: 106, TLCI: 91
LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 40.000 hours

Light source warranty: 4 years or 50.000 hours
Optical system

Robe’s proprietary optical design

Profile zoom lens system

High-efficiency manual zoom: ratio 12:1

Zoom range: 5° – 60°

Fixture total lumen output:

10.085 lm (integrating sphere)
8.032 lm (goniophotometer)
Optional Profile zoom lens system

Output lens diameter: 160 mm
Main features

Colour mixing: CMY/RGB or RGBAL

White light: Variable CCT standard range 2.700K – 8.000K, extended range 1.800K – 10.000K

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

+ – Green correction function

Adjustable CRI: from 80 to 95+

Manual framing shutters: framing shutters module with 4 individually positionable blades

MagFrost™ – magnetic paddle fast change system providing exchangeable frost containing as standard a medium 5° for even wash

Manual zoom and focus

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 – 100%

L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Dimmer profile selection: Linear, Square law, Super Square law

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K up to 25.000Hz

Extremely quiet operation suitable for all types of production in Theatre and TV

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
Control and programming

Setting & Addressing: two-row LCD display & 4 control buttons

Protocols:

USITT DMX-512, RDM
ArtNet, MA Net, MA Net2, sACN
REAP™ – Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio – on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity – on request DMX Protocol modes: 8

Control channels: 18, 9, 22, 6, 1, 24, 13, 28

Variable CCT: 8 bit

+ – Green correction: 8 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Dimmer: 8 or 16 bit (internal 18 bit)
Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 90 °C (194 °F)

Minimum operating temperature: -5 °C (23 °F)

Total heat dissipation: max. 1125 BTU/h (calculated)

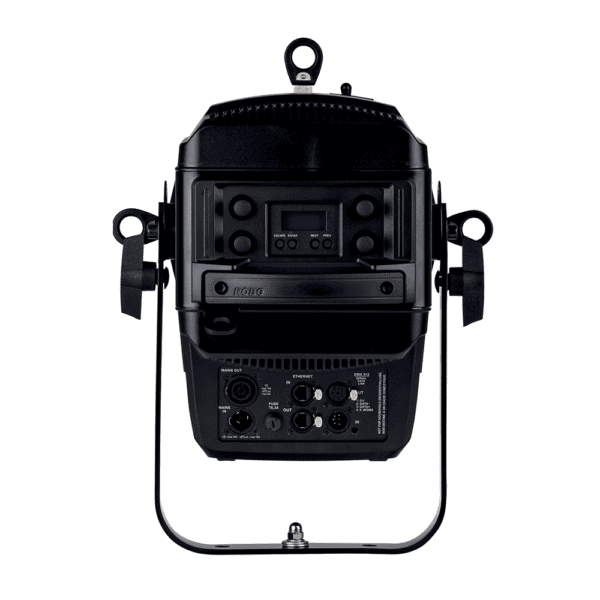

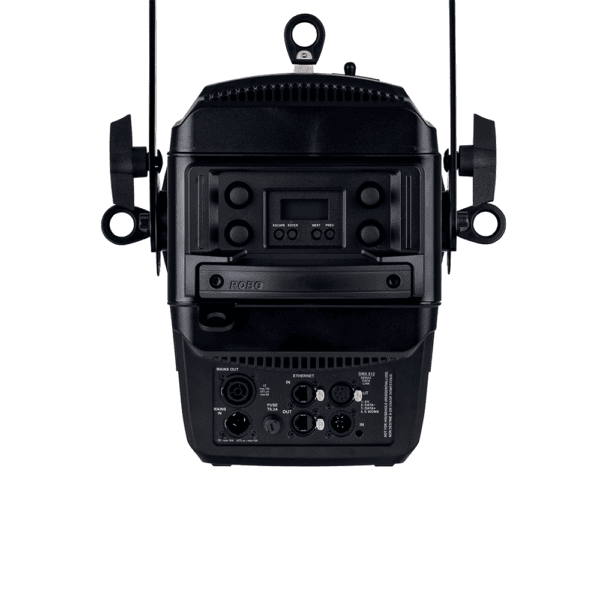

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: Max. 420 W

Power connector in/out: Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: Locking 5-pin XLR

Ethernet port in: RJ45

Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps – on request
Approvals

CE Compliant
cETLus Compliant
Environmental Information

Global Warming Potential: 379 kg CO2e
Mechanical specification

Height: 493 mm (19.4")
Width: 385 mm (15.15")
Depth: 653 mm (25.7")
Weight: 14.5 kg (31.5 lbs)
Ingress protection rating: IP20
Rigging

Mounting horizontally or vertically via mounting yoke

Mounting points: M12 bolt

Safety cable attachment point
Included items

User Manual

Gel frame adaptor

Frost 1° (exchange) assembled: 10980578

Frost 5° (exchange) assembled: 10980573
Optional accessories

T11/T15 TE™ 350W Multi-Spectral LED Engine: 14080070

T11/T15 TE™ 350W TGW White LED Engine: 14080090

T11/T15 TE™ 350W DL White LED Engine: 14080089

T11/T15 TE™ 350W TW White LED Engine: 14080094

Doughty Trigger Clamp: 17030386

Wireless DMX external module: 10980127

Safety wire 36 kg: 99011963

T11 PC lens module: 10980645

T11 Profile lens module: 10980647

T11 Incline Adaptor: 10980853

Pole operated yoke: 10980667

T11/T15 Mounting bracket – short: 10980886

T11/T15 Mounting bracket – short B: 10981134

Floor stand: 10981014

Frost 0.5° (exchange) assembled: 10980583

Frost 3.5° (exchange) assembled: 10980668 Frost 10° (exchange) assembled: 10980497

Frost 20° (exchange) assembled: 10980574

Frost 30° (exchange) assembled: 10980584

Gobo Holder R size: 10980655

Rotating Gobo Holder R size: 10981237

Drop-in gobo and iris module: 10980649

Hot-spot lens: 10980666

Gel frame: 10980372

Barndoor module: 10980349

Top Hat 50° T11/TX1 black: 10980768

Top Hat 30° T11 black: 10980701

Half Top Hat 30° T11 black: 10980764

T11 SoftBox Adaptor : 10980751

T11 Cyc/Flood Light Module: 10980769

Upgrade kit EPASS T11/T15: 99030428

Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405

Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445

Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Single Top Loader Case: 10120279

Single Top Loader Trolley case: 10120281

Dual Top Loader Case: 10120282

Foam Shell: 20020425
Legal

T11 Fresnel™ is a Trademark of Robe lighting s. r. o.

T11 Fresnel™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
