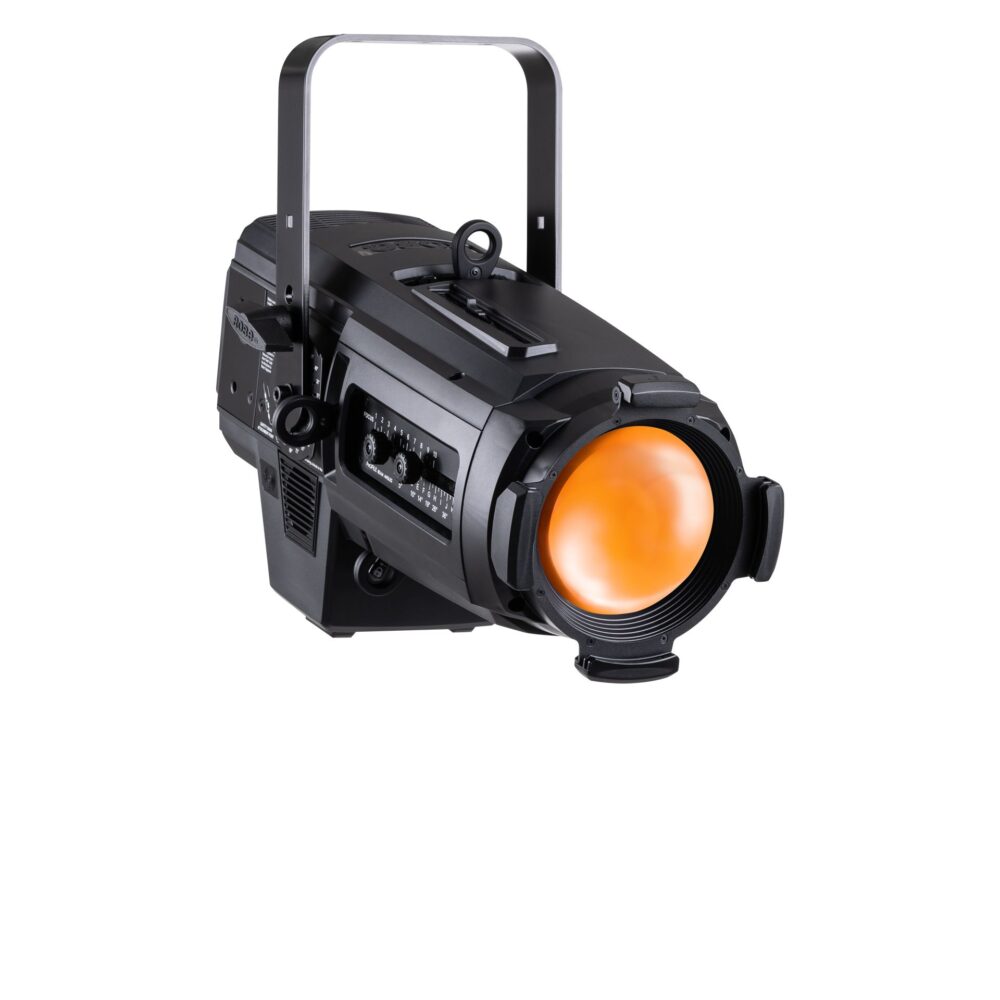

Robe-T10-PC-Front-RightRobe-T10-PC-Front-Right

Robe – T10 PC™

Robe

Offering a more compact design for smaller theatres and studios, the T10 PC™ retains all the features, smooth softer beam and benefits of our larger T11 PC™ to deliver both superb performance and total generic flexibility!

Features

  • Light source: MSL-TE™ 200W LED Engine (Patented)
  • Light output: 7.400 lm (integrating sphere), 5.900 lm (goniophotometer)
  • Zoom range: 4.5°-55°
  • Effects: manual internal barndoors, frost
Categories: , , ,

Description

The T10 PC™ uses the MSL™ (Multi-Spectral Light) additive colour mixing concept combined with innovative TE™ technology to maintain the exceptional colour finesse of the T-Series.

With the MSL-TE™ 200W LED Engine generating over 10.500 lm and all the advantages of cost, exchange or replacement, this LED technology provides identical colour characteristics, responses, and control of T-Series luminaires, giving absolute colour consistency across your Robe lighting installation.

A virtually controlled CCT range of 2.700K to 8.000K (extended range 1.800K – 10.000K), calibrated whites, and tungsten emulation gives precise control.

The virtually controlled CRI of 80-95+ delivers perfect colour rendition and flawless skin tones. For fast programming there is an onboard virtual DataSwatch™ colour library.

TRANSFERABLE ENGINE flexibility addresses the need for task-specific LED solutions, with three other TRANSFERABLE ENGINE options available – TE™ 200W LED DL (Daylight) White 6.000K; TE™ 200W LED TGW (Tungsten White) White 3.200K; TE™ 200W LED TW (Tuneable White) White 3.200 – 5.600K.

High-definition optics deliver precise projection, beam control, and an extreme, wide-ranging 4.5° – 55° zoom range, from its single, integral lens tube, without the need for additional lens tubes.

Our innovative, captive shutter system allows wide ranging blade adjustment which can be locked firmly in place. The T10 PC™ contains a manual 1° MagFrost™ for instant softening, with a swappable 5° MagFrost™ stored on the magnetic holder within the fixture. Other optional frosts are available.

The unobtrusive T10 PC™ is specifically designed to operate in noise-sensitive environments, with TV studio use enhanced via Cpulse™ flicker-free software and a dedicated plus/minus green control channel. All fixture controls are available in standalone mode via the rear display and control knobs.

Utilizing the rapid-change front lens system, the T10 PC™ quickly transforms into a Fresnel or Profile, giving total luminaire flexibility without the cost of separate generic purchases.

Video

T10 Product video

Offering a more compact design for smaller theatres and studios, the T10 Series retains all the features and benefits of our larger award winning T11 Profile™ to deliver both superb performance and total generic flexibility!

Additional information

Source

Light source type: MSL-TE™ 200W LED Engine (Patented)

LED Engine output: 10.500 lm

LED life expectancy: min. 50.000 hours

Colour rendition: CRI: 95, CRI R9: 96, TM30-18 Rf: 92, TM30-18 Rg: 106, TLCI: 91

Typical lumen maintenance: L70/B50 @ 40.000 hours

Light source warranty: 4 years or 50.000 hours
Optical system

Robe’s proprietary optical design

Profile zoom lens system

High-efficiency manual zoom: High definition optics: ratio 12:1

Zoom range: 4.5° – 55°

Fixture total lumen output:

7.400 lm (integrating sphere)
5.900 lm (goniophotometer)
Optional Profile and Fresnel zoom lens systems

Output lens diameter
Main features

Colour mixing: CMY/RGB or RGBAL

White light: Variable CCT standard range 2.700K – 8.000K, extended range 1.800K – 10.000K

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

+ – Green correction function

Adjustable CRI: 80 – 95+

Manual framing shutters: framing shutters module with 4 individually positionable blades

Optional drop-in gobo module: motorised iris, 2 rotating and 3 static gobos

Optional drop-in manual iris module

MagFrost™ – magnetic paddle fast change system providing exchangeable frost containing as standard a light 1° for instant softening of the framing shutters or projected gobo

FIRM™ – (Frost Insert Ring Mechanism) achieving perfect diffusion is as simple as turning the onboard, flush-mounted wheel

Manual zoom and focus

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 – 100%

L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Dimmer profile selection: Linear, Square law, Super Square law

Extremely quiet operation suitable for all types of production in Theatre and TV

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K up to 25.000Hz

ECHO2™ – (Enhanced Colour Homogenisation and Output) technology. This patented solution dramatically increases lumens per watt performance and ensures flawless white and colour homogenisation, removing tint inconsistencies, colour spots, and fringing to deliver pure, consistent light every time
Control and programming

Setting & Addressing:

two-row LCD display & 4 control buttons
NFC app controller
Protocols:

USITT DMX-512, RDM
ArtNet, MA Net, MA Net2, sACN
REAP™ – Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio – on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity – on request

DMX Protocol modes: 8

Control channels: 18, 9, 22, 5, 1, 24, 13, 28

Variable CCT: 8 bit

+ – Green correction: 8 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Dimmer: 8 or 16 bit (internal 18 bit)
Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 90 °C (194 °F)

Minimum operating temperature: -5 °C (23 °F)
Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: Max. 275 W

Power connector in/out: Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: Locking 5-pin XLR

Ethernet port in: RJ45

Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps – on request
Approvals

CE Compliant

cETLus Compliant
Mechanical specification

Height: 416 mm

Width: 311 mm

Depth: 555 mm

Weight 9.9 kg (21.8 lbs)

Ingress protection rating: IP20
Rigging

Mounting horizontally or vertically via mounting yoke

Mounting points: M12 bolt

Safety cable attachment point
Included items

User Manual

Gel frame adaptor

Frost 1° (exchange) assembled

Frost 5° (exchange) assembled
Optional accessories

T10 TE™ 200W Multi-Spectral LED Engine: 14080107

T10 TE™ 200W TGW White LED Engine

T10 TE™ 200W DL White LED Engine

T10 TE™ 200W TW White LED Engine

Doughty Trigger Clamp: 17030386

T10 Profile lens module: 10981425

T10 Fresnel lens module: 10981406

Wireless DMX external module: 10980127

Safety wire 36 kg: 99011963

Incline Adaptor

Pole operated yoke: 10981411

Mounting bracket T11/T15 – short

Drop-in manual Iris

Iris lever extension: 10980889

Floor stand: 10981014

Frost 0.5° (exchange) assembled: 10981149

Frost 3.5° (exchange) assembled: 10981523

Frost 10° (exchange) assembled: 10981152

Frost 20° (exchange) assembled: 10981153

Frost 30° (exchange) assembled: 10981154

Drop-in gobo and iris module: 10981412

Hot-spot lens: 10980666

Gel frame: 10981408

Barndoor module: 10981409

Top Hat 55°: 10981410

Top Hat 30°

Half Top Hat

Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405

Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445

Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Single Top Loader Case: 10120388

Single Top Loader Trolley case: 10120389

Dual Top Loader Case: 10120390

Quad Top Loader Case: 10120403

Foam Shell: 20020536
Legal

T10 PC™ is a Trademark of Robe lighting s. r. o.

T10 PC™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
