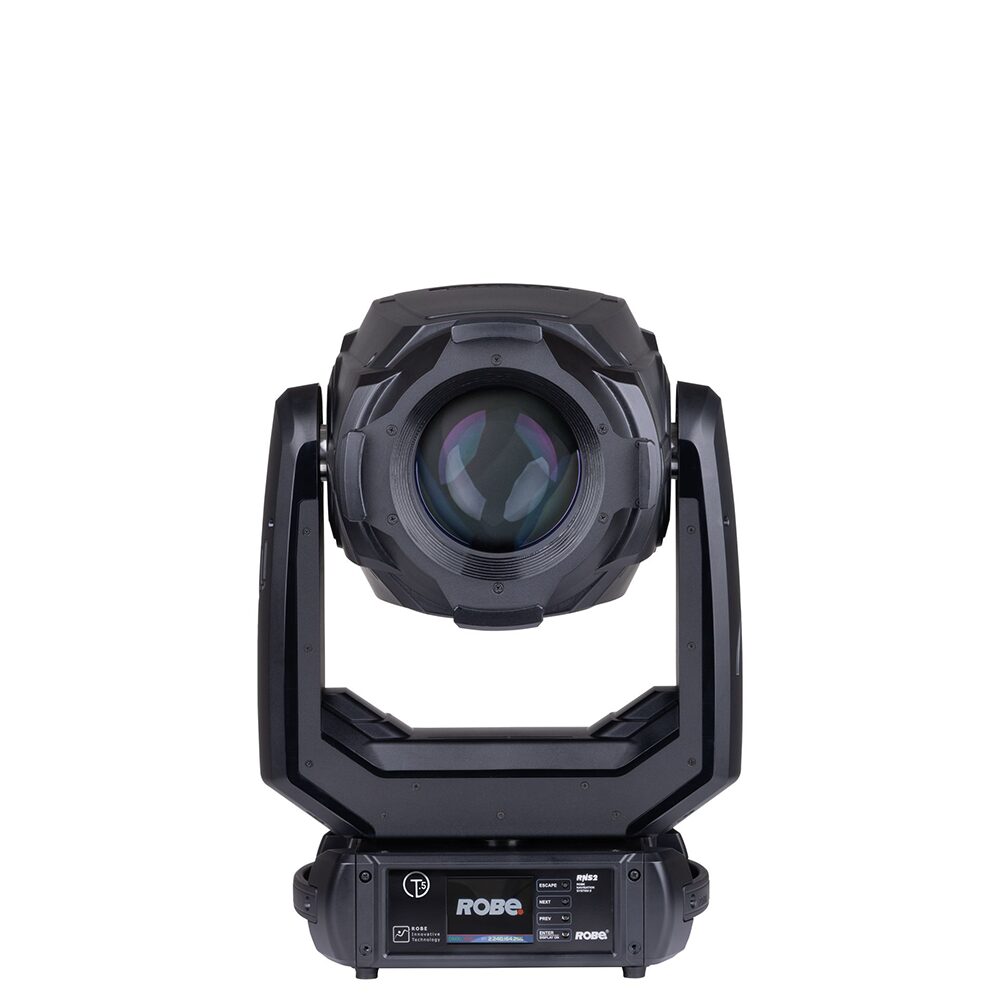

Robe - T.5 Profile™ Front rightRobe - T.5 Profile™ Front right

Robe – T.5 Profile™

Robe

Can a classic be miniaturized without compromising performance? Introducing the T.5 Profile™ — the latest member of the Robe T-Series, offering all the features loved by theatre and broadcast professionals in a more compact form.

Features

  • Light source MSL™ 350W Multi-Spectral LED engine (Patented)
  • Light output up to 7.000 lm
  • Zoom range 5° – 55°
  • Effects CMY/RGB or RGBAL colour mixing, Full curtain framing shutters, Rotating gobo wheel, Iris, Animation wheel, Prism, Two frosts, Motorised zoom and focus
Categories: , , ,

Description

In response to high demand for a smaller version of the renowned T1 Profile™, the T.5 Profile™ delivers the same top-tier performance, from advanced controls to its powerful, nuanced output.

Powered by a 350W MSL™ Multi-Spectral light source, the T.5 Profile™ delivers rich, precise colour with an impressive 10.500 lm output and a seamless CCT range of 2.700-8.000K. You’ll also enjoy virtual CRI control (80-95) and linear green content adjustment, giving you total control over every shade.

Beam control is razor-sharp thanks to our patented Plano4 FC™ system, featuring four independent shutter planes and 120-degree module rotation. Each blade offers full curtain ability, providing precision and increased flexibility.

Despite its smaller size, the T.5 is packed with familiar features, including a 5°-55° zoom range for shorter throws, a rotatable and indexable gobo wheel with replaceable gobos, iris, animation wheel, and interchangeable MagFrost™ filters for visual effects. The multi-6-facet prism further enhances dynamic imagery.

Designed for the most noise-sensitive environments, the T.5 incorporates innovative noise-reduction technology, comprehensive fan control, and our Robe AirLOC™ system, which keeps key components cool while reducing surface airflow noise and minimizing the need for frequent optical cleaning.

Technologies like Cpulse™ flicker-free management, EMS™ stabilization, and onboard RCC™ colour calibration ensure flawless performance, whether in the spotlight or on camera.

With the T.5 Profile, you get the power, control, and versatility of the T1, now in a lighter, more agile 20.8 kg design.

T.5 Profile — Experience performance without compromise.

Additional information

Source

Light source type: MSL™ 350W Multi-Spectral LED engine (Patented)

LED life expectancy: min. 40.000 hours

Colour rendition: CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94

Typical lumen maintenance: L70/B50 @ 40.000 hours

Light source warranty: 3 years or 20.000 hours
Optical system

Robe’s proprietary optical design

High-efficiency zoom optical system, ratio 11:1

Zoom range: 5° – 55°, covers favoured field angles of most Theatre and TV lights

Fixture total lumen output:

10.500 lm (integrating sphere)
7.000 lm (goniophotometer)
Output lens diameter: 130 mm
Dynamic Effects and Features

Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call

self-re-calibration of the LED engine without the use of any external tool (Patent pending)

Colour mixing: CMY/RGB or RGBAL

White light: Variable CCT 2.700K – 8.000K

DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to

4200K (red shift and thermal delay)

+ – Green correction function

Adjustable CRI from 80 to 95+

MCE™ – Split and multicoloured effects created directly from the LED engine (Patented)

Full curtain framing shutters: Patented Plano4 FC™ framing shutters module with 4 individually positionable

blades plus rotation of the complete framing system +-60°

Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos

specially selected for theatrical and TV productions

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both

directions at variable speed

Prism: 6-facet 8° prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

MagFrost™ – magnetic paddle fast change system providing exchangeable frosts containing as standard a very

light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both

specifically selected for theatre and TV use

HSL™ – Hot-Spot Lens for LED profiles: from flat field to 6:1 hot-spot (optional)

Motorised zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

Pre-programmed random strobe & pulse effects

L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Extremely quiet operation suitable for all types of production in Theatre and TV

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the

optical elements. This increases the overall performance, light quality and time between routine cleaning and

maintenance.
Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning,

operation memory service log with RTC, stand-alone operation with 2 editable programs (each up to 80 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ – Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio – on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity

DMX Protocol modes: 3

Control channels: 49, 33, 55

Pan & Tilt resolution: 16 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Variable CCT: 8 bit

Adjustable CRI: 8 bit

+ – Green correction: 8 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Animation wheel: 8 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)
Movement

Pan movement: 540°

Tilt movement: 265°

Movement control: Standard and Speed

Automatic Pan & Tilt position correction

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement

or vibration (Patented)

MAPS™ – Motionless absolute positioning system for Pan and Tilt (Patented) – on request
Rotating gobos

7x rotating glass gobos

Outside diameter: 21.3 mm

Image diameter: 18 mm

Thickness: 1.1 mm

Max. thickness: 3.5 mm

High temperature borofloat or better glass

Patented slot & lock system for easy replacement of gobos
Effect wheel

Single animation wheel

Material: Aluminium

Can be used alone or in combination with rotating gobos

Rotating in both directions at variable speed
Framing shutters system

Full curtain framing shutters: 4 Blades, each with separate movement and rotation control

Movement: smooth with variable speed

Smooth and very precise motion of framing shutters

Rotation: +- 60° of the complete framing system
Thermal specification

Maximum ambient temperature: 45°C (113°F)

Maximum surface temperature: 70°C (158°F)

Minimum operating temperature: -5°C (23°F)
Noise Levels

Sound pressure level

24 dB(A) at 1 m (quiet mode)
30 dB(A) at 1 m (auto mode)
Sound power level:

32 dB(A) (quiet mode)
38 dB(A) (auto mode)

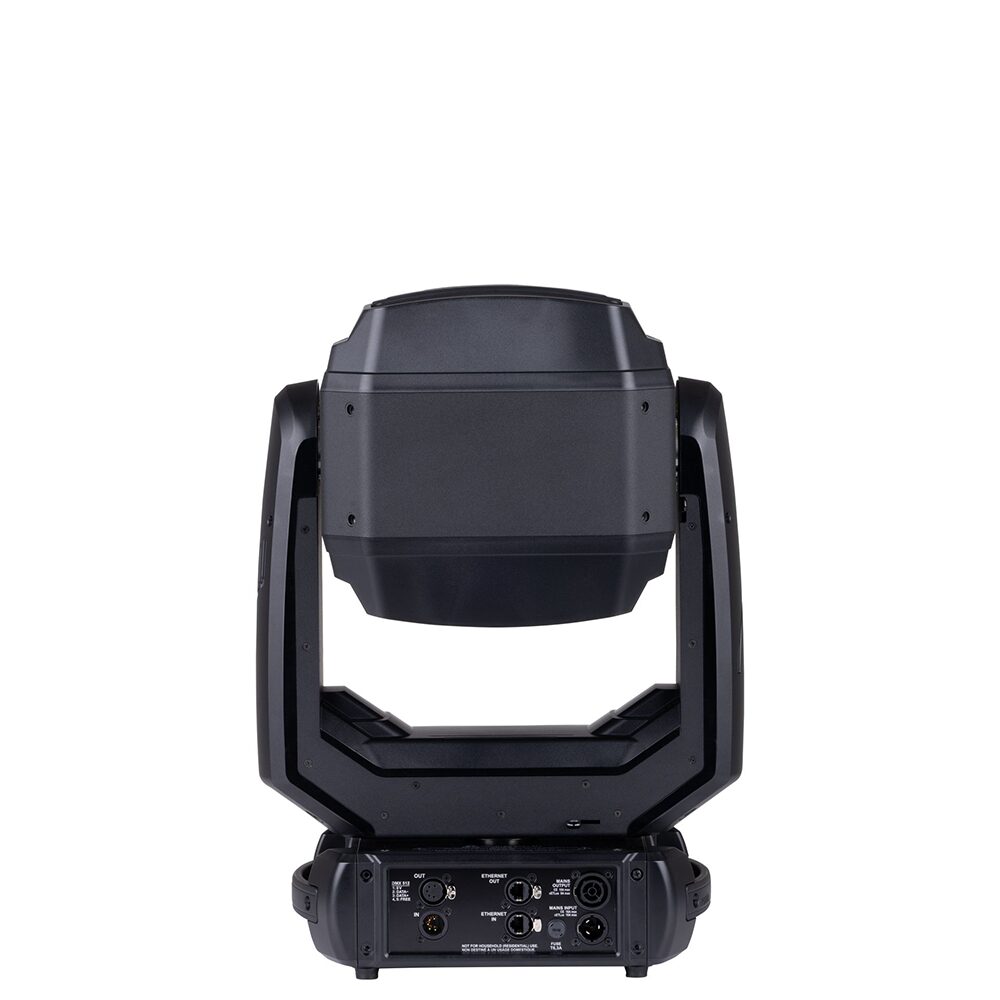

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: max. 480 W

Power connector in: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Ethernet port in/out: RJ45 (instead of 3-pin XLR) for Embedded Epass™ switch 10/100 Mbps – on request
Approvals

CE Compliant

cETLus Compliant
Environmental Information

EPD Registration Number: EPD-IES-0026116:001
Mechanical specification

Height: 648 mm (25,51") – head in vertical position

Width: 372 mm (14,6")

Depth: 251 mm (9.9") – head in vertical position

Weight: 20.8 kg

Ingress protection rating: IP20
Rigging

Mounting positions: Horizontally or vertically

Universal operating position

Mounting points: 2 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan & Tilt transport locks
Included items

User Manual

Omega Adaptor CL-regular 2 pcs: 10980033

Power cord including powerCON TRUE1 In connector

Gel frame adaptor
Optional accessories

Top hat: 10981233

Gel frame: 10981429 Doughty Trigger Clamp: 17030386

Omega T CL adaptér (2 ks): 10980184

Frost 0.5° (exchange) assembled: 10981149

Frost 1° (exchange) assembled: 10981150

Frost 5° (exchange) assembled: 10981151

Frost 10° (exchange) assembled: 10981152

Frost 20° (exchange) assembled: 10981153

Frost 30° (exchange) assembled: 10981154

Safety wire 36 kg: 99011963

Upgrade kit CRMX Universal 260: 99030100

Single Top Loader Case: 10120368

Dual Top Loader Case: 10120369

Quad Top Loader Case: 10120370

Foam Shell: 20020506
Legal

T.5 Profile™ is a Trademark of Robe lighting s. r. o.

T.5 Profile™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
