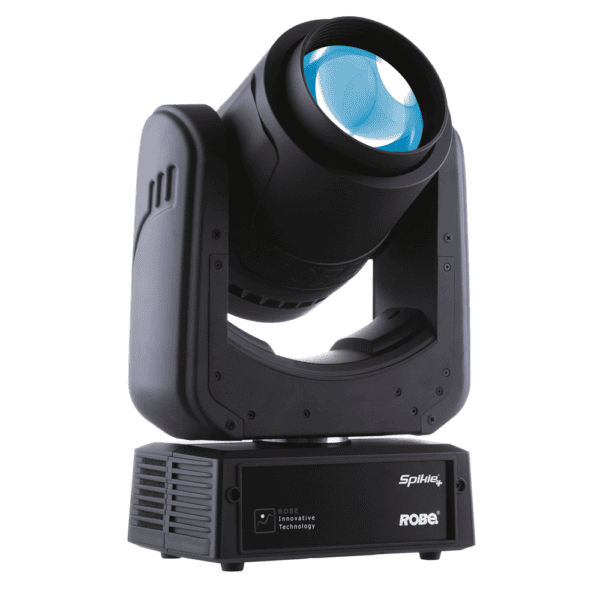

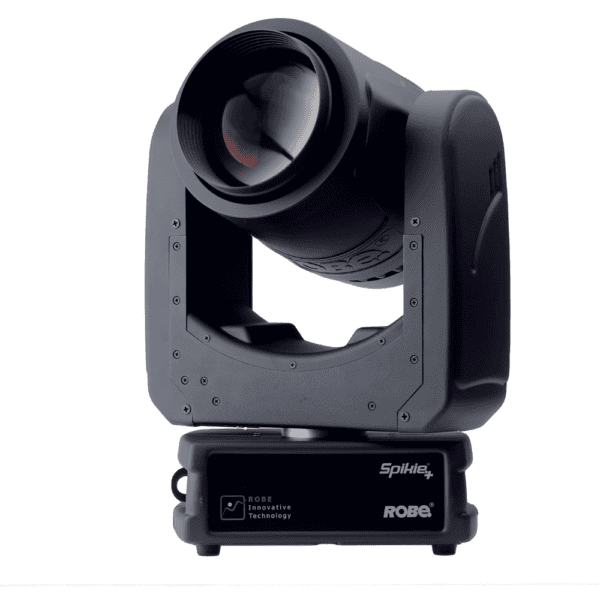

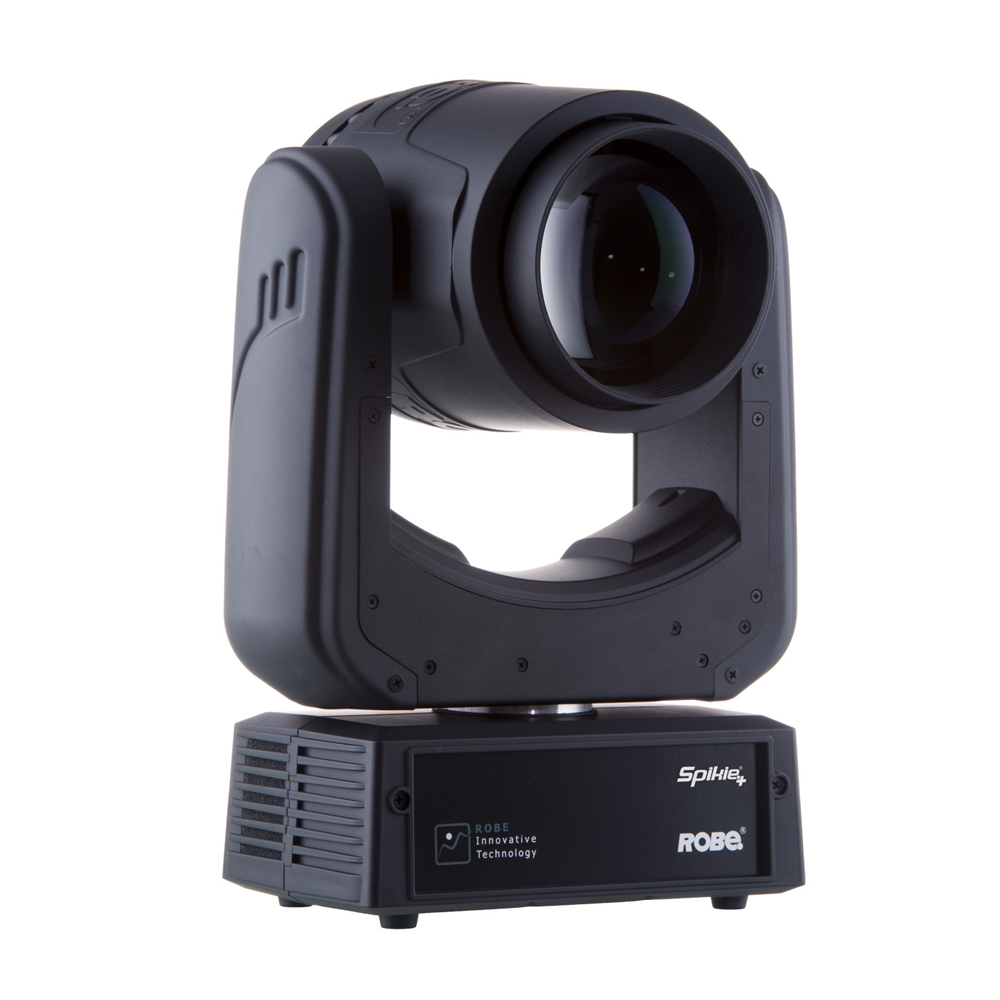

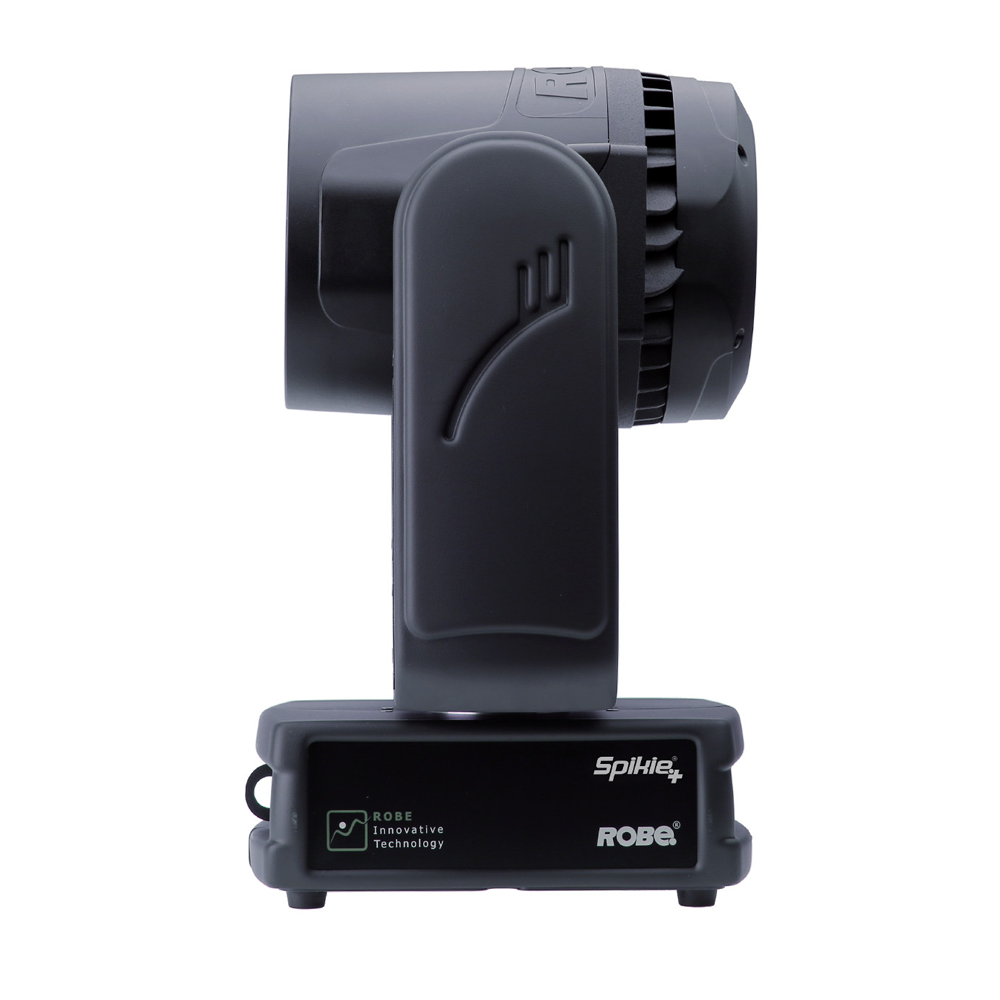

Robe – Spikie+

Robe

Retaining the fast-moving, compact design of the original, the new Spikie+® generates 25% more lumen output from its single 60W RGBW source, giving you even more impact!

Features

  • Light source 60W RGBW LED
  • Light output 1.550 lm, 11.000 lx @ 5 m
  • Zoom range 4°–28°
  • Effects MCFE™ – Multi-Coloured Flower Effects (patented), Colour Rainbow Effect, 3 Facet Prism
SKU: ROB10071011 Categories: , , , , , ,

Description

With a 110mm specifically designed front lens, Spikie+® rapid moving zoom produces beams from a tight, sharp 4-degrees out to a soft wide 28-degree wash.

Spikie+® creates visual splendour with our Robe patented MCFE™ – Multi-Coloured Flower Effects – creating sharp multicoloured spikes of light, rotating bi-directionally with variable speed.

The unique Beam Effects Engine transforms the output into three piercing rays of narrow beams, while continuous pan and tilt movement creates another layer of dynamism to your show.

Colour management includes CMY or RGBW mixing modes; a variable CTO from 2.700K to 8.000K; Tungsten lamp thermal delay/red shift effects with whites at 2.700K or 3.200K.

Small and compact, weighing just 7.3 kg, Spikie+® permits rigging at any angle, is supplied with one Omega bracket and is available in cardboard, single, quad or eight-pack cases.

Video

Additional information

Source

Light source type: 60W RGBW LED
LED life expectancy: min. 50 000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

Robe’s proprietary optical design
High-efficiency zoom optical system, ratio 7:1
Zoom range: 4° – 28°
Output lens diameter: 110 mm
Illuminance: 11.000 lx @ 5m
Fixture total lumen output:
1.550 lm (integrating sphere)
1.250 lm (goniophotometer)

Dynamic Effects and Features

Colour mixing mode RGBW or CMY
Variable CTO: 2.700K – 8.000K
Virtual Colour Wheel: with 66 preset swatches
Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay)
Colour rainbow effect with variable speed
MCFE™ – Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patented)
Prism: 3-facet circular rotating prism
Motorized zoom
Shutter: Electronic with variable speed strobe (max.20 flashes per second)
Pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 – 100%

Control and programming

Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
Protocols: USITT DMX-512, RDM
Wireless CRMX™ technology from Lumen Radio – on request
DMX Protocol modes: 2
Control channels: 27, 21
Pan/Tilt resolution: 16 bit
RGBW / CMY: 8 or 16 bit
Zoom: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)

Movement

Pan movement range 540° with continuous rotation control
Tilt movement range 360° with continuous rotation control
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
Automatic Pan/Tilt position correction

Thermal specification

Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 340 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: Max. 100 W at 230 V / 50 Hz
Power connector in/out: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR

Approvals

CE Compliant
cETLus Compliant

Mechanical specification

Height: 408 mm (16.1") – head in vertical position
Width: 277 mm (10.9")
Depth: 147 mm (5.8")
Weight: 7.3 kg (16.1 lbs)
Ingress protection rating: IP20

Rigging

Mounting positions: Horizontally or vertically
Universal operating position
Mounting points: 1 pair of 1/4-turn locking points
1x Omega adaptor with 1/4-turn quick locks
Safety cable attachment point

Included items

User Manual
Omega Adaptor CL-regular

Optional accessories

Wireless DMX external module: 10980127
Trigger Clamp Doughty: 17030386
Safety wire 36 kg: 99011963
Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor 13052405
Mains Cable powerCON TRUE1 In/US, 2m, Indoor 13052406
Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor 13052445
Mains Cable powerCON TRUE1 In/open ended, 2m, Indoor 13052407
Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor 13052439
Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor 13052440
Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor 13052444
Single Top Loader Case: 10120193
Quad Top Loader Case: 10120203
Eight Pack Top Loader Case: 10120198
Quad Foam Shell: 20020278
Spikie/MotionCamera Single Foam Shell: 20020321
