Robe – PowerDolly

Robe

Wherever you are, getting power to where you need it can be a challenge. Getting it to a remote location or simply where you can’t have any trailing cables can be even more difficult. Until now!

Features

  • Battery capacity: 5.000 WH (LiFePO4)
  • Battery recharge: <4h (90%) max. 3.600W (16A socket)
  • Max. power: 2.000W (2.5 hours)
  • Max. load: 200 kg

Description

Let the PowerDolly solve your remote power issues! From film sets to stages, corporate events to a deck at sea and everywhere in between, the Robe patented PowerDolly™ is the simple solution to get power wherever you need it.

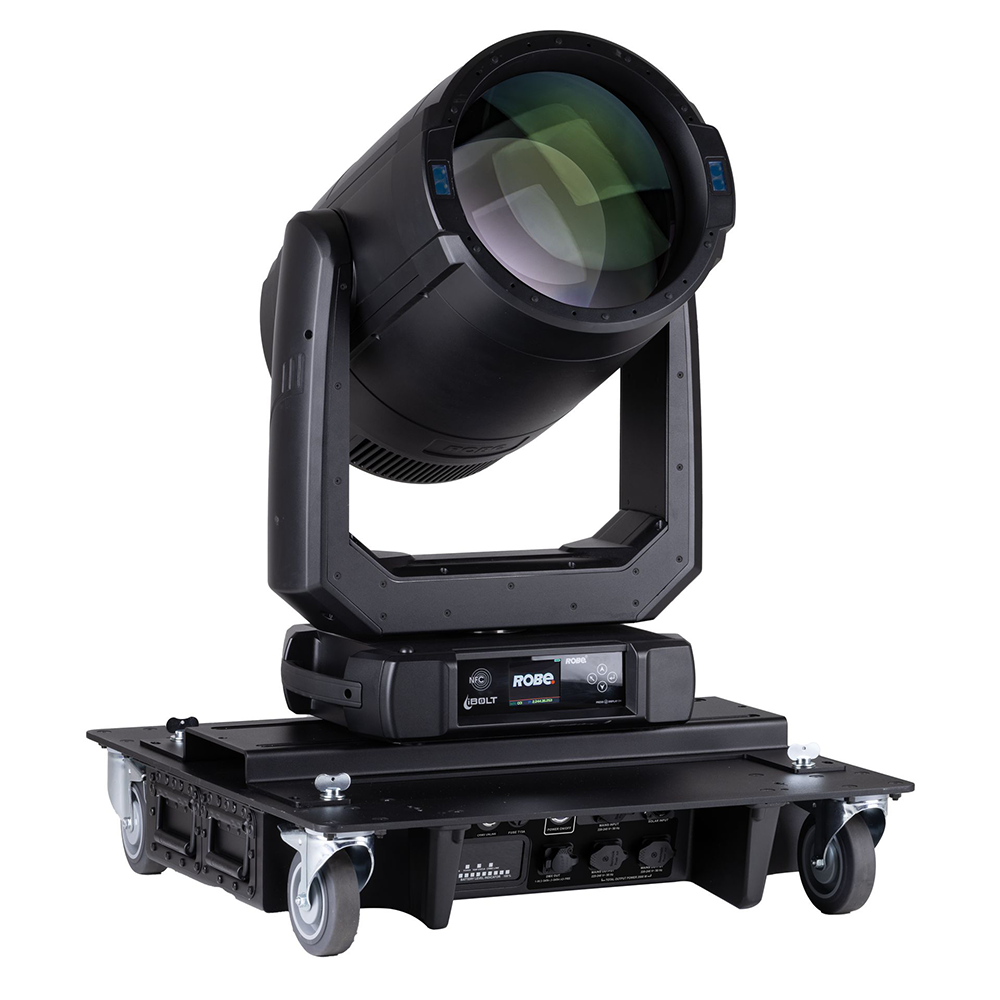

Weighing 80 kg, the PowerDolly™ provides a stable, firm platform allowing load of up to 200 kg, perfect for all types of loads from lights to sound gear to LED screens.

Designed for high protection in all environments, PowerDolly™ features IP65 ingress protection. For the rigours of touring and location work, the unit has IK07 impact protection rating.

Selected for their high safety, long cycle life and extra stability, the LifePO4 battery within the PowerDolly™ delivers long-lasting 5.000 WH power. Generating 2.000W for 2.5 hours, or over 300W for 16 hours, you have plenty of time available to power whatever you wish.

Recharging the battery requires an input voltage of 90-240V using a maximum input of 3.600W. Recharge time is under 4 hours to 90%. Solar panel charging is also available if needed.

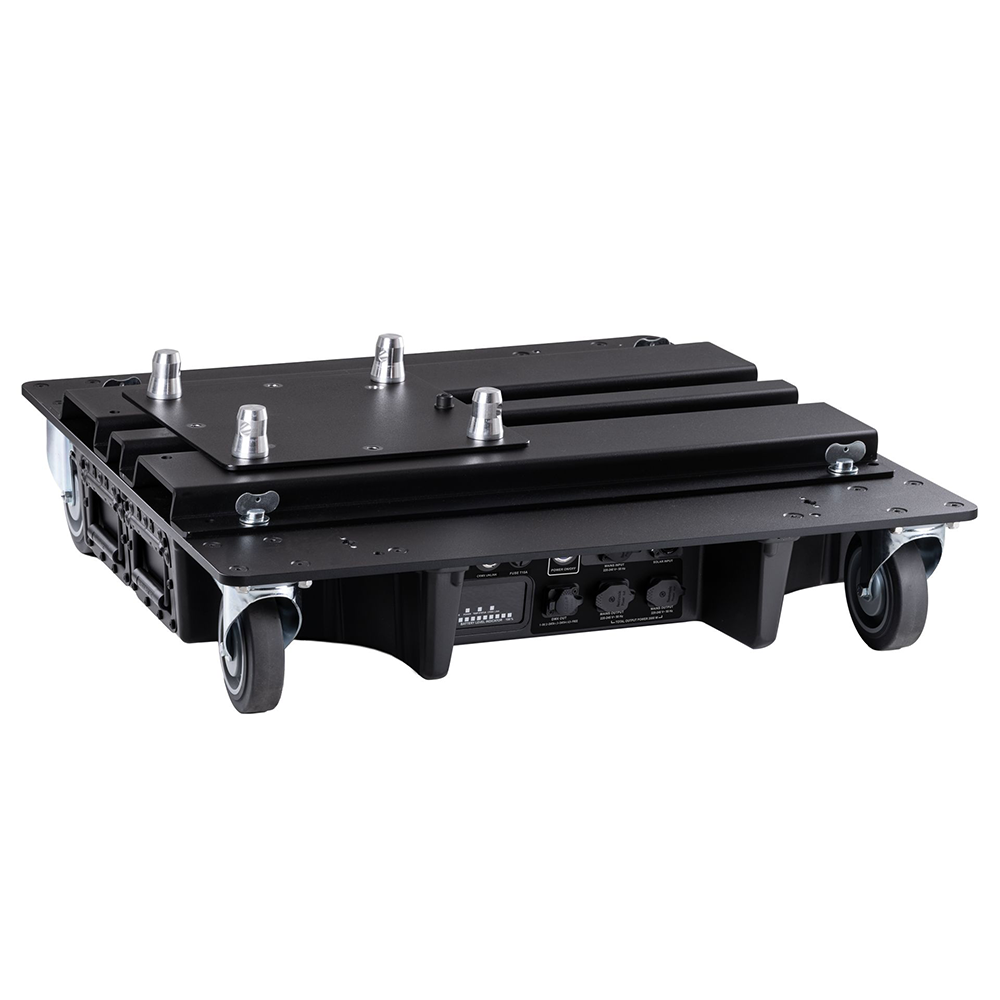

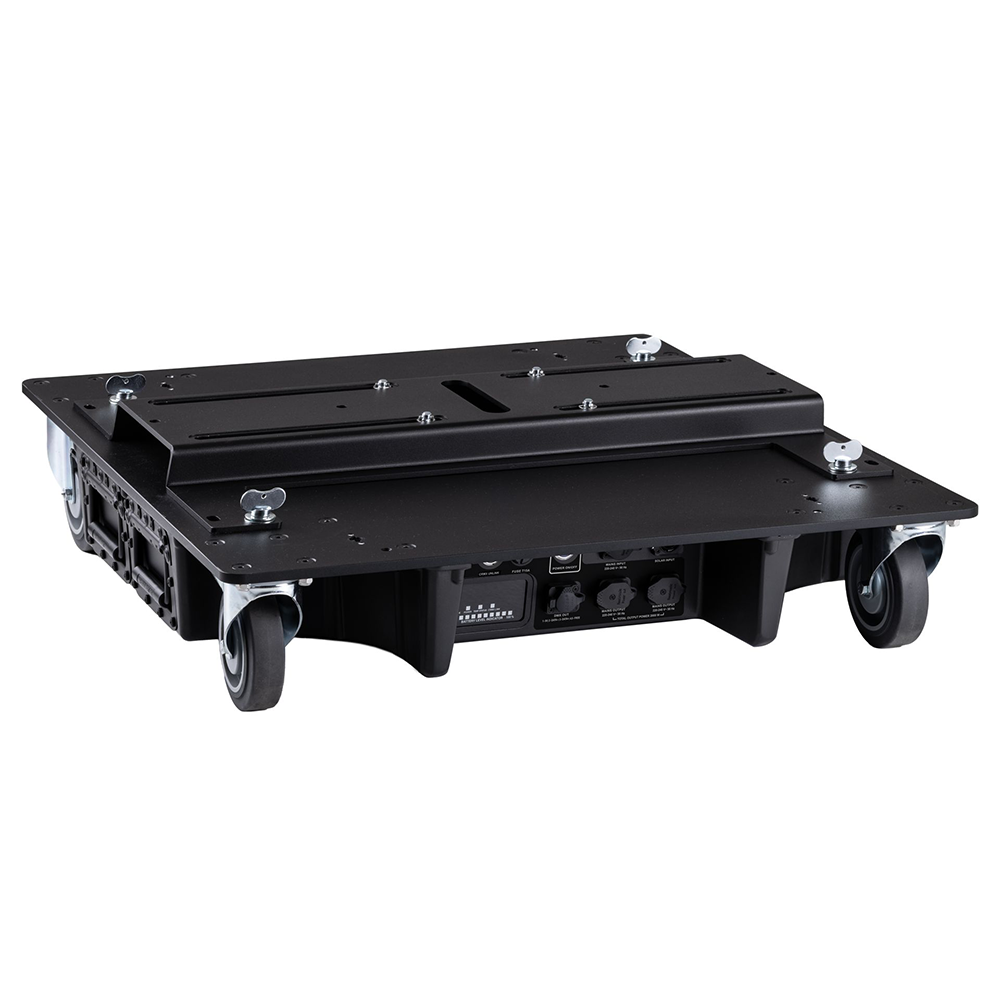

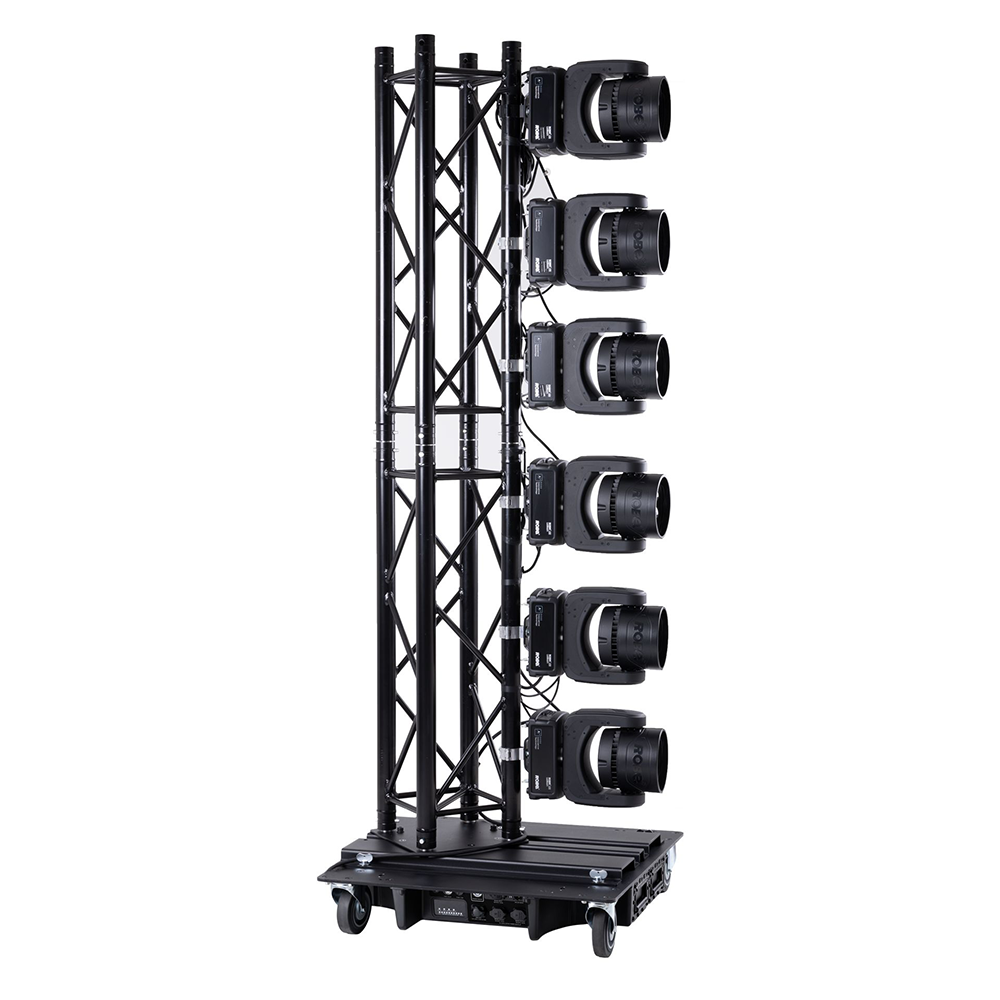

For the mounting of truss and lights, custom-fit fixture and truss mounting brackets are available. The wheels include brakes, with an off-road wheel option for difficult terrain available.ailable.

External LED indicators offer a visual check of Power In, Power Out, Charging, Temperature and Wireless DMX. For servicing, an internal display delivers additional details.

In line with the cableless environment, PowerDolly™ features in-built Wireless CRMX technology for stable DMX communication.

Additional information

Electrical specification and connections

AC production:

AC Output: 2.000W
Battery Capacity: 5.000 WH (LiFePO4)
AC output voltage: 230 VAC ±1%
Frequency: 50/60 Hz
Type of signal: Pure sinus
Recharge:

Input Voltage: 90–140 V / 60 Hz or 185-240 V / 50 Hz
Max charging power: 3.600 W (on 16A socket)
Recharge time: <4h (90%)
Connectors:

AC Output: 2x Power connector IP67 PowerCon True1
AC Input: Power connector IP67 PowerCon True1
DC input (SOLAR): LP-20
DMX and RDM data out: IP67 Locking 5-pin XLR connector
Solar Panels:

Max PV power: 1.600 W
MPP voltage range: 10 VDC – 145 VDC
Max input voltage: 145 VDC
Max current PV: 20 A
Battery runtime:

Usage time at 300W: >16 h
Usage time at 500W: 10 h
Usage time at 1000W: 5 h
Usage time at 2000W: 2.5 h

Control and programming

Built-in display: LCD Display for input and output voltage indication, frequency, load percentage,PV voltage and current, working mode, fixture status

Wireless CRMX™ technology from Lumen Radio

Battery status:

Battery Level indication
Battery Temperature indication

Thermal specification

Maximum ambient temperature: 45°C (113°F)

Maximum surface temperature: 80°C (176°F)

Minimum operating temperature:

-10°C (14°F) – inverted mode
-20°C (68°F) – charger mode
Total heat dissipation

Noise Levels

Sound pressure level:

20 dB(A) at 1 m (inverter mode)
30 dB(A) at 1 m (charger mode)
Sound power level:

26 db(A) (inverted mode)
36 db(A) (charger mode)

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

IP rating: IP65

IK Rating: IK07

Height: 163 mm (6.4")

Width: 750 mm (29.5")

Depth: 750 mm (29.5")

Weight: 79 kg (174 lbs)

Load capacity: 200 kg

Fixation option: Wheels brakes

Rigging

Mounting positions: Floor standing

Mounting points:

8x M12 mounting points for universal and custom bracket
8x 1/4-turn locking points for fixture mounting bracket or truss mounting bracket

Included items

User Manual

Daisy Chain powerCON TRUE1 In/Out, EU or US, 0,90m, Outdoor

Optional accessories

Mounting Bracket:

Fixture: 10981314
Truss: 10981313
Fixture adaptor: 10981314
Truss adaptor: 10981313
T-Stand adaptor: 10981550
Offroad wheels
MC4-to-BD24 adapter cable: 10981413

Single Top Loader Case: 10120408
