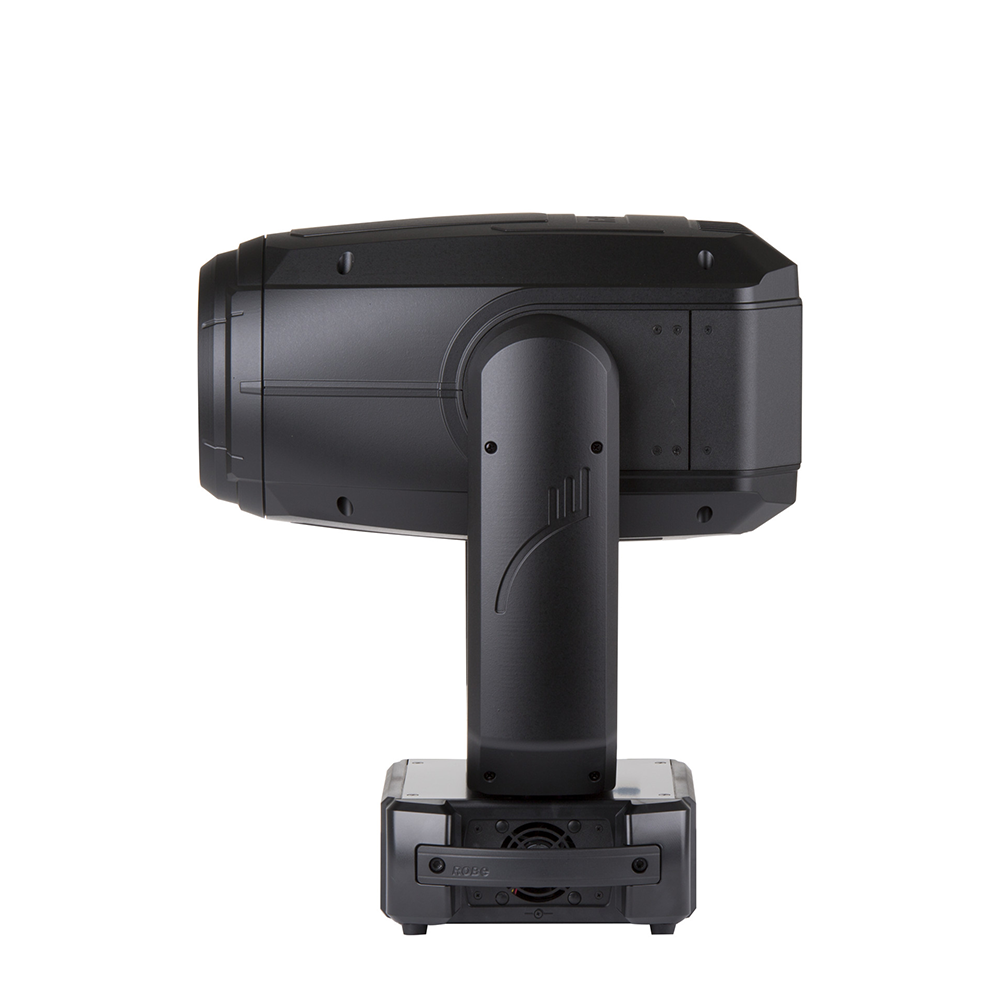

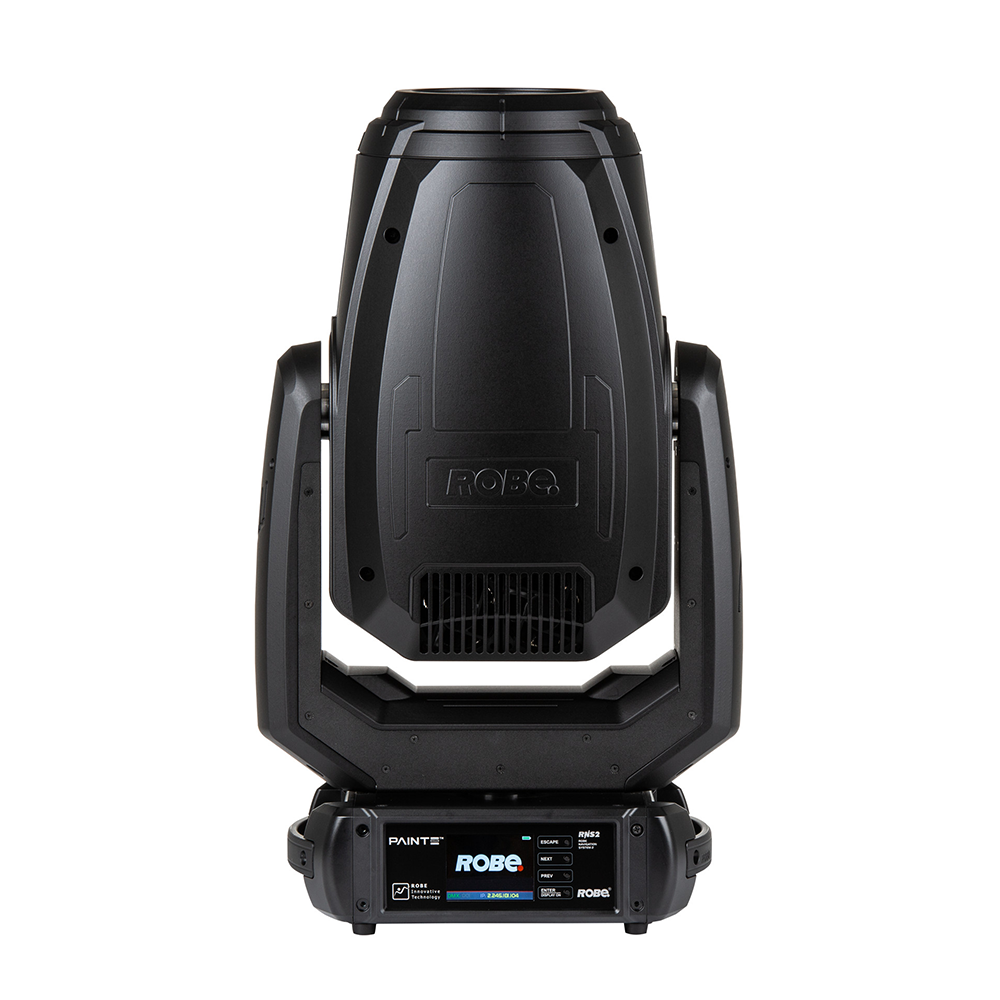

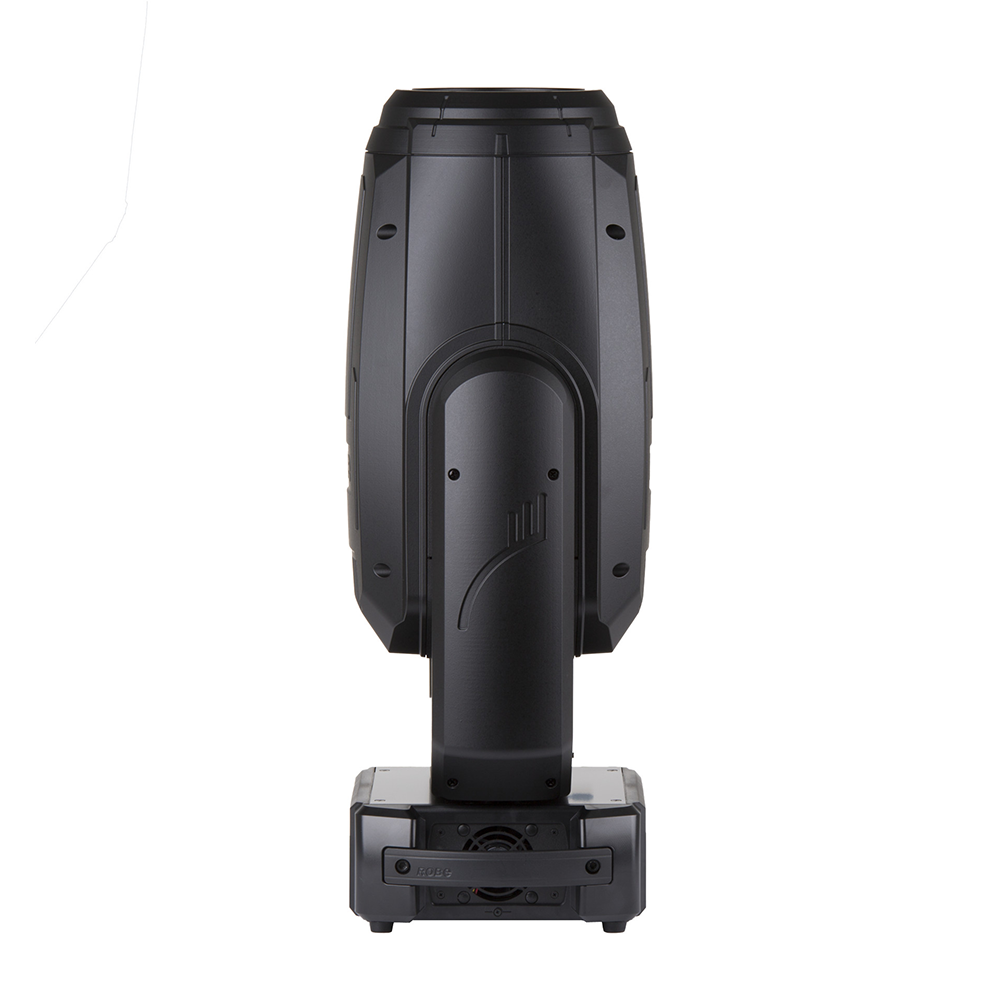

Robe – PAINTE

Robe

PAINTE® delivers the perfect compact, quiet, quality profile solution for short to medium throw scenarios in theatrical, television, installation, live or corporate settings to create your masterpiece!

Features

  • Light source TE™ 310W White LED TRANSFERABLE ENGINE
  • Light output 15.200 lm, 23.485 lx @ 5m, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K
  • Zoom range 8° – 48°
  • Effects Static and rotating gobo wheel, Full curtain framing shutters, Prism
SKU: ROB10018041 Categories: , , ,

Description

Whether broad brush strokes or adding the finest detail, PAINTE® delivers the master’s touch. Colours are boundless via the advanced CMY colour mixing system. From its compact frame, PAINTE® punches way above its weight, with an impressive 15.200-lumen fixture output of sparkling, clear, white light.

Designed for noise-sensitive environments, PAINTE® features the TE™ 310W HP White LED engine from our ground-breaking TRANSFERABLE ENGINE technology. The high-performance engine gives you the ability to easily maintain light quality and consistency across your inventory.

The motorised zoom gives a range of 8° – 48°, perfect for short to medium throw applications.

Precise beam control is via our highly advanced, patented, Plano4 FC™ four individual plane shutter system. With 120-degree module rotation, each individual blade has a full curtain effect capability.

PAINTE® is packed with Robe innovation including CPulse™ flicker-free management system and ChromaTint™ green/magenta content control for the latest camera systems; L3™ Low Light Linearity dimming software for imperceptible fades to black; AirLOC™ (Less Optical Cleaning) technology keeping the optical elements in pristine condition for far longer; EMS™ Electronic Motion Stabiliser technology for enhanced fixture stability.

The fast, feature-packed, small footprint PAINTE® lets you brush in the finest detail or boldest statement with Robe quality.

Video

PAINTE Product Video Teaser

The fast, feature-packed, small footprint PAINTE™ lets you brush in the finest detail or boldest statement with Robe quality.

Additional information

Source

Light source type: TE™ 310W HP White LED Engine (Patented):

HP – High Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 18.500 lm
Fixture total lumen output:
15.200 lm (integrating sphere)
12.250 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filter for CRI 90
Illuminance: 23.485 lx @ 5 m

Light source type: TE™ 310W HCF White LED Engine (Patented):

HCF – High Colour Fidelity Engine for the best light quality and colour rendition
LED Engine output: 13.000 lm
Fixture total lumen output:
9.800 lm (integrating sphere)
7.800 lm (goniophotometer)
Colour temperature output: 6.000 K
CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
Illuminance: 15.289 lx @ 5 m

Light source type: TE™ 310W TGW White LED Engine (Patented):

TGW – Simulates the comforting warmth of tungsten lighting
LED Engine output: 10.500 lm
Fixture total lumen output:
8.400 lm (integrating sphere)
6.700 lm (goniophotometer)
Colour temperature output: 3.200 K
CRI: 96, TLCI: 95, TM-30-18 Rf: 93, TM-30-18 Rg: 103
Illuminance: 13.100 lx @ 5 m

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Light source warranty: 4 years or 20.000 hours
Optical system

Robe’s proprietary optical design

High-efficiency 13-lens zoom optical system, ratio: 6:1

Zoom range: 8°- 48°

Output lens diameter: 110 mm
Dynamic Effects and Features

Cyan: 0 – 100%

Magenta: 0 – 100%

Yellow: 0 – 100%

ChromaTint™ – Patented plus / minus green correction function

Virtual CTO

Colour Wheel: 9 dichroic filters + white

Rotating gobo wheel: 8 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system

Static gobo wheel: 9 gobos + open

Full curtain framing shutters: Patented Plano4 FC™ framing shutters module with 4 individually positionable blades plus rotation of the complete framing system +-60°

Prism: 8-facet prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

MagFrost™ – magnetic paddle fast change system providing exchangeable frost containing as standard a medium 5° for even wash

Motorized zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

Extremely quiet operation suitable for all types of production in Theatre and TV

L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 2 editable programs (each up to 80 steps), built-in analyser for easy fault finding

Protocols:

USITT DMX-512, RDM
ArtNet, MA Net, MA Net2, sACN
REAP™ – Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio – on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity – on request

DMX Protocol modes: 2

Control channels: 44, 45

Pan & Tilt resolution: 16 bit

CMY: 8 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Static gobo wheel positioning: 8 or 16 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 16 bit (internal 18 bit)
Movement

Pan movement: 540°

Tilt movement: 270°

Controllable speed of Pan & Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan & Tilt position correction
Rotating gobos

Glass gobos: 8 rotating gobos + open

Outside diameter: 15.9 mm

Image diameter: 12.5 mm

Thickness: 1.1 mm

High temperature borofloat or better glass

Patented slot & lock system for easy replacement of gobos
Static gobos

Aluminium wheel with fixed gobos: 9 gobos + open position
Framing shutters system

Full curtain framing shutters: 4 Blades, each with separate movement and rotation control

Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects

Rotation: +- 60° of the complete framing system
Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 80 °C (176 °F)

Minimum operating temperature: -5 °C (23 °F)

Total heat dissipation: max. 1126 BTU/h (calculated)
Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: max. 440 W

Power connector in: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 5-pin XLR

Ethernet port in: RJ45

Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps – on request
Approvals

CE Compliant

cETLus Compliant
Environmental Information

Global Warming Potential: 632 kg CO2e

EPD Registration Number: EPD-IES-0011286:001 (S-P-11286)
Mechanical specification

Height: 619 mm (24.4") – Head in vertical position

Width: 367 mm (14.4")

Depth: 219 mm (8.6") – Head in vertical position

Weight: 19.6 kg (43.2 lbs)

Ingress protection rating: IP20
Rigging

Mounting positions: Horizontally or vertically

Universal operating position

Mounting points: 2 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Pan & Tilt transport locks
Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON TRUE1 In connector
Optional accessories

PAINTE TE™ 310W HP White LED Engine: 14080078

PAINTE TE™ 310W HCF White LED Engine: 14080083

PAINTE TE™ 310W TGW White LED Engine: 14080099

Gel frame adaptor: 10981120

Top hat: 10981121

Frost 0.5° (exchange) assembled: 10980690

Frost 1° (exchange) assembled: 10980691

Frost 3.5° (exchange) assembled: 10980758

Frost 10° (exchange) assembled: 10980693

Frost 20° (exchange) assembled: 10980694

Frost 30° (exchange) assembled: 10980695

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Drop-in module open gate: 10981137

Upgrade kit CRMX Universal 260: 99030100

Upgrade kit EPASS Painte: 99030449

Doughty Trigger Clamp: 17030386

Safety wire 36 kg: 99011963

Single Top Loader Case: 10120287-01

Dual Top Loader Case: 10120288-01

Quad Top Loader Case: 10120289-01

Foam Shell: 20020444-01
Legal

PAINTE® is a Registered Trademark of Robe lighting s. r. o.

PAINTE® is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
