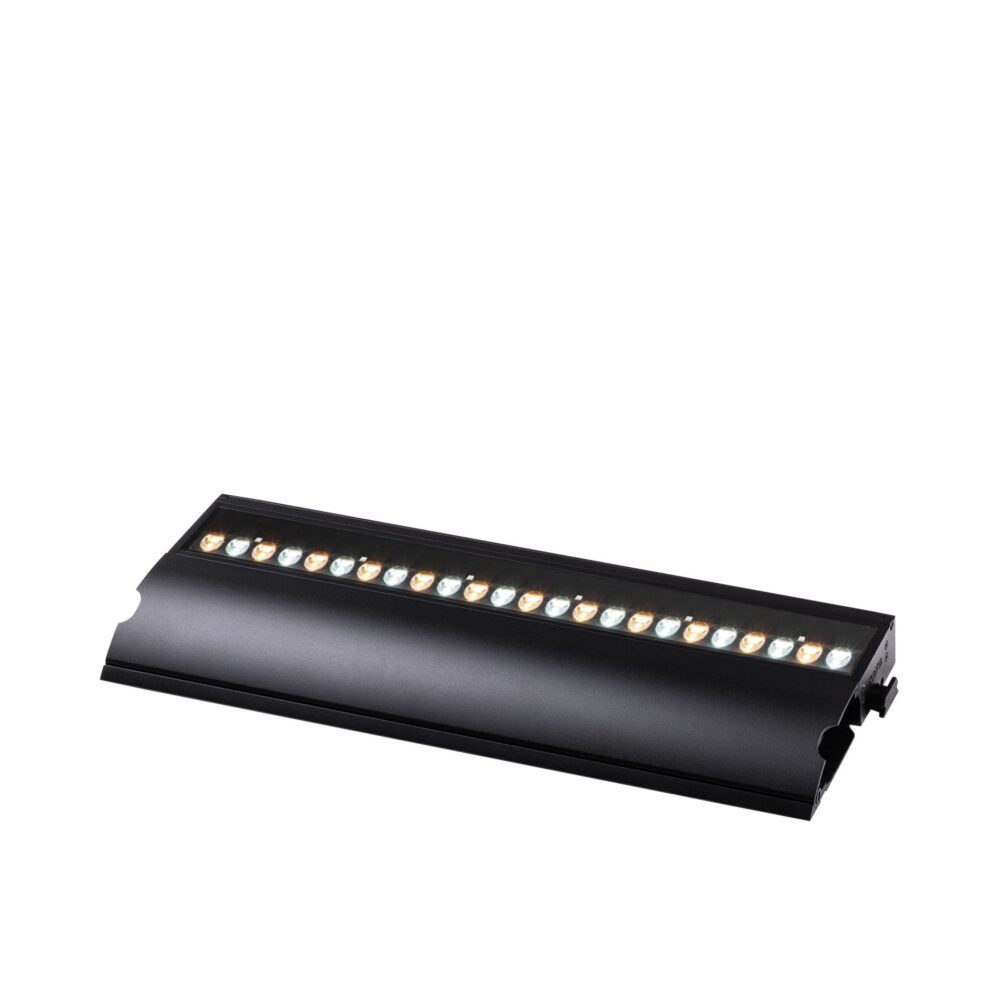

Robe-Footsie1-Slim-Front-LeftRobe-Footsie1-Slim-Front-Left

Robe – Footsie1 slim

Robe

Time to uplift your footlights and make those feet shine! With its sleek, low design, our IP65-rated FOOTSIE Slim, with reduced footprint takes footlights into the modern age.

Features

  • Light source: 24 x RGBW/TW/WW LED single chip
  • Light output: 2.470 lm
  • Zoom range: Asymmetrical field angle 55° x 50°

Description

Without the cable tray, while retaining all the popular features of the FOOTSIE range, the FOOTSIE Slim takes up even less stage space!

Removing the visual barrier between audience and performer, this showstopper, with its low laying 52 mm high design, allows you to see all of the performer and watch those toes tapping!

Available in classic, balletic-like Warm White with a CRI greater than 90; tuneable white from 2.700K – 6.500K, or RGBW for all colours, including infamous up-lit horror looks, the IP65-rated FOOTSIE delivers LED foot lighting, whatever the production type or weather.

With easy, fast connection between fixtures, including corner pieces of various angles, FOOTSIE Slim keeps the LEDs evenly spaced to provide the smoothest wash with continuous runs across your stage or down your runway.

For run flexibility, FOOTSIE Slim is available in two lengths. The shorter FOOTSIE1™ Slim has two individually controlled zones within its 600 mm, while the longer 1.200 mm FOOTSIE2™ Slim has four zones.

FOOTSIE Slim features an innovative SPREAD™ (Shield Protection, Reflection Elimination, Diffusion), an attachable shield can be installed in position. The Shield covers direct viewing of the led sources from the side of audience (Patent pending). Providing additional softening and beam spread control optional, easily insertable medium and wide diffusion filters are available.

The patented design provides easy and instant access through the top and bottom lids to the fixture display, power supply and other cables, such as microphone or monitor speakers. We have included half circular ports in the top and base lids, giving access to these wherever needed on the stage. Power and data connections are via IP65-rated PowerCON True1 and DMX 5-pin IN and OUT connectors.

By including NFC (Near-Field Communication) technology, you can access setup, diagnostic and performance features, even without power, directly from your mobile device using the Robe Com app.

A unique safety feature, BluMark™ allows a low-level blue LED indication of stage edges without affecting lighting states. These separate, low-output LEDs provide an edge indication when performers become blinded due to snap blackouts. Controlled from your console, BluMark™ can be turned on/off as required.

For performers to accurately take positions on stage FOOTSIE Slim contains PIP™ – Performer Indication Points (Patent pending). Individually controlled RGB LEDs, at 10 cm spacing provide performers with discrete alignment points.

Convectionally cooled, FOOTSIE Slim is perfect for theatres, concert stages, fashion show catwalks or corporate events, letting your performers step out in style, indoors or out!

Video

FOOTSIE Product video

Time to uplift your footlights and make those feet shine! With its sleek, low design, our IP65-rated FOOTSIE takes footlights into the modern age.

Additional information

Source

Light source type: 24 x 4W WW/TW or 3W RGBW High Power Single Chip LEDs

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

CRI:

WW 90+
TW 85+
RGBW 70+

Optical system

Robe’s proprietary optical design

Field angle: Asymmetrical field angle 55° x 50°

Fixture total lumen output:

WW: 3.557 lm
TW: 3.620 lm
RGBW: 2.470 lm
Optional diffusers:

Medium frost filter 20° x 1°
Wide frost filter 60° x 30°
SPREAD™ (Shield Protection, Reflection Elimination, Diffusion) The Shield is covering direct viewing of the led sources from the side of audience (Patent pending)

Dynamic Effects and Features

Colour mixing mode RGBW/CMY or TW

2 individually controllable LED zones

+ – Green correction function

CCT:

WW 3000K
TW Variable 2.700K – 6.500K
RGBW Variable 2.700K – 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 – 100%

L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Extremely quiet operation suitable for all types of production in Theatre and TV

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

BluMark™ safety low-level blue LED indication of stage edges without affecting lighting states

Electronic strobe effect with variable speed up to 20 Hz

PIP™ – Performer Indication Point – separately controlled RGB LEDs at 10 cm spacing provide performers with alignment points (Patent pending)

Control and programming

Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)

NFC app controller

Wireless CRMX™ technology from Lumen Radio

Protocols: USITT DMX-512, RDM

DMX Protocol modes: 3

Control channels:

WW: 1,11,18 channels
TW: 2,16,23 channels
RGBW: 5,28,35 channels
RGBW / CMY: 8 or 16 bit

Variable CCT: 8 bit

+ – Green correction: 8 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Thermal specification

Maximum ambient temperature: 45 °C (113°F)

Maximum surface temperature: 50°C (122°F)

Minimum operating temperature: -20°C (-4°F)

Total heat dissipation: max. 115 BTU/h (calculated)

Noise Levels

Cooling system: Convection

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 120-240 V, 50/60 Hz

Power consumption: max. 45 W

Power connector in/out: IP65 Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors

Mechanical specification

Height: 52 mm (2.04")

Width: 629 mm (24.76")

Depth: 228.1 mm (8.98")

Weight:

7.5 kg (16.53 lbs)
8.7 kg (19.18 lbs) with diffuser
Ingress protection rating: IP65

IK Rating: IK06

Included Items

User Manual

Daisy Chain powerCON TRUE1 In/Out, EU or US, 0,35m, Outdoor

Optional accessories

Diffusion filter medium: 10980820

Diffusion filter wide: 10980822

Angled corner 15°: 10980983

Angled corner high 15°: 10980987

Angled corner 30°: 10980984

Angled corner high 30°: 10980988

Angled corner 60°: 10980985

Angled corner high 60°: 10980989

Angled corner 90°: 10980986

Angled corner high 90°: 10980990

End cap:

R: 10980991
L: 10980992
Eight/Quad Top Loader Case ROBIN Footsie1 / Footsie2 slim: 10120351

Power cord including powerCON TRUE1 In connector EU: 13052276-01

Power cord including powerCON TRUE1 In connector US: 13052277-01
