Riedel – Bolero Active Antenna

Riedel

Active antenna for the Bolero system, bandwidth for up to 10 beltpack units. Fully re-programmable FPGA to handle future networks

SKU: ebadfb456dc6 Categories: , , ,

Description

Wireless intercom system capable of supporting up to 250 beltpacks and 100 antennas in a single deployment, Bolero is a true game-changer. Bolero redefines the wireless intercom category with features such as its ADR (Advanced DECT Receiver) with multi-diversity and anti-reflection technology for greater RF robustness, Touch&Go NFC beltpack registration, and versatile operation as a wireless beltpack, a wireless keypanel, or in an industry first — a walkie-talkie.

Feature Quick View

  • Up to 250 beltpacks and 100 antennas per Bolero Net
  • Intelligent use of bandwidth results in 10 beltpacks per antenna
  • Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
  • Fully re-programmable FPGA to handle future networks

Video

RIEDEL Communications – BOLERO (wireless intercom system)

Bolero is RIEDEL’s game-changing wireless intercom solution. Fully integrated into RIEDEL’s Artist digital matrix intercom platform, Bolero offers a rich set of features and connectivity that can be applied three ways: as an exceptional wireless beltpack, as a wireless keypanel, and — in an industry first — as a walkie-talkie radio.

Additional information

Weight 1.34 kg
No of beltpacks per antenna

10
Radio frequency range

1 .880 – 1 .930GHz (region dependent)
Antenna radio coverage (diameter)

Indoor (structure dependent): ~200-400m; outdoor (free line of sight): ~300-500m
Beltpack to antenna range

Indoor (structure dependent): ~100-200m; outdoor (free line of sight): ~150-250m
Beltpack registration

1 touch NFC, over the air, beltpack to antenna and beltpack to beltpack (local NFC) registration
Network connection

SMPTE 2110 (AES67) IP or direct cable connection in standalone mode
Display type

High contrast E-ink display
Programmable transmission power

yes
Support of Layer 3 networks

yes
TTL Settings

Adjustable multicast TTL (1 to 255 / default 16)
DECT Master Priority

Confi gurable in WebUI
Network monitoring on antenna display

IP / daisy chain / closed ring
Power supply

PoE+ (802 .3at, type 2, class 4, 15-30W) or 10 to 57 VDC
Power consumption

17W
Mounting points

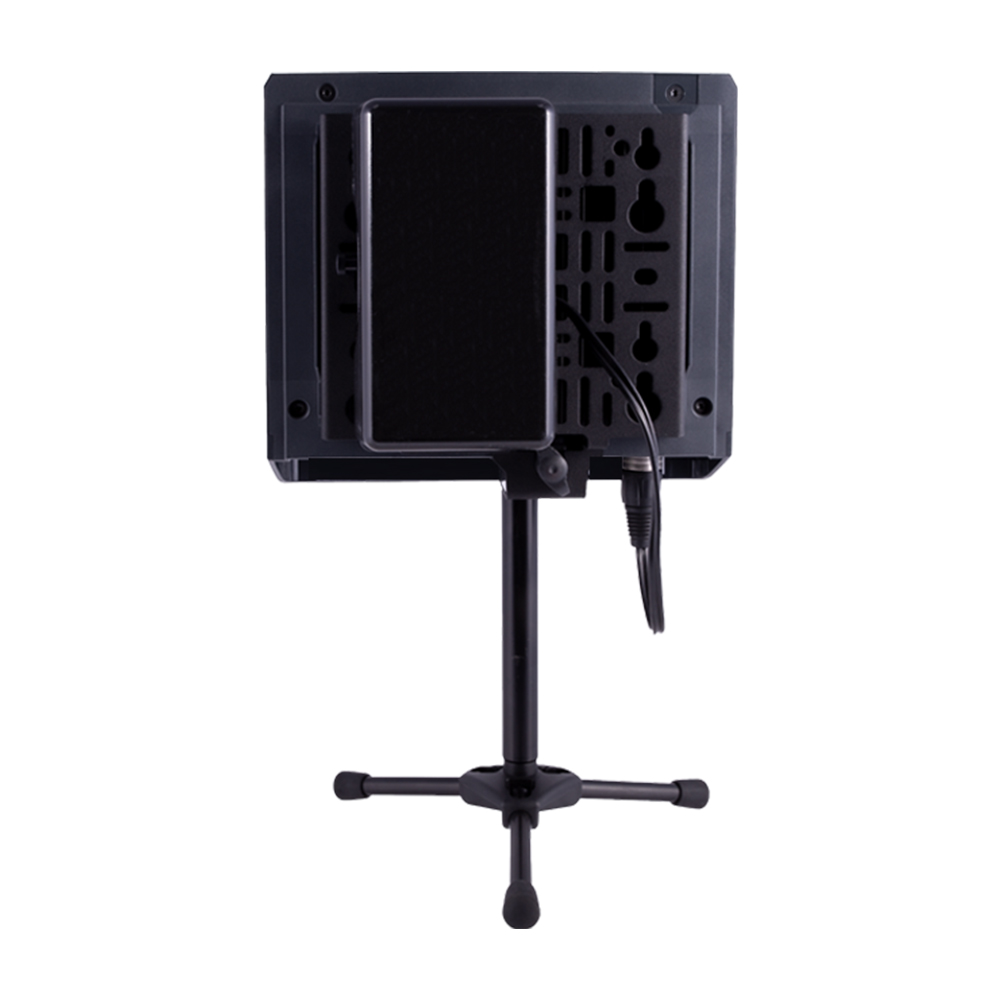

Mic stand threaded socket 5/8“ & 3/8“ inside, spigot adapter with wing screw lock, Kensington lock hole, & screw hole for a safety wire mounting
Environmental

IP-53 environmental sealing; protected against limited dust ingress and water falling as a spray at an angle of up to 60° from vertical
Operational temperature

-10 to 45 °C
Humidity

0-90%, non-condensing Ta=40 °C
Dimensions

210mm (W) x 66mm (D) x 190mm (H); 8.3“ (W) x 2.6“ (D) x 7.5“ (H)

Downloads

Product Brochure Download
User Guide Download
