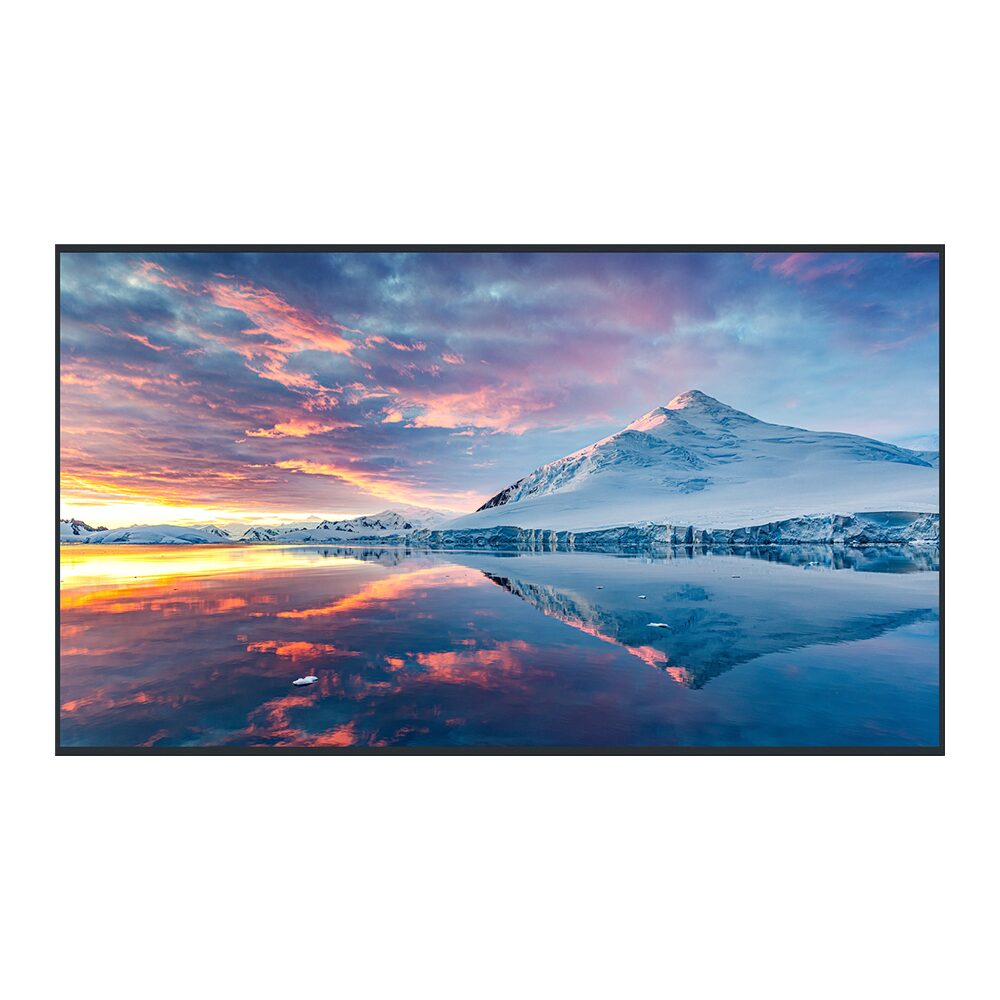

Panasonic – TH-50EQ3 50 inch 4K UHD Display

Panasonic

An entry-level 4K display that truly “communicates” with high-definition image quality.

50″, 4K, 500 cd/m²

Key features

  • High 4K Image Quality for Clear and Detailed Visuals
  • Flexible Installation to Suit a Variety of Use Cases
  • Scalability that enables cooperation with various systems
SKU: TH-50EQ3 Categories: , ,

Description

High 4K Image Quality for Clear and Detailed Visuals

With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, it is ideal for conference rooms and classrooms. The wide-viewing-angle panel delivers clear, high-quality images from any viewing position.

Flexible Installation to Suit a Variety of Use Cases

Choose a screen size based on your space, from small corners like huddle rooms to main displays in conference rooms and classrooms. With forward/backward tilt up to 20 degrees, it ensures clear visibility in any setup.

Scalability that enables cooperation with various systems

Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. It also supports external control via RS-232C, LAN (PJLink™), enabling efficient operation.

Additional information

DISPLAY PANEL -> Screen Size

50-inch class (49.5-inch / 1257.3 mm)
DISPLAY PANEL -> Brightness (typ.)

500 cd/m2
DISPLAY PANEL -> Aspect ratio

16:9
DISPLAY PANEL -> Effective Display Area (W x H)

1095.8 x 616.4 mm (43.14" x 24.26")
DISPLAY PANEL -> Resolution

3840 x 2160
DISPLAY PANEL -> Contrast Ratio (typ.)

5000:1
DISPLAY PANEL -> Response Time (typ.)

9.5 ms（G to G）
DISPLAY PANEL -> Viewing Angle(H / V)

178°/178° (CR＞10)
DISPLAY PANEL -> Panel Surface Treatment

Anti-glare type
DISPLAY PANEL -> Haze

25%
CONNECTION TERMINAL -> HDMI™ IN

HDMITM Type A Connector x 3 (HDCP 2.2 supported)
CONNECTION TERMINAL -> PC IN

Mini D-sub 15-pin x 1 (Female)
CONNECTION TERMINAL -> SERIAL IN

D-sub 9-pin x 1, RS-232C Compatible
CONNECTION TERMINAL -> AUDIO 1 IN (L / R)

Stereo Mini Jack (M3) x 1
CONNECTION TERMINAL -> AUDIO OUT (L / R)

Pin Jack x 1
CONNECTION TERMINAL -> LAN

RJ45 x 1
10BASE-T/100BASE-TX
CONNECTION TERMINAL -> USB TYPE A

USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported)
CONNECTION TERMINAL -> RF In (ANTTENA / CABLE)

F Connector x 1
AUDIO -> Built in Speaker

20 W [10 W+10 W]
ELECTRICAL -> Power Supply

AC 110 – 240 V 50 Hz / 60 Hz
ELECTRICAL -> Power Consumption

TBD
ELECTRICAL -> Power Off Condition

Approx. 0.3 W
ELECTRICAL -> Stand-by Condition

Approx. 0.5 W
MECHANICAL -> Dimension(W)

1129 mm (44.43")
MECHANICAL -> Dimension(H)

649 mm (25.66")
MECHANICAL -> Dimension(D)

66 mm (2.60")
MECHANICAL -> Weight

TBD
MECHANICAL -> Bezel Width(T)

14.9 mm (0.59")
MECHANICAL -> Bezel Width(B)

14.9 mm (0.59")
MECHANICAL -> Bezel Width(L)

14.9 mm (0.59")
MECHANICAL -> Bezel Width(R)

14.9 mm (0.59")
MECHANICAL -> Pitch for Wall-Hanging / Screw / Screw hole depth

MECHANICAL -> Pitch for Wall-Hanging / Screw / Screw hole depth
INSTALLATION -> Orientation

Landscape / Portrait
INSTALLATION -> Tilting Angle

0 – 20 degrees forward with landscape setting
INSTALLATION -> Operating Time *2

18h /day
ENVIRONMENT -> Operating Environment(Temperature)

0°C to 40°C (32°F to 104°F) : for up to 0-1400 m (4593 ft) altitude
0°C to 35°C (32°F to 95°F): for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude
ENVIRONMENTAL -> Operating Environment(Humidity) (No condensation)

20% to 80%
Footnote Description

Please contact your sales representative with regard to the tilt angle before installation.
1. Excluding handles
