Panasonic – PT-VMQ85 LCD Projector

Panasonic

Smooth and Detailed 4K Images from the Smallest, Lightest LCD Projector in Its Class

8,000 lm, LCD, 4K+

Key features

  • Making Immersive 4K Visuals More Accessible
  • Easy to Handle with Flexible Installation
  • Efficient, Eco-Conscious Design
SKU: PT-VMQ85 Categories: , , , ,

Description

Making Immersive 4K Visuals More Accessible

Panasonic’s first 4K1 LCD projector delivers immersive detail from a sub-8 kg body—the smallest and lightest in its class2. Proprietary 2-axis pixel-shifting technology and high 8,000 lm3 brightness ensure clear, dimensional 4K1 visuals even in bright rooms. Precise detail reproduction suits diverse applications—from corporate and education spaces to experiential attractions such as museums—while Vivid Green Mode enhances natural greens for golf simulation.

Easy to Handle with Flexible Installation

A compact, lightweight design and convenient adjustment tools simplify transport, installation, and image alignment. The 1.6x optical zoom and wide-range lens shift provide flexibility to fit various installation spaces, while Angle Monitor streamlines single-person installation. With 4K DIGITAL LINK4 and two CEC command-compatible5 HDMI™ inputs, the series integrates into existing systems and supports widescreen (21:9/27:9) formats6 for modern visual applications.

Efficient, Eco-Conscious Design

Advanced optical engineering delivers high-brightness 4K1 performance with outstanding energy efficiency of up to approximately 20 lm/W7. An Image Detection8 function automatically reduces light output when the projected image remains unchanged for a set period, saving power. The projector’s plastic body parts incorporate approximately 50%9 recycled resin, while recyclable paper trays replace foam insulation in the shipping carton, further reducing environmental impact.

Video

Panasonic PT-VMQ85 Portable 4K LCD Projector | 8,000 Lumen

Meet the Panasonic PT-VMQ85, the smallest and lightest 4K LCD projector in its class, delivering 8,000 lumens of bright, immersive visuals. Designed for corporate, education, and experiential applications, this portable projector makes high-quality 4K projection more accessible than ever.

Additional information

Weight 7.4 kg
Projector type

LCD projectors
Display Device -> Panel size

0.64 inch (16:10 aspect ratio)
Display Device -> Number of pixels

2,304,000 (1920 x 1200) pixels
Light source

Laser diodes
Light output *1 *2

8,000 lm
Light output (ANSI) *1 *3

8,000 lm
Light output (Center) *1 *4

8,400 lm
Time until light output declines to 50 % -> NORMAL *5

20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *5

24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET *5

20,000 hours [QUIET]
Resolution *6

4K (3840 × 2400 pixels)
Contrast Ratio (typ.)

5,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)

0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio

85%
Lens

1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F=1.58–1.91, f=15.30–24.60 mm
Digital Zoom Extender *7

Throw ratio 1.09–2.21:1*8 (Corresponding value. When used together with optical zoom.)
Lens shift -> Vertical(from center of screen)　

+44 %
Lens shift -> Horizontal(from center of screen)　

±20 %
Keystone correction range

Vertical ±25°, Horizontal ±35°

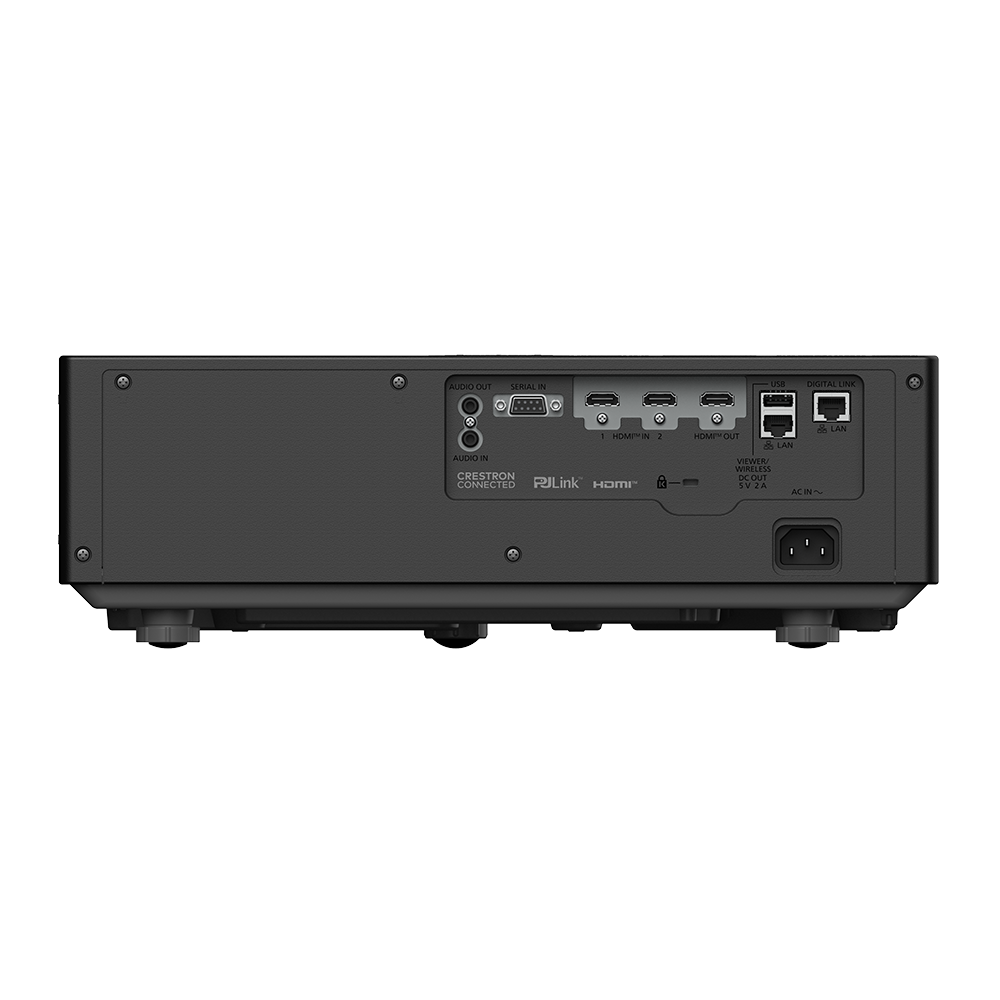

Terminals -> HDMI™ IN

HDMITM 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/60p signal input), CEC supported*9
Terminals -> HDMI™ OUT

HDMITMx 1, CEC not supported
Terminals -> AUDIO IN(M3 Stereo Mini Jack)

M3 stereo mini-jack x 1
Terminals -> AUDIO OUT(M3 Stereo Mini Jack)

M3 stereo mini-jack x 1
Terminals -> SERIAL IN

D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals -> DIGITAL LINK IN / LAN

RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseTTM compliant), 100Base-TX (Compatible with PJLinkTM [Class 2],HDCP, Deep Color, 4K/60p*10 signal input)
Terminals -> LAN

RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLinkTM [Class 2]
Terminals -> USB TYPE A

USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*11)
Protocol versions

IPv4, IPv6*12
Power supply

Single-phase AC 100–240 V, 50/60 Hz
Maximum power consumption *13

405 W (4.2–1.7 A ) (410 VA)(Power consumption is 390 W at 200–240 V)
On-mode power consumption(Operating mode) -> Normal *13 *14

370 W (100–120 V), 355 W (200–240 V) [NORMAL]
On-mode power consumption(Operating mode) -> Eco *13 *14

260 W (100–120 V), 250 W (200–240 V) [ECO]
On-mode power consumption(Operating mode) -> Quiet *13 *14

On-mode power consumption(Operating mode) -> Quiet *13 *14
Filter *15

Included
Operation noise -> Normal

39 dB [NORMAL]
Operation noise -> Eco

39 dB [ECO]
Operation noise -> Quiet

34 dB [QUIET1]
29 dB [QUIET2]
Dimensions (W x H x D)

Approx. 399 × 115 × 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (Excluding protruding parts)
Approx. 399 × 133 × 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (With legs at shortest position)
Operating environment -> Operating temperature *12

0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)

20–80 % (no condensation)
Applicable software

Multi Monitoring & Control Software, Projector Network Setup Software, Wireless Projector App for iOS/AndroidTM*19
Estimated filter maintenance cycle

approx. 20,000 hours
Body Colour

VMQ85EJ: WhiteVMQ85BEJ: Black
NFC

No
Active 3D

No
SDM

No
EAN

VMQ85EJ: 5025232991242
VMQ85BEJ: 5025232991341
Display method

Transparent LCD panel (x 3, R/G/B)
Display Device -> Drive method

Active matrix method
Gross Dimensions (W x H x D in mm)

VMQ85EJ/VMQ85BEJ : 546 x 276 x 474 mm
Gross Weight (Kg)

VMQ85EJ/VMQ85BEJ : Approx.11.7 kg(25.8 lbs)
Footnote Description

1. When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF].
2. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118:2020 international standards. Value is average of all products when shipped.
3. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
4. Average light-output value of all shipped products measured at the center of screen in NORMAL Mode.
5. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until light output declines to 50 % varies depending on environment.
6. Displayed resolution (3840 x 2400 pixels) with Quad Pixel Drive [ON].
7. Resolution decreases when using Digital Zoom Extender. Grid Adjustment, 6-Point ScreenCorrection, V/H Keystone Correction, and curved-screen correction are not available when using this function. The range of corner adjustment is limited.
8. When Digital Zoom Extender is set to 80 %.
9. Depending on the connected CEC command compatible device, the link control may not operate normally.
10. YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
11. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.
12. The optional AJ-WM50 Series Wireless Module does not support IPv6.
13. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.
14. On-mode power consumption measured at 25 °C (77 °F) operating temperature atan altitude of 700 m (2,297 ft).
15. Filter cleaning cycle varies depending on the environment. The filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).
16. Average value. May differ depending on the actual unit.
17. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level.
18. When the optional AJ-WM50 Series Wireless Module is attached, the operating temperature range becomes 0–40 °C (32–104 °F).
19. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
