Panasonic-PT-RZ44K-Front-FacePanasonic-PT-RZ44K-Front-Face

Panasonic – PT-RZ44K 3-Chip DLP™ Projector

Panasonic

A New Benchmark in 4K Projection: Introducing the World’s Smallest and Lightest 42,000 lm Projector

42,000 lm, 3-Chip DLP™, WUXGA, Intel® SDM slot

Key features

  • Compact 42,000 Lumen Design for Efficient Workflow
  • Trusted Performance in Tough Applications
  • Spectacular 4K Visuals
SKU: PT-RZ44K Categories: , , , ,

Description

Compact 42,000 Lumen Design for Efficient Workflow

Delivering 42,000 lm1 from a body size equivalent to the RQ35K2/RQ35K Series, the RQ45K Series streamlines transport, installation, and setup logistics. Compatibility with existing frames, flight cases, and optional lenses makes upgrading economical. A new 5-inch color LCD monitor simplifies pre-show video checks and real-time status monitoring, while anIntel® SDM standard-compatible expansion slot2 and 12G-SDI input3 ensure seamless system integration.

Enhanced Reliability in Harsh Environments

For lasting reliability in demanding environments, key circuit boards feature a UV coating to inhibit corrosion from fumes and salt, while a new modular board layout dramatically improves maintenance efficiency. Proprietary Dynamic Digital Control and a dedicated cooling system stabilize red laser performance under temperature fluctuations to maintain consistent color output. Multi-Laser Drive Engine and Backup Input help prevent show interruptions even in the event of equipment failure.

Spectacular 4K Visuals

RZ45K, the brightest WUXGA (1920 × 1200 px) Panasonic projector. Its compact and lightweight build ensures easy transport and seamless integration into any workflow. Versatile Intel SDM-compatible slot and Multi-Laser Drive Engine, the RZ45K delivers 42,000 lumens for vivid, true-to-life color.

It features a UV-coated circuit board that offers effective protection against dust and moisture. This robust design makes it an excellent choice for installations in challenging conditions.

Advanced technologies like Gradation Smoother and Perfect Black Level Correction makes the RZ45K the ideal solution for any multi-unit projection setup.

Additional information

Weight 66 kg
Projector type

3-Chip DLP™ projector
Display method

DLP™ chip x 3, DLP™ projection system
Display Device -> Panel size

24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
Display Device -> Number of pixels

2,304,000 (1920 x 1200 pixels) x 3
Light source

Laser diodes (Blue LD, Red LD)
Light output *1

45,000 lm*3
Light output (ANSI)

42,000 lm*4
Light output (Center) *1 *2

43,600 lm*5
Time until light output declines to 50 % -> NORMAL *3

20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *3

24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET *5

26,000 hours [QUIET]
Resolution

PT-RZ44K: WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.) *1

25,000 : 1(Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal)

1.78–25.40 m (70–1000 in) (Depending on attached lens)
Center-to-corner zone ratio *1

90%
Lens

Optional (No lens included with this model)
Lens shift -> Vertical(from center of screen)　 *4

±55 % (+68 %, +78 % with ET-D75LE95, ±48 % with ET-D3LEW201,±44 % with ET-D3LEW60/D3LEW300/D3LEW600) (Powered)
Lens shift -> Horizontal(from center of screen)　 *4

±20 % (±15 % with ET-D3LEW300/D3LEW600/D3LEW201, ±12 % with ET-D75LE95,0 %, +25 % with ET-D3LEU101) (Powered)
Keystone correction range

Vertical: ±45 ° (± 40 ° with ET-D3LEW10/D3LES20/D3LES250, ±28 ° with ET-D3LEW600, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW201/D3LEW300, ±8 ° with ET-D3LEU101, +5 ° with ET-D75LE95);
Horizontal: ±40 ° (±15 ° with ET-D3LEW50/D3LEW600, ±5 ° with ET-D3LEU101/D3LEW201/D3LEW300, 0 ° with ET-D75LE95)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °
Installation

Ceiling/floor, front/rear, free 360-degree installation

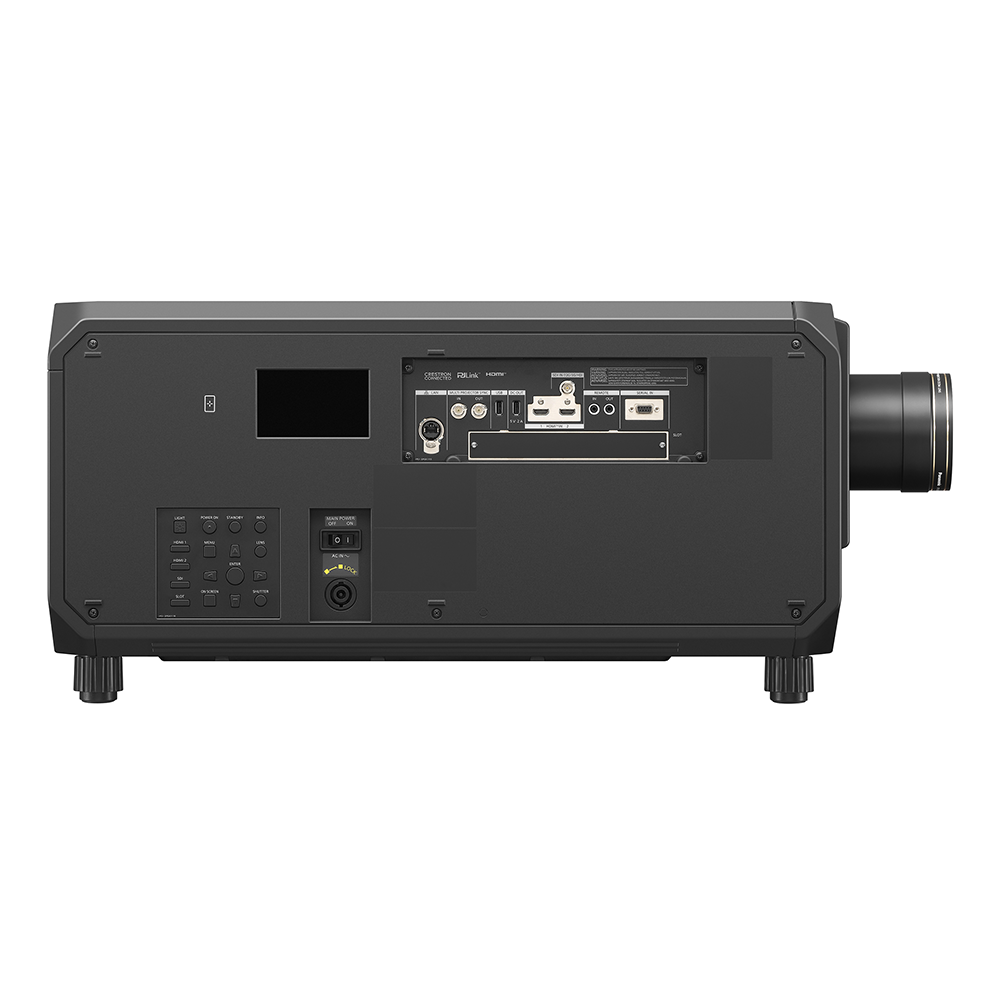

Terminals -> SDI IN

BNC x 1 : 12G / SDI input
Terminals -> HDMI™ IN

HDMITM x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*6)
Terminals -> MULTI PROJECTOR SYNC IN

BNC x 1
Terminals -> MULTI PROJECTOR SYNC OUT

BNC x 1
Terminals -> SERIAL IN

D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals -> REMOTE 1 IN

M3 stereo mini-jack x 1 for wired remote control
Terminals -> REMOTE 1 OUT

M3 stereo mini-jack x 1 for link control (for wired remote control)
Terminals -> LAN

RJ-45 x 1 for network connection, PJLinkTM (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals -> DC OUT

USB Connector Type A x 1 (for power supply, DC 5 V, 2 A)
Terminals -> USB TYPE A

USB connector Type A x 1 for optional AJ-WM50 Series Wireless Module/USB memory
Terminals -> SLOT

Open slot for function boards, Intel® SDM standard-compatible
Protocol versions

IPv4, IPv6*8
Power supply

Single Phase AC 100–240 V, 50/60 Hz
Maximum power consumption

Approx.3,110 W
On-mode power consumption(Operating mode) -> Normal

Approx.2,850 W
On-mode power consumption(Operating mode) -> Eco

Approx.2,240 W
On-mode power consumption(Operating mode) -> Quiet *13 *14

Approx.2,000 W
Cabinet materials

Molded plastic
Operation noise -> Normal *1

49 dB [NORMAL]
Operation noise -> Eco

49 dB [ECO]
Operation noise -> Quiet *1

46 dB [QUIET]
Dimensions (W x H x D)

Approx. 598 x 352 x 780 mm (23 17/32˝ x 13 27/32˝ x 30 23/32˝ ) (Not including protruding parts)
Operating environment -> Operating temperature *8 *9

0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)

10–80 % (no condensation)
Applicable software

Visual Software Suite, Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/Android™
Control function via LAN

Crestron ConnectedTM V2, Crestron XiO CloudTM, Art-Net DMX, AMX® DD, and PJLinkTM (Class 2)
Terminals -> MULTI SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose)

BNC x1 (MULTI PROJECTOR SYNC IN dual purpose)
Terminals -> MULTI SYNC OUT/ 3D SYNC 2 OUT (dual purpose)

BNC x 1 (MULTI PROJECTOR SYNC OUT dual purpose)
Terminals -> DVI-D IN

ー
Terminals -> DisplayPort™ IN

ー
Terminals -> DIGITAL LINK IN / LAN

ー
Gross Dimensions (W x H x D in mm)

Approx. 790 x 702 x 957 mm
Gross Weight (Kg)

Approx. 70 kg (155 lbs) or less (TBD)
NFC

Yes
Active 3D

No
SDM

Yes
EAN

RQ45KEJ: 5025232988921
RQ45KD: 8887549897283
RQ45KE: 8887549897276
Footnote Description

Value with ET-D3LES250 Zoom Lens (available CY2026) and a power supply voltage of AC 200–240 V. The value varies depending on the lens.
When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].
Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode.
Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE] is set to [DYNAMIC], [DYNAMIC CONTRAST] is set to [2]). Estimated time until light output declines to 50 % varies depending on environment.
4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ44K.
Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.
On-mode power consumption measured at 25 °C (77 °F) operating temperature at analtitude of 700 m (2,297 ft).
Average value. May dier depending on the actual unit.
Do not install the projector at an altitude of 4,200 m (13,780 ft) or higher above sea level. (Altitude of 4,200 m [13,780 ft] above sea level is the maximum height that the performance of this projector is guaranteed.) Using the projector in a location where the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions. Upper limit of the operating environment temperature varies depending on the altitude above sea level. When using the projector at an altitude between 0 m (0 ft) and 1,400 m (4,593 ft) above sea level: 0 °C (32 °F) to 45 °C (113 °F). When using the projector at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft) above sea level: 0 °C (32 °F) to 40 °C (104 °F). Do not use the projector in a location where the ambient temperature exceeds 40 °C (104 °F) regardless of the altitude when the optional AJ-WM50 Series Wireless Module is attached to the projector.

Downloads

Data Sheet Download
