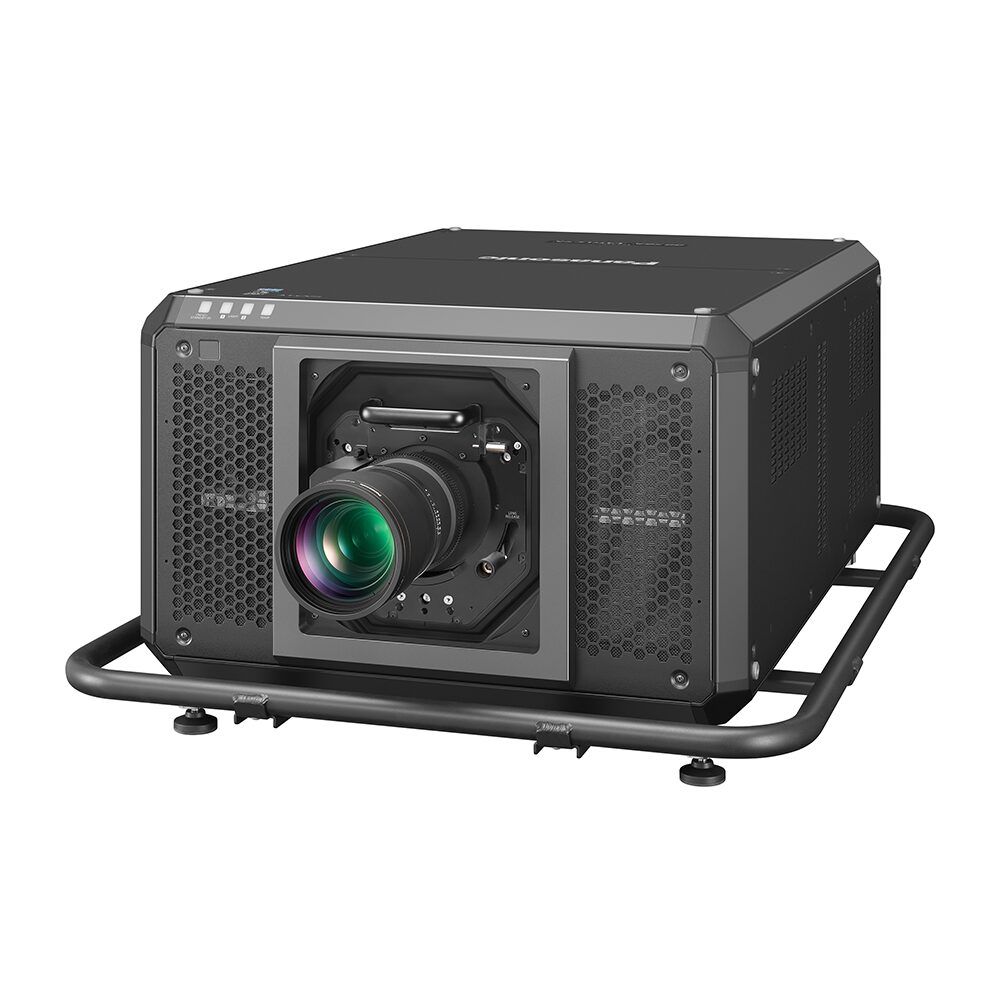

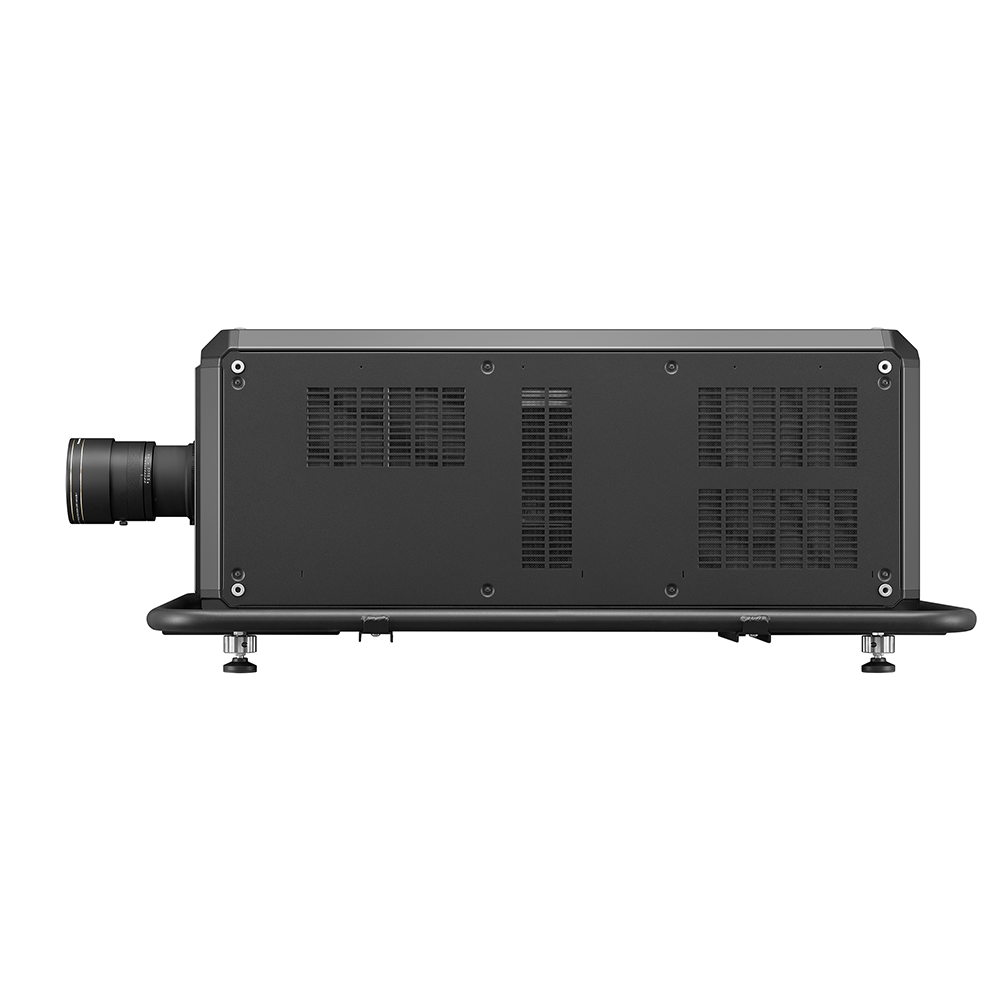

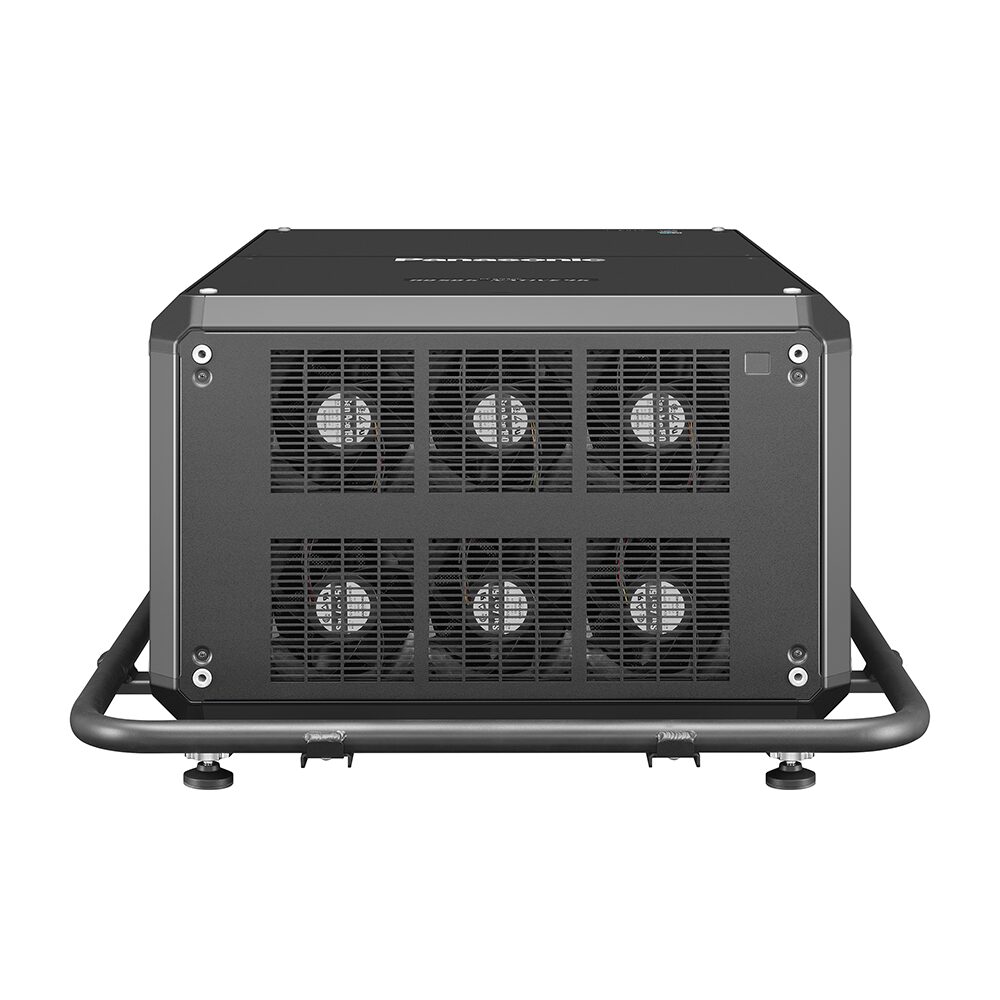

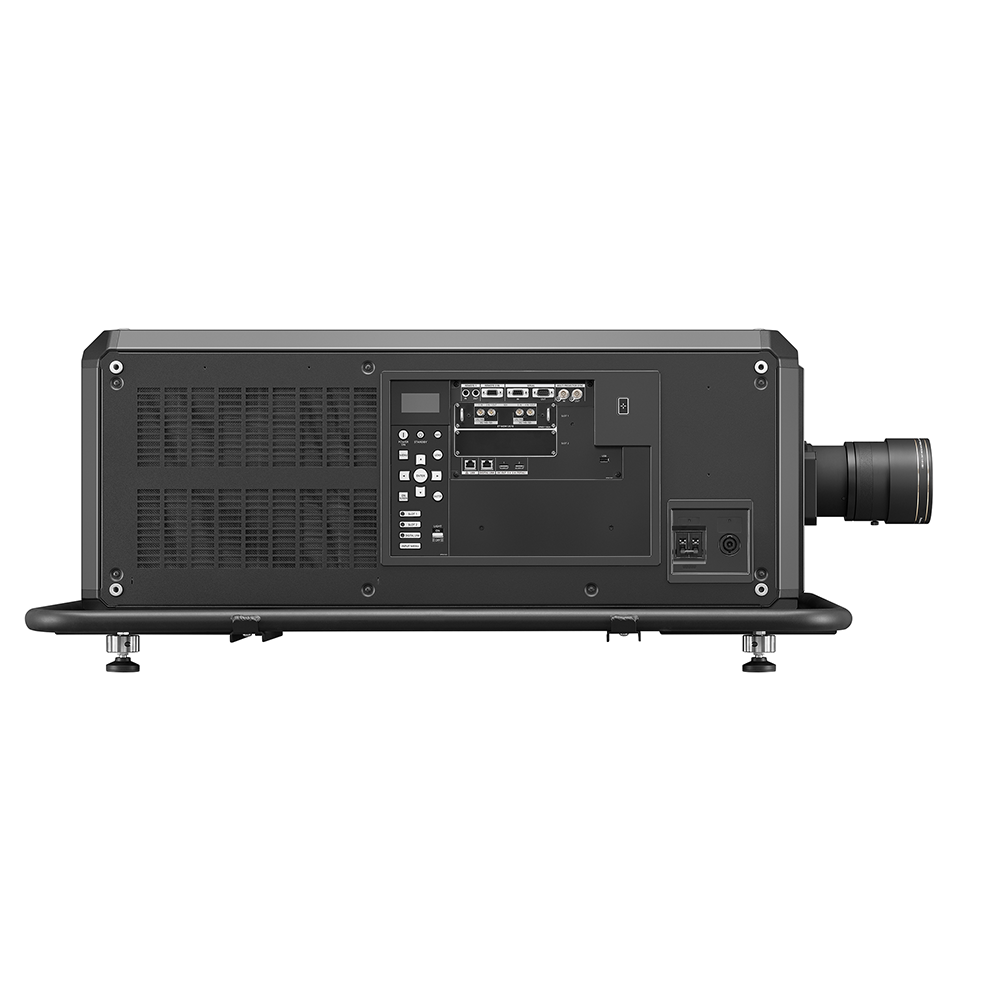

Panasonic – PT-RQ50K 4K 50,000 lm Large Venue Laser Projector

Panasonic

World’s most compact 50,000 lumen Laser Projector with Native 4K Resolution

50,000 lm, 3-Chip DLP™, Native 4K

Key features

  • Laser 3-chip DLP, 50,000 lumens, Native 4K
  • Lamp-free laser projection with hermetically sealed optics and filter-less design, for 20,000 hours maintenance free operation
  • Compact body allows for simplified transport, install and adjustment
  • Dualised design provides the ultimate in backup and reliability
  • 20,000:1 contrast ratio
SKU: PT-RQ50K Categories: , , , ,

Description

Awe-Inspiring Color, Brightness, and Resolution

The PT-RQ50K represents a milestone in projection technology. Serving flawless Native 4K (4096 x 2160) images with a laser engine that combines one red laser and two blue lasers operating at different wavelengths, light output is doubled from the same footprint as our 26,000 lm PT-RQ32K 4K projector. Deployed at sporting events, arena concerts, outdoor mapping attractions, or museum exhibitions, the PT-RQ50K’s refined power will exceed the highest expectations.

Newly Developed Laser Engine Expands the Color Gamut

An all-new laser engine expands color-gamut to 114 % of our current PT-RQ32K flagship, achieving lush, vibrant hues that pull audiences into the artist’s world. A new red laser enhances two blue lasers, which output light at different wavelengths for high color accuracy. Combined with digital frame-by-frame control to manage light output according to the scene’s contrast and brightness requirements and dedicated red-laser cooling to precisely control temperature, the PT-RQ50K attains vivid reds and deep, natural blues for spectacular on-screen color expression

Gradation Smoother Reduces Banding

Panasonic’s original Gradation Smoother function reduces banding noise in gradients of shaded color evident in content that lacks the optimal color bit-depth. Operators can select three levels* of image correction appropriate to the severity of the problem, or disable the function when it’s not needed. Gradation Smoother is your go-to solution when banding is evident in the projection, but there’s no time to re-edit the content.

* Projectors ship with Gradation Smoother set at a factory default of [2].

Video

Panasonic Projector: 3-Chip DLP Projector PT-RQ50K

The world’s brightest* 50,000-lm projector — the PT-RQ50K — makes its debut.

Additional information

Weight 126 kg
Projector type

3-Chip DLPTMprojector
Display method

DLPTM chip x 3, DLPTM projection system
Display Device -> Panel size

35.1 mm (1.38 in) diagonal (17:9 aspect ratio)
Display Device -> Number of pixels

8,847,360 (4096 x 2160 pixels) x 3
Light source

Laser diodes (Blue LD, Red LD)
Light output *1

50,000 lm
Light output (ANSI)

50,000 lm
Light output (Center) *1 *2

51,000 lm (Center)
Time until light output declines to 50 % -> NORMAL *3

20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *3

24,000 hours [ECO]
Resolution

Native 4K (4096 x 2160 pixels)
Contrast Ratio (typ.) *1

25,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal)

2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio
Center-to-corner zone ratio *1

90%
Lens

Optional (no lens included with this model)
Lens shift -> Vertical(from center of screen)　 *4

±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered)
Lens shift -> Horizontal(from center of screen)　 *4

±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered)
Keystone correction range

Vertical: ±40 ° (±28 ° with ET-D3QW300), Horizontal: ±40 ° (±15 ° with ET-D3QW300)
Installation

Horizontal/vertical, free 360-degree installation
Terminals -> MULTI PROJECTOR SYNC IN

BNC x 1
Terminals -> MULTI PROJECTOR SYNC OUT

BNC x 1
Terminals -> SERIAL IN

D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals -> SERIAL OUT

D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals -> REMOTE 1 IN

M3 stereo mini-jack x 1 for wired remote control
Terminals -> REMOTE 1 OUT

M3 stereo mini-jack x 1 for link control
Terminals -> REMOTE 2 IN

D-sub 9-pin (female) x 1 for external control (parallel)
Terminals -> DIGITAL LINK IN / LAN

RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseTTM compliant), PJLinkTM (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible
Terminals -> LAN

RJ-45 x 1 for network connection, PJLinkTM (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals -> DC OUT

USB Connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A)
Terminals -> USB TYPE A

USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick
Terminals -> SLOT

SLOT1 : Interface Board for 12G-SDI (ET-MDN12G10) suppliedSLOT2 : Optional interface boards, SLOT NX compatible
Power supply

AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz
Maximum power consumption

4,100 W (AC 100–120 V: 1,100 W)
On-mode power consumption(Operating mode) -> Normal

3,970 W
On-mode power consumption(Operating mode) -> Eco

3,110 W
Standby power consumption -> Normal

6 W
Cabinet materials

Fabricated metal and molded plastic
Filter

No
Operation noise -> Normal *1

52 dB [NORMAL]
Dimensions (W x H x D)

Approx. 720 x 445 x 1,070 mm (28 11/32˝ x 17 17/32˝ x 42 1/8˝ ) (excluding handle, adjuster feet, and other protruding parts)
Dimensions (W x H x D) -> Width (not including protruding parts)

720 mm (28 11/32˝)
Dimensions -> Height (not including protruding parts)

445 mm (17 17/32˝)
Dimensions -> Depth (not including protruding parts)

1,070 mm (42 1/8˝)
Operating environment -> Operating temperature *8 *9

0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)

10–80 %　（no condensation)
Applicable software

Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/AndroidTM
Body Colour

Black
Gross Dimensions (W x H x D in mm)

Approx. 1021 x 731 x 1499 mm
Gross Weight (Kg)

RQ50KEJ/RQ50KE: 155.2 kg (342.1 lbs)
NFC

Yes
EAN

RQ50KEJ: 5025232911301
RQ50KE: 8887549774911
Terminals -> SDI IN

ー
Terminals -> HDMI™ IN

ー
Terminals -> DVI-D IN

ー
Terminals -> DisplayPort™ IN

ー
Footnote Description

1. When [OPERATING MODE] is set to [NORMAL].
2. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
3. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
4. Average light-output value of all shipped products measured at the center of the screen.
5. Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
6. Average value. May differ depending on the actual unit.
7. The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
8. When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F).
9. When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 °C (86 °F) or higher, the light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may be reduced to protect the projector.
