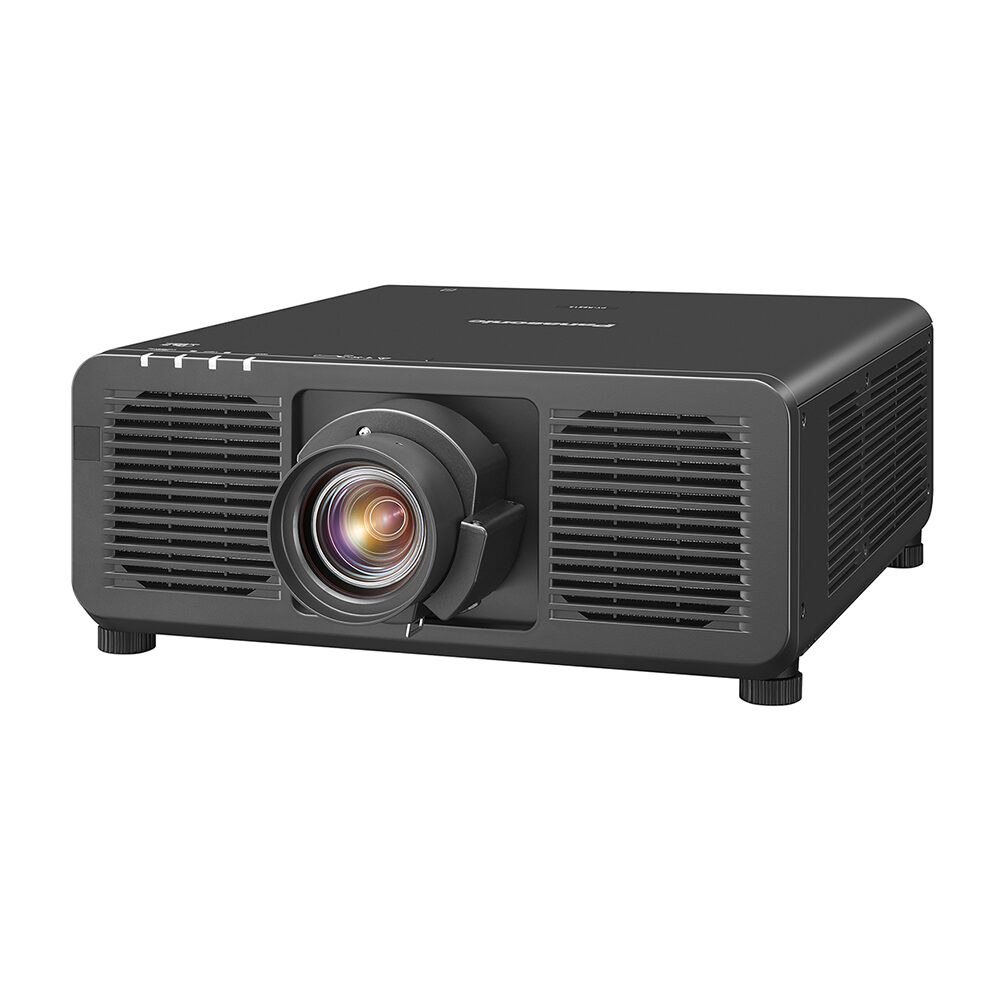

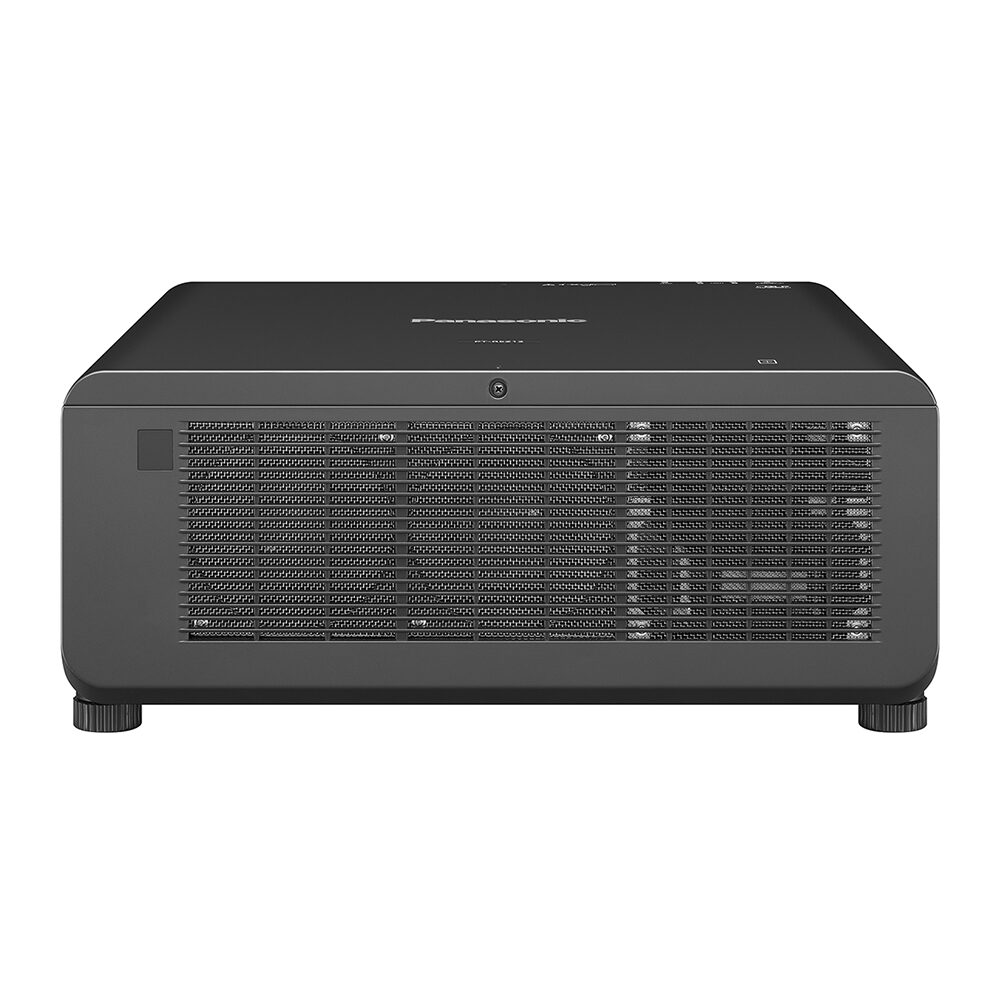

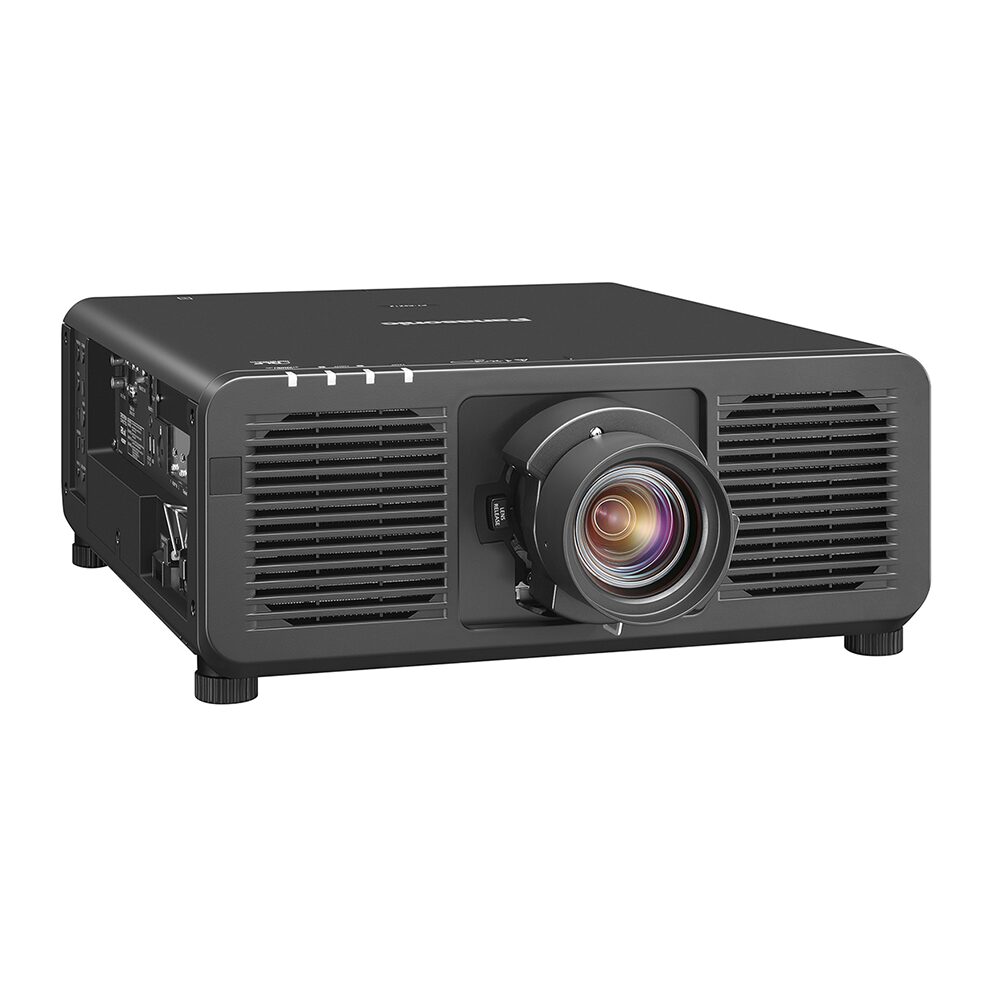

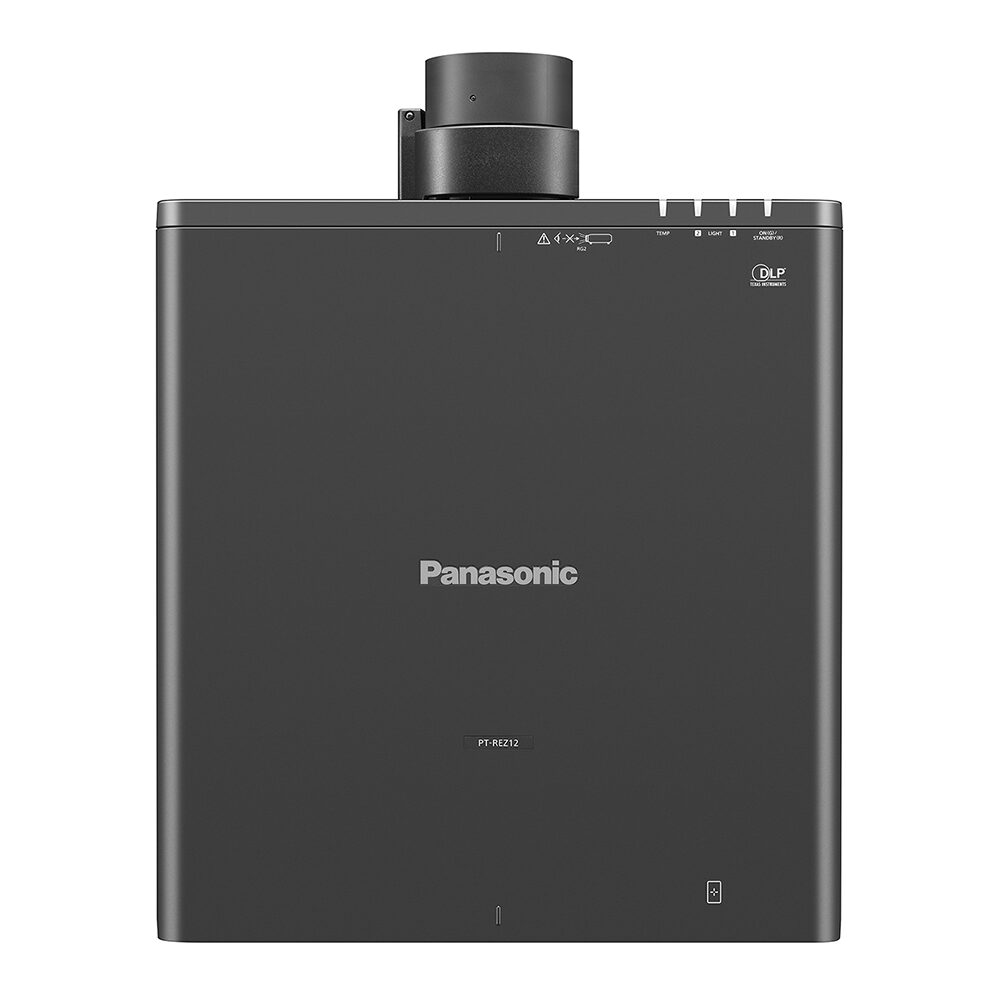

Panasonic – PT-REZ12 1-Chip DLP™ Projector

Panasonic

Evolved 1-Chip DLP™ Projectors Transform Your Experience with a Smooth, Frictionless Workflow

12,000 lm, 1-Chip DLP™, WUXGA, Intel® SDM slot

Key features

  • High-Contrast Visuals Deepen Engagement
  • Flexibility and Expandability for Timesaving Workflow
  • New Compact Body Supports Maintenance-free Projection
SKU: PT-REZ12 Categories: , , , ,

Description

With rising demand for compact 1-Chip DLP™ projectors capable of streamlining workflows and inspiring guests with spectacular visuals, Panasonic has combined its REZ12 Series with the PT-REZ15/REZ15L to create the REZ15 Series, our most advanced WUXGA 1-Chip DLP™ projector to date. With a resource-friendly design shaped by co-creative partnerships with industry leaders, the REZ15 Series is ready to reinvent your experience.

Features

  • Supports Art-Net DMX, PJLink™, Crestron Connected® V2, Crestron® XiO Cloud, and Extron XTP®
  • Supports IPv61 network protocol
  • 1 USB port for DC 5 V/2 A power supply, 1 USB port for optional AJ-WM50 Series Wireless Module and data transfer from USB memory devices
  • Compatible with the Multiple PJ Firmware Batch Update Tool
  • Contrast Sync and Shutter Sync Functions
  • Data-Cloning Function via LAN or USB2
  • Supports widescreen 21:9 input signals
  • Quick Start and Quick Off
  • Multi-screen Support System
  • Multi-Unit Brightness and Color Control
  • DICOM Simulation Mode
  • Waveform Monitor Function

1 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
2 Data-cloning is supported among models in the same series with the same resolution. Excludes passwords, projector ID, and network settings.

Additional information

Weight 28.7 kg
Projector type

1-Chip DLPTM projector
Display method

DLPTM chip x 1, DLPTM projection system
Display Device -> Panel size

0.8 in diagonal (16:10 aspect ratio)
Display Device -> Number of pixels

2,304,000 (1920 x 1200 pixels)
Light source

Laser diode
Light output *1 *2 *3

12,000 lm
Light output (ANSI) *1 *2 *4

12,000 lm
Light output (Center) *1 *2 *5

12,400 lm (Center)
Time until light output declines to 50 % -> NORMAL *6

20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *6

24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET *6

20,000 hours [QUIET]
Resolution

WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.) *3

25,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal)

70–700 inches (with supplied lens)
Center-to-corner zone ratio *3

90%
Lens

Powered zoom (throw ratio 1.36–2.10:1 for supplied lens), powered focus
Lens shift -> Vertical(from center of screen)　

±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100)
Lens shift -> Horizontal(from center of screen)　

±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100)
Keystone correction range

Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500),
Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500)
Installation

Ceiling/floor, front/rear, free 360-degree installation
Terminals -> HDMI™ IN

HDMITM x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)*5
Terminals -> DisplayPort™ IN

DisplayPortTM x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)*5
Terminals -> MULTI PROJECTOR SYNC IN

BNC x 1
Terminals -> MULTI PROJECTOR SYNC OUT

BNC x 1
Terminals -> SERIAL IN

D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals -> SERIAL OUT

D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals -> REMOTE 1 IN

M3 stereo mini-jack x 1 for wired remote control
Terminals -> REMOTE 1 OUT

M3 stereo mini-jack x 1 for link control (for wired remote control)
Terminals -> REMOTE 2 IN

D-sub 9-pin (female) x 1 for external control (parallel)
Terminals -> LAN

RJ-45 x 1 for network connection, PJLinkTM (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals -> DC OUT

USB Type A x 1 (for power supply, DC 5 V, 2 A)
Terminals -> USB TYPE A

USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
Terminals -> SLOT

Open slot for function boards, Intel® SDM compatible
Protocol versions

IPv4、IPv6*6
Power supply

AC 100–240 V, 50/60 Hz
Maximum power consumption *9

995 W (10.4–4.3 A) (1,005 VA)(Power consumption is 950 W at AC 200–240 V)
On-mode power consumption(Operating mode) -> Normal *9 *9 *10

[NORMAL]850 W (AC 100–120 V),810 W (AC 200–240 V)
On-mode power consumption(Operating mode) -> Eco *9 *9 *10

[ECO]650 W (AC 100–120 V),625 W (AC 200–240 V)
On-mode power consumption(Operating mode) -> Quiet *9 *10

[QUIET]640 W (AC 100–120 V),615 W (AC 200–240 V)
Cabinet materials

Molded plastic
Filter

No
Operation noise -> Normal *3

38 dB [NORMAL]
Operation noise -> Eco *3

38 dB [ECO]
Operation noise -> Quiet *3

35 dB [QUIET]
Dimensions (W x H x D)

PT-REZ12: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position)PT-REZ12L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position)
Dimensions (W x H x D) -> Width (not including protruding parts)

498 mm (19 19/32˝)
Dimensions -> Width (including protruding parts)

498 mm (19 19/32")
Dimensions -> Height (including protruding parts)

212 mm (8 11/32˝)
Dimensions -> Depth (not including protruding parts)

538 mm (21 3/16˝ )
Dimensions -> Depth (including lens)

648 mm (25 1/2˝)
Operating environment -> Operating temperature *12

0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)

10–80 % (no condensation)
Applicable software

Logo Transfer Software*11, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/AndroidTM
Control function via LAN

Crestron ConnectedTM V2, Crestron XiO CloudTM, Art-Net DMX, AMX® DD, and PJLinkTM (Class 2)
Body Colour

PT-REZ12LBEJ-BlackPT-REZ12LBE-BlackPT-REZ12BEJ-BlackPT-REZ12BE-BlackPT-REZ12LWEJ-WhitePT-REZ12LWE-WhitePT-REZ12WEJ-WhitePT-REZ12WE-White
Gross Dimensions (W x H x D in mm)

REZ12BEJ/REZ12WEJ: Approx. 651 x 375 x 838 mm
REZ12BE/REZ12WE: Approx. 639 x 355 x 826 mm
Gross Weight (Kg)

REZ12BEJ/REZ12WEJ: 36.7 kg (81.0 lbs)
REZ12BE/REZ12WE: 34.6 kg (76.4 lbs)
NFC

Yes
EAN

REZ12BEJ: 5025232951123
REZ12WEJ: 5025232951130
REZ12BE: 8887549850653
REZ12WE: 8887549850677
Terminals -> SDI IN

ー
Terminals -> DVI-D IN

ー
Terminals -> DIGITAL LINK IN / LAN

ー
Active 3D

No
SDM

Yes
Footnote Description

1. This is the value when the Zoom Lens (Model No.: ET‑C1S600) is used. The value varies depending on the lens.
2. When [OPERATING MODE] is set to [NORMAL].
3. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
4. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
5. Average light-output value of all shipped products measured at the center of the screen.
6. Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. The estimated time until light output declines to 50 % varies depending on the environment.
7. 4K signals are converted to WUXGA (1920 x 1200 pixels).
8. Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
9. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).
10. This value has included a maximum power consumption of 80 W when using a function board.
11. Average value. May differ depending on the actual unit.
12. When the optional AJ-WM50 Series wireless module is attached, the operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C(32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
13. Excluding the REZ15. Software replaced with equivalent functions in the Web Control UI.
