Description
The Netron RDM6D is a powerful DIN Rail or Wall Mount DMX/RDM splitter with six wire terminal or RJ45 outputs.
Designed with rugged, opto-isolated outputs it is the ideal device for permanent installations requiring a compact design and flexible wiring options.

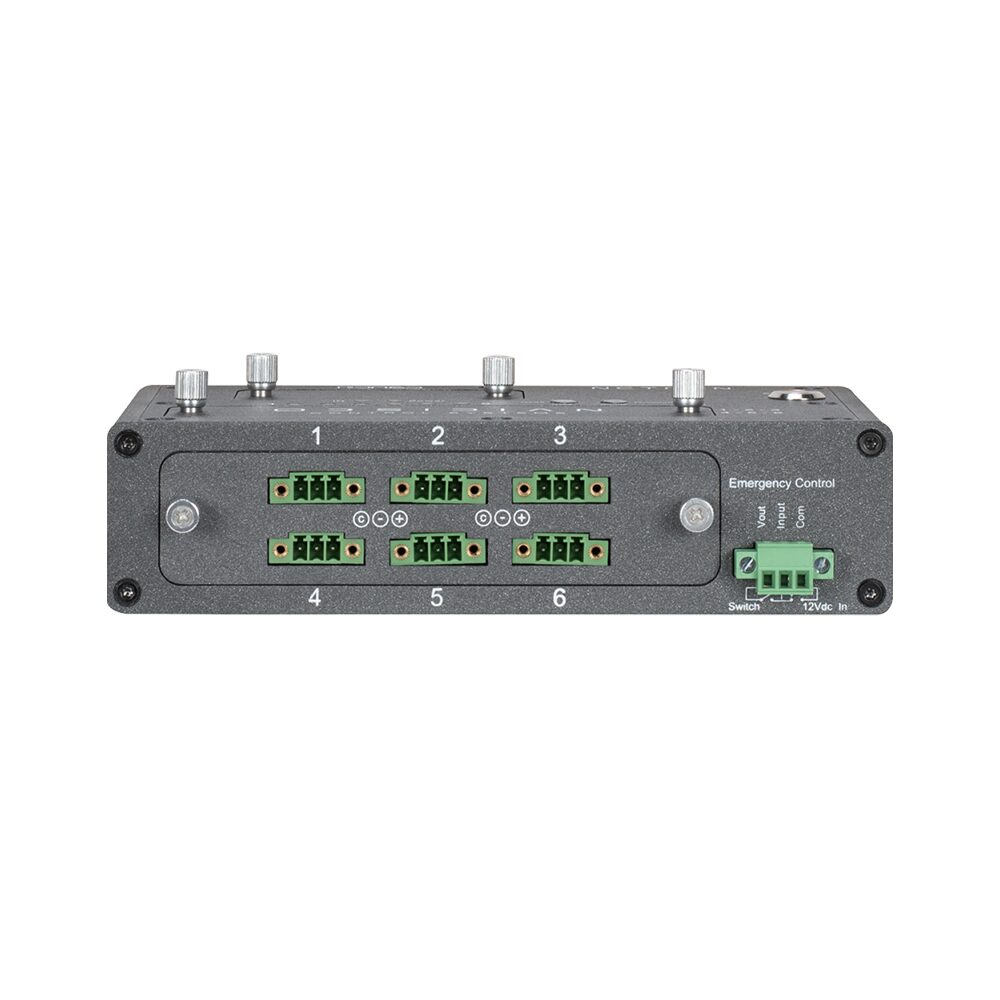

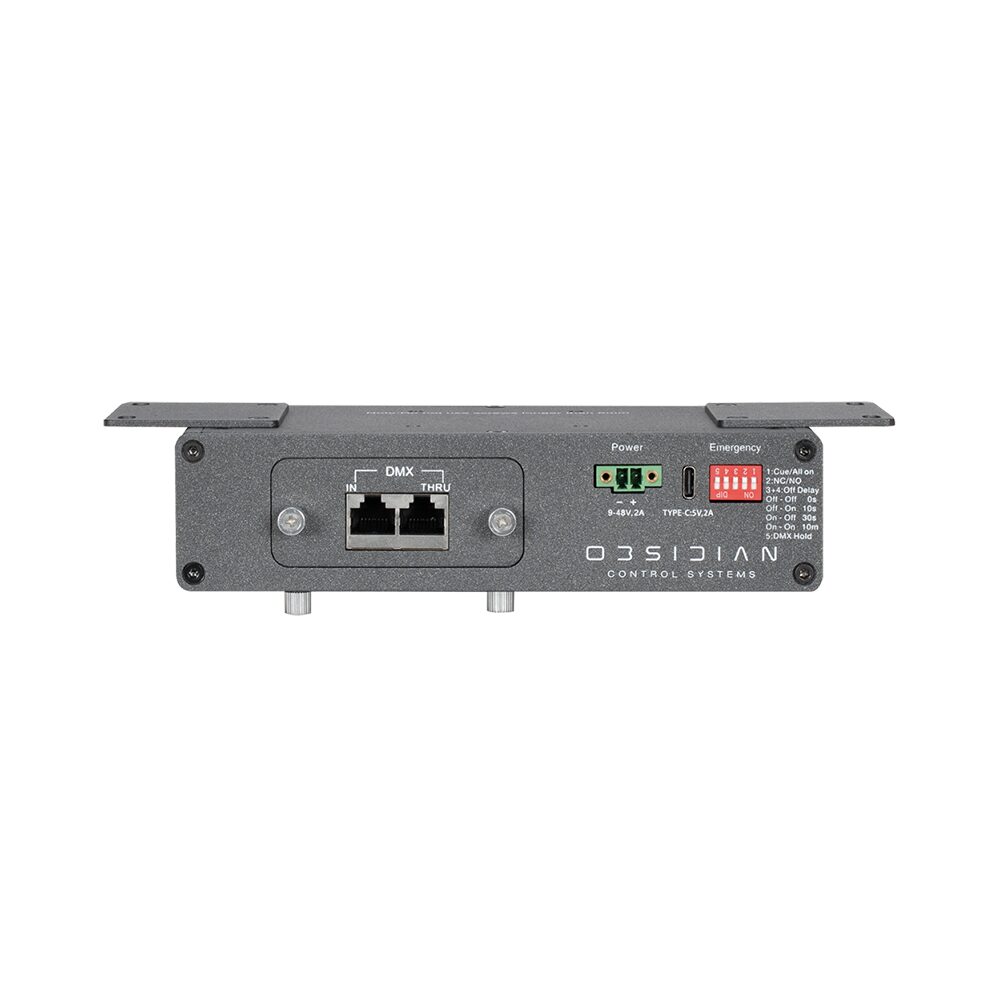

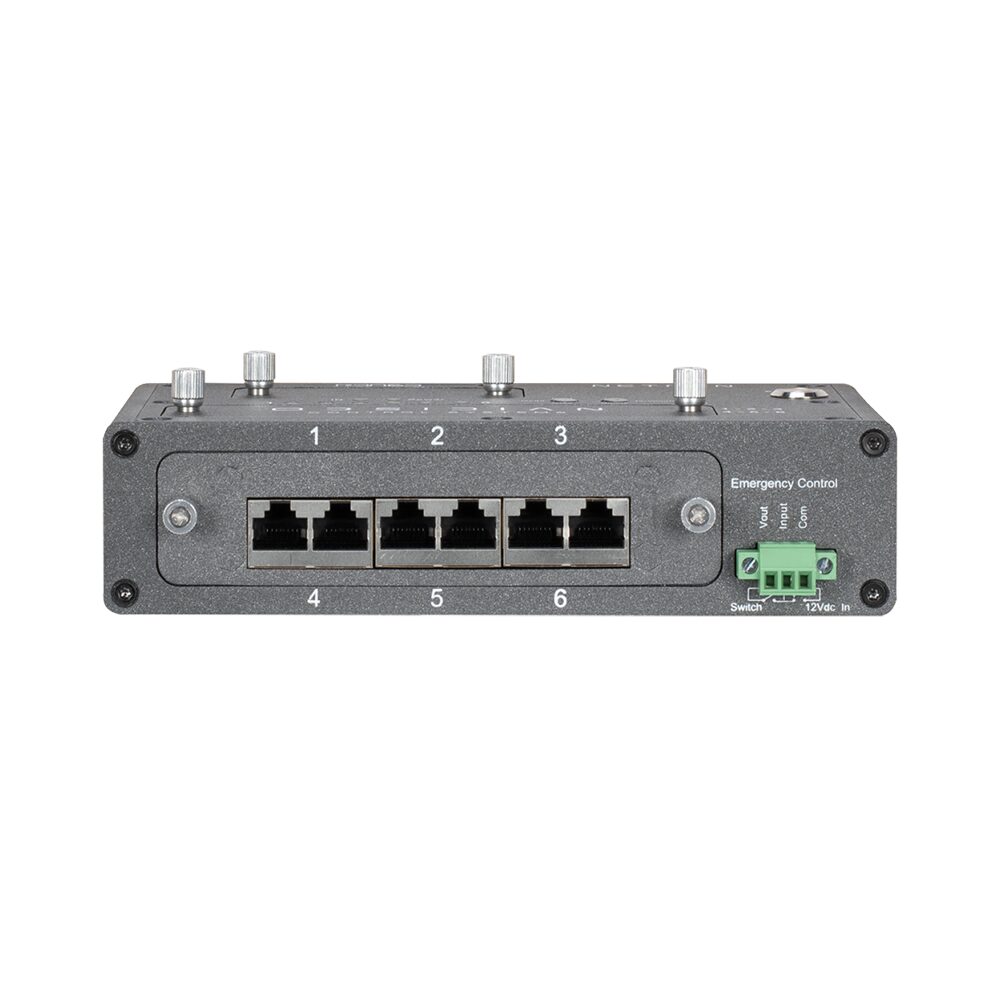

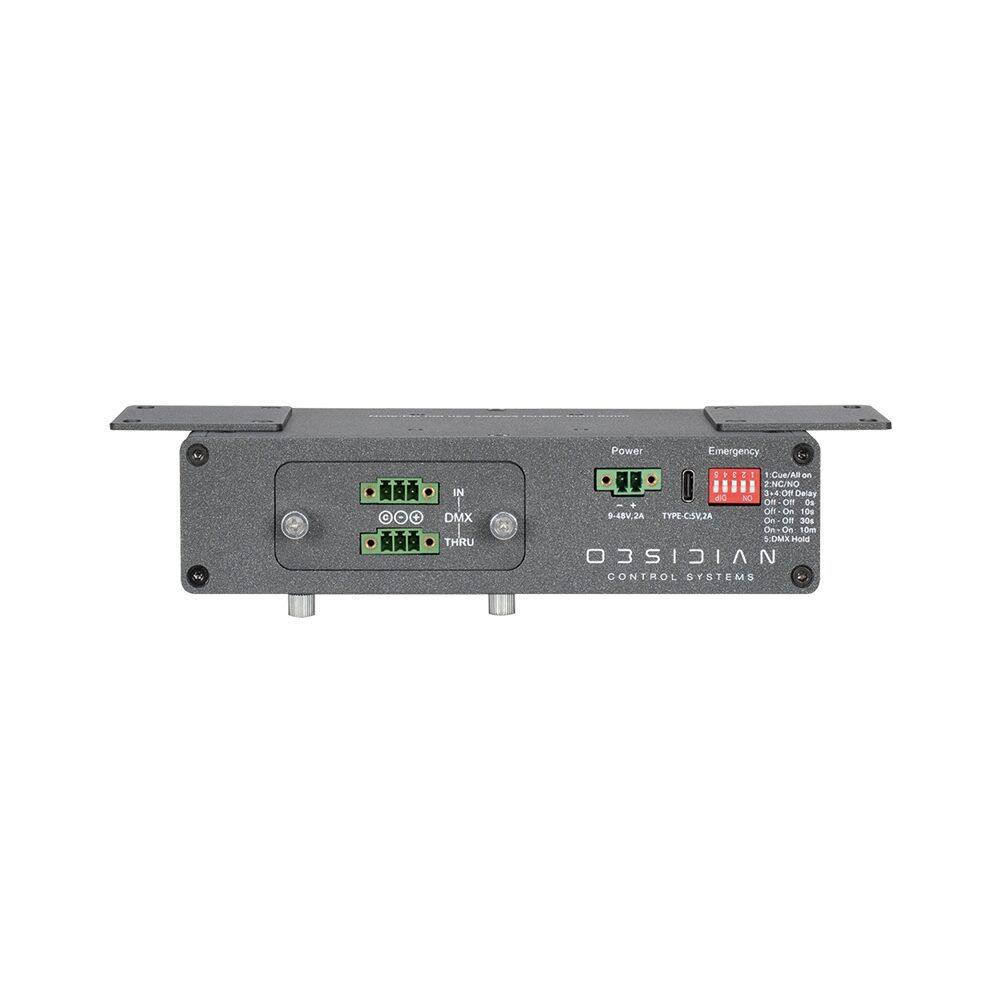

The innovate connector configurations allow the NETRON RDM6D to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the RDM6D, depending on installer preference or space considerations.

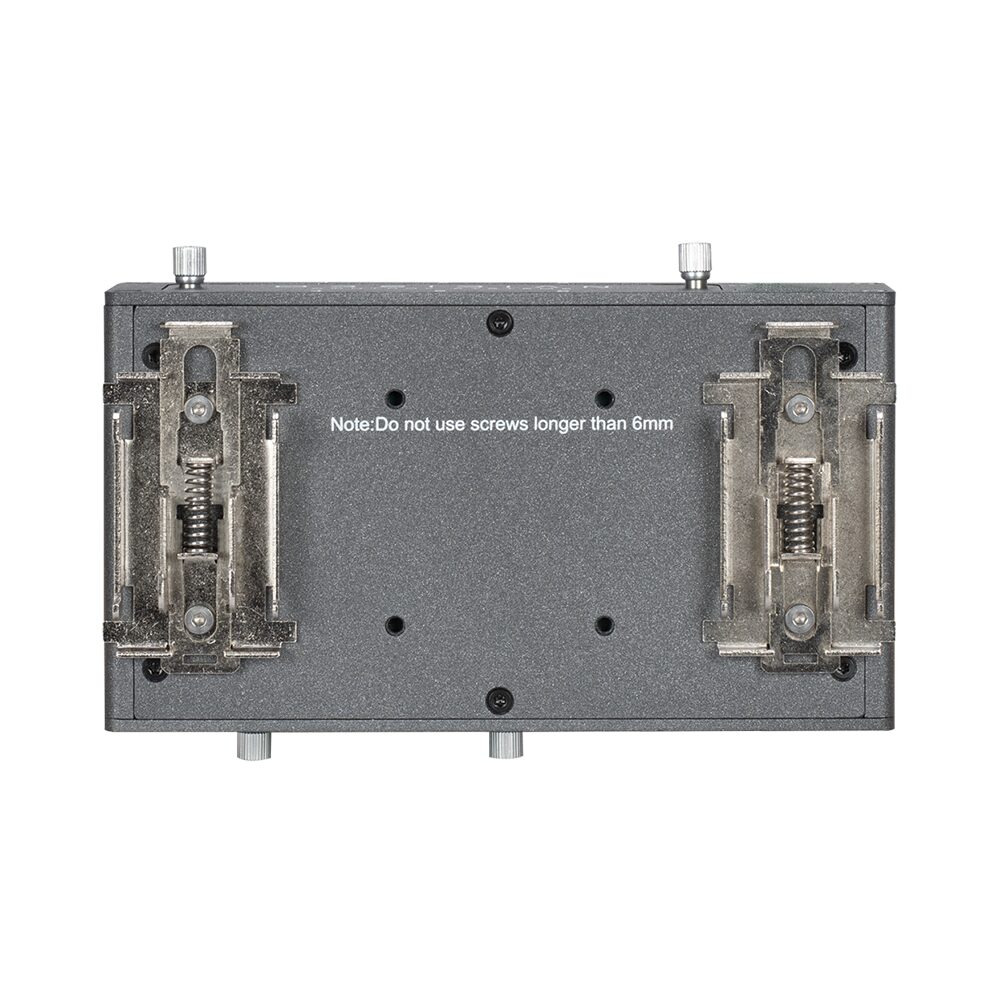

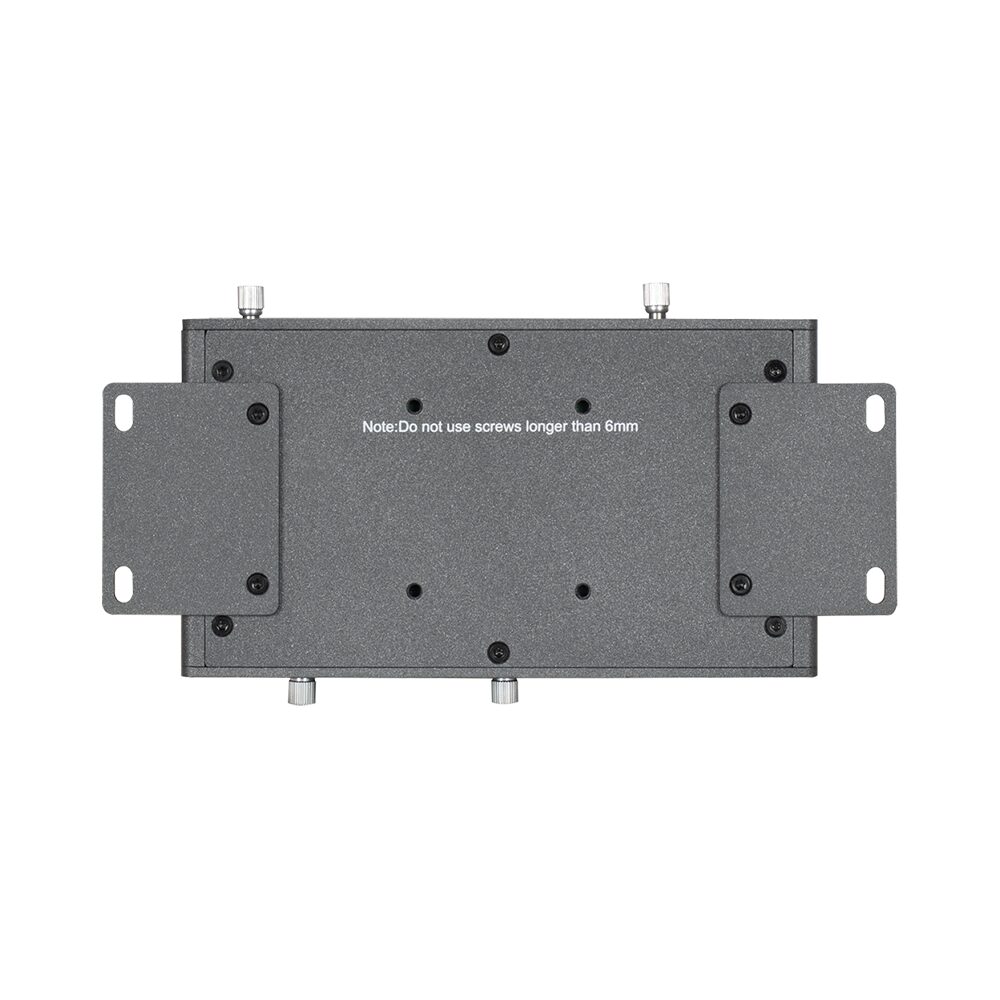

Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON RDM6D can be powered by with a wide range DC Input from 9-48V.
The NETRON RDM6D is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue or set all DMX channels to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.
Features
- RJ45, screw terminal or IDC connectivity
- Configurable Top, Bottom and Front ports
- DMX, RDM support
- 9-48V DC power
- Emergency Cue System with test button and contact closure
- Powder-coated aluminum DIN Rail housing
