Obsidian – RDM 10

Obsidian

The Netron RDM 10 combines a 10-port RDM splitter, dual-input DMX merger, and 2-universe Art-Net/sACN node in one robust unit. With advanced cue playback, contact closure recall, and flexible routing, it’s built to simplify demanding installs or control rigs—all in a rugged rackmount design.

SKU: OBS1330000063 Categories: , , , ,

Description

The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.

Features

  • 10 assignable DMX outputs
  • Integrated 2 Universe Artnet/sACN node
  • Configurable DMX refresh rate
  • Dual DMX Inputs for backup and signal loss options
  • Remote configuration via internal webpage
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Contact closures for cue or preset recall
  • Powder-coated aluminum rackmount housing
  • Unlocks ONYX NOVA 4 Universe License

Video

NETRON – RDM10

The #NETRON #RDM10 is a first-of-its-kind hybrid splitter. A dual-DMX Input, 10 port #RDM Splitter, Merger, and #EtherDMX #Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications.

Additional information

Mounting

Rackmount

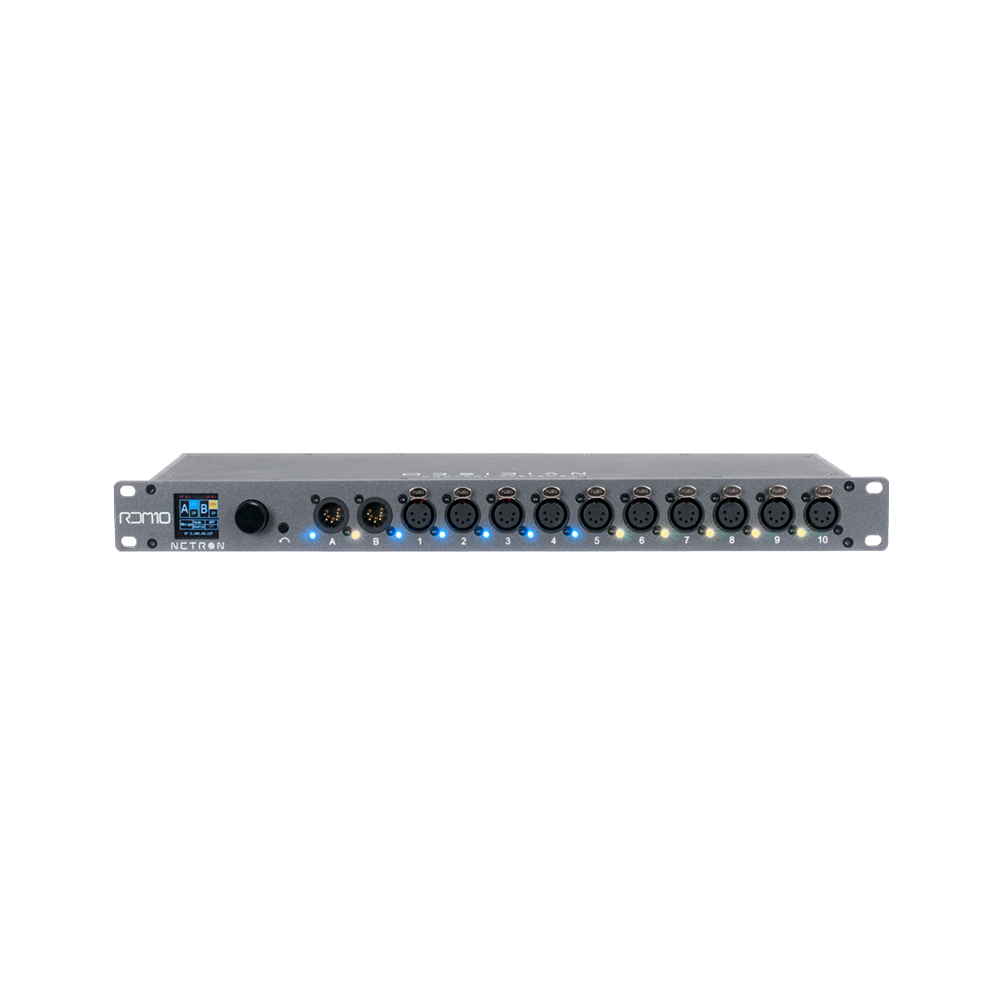

Connections Front

(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

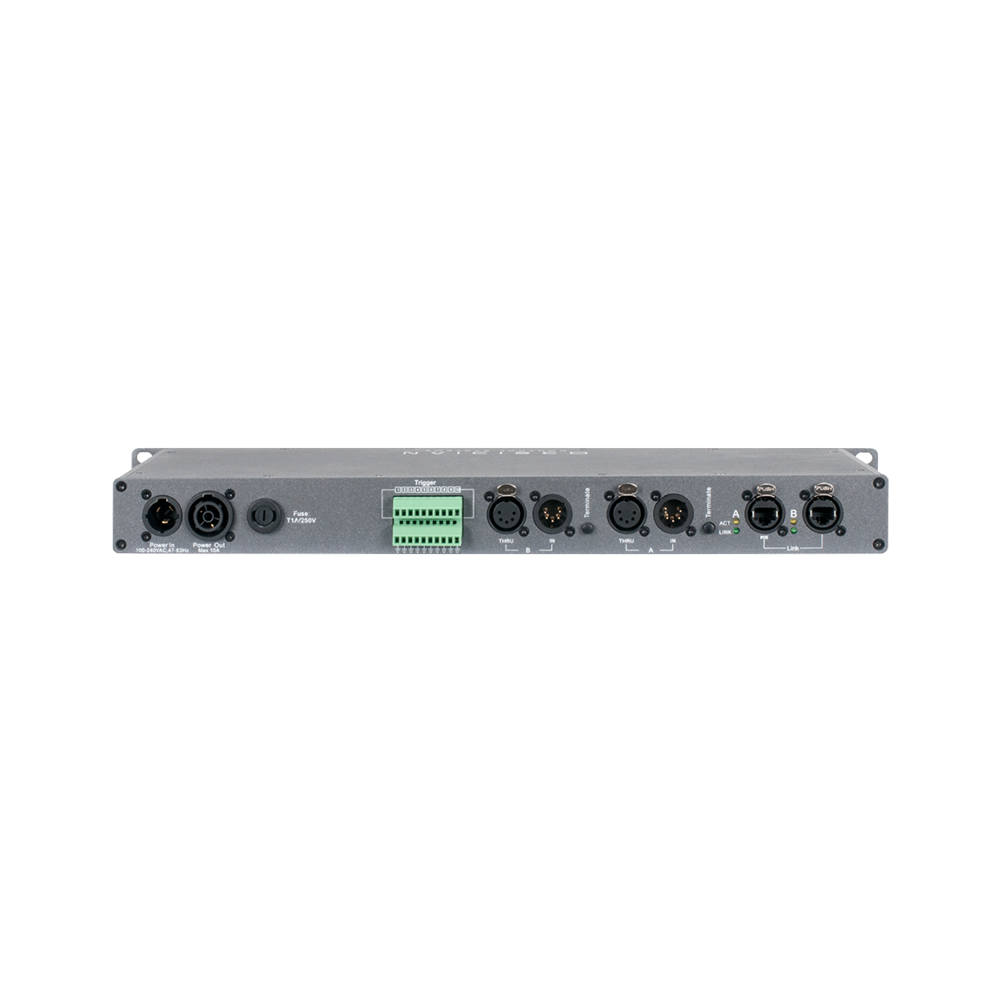

Connections Back

(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Physical

Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
Electrical

100-240 V nominal, 50/60 Hz
POE 802.3af
Power Consumption: 10W
Approvals / Ratings

cETLus / CE / IP20

Downloads

Data Sheet Download
User Guide Download
