Obsidian – EP4

Obsidian

The Netron EP4 provides reliable DMX distribution with four RDM-compatible ports, advanced cue support, and flexible power via PoE or USB-C. Housed in a rugged compact enclosure, it’s ideal for small installs or expanding ONYX PC control to four universes.

SKU: OBS1330000064 Categories: , , , ,

Description

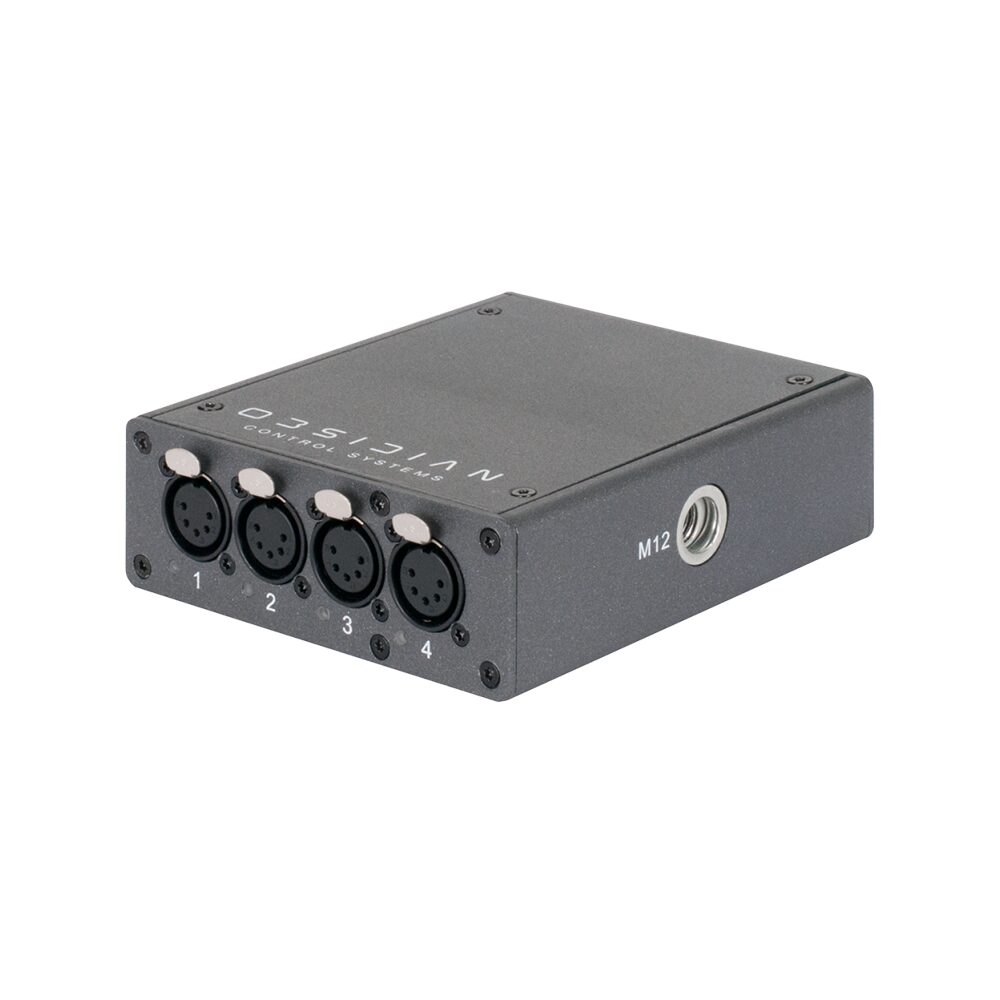

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

Features

  • Key Features
  • RDM, Art-Net and sACN support
  • Factory and user presets for plug and play setups
  • PoE or USB-C powered
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated compact aluminum housing
  • Unlocks ONYX NOVA 4-Universe License

Additional information

Mounting

Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)

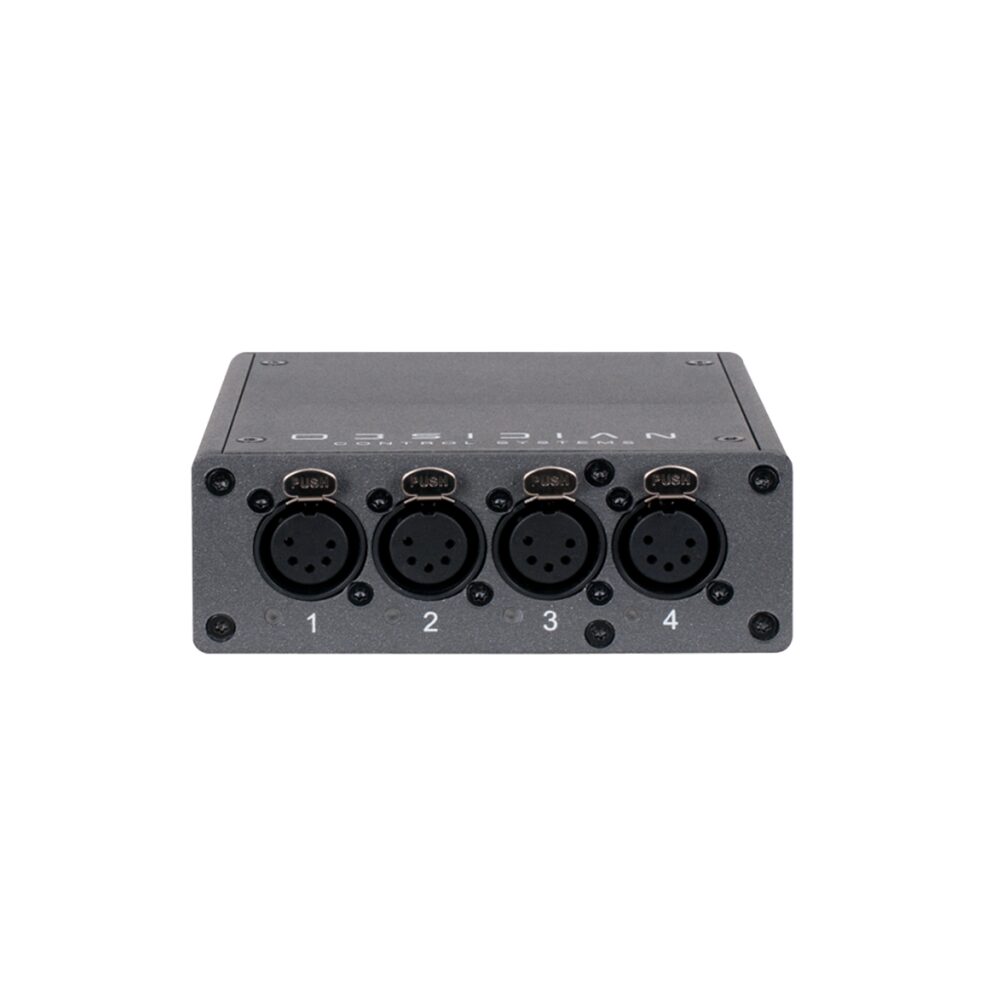

Connections Front

(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

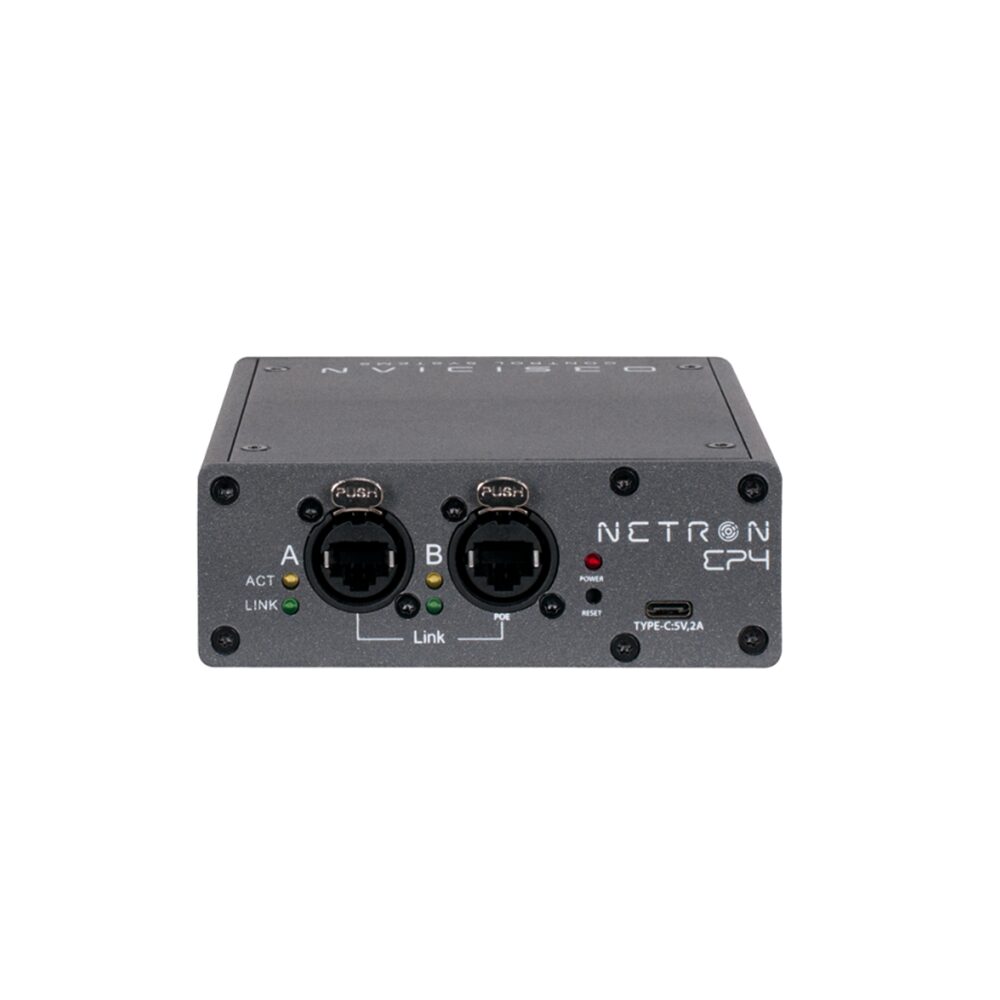

Connections Back

(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)
Physical Standalone

Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)
Electrical

USB-C 5V
POE 802.3af
Power Consumption: 3.8W
Approvals / Ratings

CE / IP20

Downloads

Data Sheet Download
User Guide Download
