Obsidian – EP2

Obsidian

The Netron EP2 delivers flexible DMX distribution with two RDM-compatible ports, PoE or USB-C power, and remote setup via web browser. Designed for wall, truss, or standalone mounting, it’s perfect for compact installations or expanding ONYX PC control with a full 4-universe solution.

SKU: OBS1330000072 Categories: , , , ,

Description

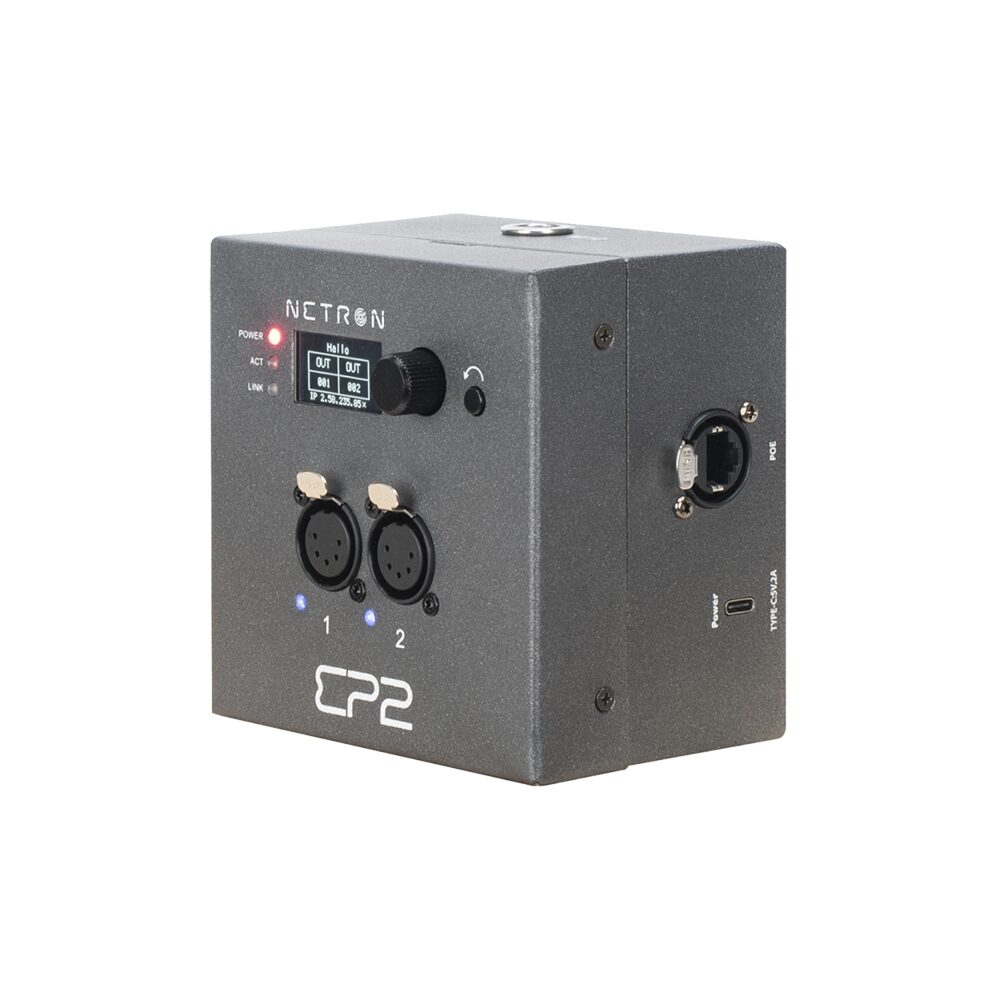

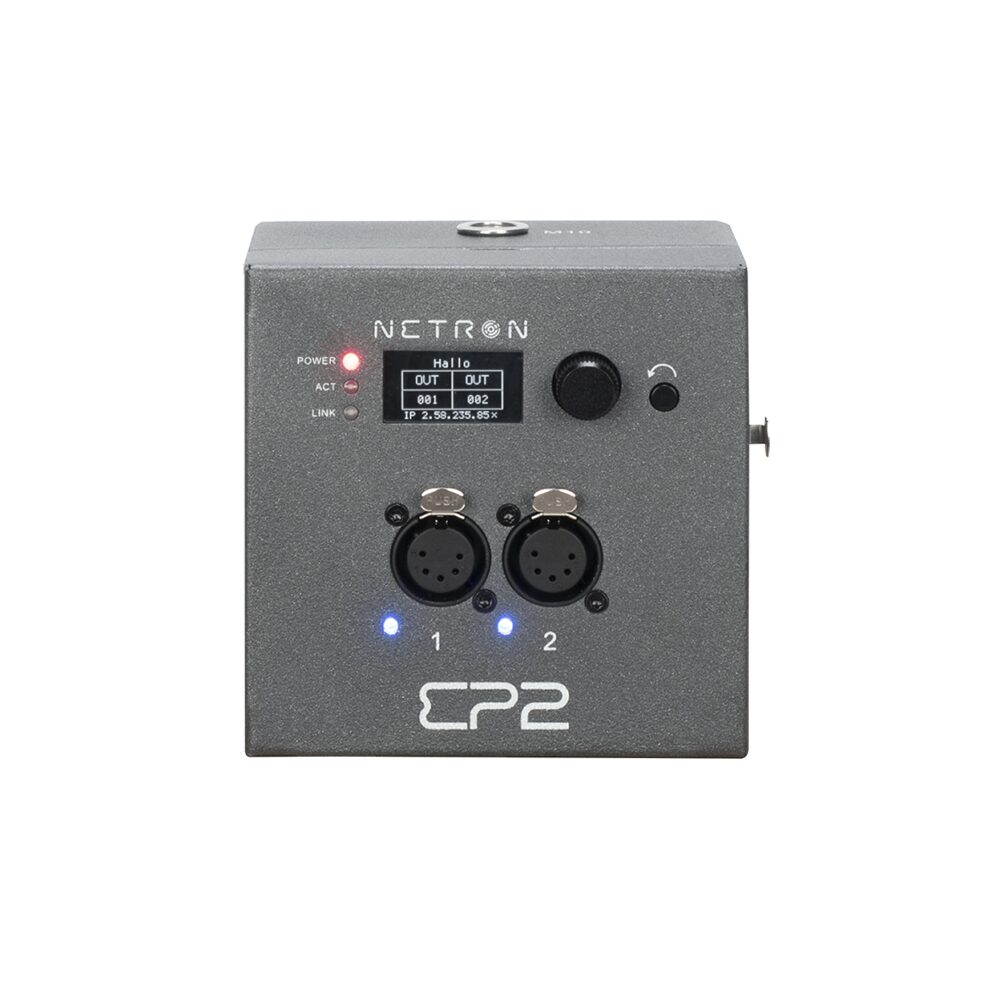

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.

Features

  • RDM, ArtNet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 1.3” OLED Display with rotary knob
  • Remote configuration via internal webpage
  • Powder-coated compact metal housing
  • Connect to ONYX PC for a full four Universe Solution
  • In-wall, On-Wall, Truss and Standalone mounting
  • Unlocks ONYX NOVA 4-Universe License

Additional information

Mounting

Standalone (backbox included)
Truss-mount (M10 + M12 mounting hole)
In or On-wall 2-Gang (US) or 50mm round (EU)
Connections Front

(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Connections Side

(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)
Physical Standalone

Length: 4.6 in. (117.6mm)
Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)
Electrical

USB-C 5V
POE 802.3af
Power Consumption: 2.8W
Approvals / Ratings

CE / UKCA / IP20

Downloads

Data Sheet Download
User Guide Download
