Obsidian – EN4

Obsidian

The Netron EN4 is a 4-port Ethernet to DMX gateway with RDM, sACN, and Art-Net support—ideal for flexible DMX distribution in live or install environments.

SKU: OBS1330000065 Categories: , , , ,

Description

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

Features

  • RDM, Art-Net and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or PoE powered
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum ½ rack housing
  • Unlocks ONYX NOVA 4-Universe License

Additional information

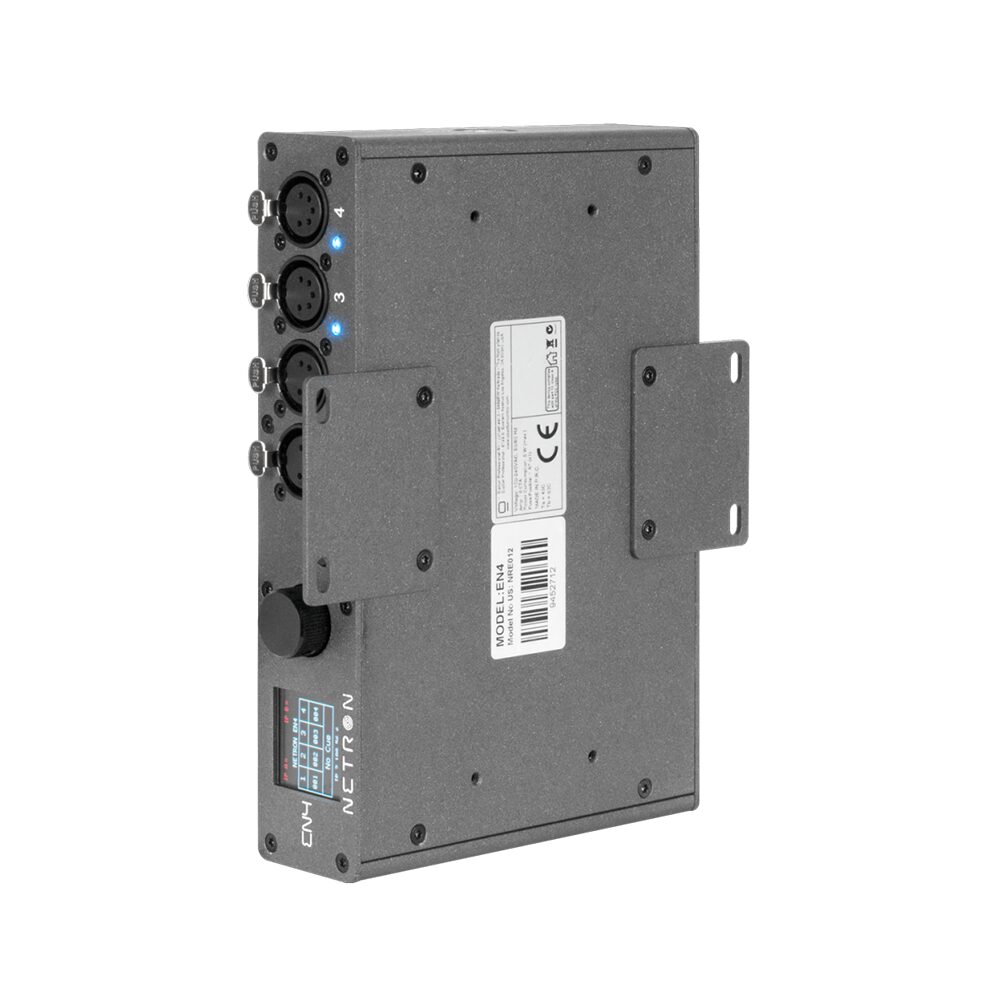

Mounting

DIN Rail

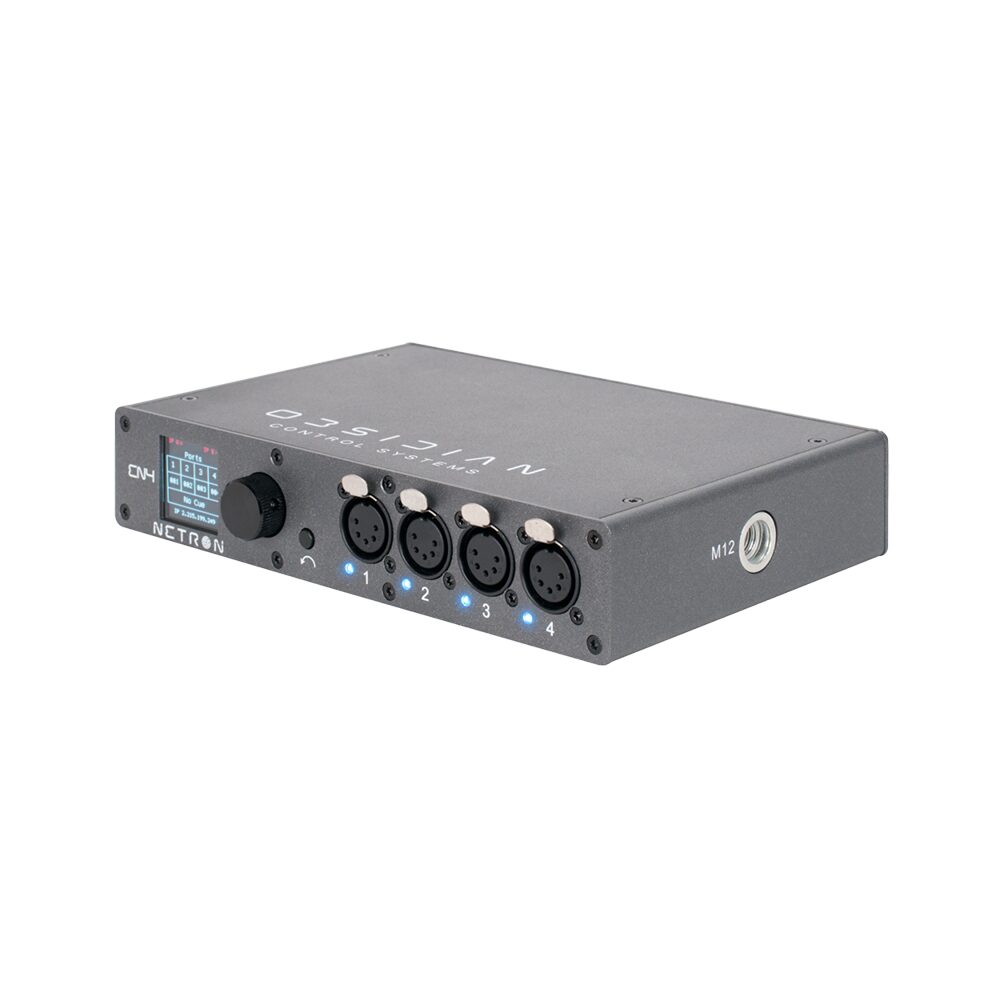

Connections Front

USB-C Temporary Power (5V/2A)
(4x) LED Status Indicator

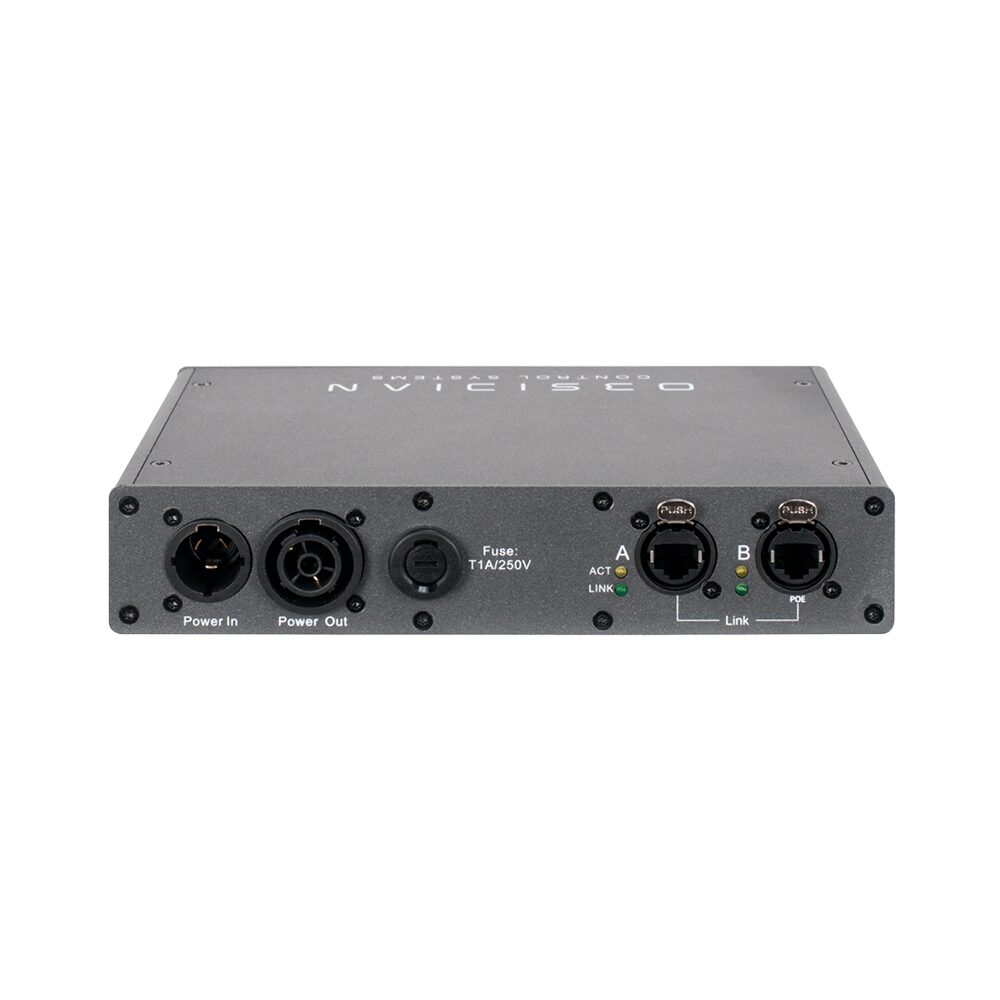

Connections Top

RJ45 Gigabit Ethernet (POE)
DC 9-48V In (2pin Terminal Block)
Connections Bottom

3pin Phoenix Terminal Block DMX/RDM optically isolated port
Bidirectional DMX In / Out
Physical

Length: 87mm (3.4 in.)
Width: 36mm (1.4 in.)
Height: 60mm (2.4 in.)
Weight: 0.2 kg (0.44 lbs)
Electrical

POE 802.3af
DC 9-48V
USB-C (5V/2A)
Power Consumption 1.6W
Approvals / Ratings

CE/ cETLusÂ

Downloads

Data Sheet Download
User Guide Download
