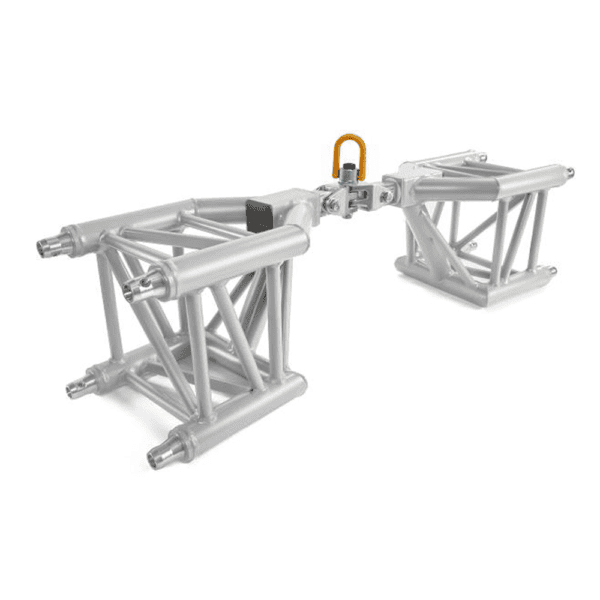

Milos – MUH-M290-HD – 1000

Milos

MILOS gives lighting designers a new lease on creative freedom with a worldwide first – Ultimate Hinge. This new hinge design allows for virtually infinite height and angular configurations for exciting backdrops and support structures! The aluminium truss integrates with the versatile steel hinge parts, connecting seamlessly with Milos M290 truss. It also features a swivel hoist ring for safe and simple connection with your electric hoists or lifting points.

SKU: MILMUH-M290-HD Categories: , , ,

Description

The MILOS Ultimate Hinge is your ultimate partner in creating new and interesting lighting arrangements within truss structures, while eliminating potential damage to book corners

The M290 comes in three connection system versions – B, F, and U – for connection with MILOS truss, as well as with other popular truss connection systems found on the market*.

Features

  • Constructed from aluminium truss and a steel hinge for strength, reliability and safety
  • Swivel hoist ring allows use with electric hoists
  • Various conical connector options for extended compatibility (to be ordered separately)
  • Eliminates book corner damage

Video

Image is for illustrative purposes only!

Connection material is not part of the product.

Additional information

Main Chords

⌀48 x 3 mm
EN Aw-6082 T6

Diagonals

⌀20 x 2mm
EN AW-6082 T6

Eye Nut

M12
1.6t

Hinge

Steel – S235, S355

Loading Capacity

500kg BGV-C1

Downloads

Data Sheet Download
