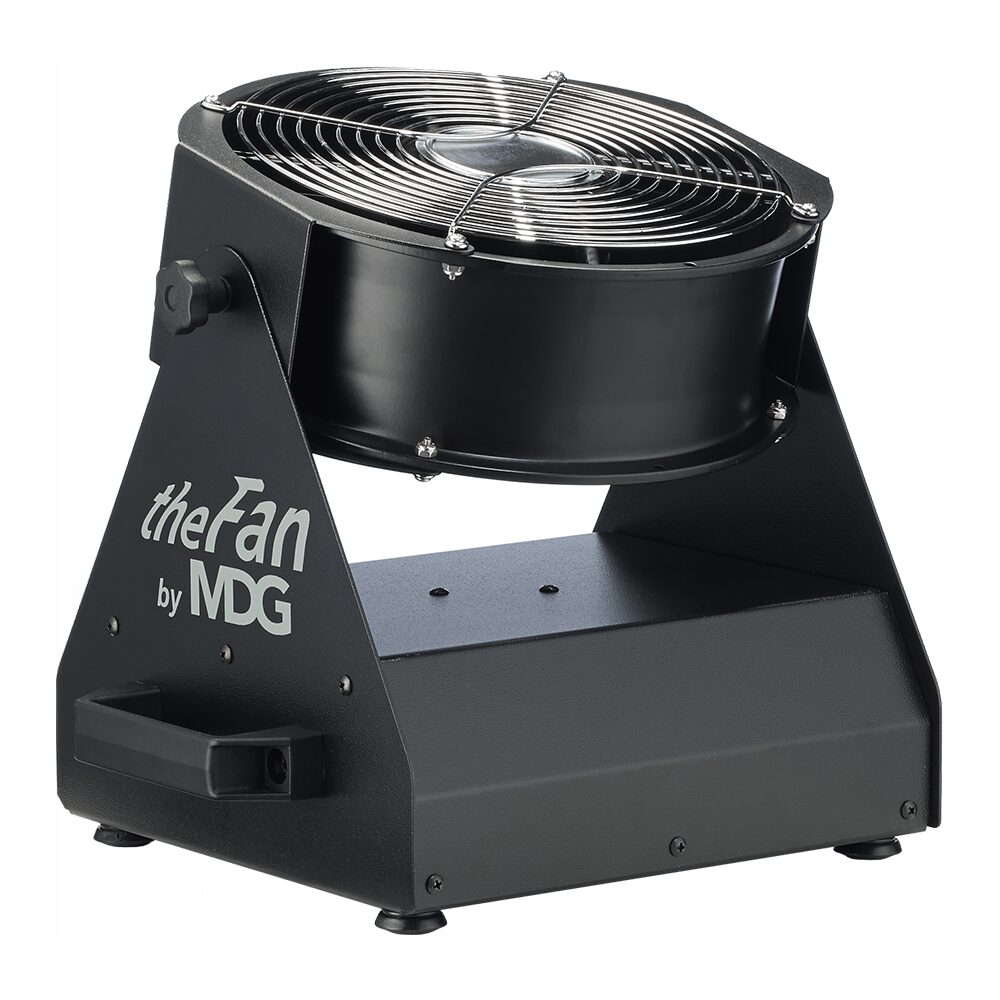

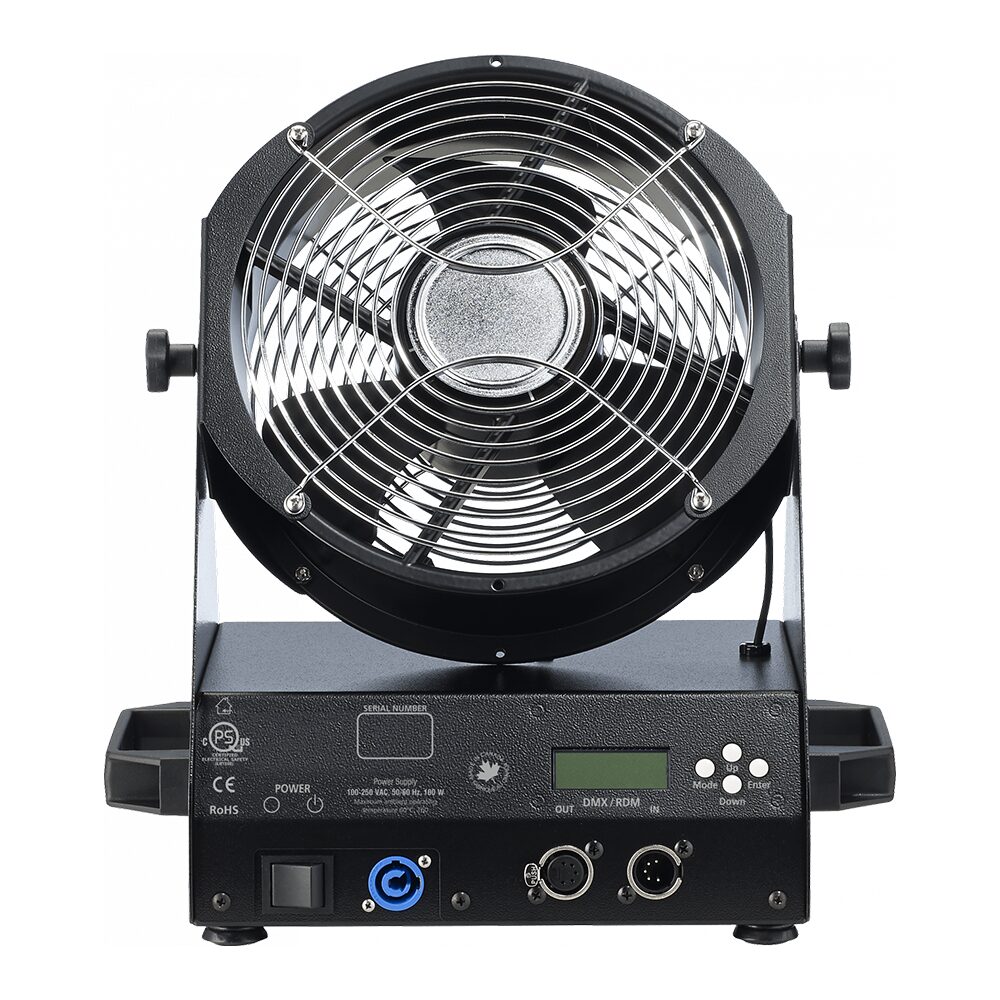

Front left of DMX fan for use with professional fog and haze machinesFront left of DMX fan for use with professional fog and haze machines

MDG – theFAN™

Mdg

The best complement to any atmospheric effect

Categories: , , , ,

Description

Designed to work in tandem with our professional generators or as a stand alone unit, theFAN™ is a versatile, 100W, ultra-compact, variable speed, digital fan.

Features

  • Free standing or variable mounting options
  • Universal switching power supply 100-250 VAC, 50/60 Hz, single phase
  • Noise Level at 1 m (3.3 ft): 64db at maximum speed
  • 4-button LCD user interface, USITT DMX512, XLR-5 connectors, RDM compliant
  • One-channel Standard mode or two-channel Quiet mode
  • Variable speed and air flow up to 24 m3 (850 ft3) per minute

Additional information

Weight 6.8 kg
Electrical

100 – 250 VAC, 50/60 Hz, single phase
100 W
Data

1 standard USITT DMX512 channel
2 XLR-5 connectors: 1 input, 1 output
Controllable through DMX + RDM
Digital Functions

Stand alone set speed
DMX Value
Mechanical

3-bladed fan
270º tilt
Variable speed
M12 metric bolt hole
1/2” imperial bolt hole
Noise Level: 64db at full speed
2 handles
4-button controller with LCD panel
Airflow: up to 24 m3 (850 ft3) per minute
Omega clamp socket
Fan diameter: 26.4 cm (10.4”)
Total net weight: 6.8kg (15 lb)
Total net size: 38 cm (15”) H x 34.5 cm (13.58”) W x 25.4 cm (10”) D
Accessory

Flight Case
Approval

CSA and UL Certified. CE Declaration

Downloads

Data Sheet Download
Quick Start Guide Download
User Guide Download
