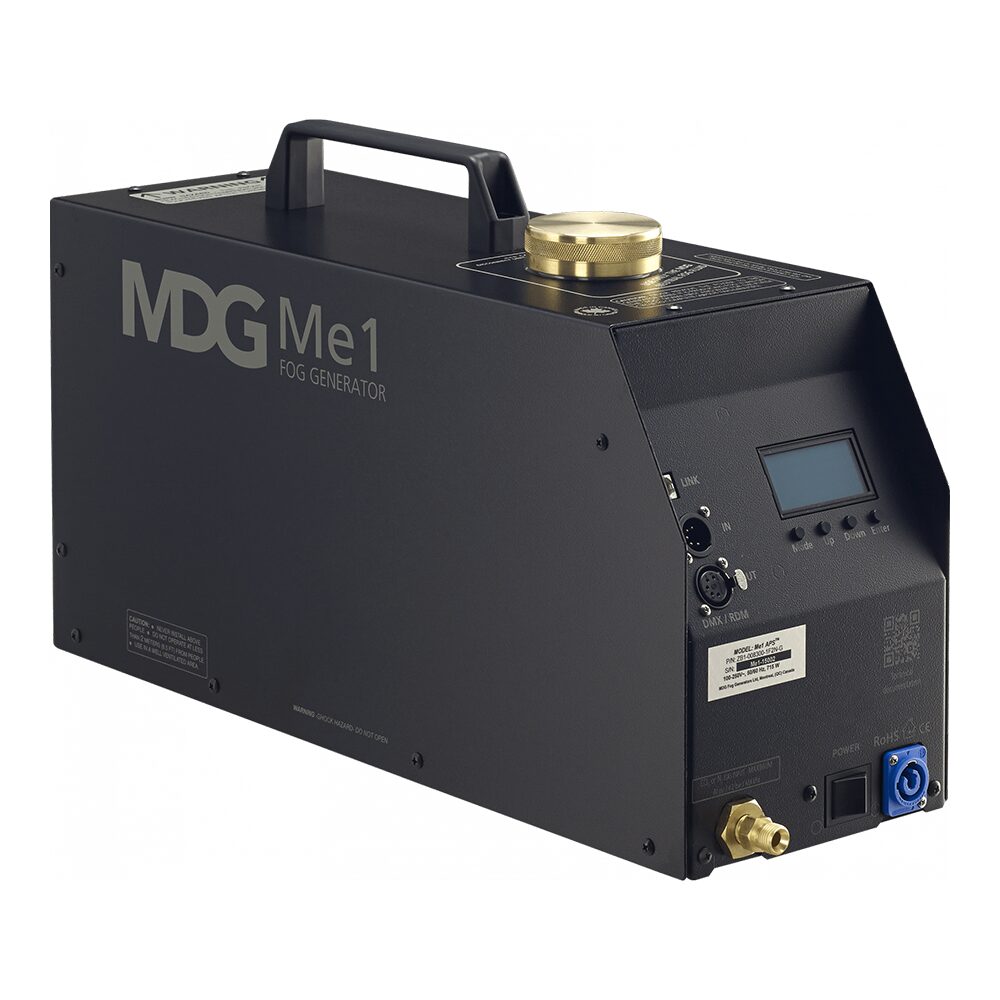

Front right of of MDG Me1 fog machine showing carry handle and single nozzle fog outputFront right of of MDG Me1 fog machine showing carry handle and single nozzle fog output

MDG – Me1

Mdg

MDG’s evolution of fog

SKU: M0021536 Categories: , , ,

Description

Me1 is the first and smallest in our powerful Me family of fog generators.

Features

Variable fog output

0-100% fog output control from your DMX/RDM device, or direct local control.

Numerous control options

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Single fog output

With its single nozzle, the maximum fog output is 100 m3 (3,531 ft3) per minute.

Second personality

MAX 3000APS configuration setting.

100% duty cycle

At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.

Fluid consumption

At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.

APS™ (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

Video

MDG – Me1

Me1 is the first and smallest in our powerful Me family of fog generators.

Additional information

Weight 15.62 kg
Maximum fog output

100 m3 (3,531 ft3) per minute
Fluid consumption

1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
Gas type

CO2 or N2
Gas consumption

1 kg (2.2 lb) per hour at 2.76 bar / 40 psi
Control

4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity

2.5 L (0.66 US gallon)
APS™ (Automatic Purging System)

Standard
Fog colour

Pure white
Particle size

0.5 – 0.7 microns
Warm-up time

8 minutes (maximum)
Fluid type

MDG Neutral
Operating voltage

100 – 250 VAC, 50/60 Hz single phase
Power consumption

715 W
Dimensions

Length: 61 cm (24”)
Width: 18 cm (7”)
Height: 30 cm (12”)
Shipping weight: 29.12 kg (64 lb) with flight case
Approval

CB, CSA and UL Certified. CE Declaration

Downloads

Data Sheet Download
Quick Start Guide Download
User Guide Download
