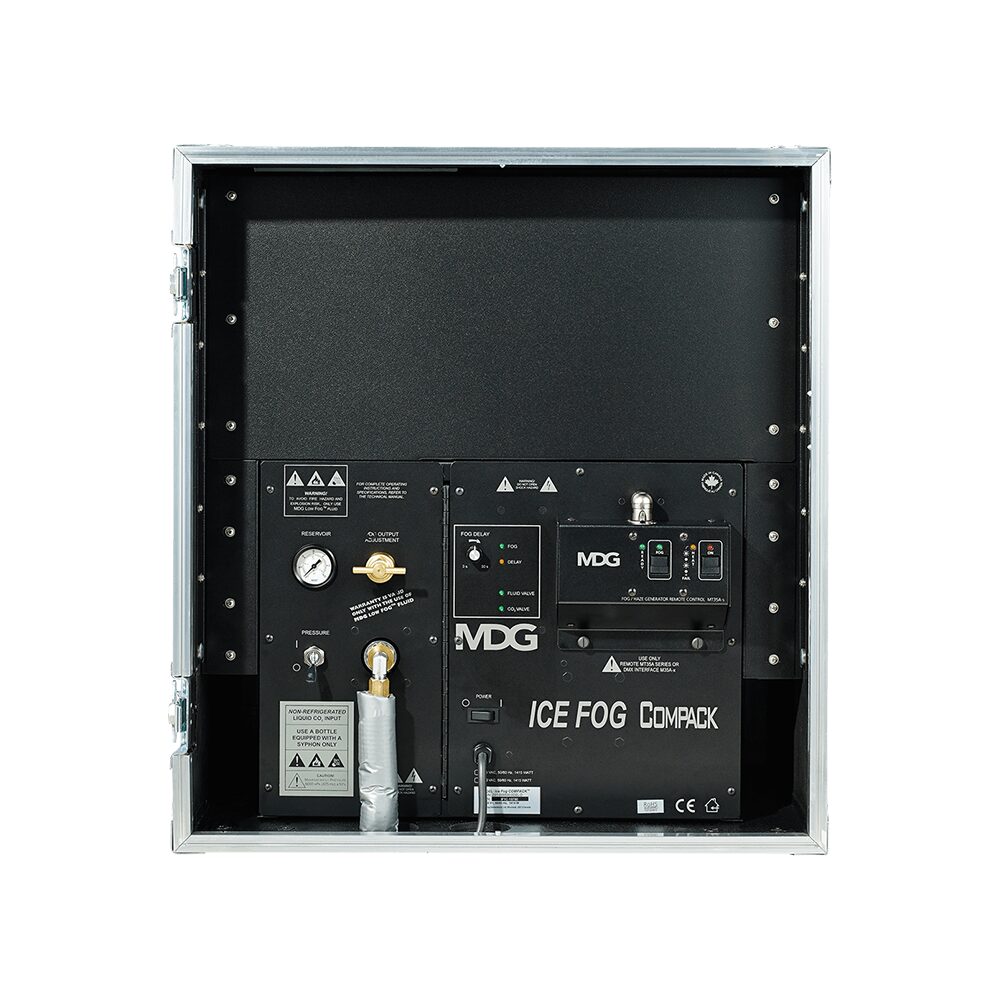

MDG – ICE FOG Compack

Mdg

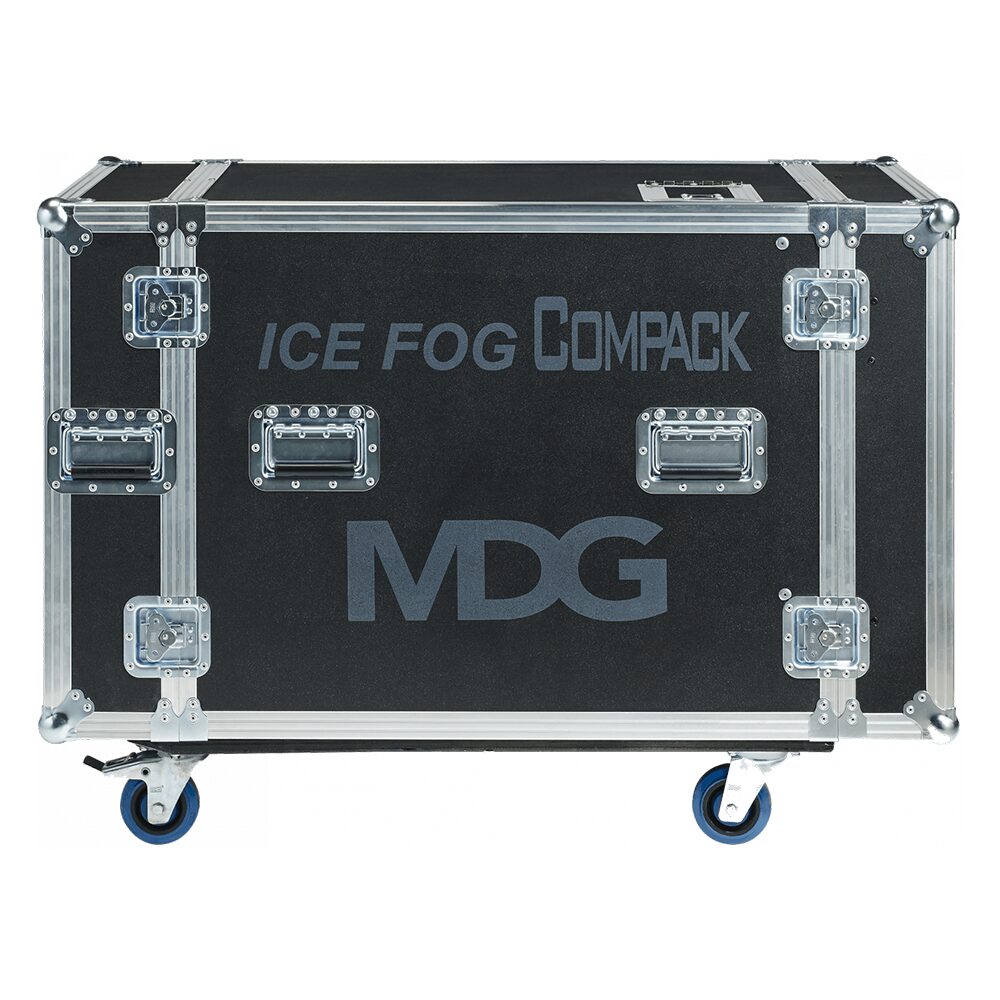

Dense low fog in its own convenient flight case

SKU: N/A Categories: , , , ,
Clear

Description

MDG’s ICE FOG Compack creates a thick low-lying fog with zero residue without the use of dry ice.

Features

  • Extremely low fluid consumption: 35 ml (1.18 US fl oz) per minute at full output.
  • Adjustable low fog density. 100 % duty cycle.
  • Low pressure or high pressure versions available
  • Self-contained unit on wheels for easy transport
  • Detachable remote control and 8 m (26 ft) cable included
  • Compatible with DMX interface and remote control timer

Video

MDG – ICE FOG Compack Low Pressure/High Pressure

Our ICE FOG Compack creates a thick low-lying fog with zero residue without the use of dry ice.

Additional information

Weight 91 kg
Liquid CO2 type

Low pressure version: refrigerated
High pressure version: non-refrigerated
Liquid CO2 consumption

Low pressure version: 1.5 L (0.40 US gallon) at 15.5 bar (225 psi) per minute
High pressure version: 1.35 kg (3 lb) at 60.3 bar (875 psi) per minute
Reservoir capacity

2.5 L (0.66 US gallon)
Fog colour

Pure white
Particle size

0.5 – 4.5 microns
CO2 running time

Low pressure version: 180 L (48 US gallon) canister (DEWAR) = 120 minutes
High pressure version: 23 kg (50 lb) canister = 17 minutes
Warm-up time

8 minutes (maximum)
Fluid type

MDG Low Fog
Operating voltage (single phase)

115 or 230 VAC, 50/60 Hz
Power consumption

1,450 W
Fluid consumption

35 ml (1.18 oz) per minute at full output
Dimension

Total length: 1.15 m (45 1/8“)
Operating length: 1.08 m (42 3/8”)
Width: 63.5 cm (25”)
Height: 82.5 cm (32 1/2”)
Approval

CE Declaration. SPE1000 approuved

Downloads

Data Sheet Download
User Guide Download
