Front right of MDG ATMe Haze machine carry handle and haze outputFront right of MDG ATMe Haze machine carry handle and haze output

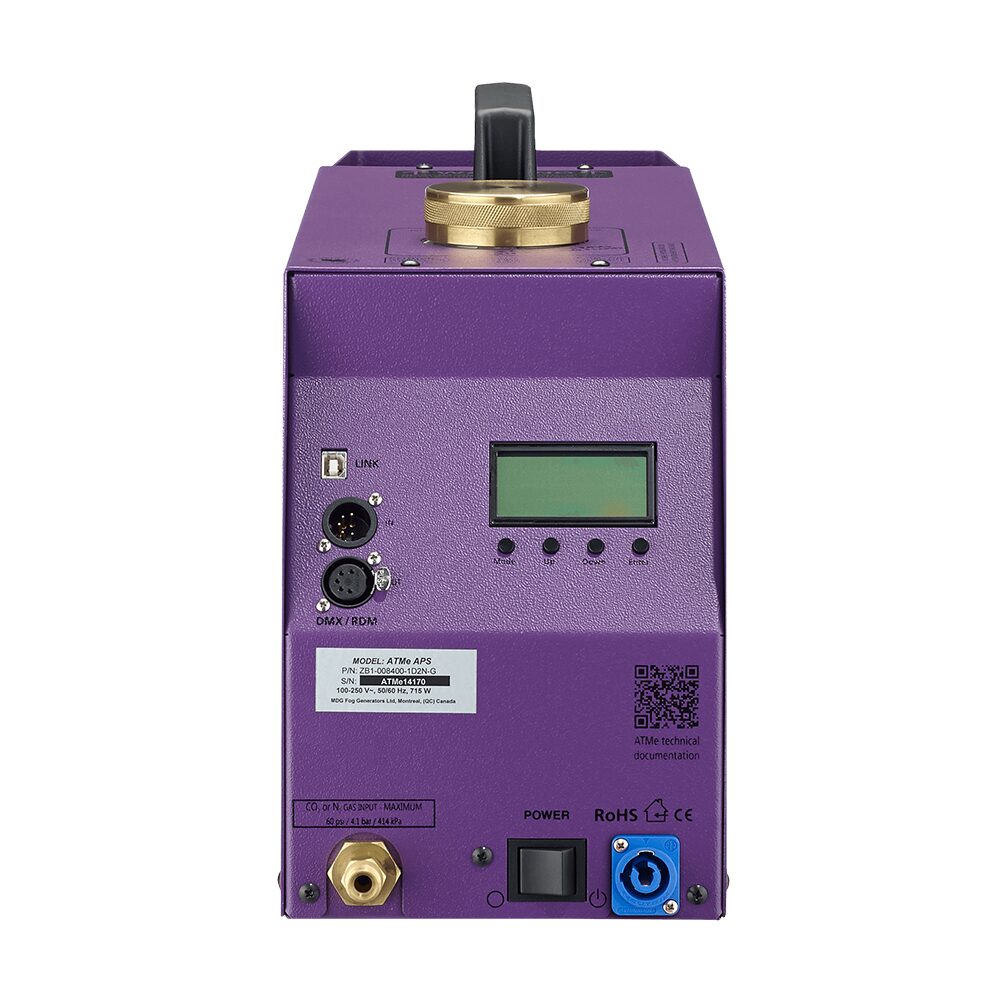

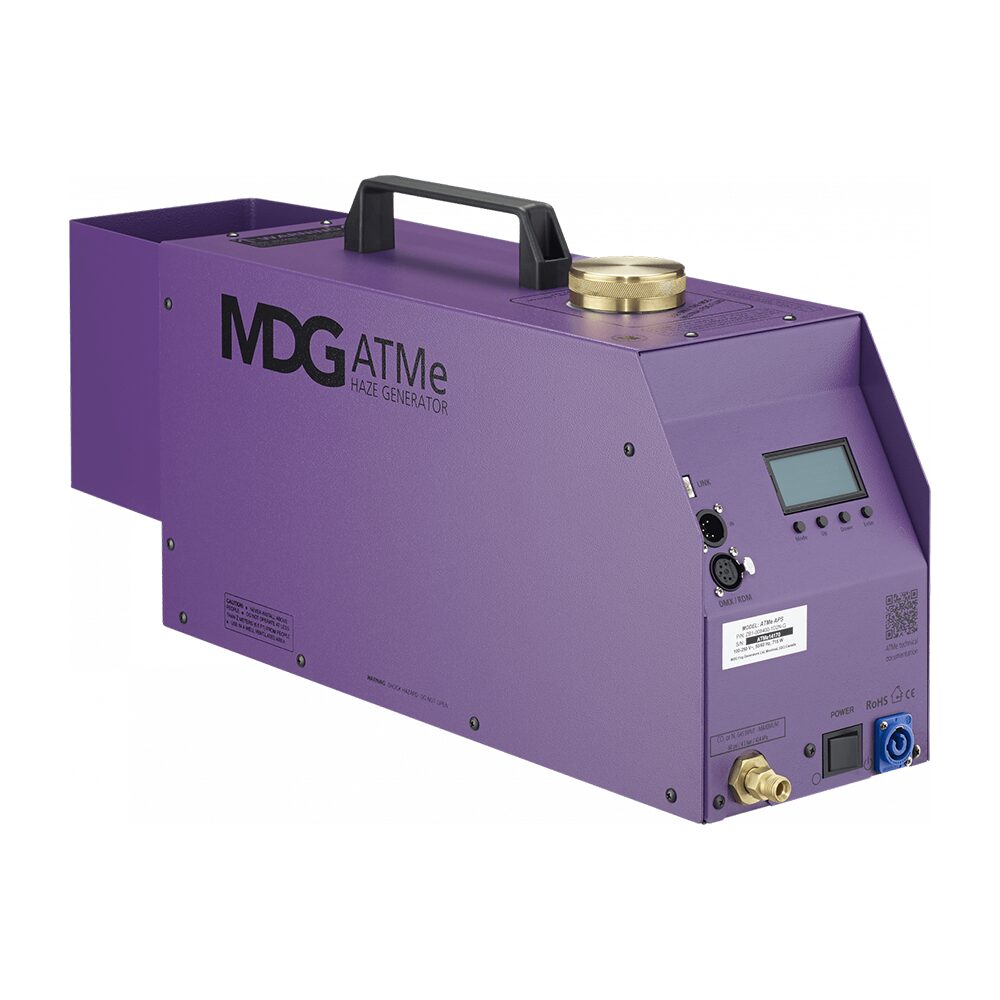

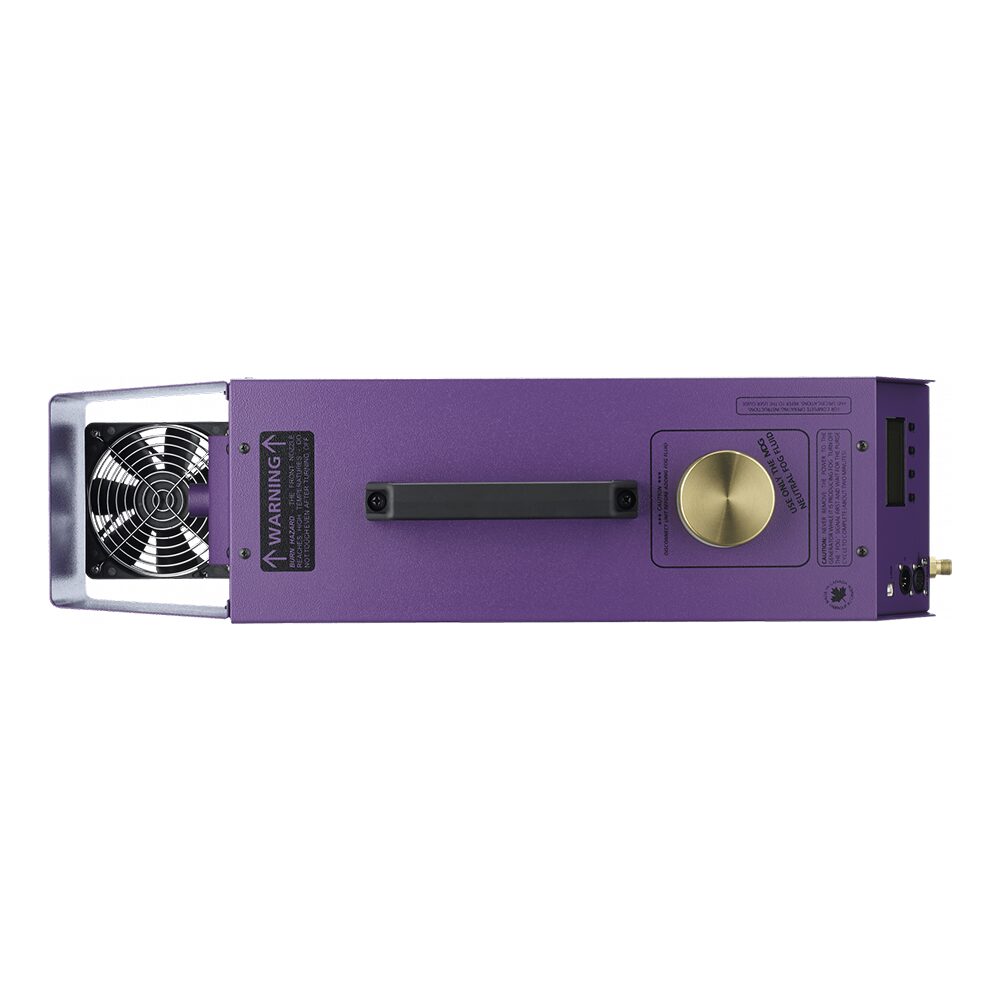

MDG – ATMe Haze Generator

Mdg

The finest haze on the market… just got better.

SKU: M0011020 Categories: , , ,

Description

The ATMe high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry’s standard for more than two decades.

Features

Longest hanging time

Our MDG Neutral fluid is specially created for the longest hanging time.

Numerous control options

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Variable haze output

0-100% haze output control from your DMX / RDM device. 100% duty cycle.

Extremely quiet operation

Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.

APS™ (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

Lowest fluid consumption on the market

At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.

Video

MDG – ATMe

The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHERE APS, the industry’s standard for almost two decades.

Additional information

Weight 16.8 kg
Fluid consumption

110 ml (3.72 oz) per hour at 2.76 bar (40 psi)

CO2 consumption

0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)

Reservoir capacity

2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)

Standard

Haze colour

Pure white

Particle size

0.5 – 0.7 micron

Total running time

23 hours at 2.76 bar (40 psi) with a full tank

Warm-up time

8 minutes (maximum)

Fluid type

MDG Neutral

Operating voltage

100 – 250 VAC, 50/60 Hz single phase

Power consumption

715 W

Noise emission

45.4 dB (A) at 1 m (3.3 ft)

DIMENSIONS

Length: 68.5 cm (27”)
Width: 18 cm (7”)
Height: 30 cm (12”)
Shipping weight: 30.5 kg (67 lb) with flight case

Approval

CB, CSA and UL Certified. CE Declaration

Downloads

Data Sheet Download
User Guide Download
