Martin – VDO Sceptron XB

Martin

High performance and extremely versatile, a user-friendly LED pixel-batten for creative video applications via built-in macros or control with Martin’s P3 system.

SKU: N/A Categories: , , ,
Clear

Description

The VDO Sceptron XB is a compact, high-performance LED pixel-batten, designed for both lighting and creative video applications. Building on the legacy of the Martin VDO Sceptron family, it inherits all of its benefits such as user-friendly mapping through Martin’s P3 System Controller, the ability to exchange diffusers and lenses, and a wide range of available rigging accessories.

The VDO Sceptron XB raises the bar with significantly boosted lumen output, enhanced cabling freedom, and the ability to be controlled as a lighting fixture via Art-Net and sACN, and as a creative video element via P3, or both simultaneously.

Compact and lightweight, VDO Sceptron XB delivers more than triple the output of the popular VDO Sceptron 10. The use of RGBW LEDs results in a better spectrum (CRI, TM-30, TLCI), compared to traditional RGB pixel-battens, making it ideal for precision illumination of people and set décor. The enhanced control options make this fixture easy to deploy, with or without a P3 System Controller.

Its Extended Gamut calibration ensures consistent performance on whites, offering color temperature and tint control, while saturated colors remain rich and deep. The P3 Mix channel further enhances its versatility, enabling smooth transitions between video and light control.

Additional features include a wide range of built-in effects macros, a stand-alone mode for applications without a Controller, and a full suite of optical and rigging accessories, enabling designers to utilize the series for a variety of uses and mounting configurations. VDO Sceptron XB’s IP65 rating expands its design capabilities, making it perfect for a variety of indoor and temporary outdoor applications and its integrated hibernation mode increases energy efficiency by reducing power consumption when not in use.

With best-in-class performance, unmatched versatility, and a future-proof design, VDO Sceptron XB is ideal for lighting designers, rental customers, and installation professionals. It sets a new standard for powerful, flexible lighting and creative video applications.

Features

  • Extremely compact and lightweight
  • More than triple the output of VDO Sceptron 10
  • RGBW LEDs (higher output and higher light quality (CRI / TM-30 / TLCI))
  • Full Gamut Pixel Calibration (pixel-to-pixel and fixture-to-fixture consistency, even when products from different manufacturing batches are being used together)
  • Art-Net, sACN & Martin P3 control (usable as a lighting fixture and as a creative video element)
  • Easy mapping and addressing through P3 System Controller or Companion Desktop
  • P3 Mix channel enabling switching and fading between “lighting mode” and “video mode”
  • IP65-rated for temporary outdoor use
  • Stand-alone mode for applications without a Controller
  • Wide range of optical accessories, including diffusers and lenses offering many different uses and looks
  • Versatile rigging accessories, allowing easy mounting of fixtures in many different configurations
  • Indoor and outdoor power+data solutions available (P3 PowerPort family)

Video

Martin VDO Sceptron XB High Output Pixel-Batten Product Overview | Lighting & Creative Video

The Martin VDO Sceptron XB is a compact, high-performance LED pixel-batten, designed for both lighting and creative video applications. Building on the legacy of the Martin VDO Sceptron family, it inherits all of its benefits such as user-friendly mapping through Martin’s P3 System Controller, the ability to exchange diffusers and lenses, and a wide range of available rigging accessories

Additional information

Physical

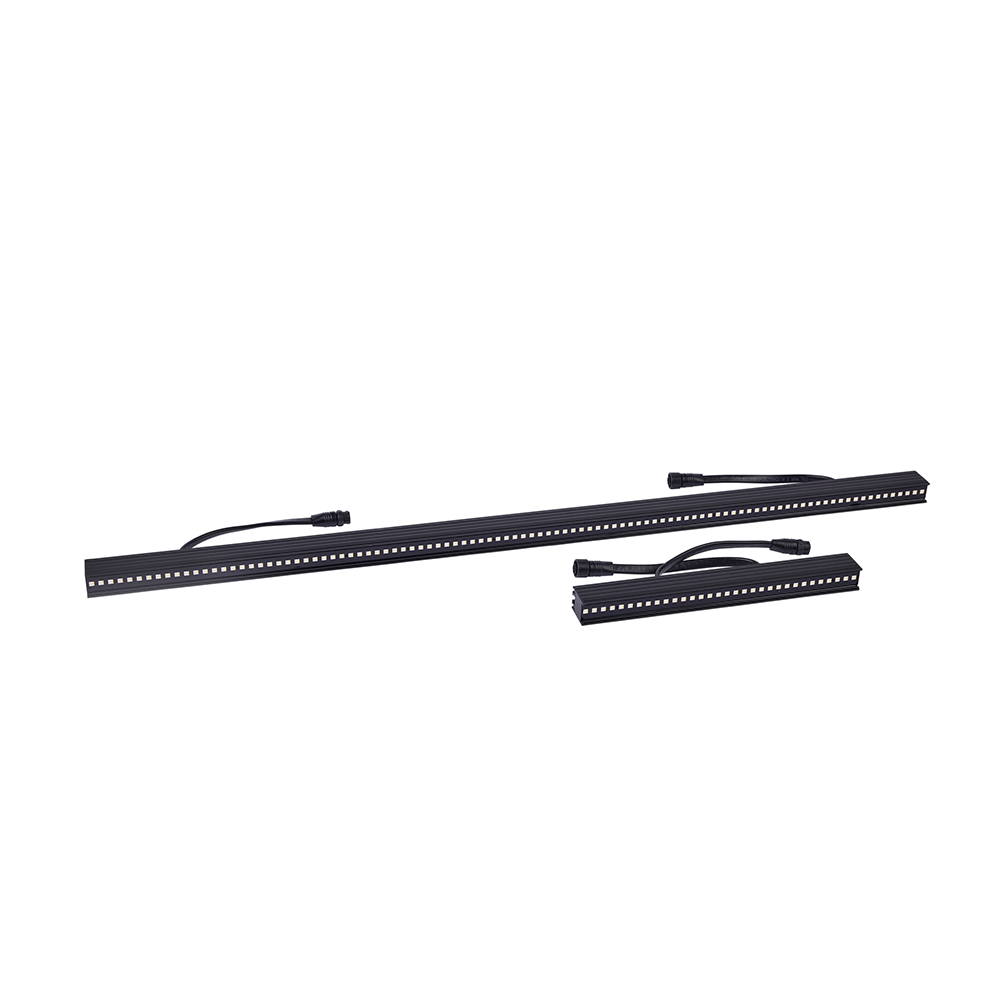

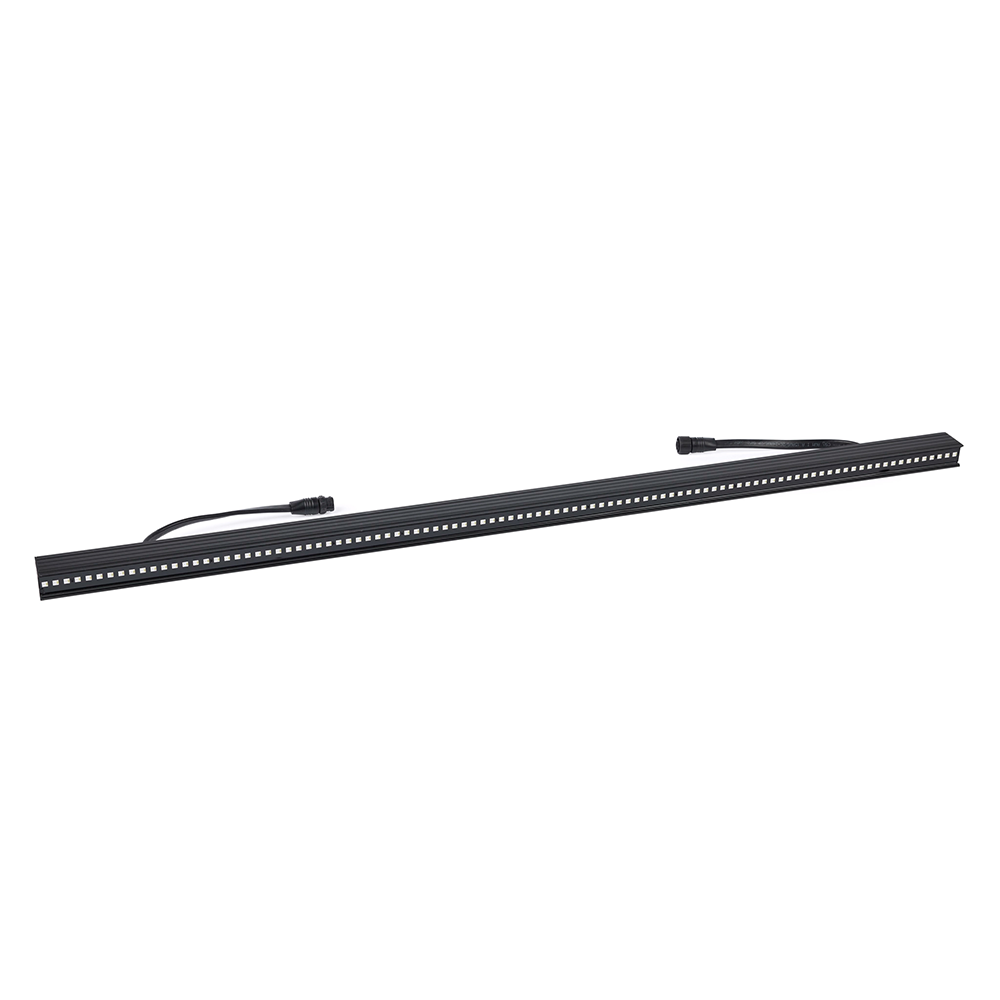

1000 mm Variant
Length: 1000 mm (39.4 in.)
Width: 27 mm (1.1 in.)
Height (without diffuser/lens): 37 mm (1.5 in.)

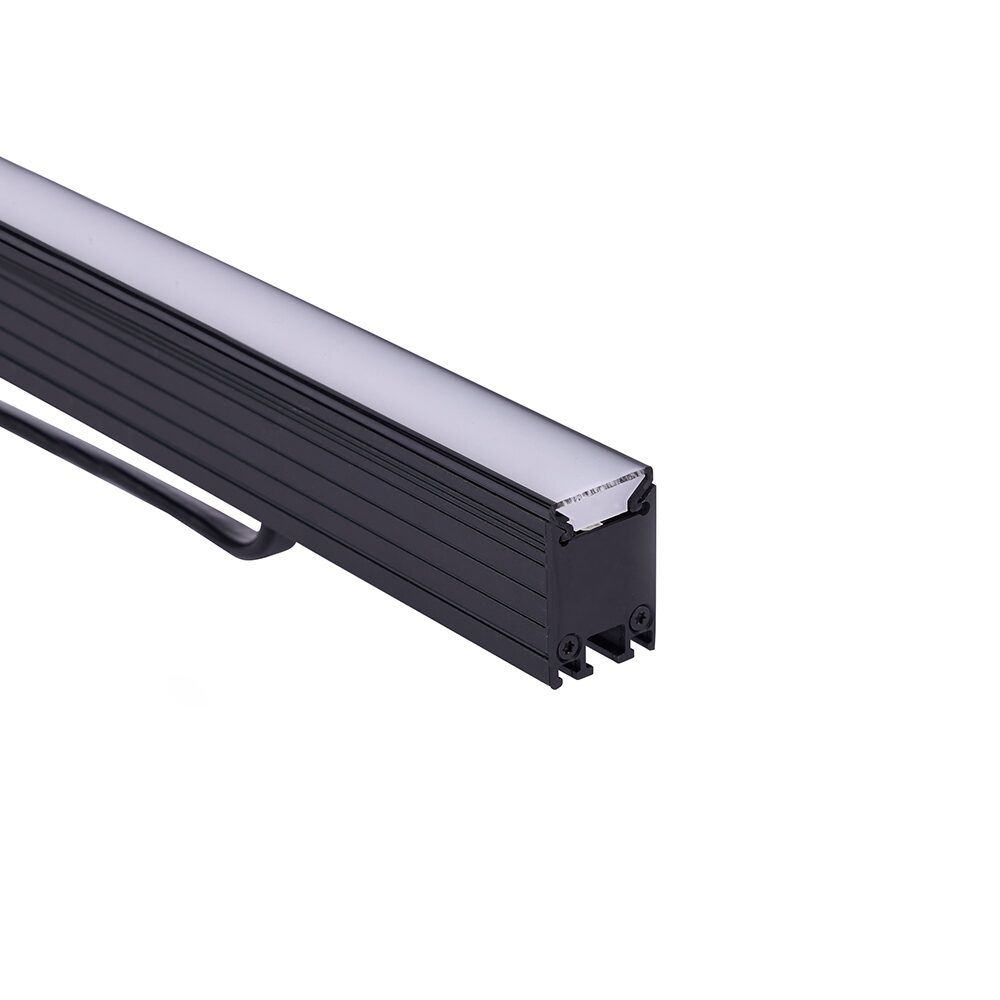

Height (with included square diffuser): 51 mm (2.0 in.)
Weight: 1.6 kg (3.5 lbs.)

320 mm Variant

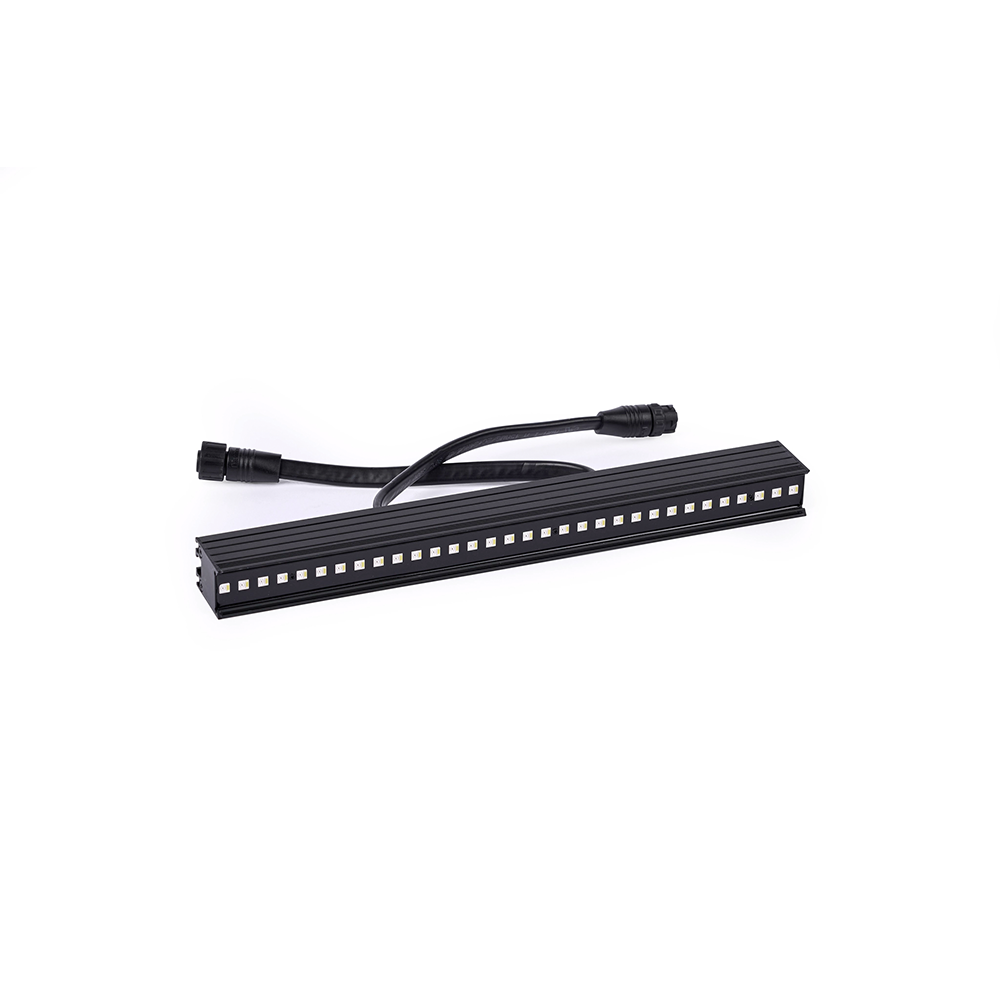

Length: 320 mm (12.6 in.)
Width: 27 mm (1.1 in.)
Height (without diffuser/lens): 37 mm (1.5 in.)
Height (with included square diffuser): 51 mm (2.0 in.)
Weight: 0.6 kg (1.3 lbs.)
Dynamic Effects

Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves

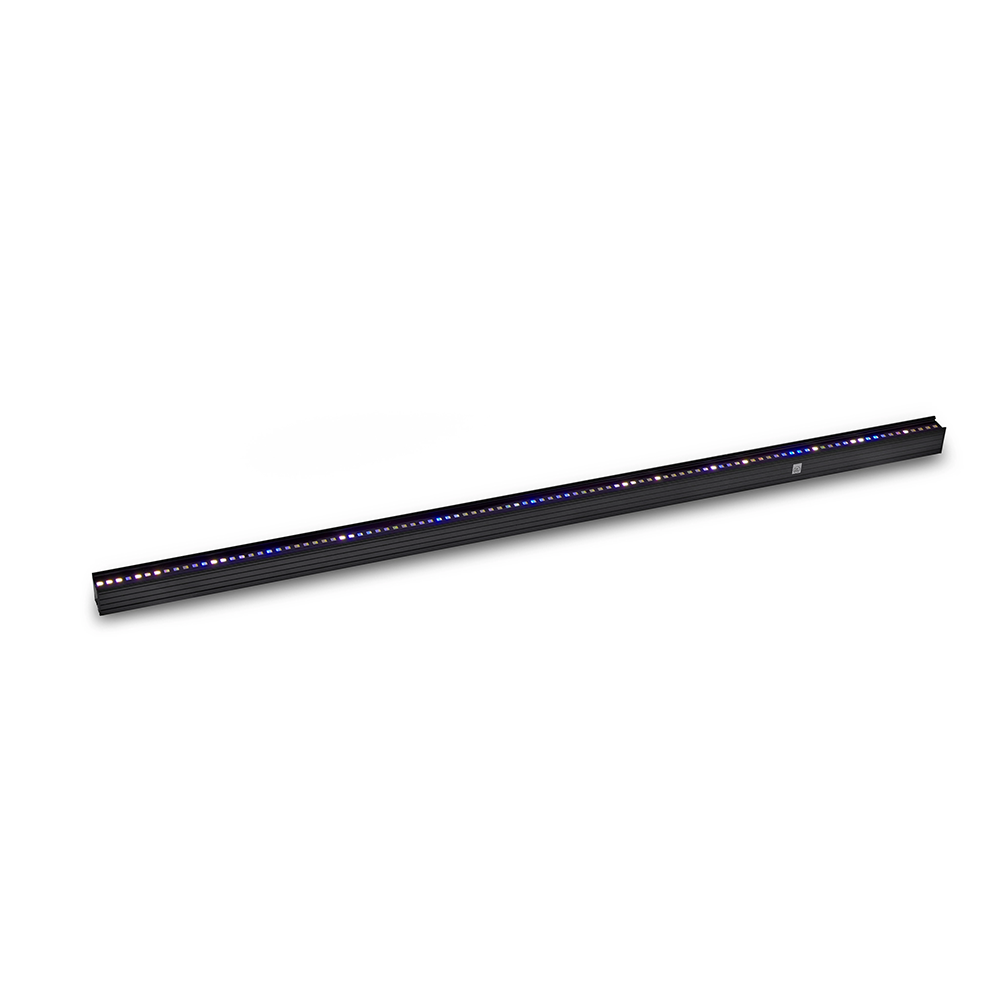

Color Mixing: RGBW, independently variable 0 – 100%
Color Temperature Control: Variable 1,800 – 12,850 K
Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Virtual Color wheel: 48 color presets, continuous rotation & random color

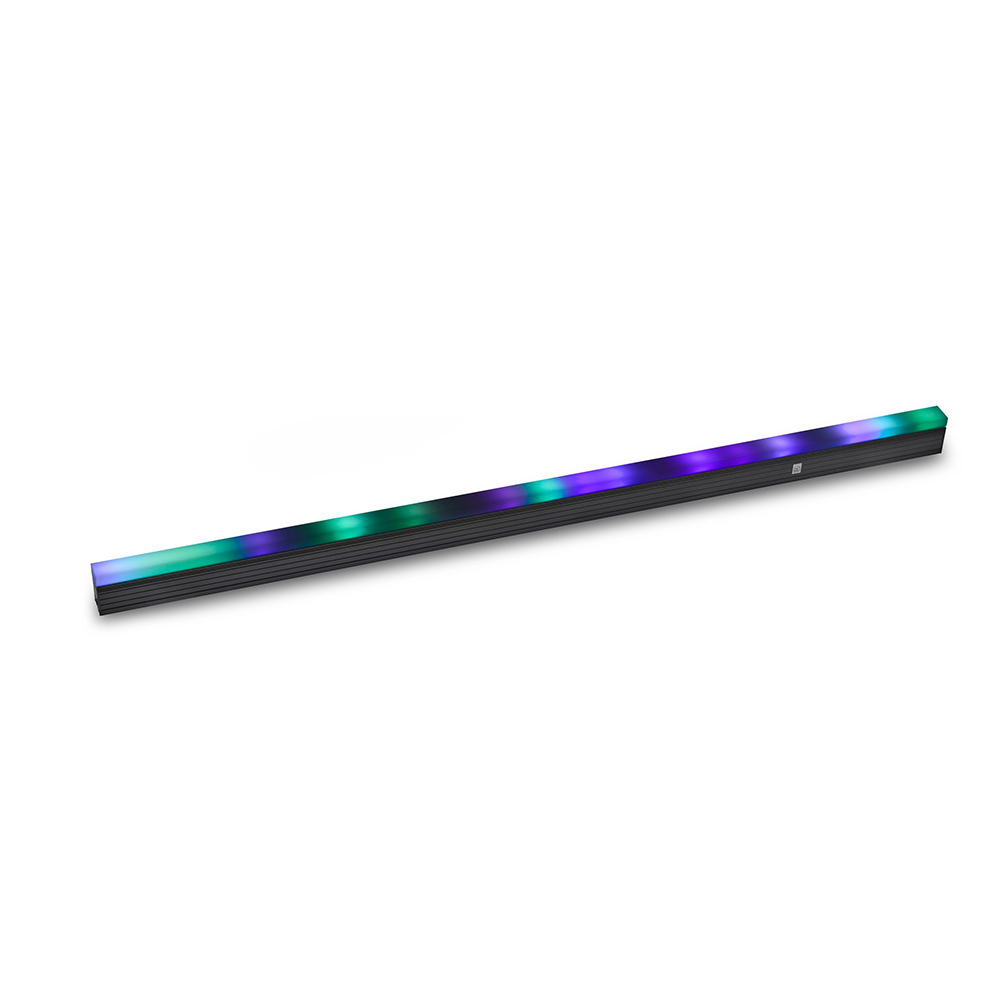

PixelMapping: Individual RGB control of each pixel
P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Various pre-programmed FX; featuring foreground color, background color, speed and direction control
LED Frequency control: Two LED PWM control mode
Control and Programming

Control Protocols: Art-Net, RDM over Art-Net, sACN and Martin P3
Protocol Detection: Automatic
DMX Modes 1000 mm Variant: Compact, Basic, Extended 5 Segments, Extended 10 Segments, Extended 25 Segments, Extended 100 Pixels, Compact Direct, RGB, PixelMap 5 Segments, PixelMap 10 Segments, PixelMap 25 Segments and PixelMap 100 Pixels
DMX Modes 320 mm Variant: Compact, Basic, Extended 2 Segments, Extended 4 Segments, Extended 8 Segments, Extended 32 Pixels, Compact Direct, RGB, PixelMap 2 Segments, PixelMap 4 Segments, PixelMap 8 Segments and PixelMap 32 Pixels
DMX Channels 1000 mm Variant: 8, 14, 29, 44, 89, 314, 8, 3, 15, 30, 75 & 300
DMX Channels 320 mm Variant: 8, 14, 20, 26, 38, 110, 8, 3, 6, 12, 24 & 96
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Dimming
Setting and Addressing: Martin P3 or RDM over Art-Net
Local User Interface: Magnet Sensor to recall testpatterns and reset fixture
Fixture identification: User-settable ID number
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver: 10/100Mbit
Firmware Update: via Ethernet using Martin Companion or P3 System Controller
Stand Alone Programming

Programming Interface: Martin Companion Application via RDM over Art-Net
Controllable Parameters: All, including internal FX
Maximum Number of Scenes: 20
Hold Time: Global or per scene
Fade Time: Global or per scene
Synchronization: Yes, including synchronization across different fixture types
P3 Video Processing

System processing depth: 16 bits per color (64 bits per pixel)
Frame rate: up to 60 frames/sec
Brightness control: 0-100% (maintaining full color depth)
Latency between first and last fixture: None
Gamma Curve Control: Yes, adjustable
Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
Color temperature control: Variable 1,800 – 12,850 K
Tint control: Variable green-magenta shift Δuv -0.05 – +0.05
Color Gamut Control: Real-time
Control/User Interface

Device status: Multi-color visual indication
Device test and reset: Magnet sensor to call up local test patterns and reset fixture
Optics

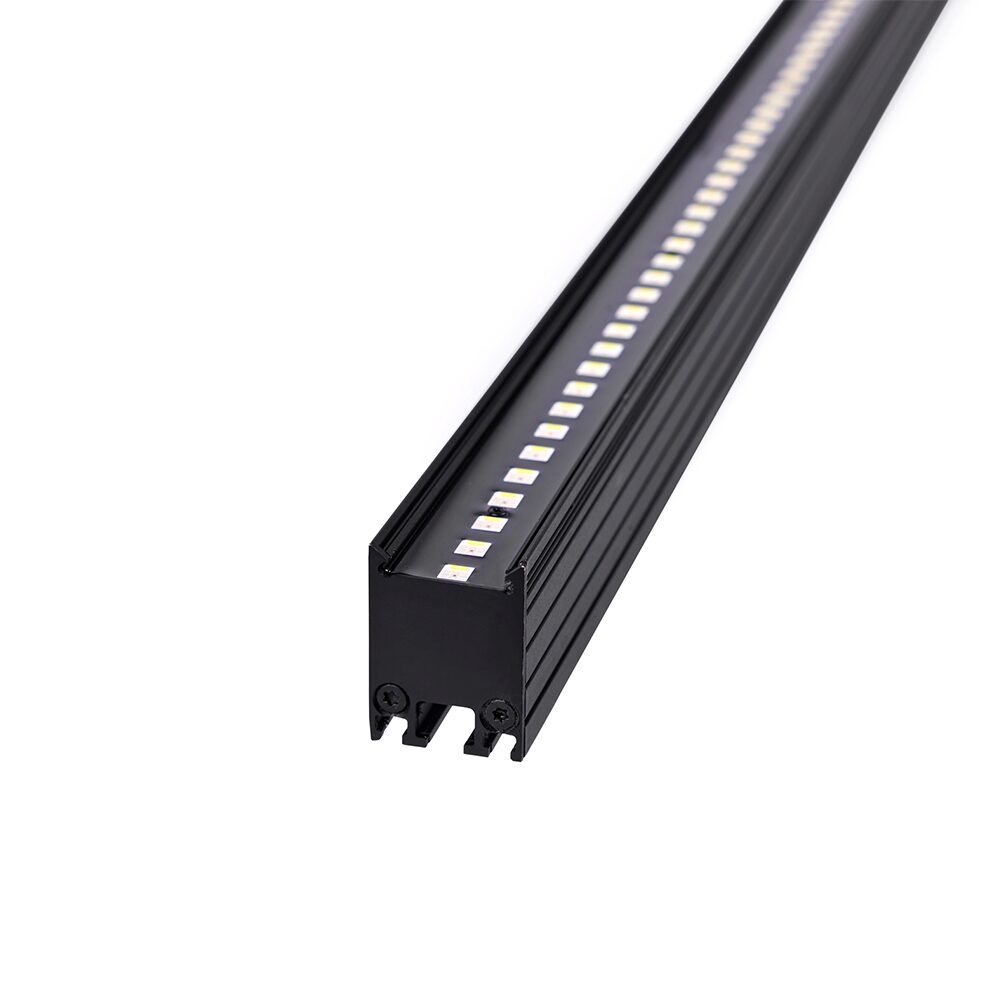

Pixel Pitch: 10.00 mm

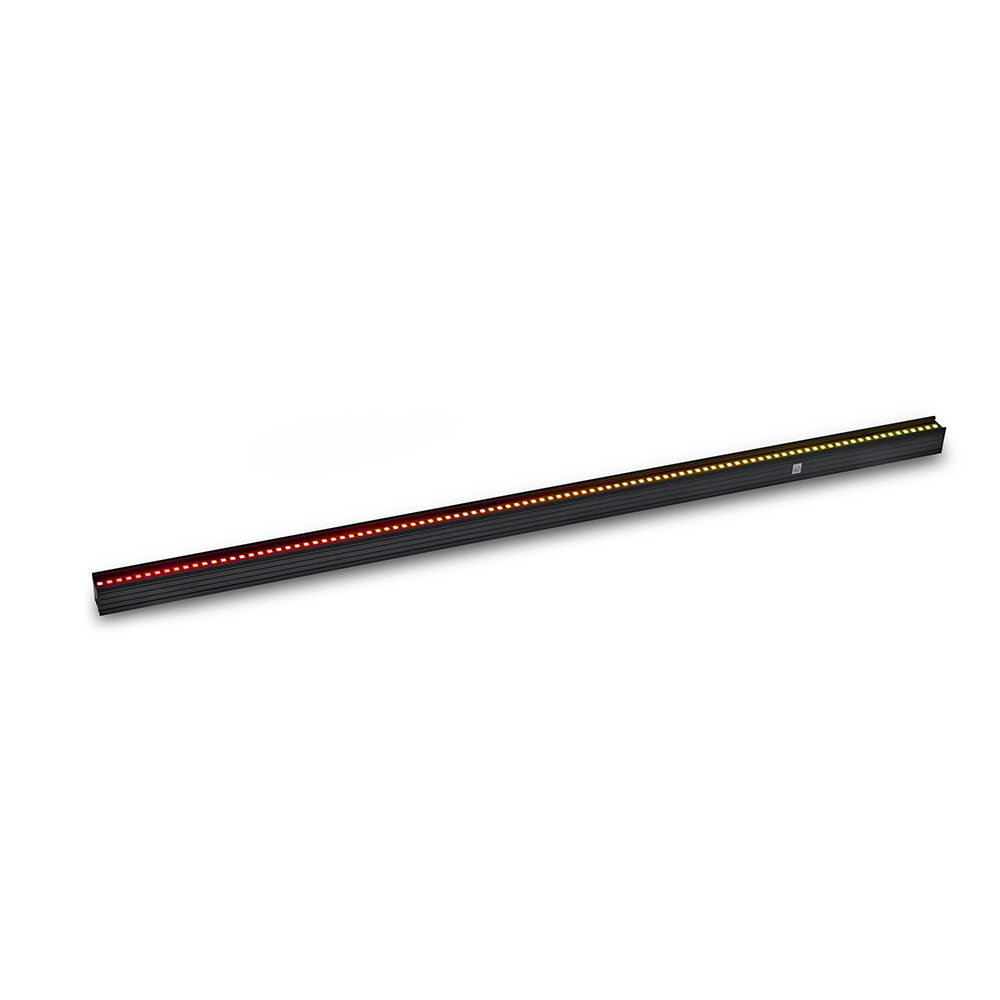

Pixel Quantity 1000 mm Variant: 100 RGBW pixels
Pixel Quantity 320 mm Variant: 32 RGBW pixels
LED Type: Single RGBW LED per pixel
Beam Angle (Half Peak): 122×122° (without diffuser/lens installed)
Field Angle (Tenth Peak): 145×145° (without diffuser/lens installed)
Beam Angle (Half Peak): 24×84° (with graze lens installed)
Field Angle (Tenth Peak): 51×130° (with graze lens installed)
Beam Angle (Half Peak): 16×76° (with blade lens installed)
Field Angle (Tenth Peak): 31×120° (with blade lens installed)
Minimum LED lifetime: > 100.000 hours (to > 70% luminous output)*
* Figure obtained under manufacturer's test conditions at Ta = 25° C
Photometric Data

Luminous Output Mixed White (full power mode): 2,300 lumens / m
Luminous Output Red (full power mode): 640 lumens / m
Luminous Output Green (full power mode): 1,940 lumens / m
Luminous Output Blue (full power mode): 350 lumens / m
Luminous Output Mixed White (half power mode): 1,250 lumens / m
Luminous Output Red (half power mode): 320 lumens / m
Luminous Output Green (half power mode): 970 lumens / m
Luminous Output Blue (half power mode): 175 lumens / m
Luminous Intensity Mixed White (full power mode): 830 cd / m
Luminance, Mixed White (full power mode): 27,666 nits (fixtures placed in continuous surface at 30 mm center-to-center)
CCT: Variable 1,800 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 78
CQS (Color Quality Scale): ≥ 74
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 92
TLCI (Television Lighting Consistency Index): ≥ 61
LED Refresh Rate: 1,001 Hz or 4,004 Hz (selectable)
Binning: Tight color and flux binning
Calibration: Full Gamut Pixel Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode, Calibrated Color Mode and Linear Video Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
* All Photometric Data without diffuser/lens installed

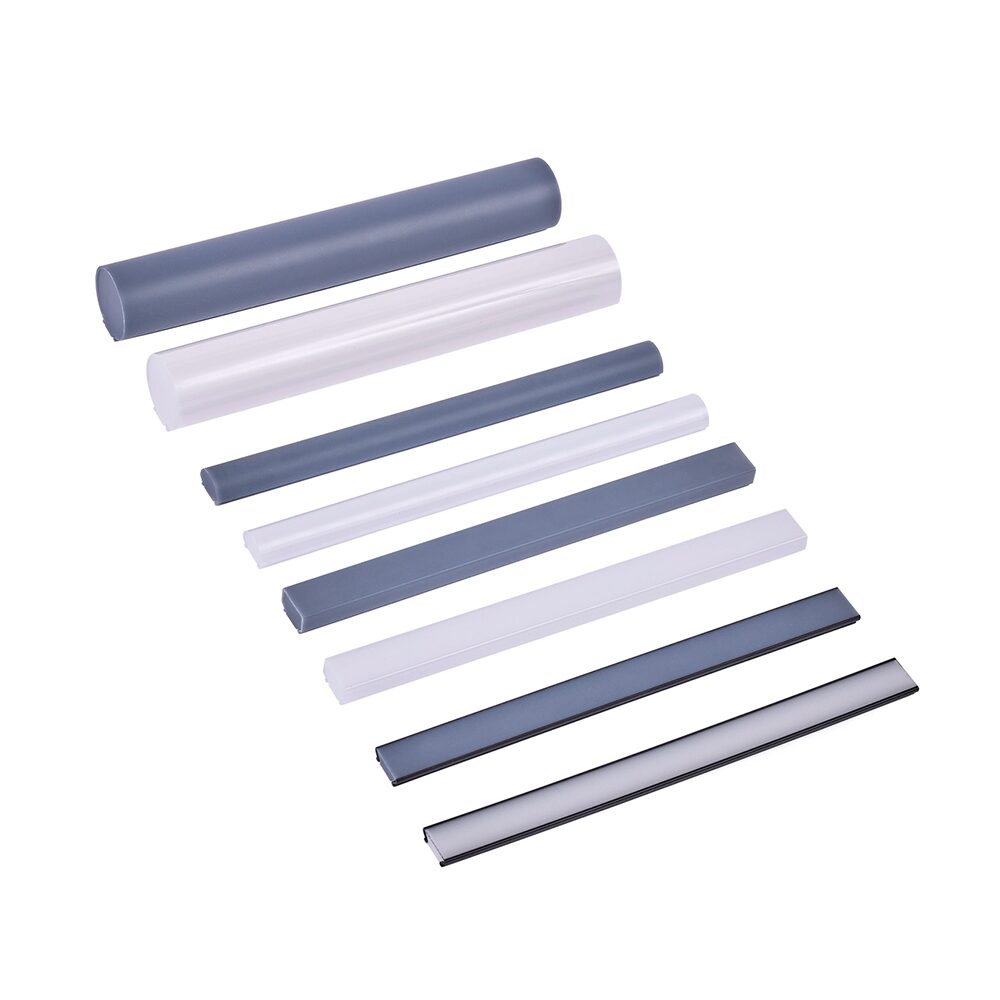

Optical Accessories

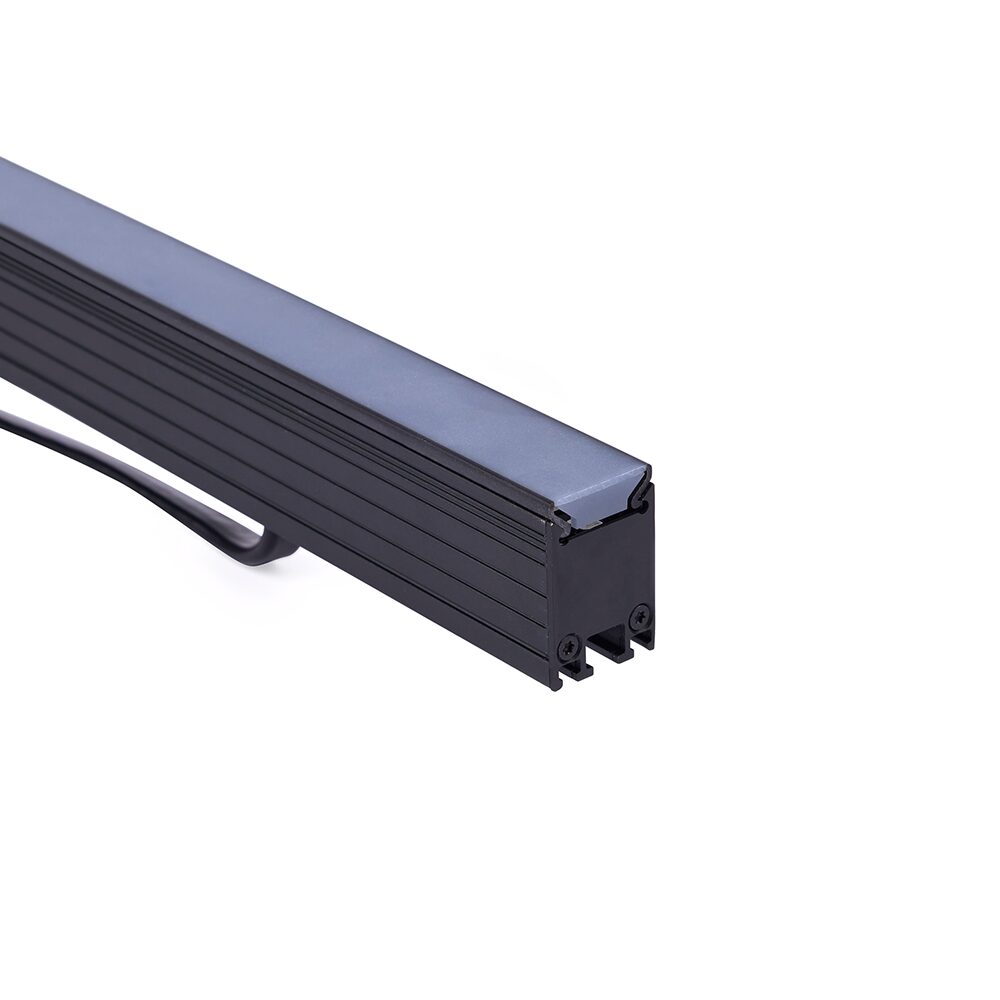

Flat Diffuser
Flat Smoked Diffuser

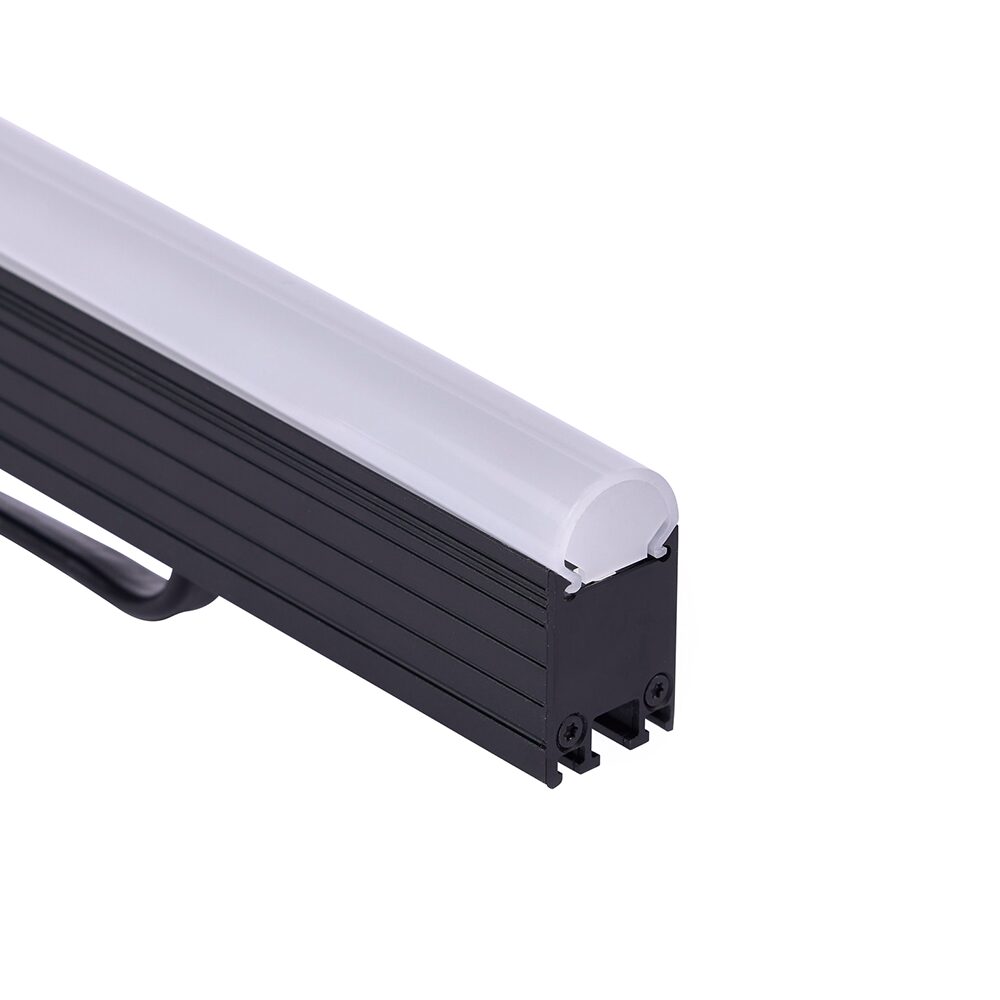

Round Diffuser

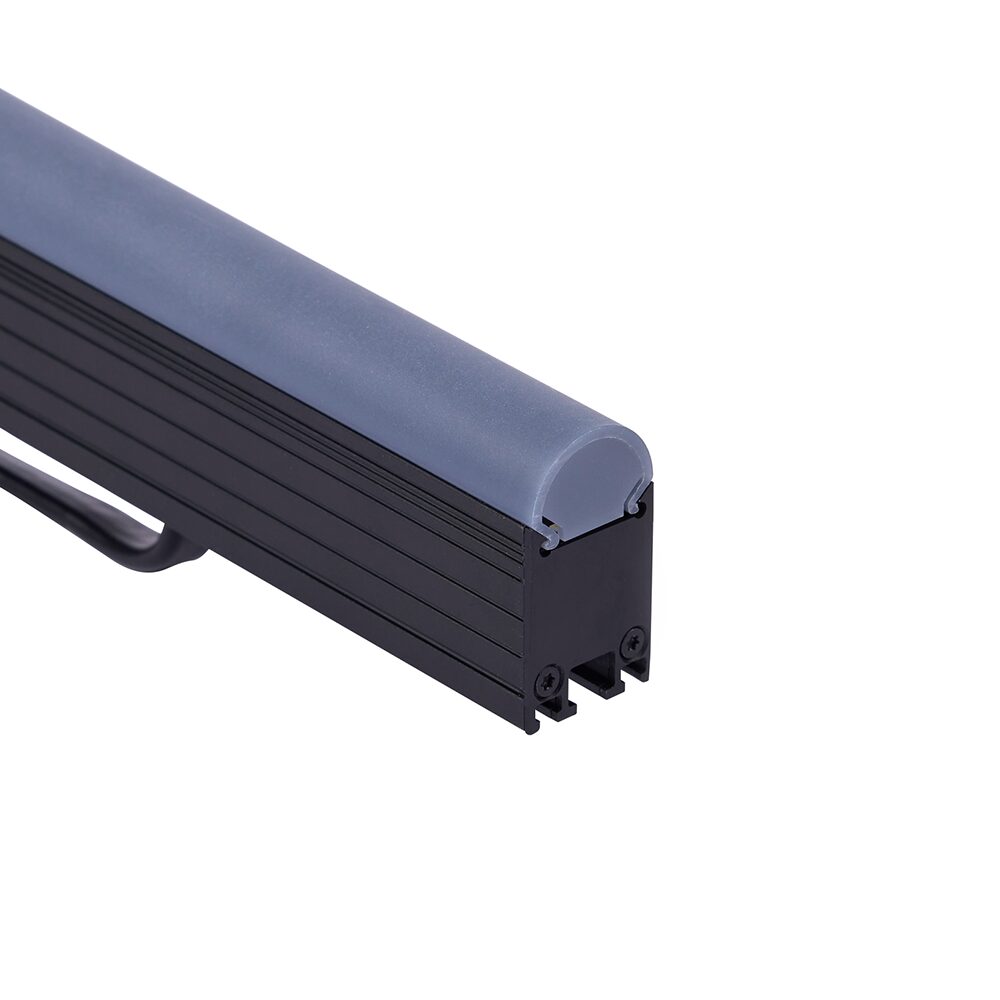

Round Smoked Diffuser

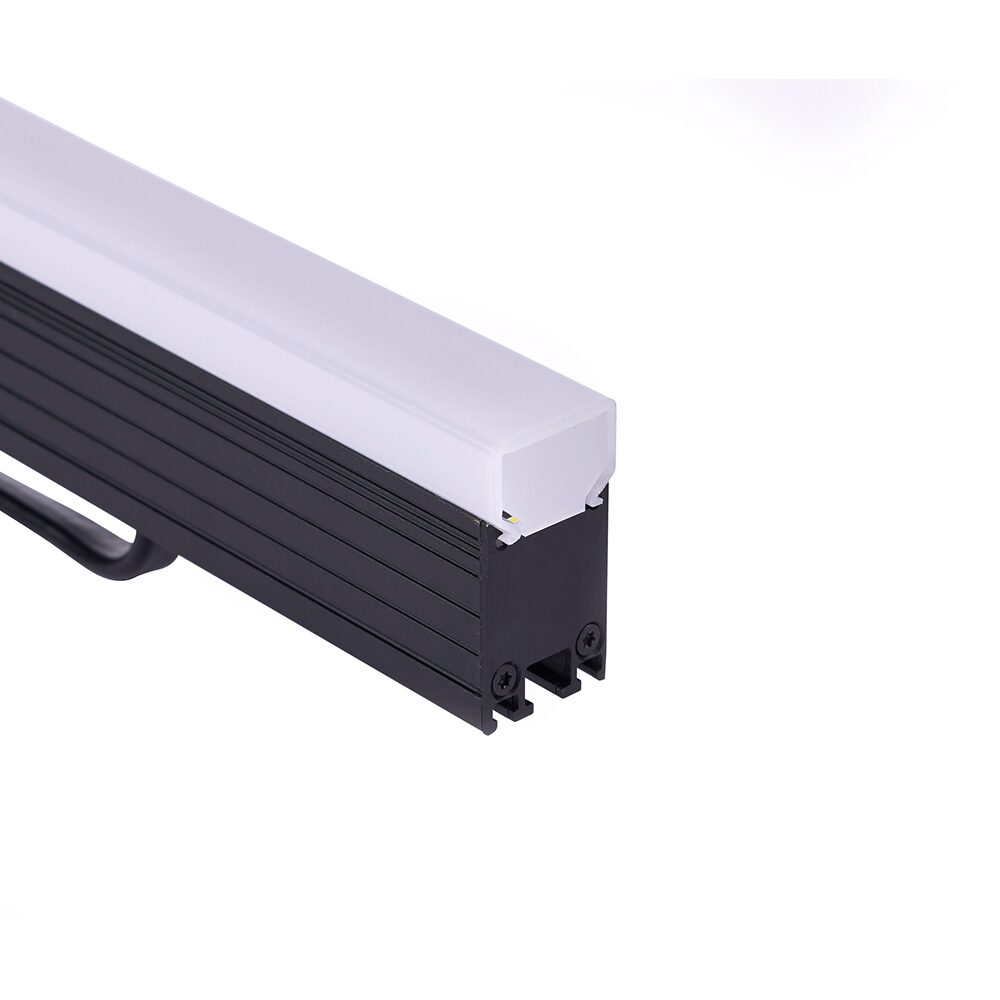

Square Diffuser

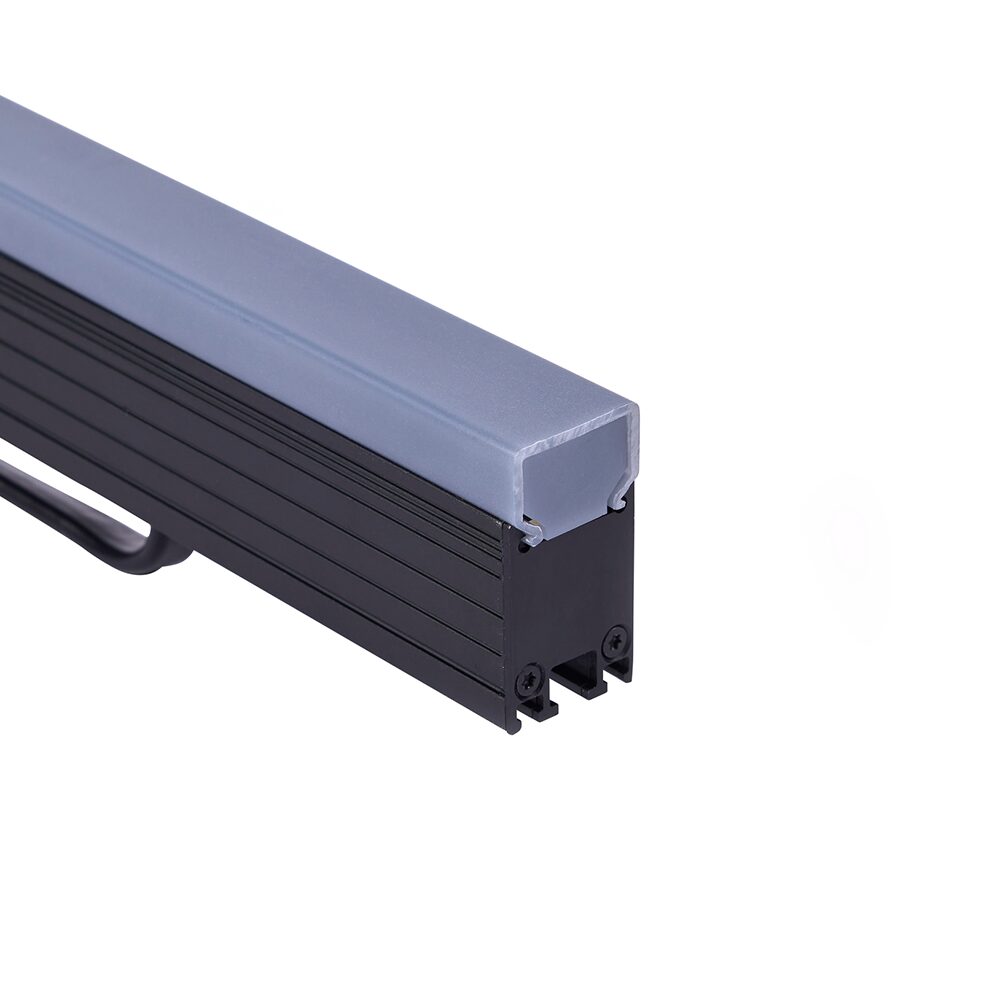

Square Smoked Diffuser
Tube Diffuser
Tube Smoked Diffuser
Graze Lens
Blade Lens
Glare Shield
All optical accessories are interchangeable and clip onto fixtures
Construction

Color: Matte Black
Housing Material: Aluminium
Protection Rating: IP 65
Corrosion Resistance: ISO 12944-6: 2018; C3 High, Test regime ISO 9227, 240h
Installation

Mounting: Channel for M6 captive nuts on back of fixture

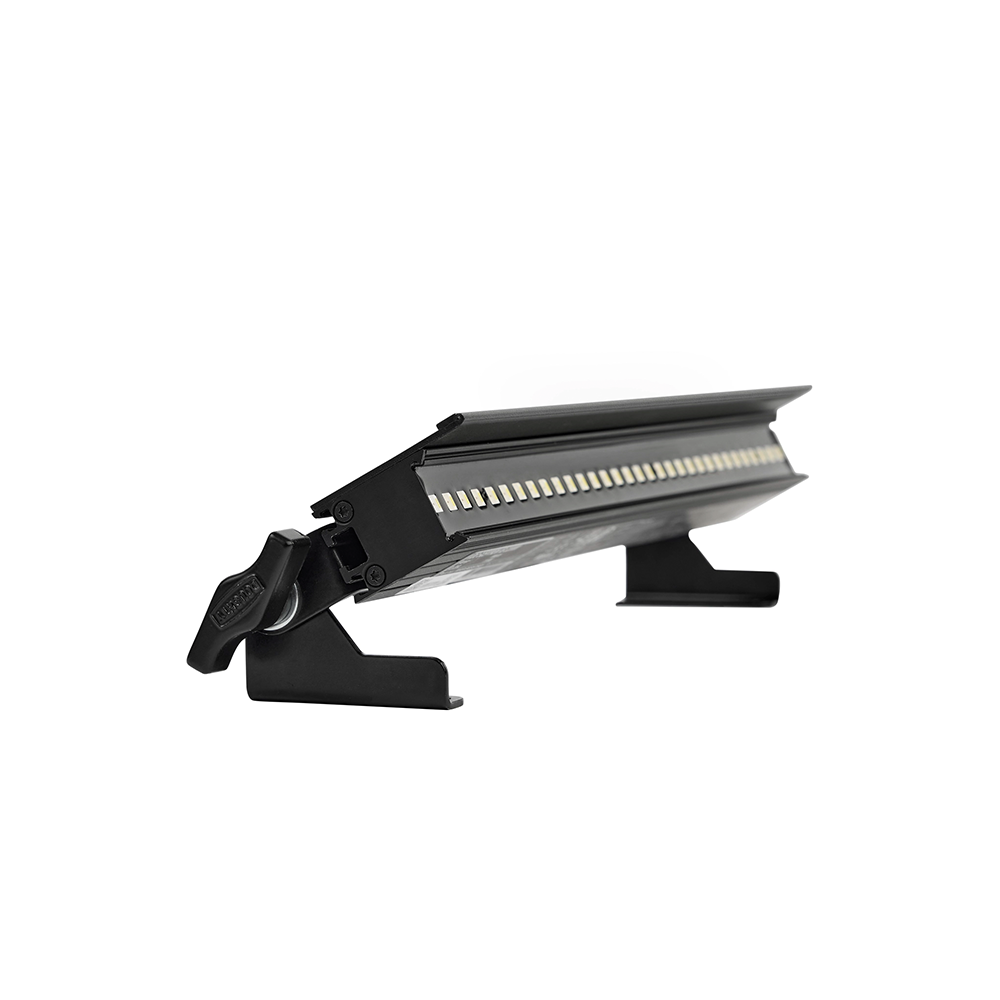

Mounting Options: M6 bolts, sliding bracket, half coupler, spigot adapter, linear coupler, pivot coupler, parallel coupler or floorstand
Maximum vertical column height: 6 fixtures
Orientation: Any
Location: indoor or temporary outdoor use

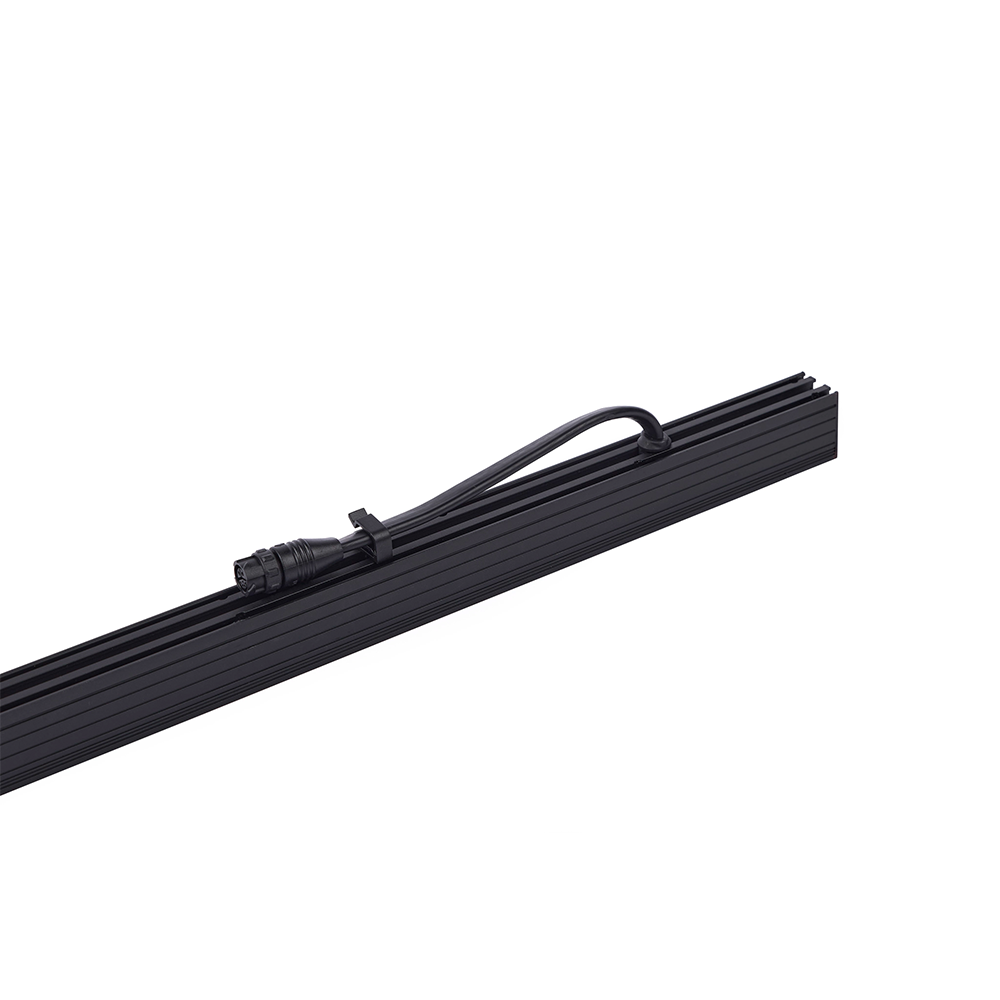

Connections

DC Power and Network input: cable tail with DCE hybrid connector (7pin)

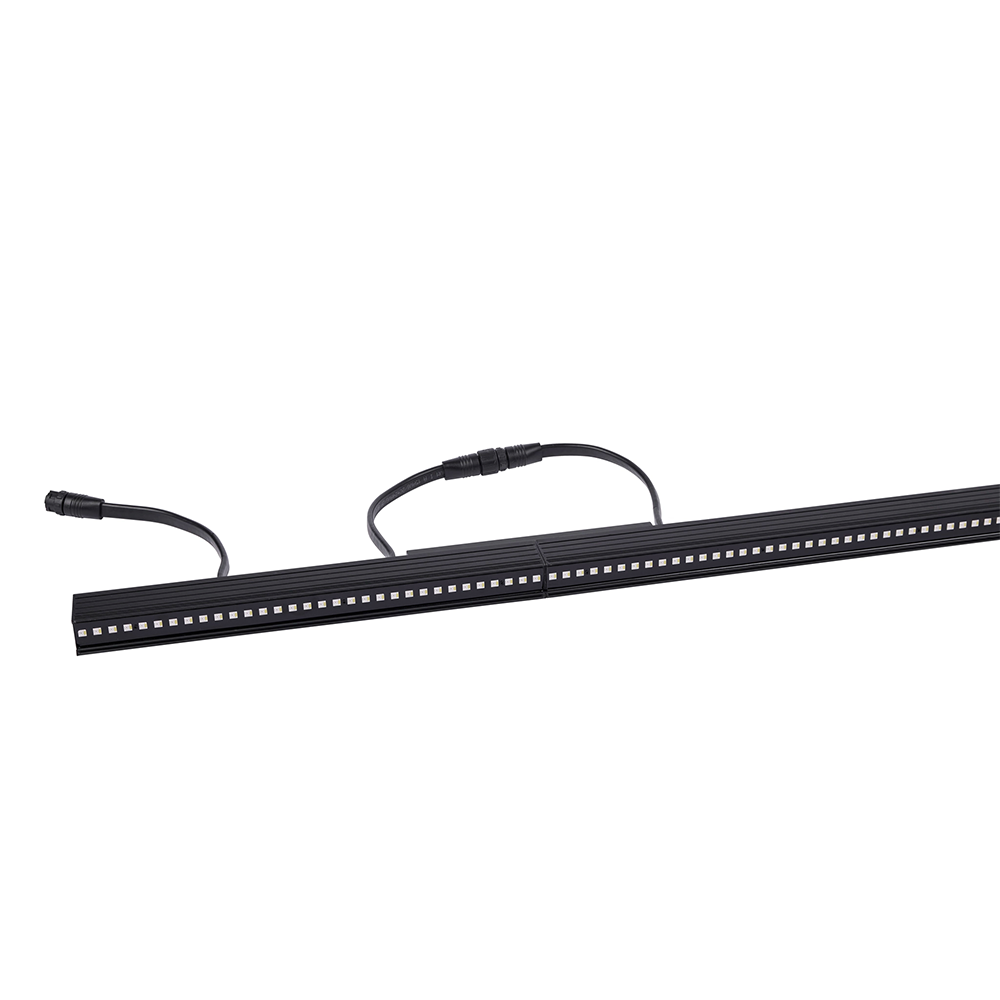

DC Power and Network thru: cable tail with DCE hybrid connector (7pin)
All connections hot plugging compatible
Electrical

Nominal Input Voltage: 48 V DC +/- 4%
Power Supply Options: P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP or generic 48 V DC PSU
Power Consumption 1000 mm Variant
Typical Full Power Mode: 30.0 W *
Typical Half Power Mode: 16.9 W *
Idle: 3.3 W *
Hibernation: 1.6 W *
Power Consumption 320 mm Variant
Typical Full Power Mode: 11.0 W *
Typical Half Power Mode: 6.5 W *
Idle: 2.2 W *
Hibernation: 1.6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: fixture at full output white.
Idle: fixture at zero output.
Hibernation: no output; wake-up procedure required to re-use fixture.
Thermal

Cooling: Convection
Maximum ambient temperature (Ta max.): 50° C (122° F)*
Minimum ambient temperature (Ta min.): -20° C (-4° F)*
Typical Heat Dissipation 1000 mm variant (calculated, +/- 10%): 102 BTU/hr.
Typical Heat Dissipation 320 mm variant (calculated, +/- 10%): 35 BTU/hr.
* At temperatures above 50° C (122° F), the fixture will automatically limit its output to prevent overheating.
* At temperatures below 0° C (32° F), the quantity of fixtures per daisy-chain needs to be reduced.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Efficacy (max output): 76.6 lm/W
LWR*: 1438 lm/kg (657 lm/lbs.)
* LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 62368-1
EU safety: IEC 62368-1
EU EMC: EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3
US safety: UL 62368-1
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No.62368-1
Canadian EMC: ICES-003 Class B
Australia/NZ: RCM
United Kingdom: UKCA
India: BIS IS 10322 (Part 5 / Section 1)
Included Items

Square Diffuser
Square Smoked Diffuser
2x Cable Clip
Safety Cable Attachment Eyelet
Multi-Language Safety and Installation Manual

Downloads

Data Sheet Download
User Guide Download
