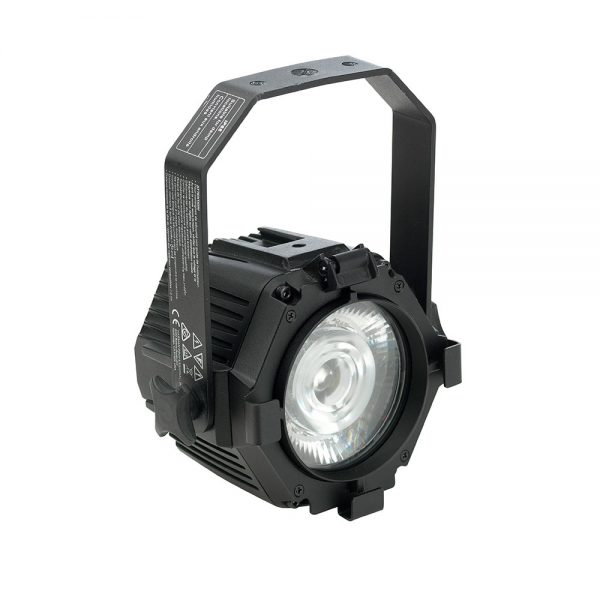

Martin - VDO Atomic Dot front right of fixture hanging braket upMartin - VDO Atomic Dot front right of fixture hanging braket up

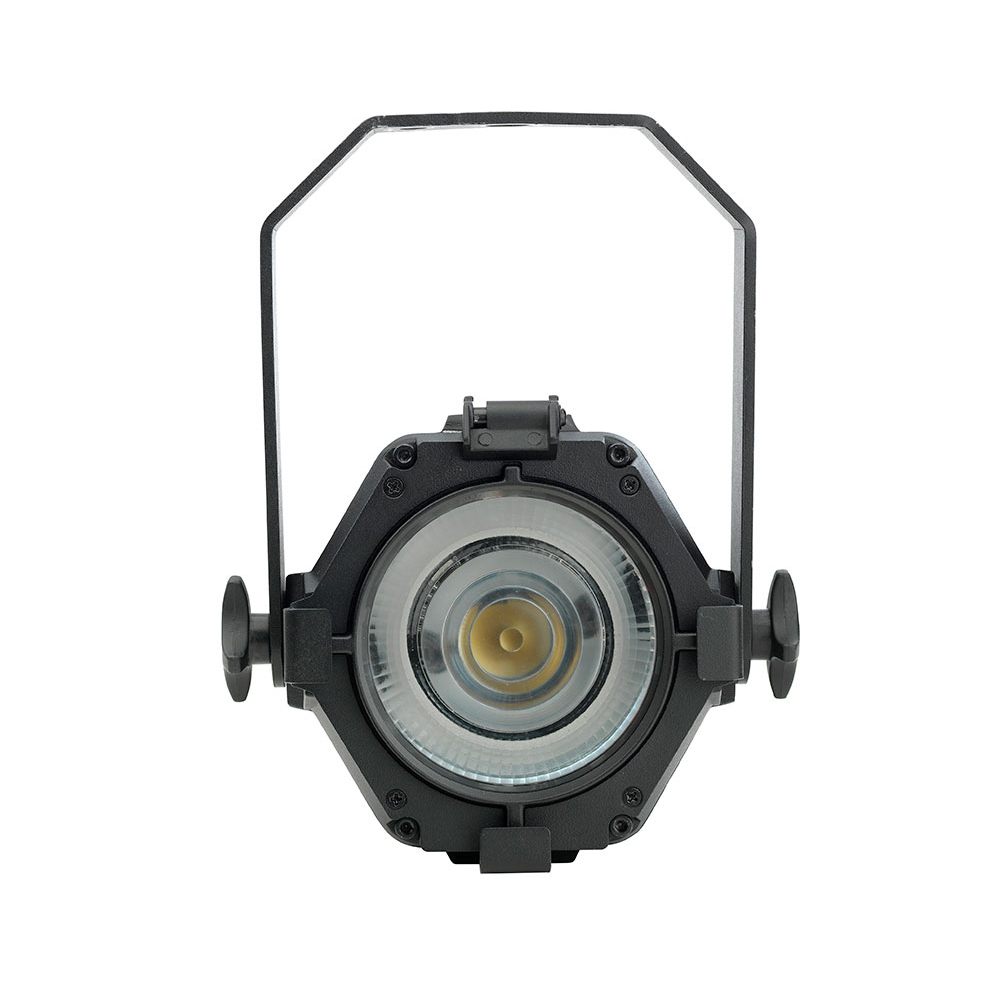

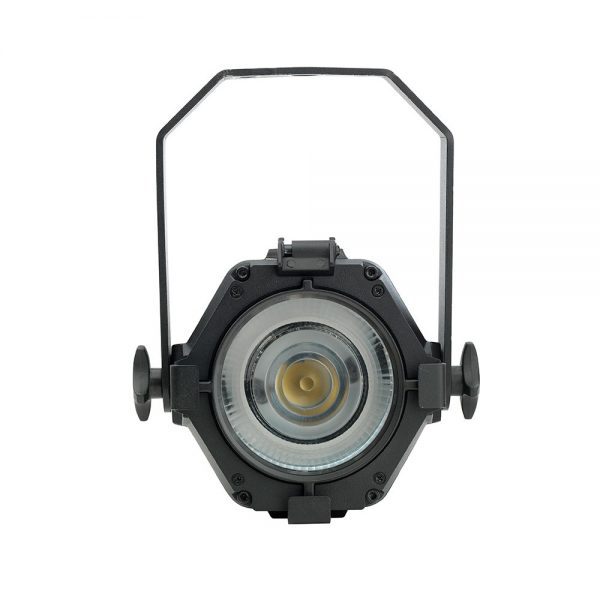

Martin – VDO Atomic Dot CLD

Martin

Combining a video-controlled Aura backlight and a bright strobe/blinder dot in one fixture, lighting designers are empowered with greater creative potential.

SKU: MAR-90357701 Categories: , , ,

Description

The Martin VDO Atomic Dot CLD hybrid lighting and video fixture, also available in a WRM color temperature variant, combines a compact strobe, small blinder, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright strobe/blinder dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled strobe or blinder.

The integrated VDO Grid Mount System allows multiple VDO Atomic Dots to be combined in battens, arrays or creative shapes. While the PDE cable carrying DMX, Art-Net, sACN and P3 makes connections easy and fast.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.

Features

  • High power cold white beam (5700K)
  • Beam angle of 11 degrees
  • Field angle of 22 degrees
  • Pixel-controllable RGB Aura backlight
  • Compact form-factor
  • Built-in power supply (100-240V)
  • Power and Data IN & THRU via hybrid cable
  • P3, DMX, Art-Net & sACN compatible
  • Built-in pixel-FX on backlight and beam

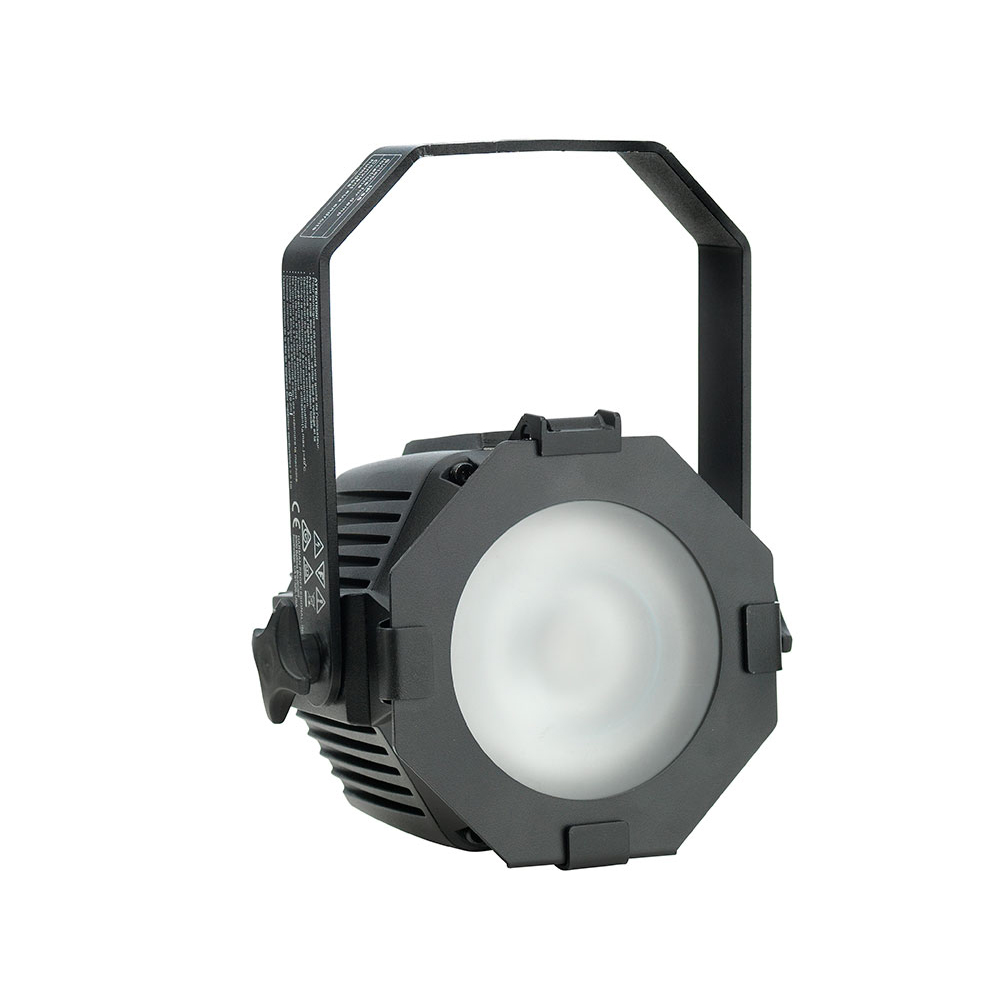

  • Front-accessory holder for barndoors and/or diffuser/lens
  • Detachable yoke-assembly
  • Smart interlocking mechanics to build battens, arrays and creative shapes
  • Passive cooling
  • IP65-rated

Video

Martin VDO Atomic Dot Product Video

Atomic Dot hybrid lighting and video fixtures combine a compact strobe, small blinder, video-pixel, and small spotlight.

Additional information

Weight 2.2 kg
Physical

Width excluding hanging bracket: 130 mm (5.1 in.)
Width including hanging bracket: 175 mm (6.9 in.)
Height excluding hanging bracket: 134 mm (5.3 in.)
Height including hanging bracket: 242 mm (9.5 in.)
Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Depth: 146 mm (5.7 in.)
Weight including hanging bracket: 2.2 kg (4.85 lbs.)
Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)
Dynamic Effect

Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 – 100%
Aura Color temperature control: Variable 2000 – 11,000 K
Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both
Control & Programming

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: RDM, RDM over Art-Net or P3
DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
DMX channels: 1, 3, 4, 19, 64
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: RS-485
Ethernet Transceiver: 10/100Mbit
Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing

Color Resolution: 16 bit per color (48 bit per pixel) (Aura)
Color Temperature Control: 2000-11,000 K (Aura)
Synchronization: System-wide
Frame Rate: Up to 75 frames/sec
Brightness Control: 0-100% (maintaining full color depth)
Color Gamut Control: full spectrum control (Aura)
Gamma Correction and Control: fully controllable (Aura)
Control/User Interface

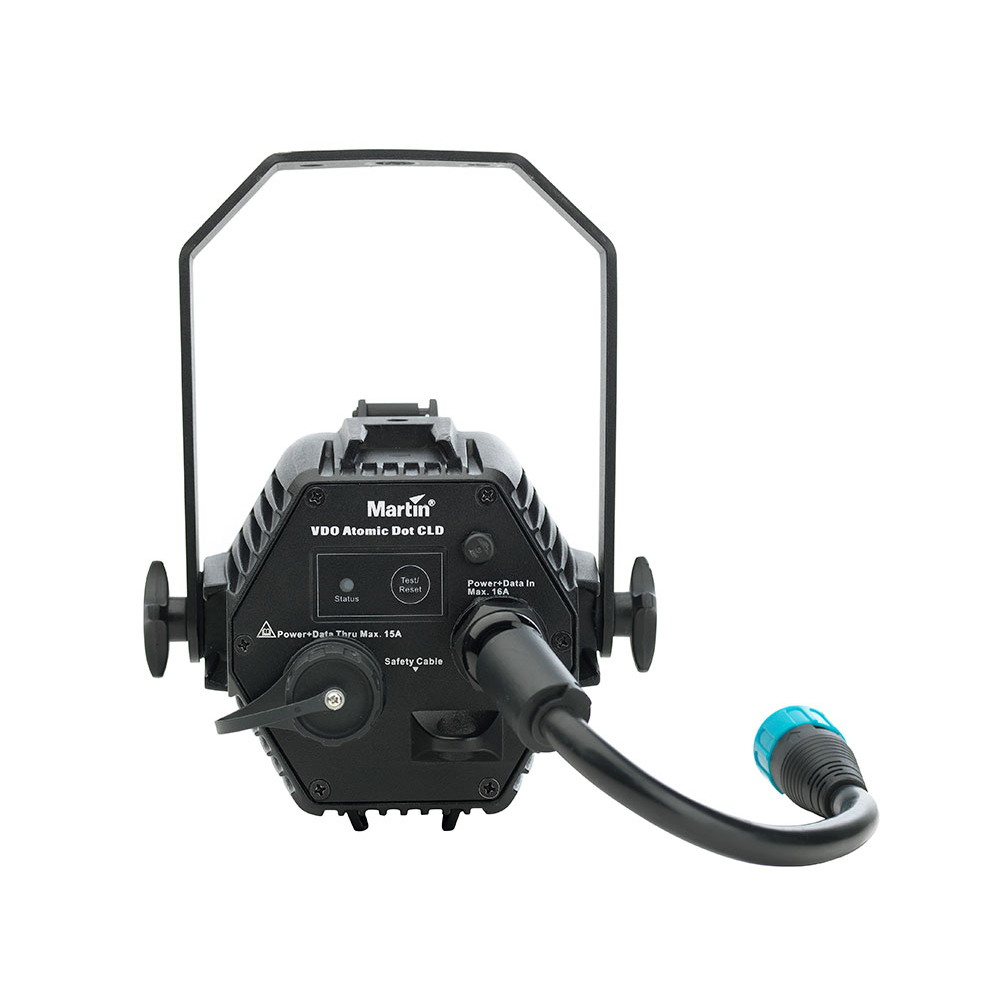

Device status: Multi-color status LED
Device test and reset: Pushbutton to call up local test patterns and reset device
Optical & Photometric Data

Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size

Beam/Strobe LED
LED Type: Cold White
Max. total lumen output: 3350 lumens (boost/strobe mode)
Max. total lumen output: 1600 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 5700 K
CRI (Color Rendering Index): ≥ 80
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs
LED Type: RGB
LED Quantity: 16
Binning: Tight color and flux binning
Color Temperature: Variable (2000-11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: Aluminum
Color: Black
Protection rating: IP65
Installation

Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
Location: indoor or temporary outdoor use
Clamp attachment to hanging bracket: M12
Clamp attachment directly to fixture: M8
Maximum vertical column height: 16 fixtures
Orientation: Any
Minimum distance to combustible materials: 0.1 m
Minimum distance to illuminated surfaces: 0.2 m
Connections

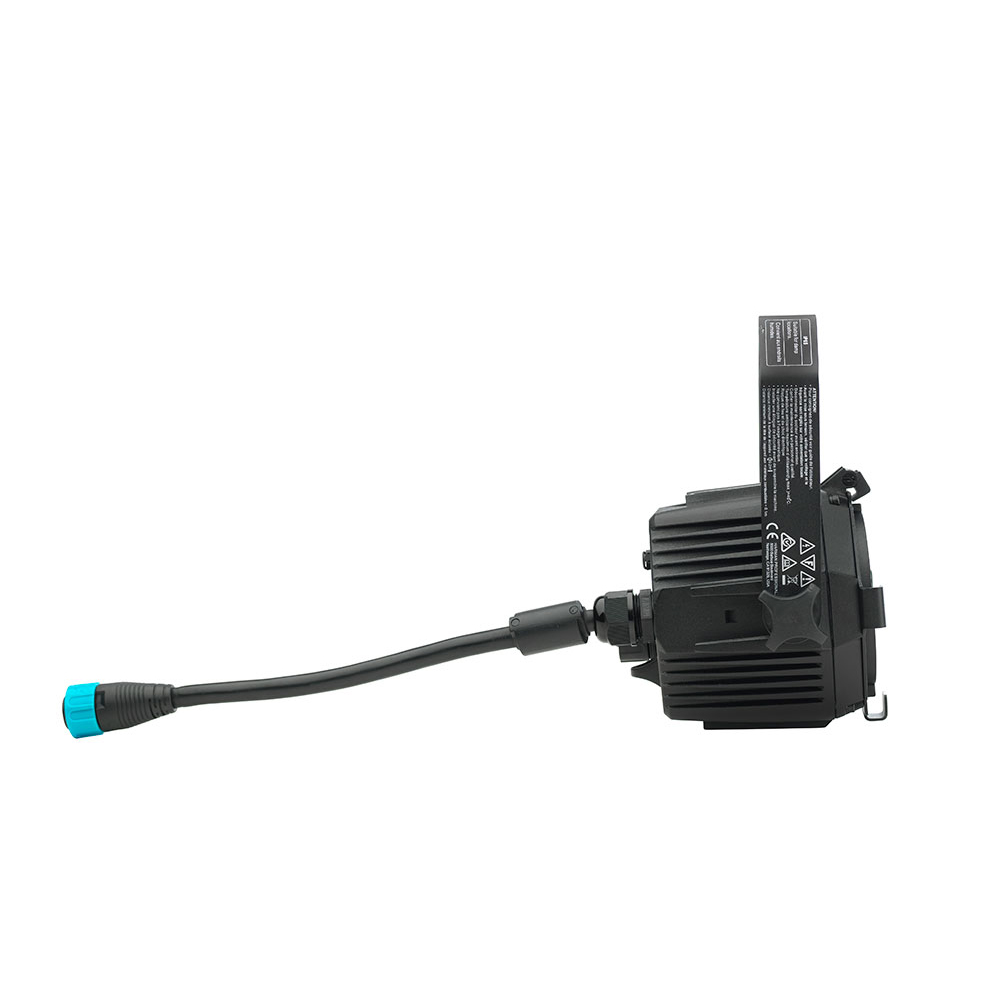

AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
Typical earth-leakage current: 0.25 mA
Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 50 W *
Idle: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.
Thermal

Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 74.4 lm/W
LWR*: 1,523 lm/kg (691 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CRF Chapter 15 Class B
Canadian safety: CSA 22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
