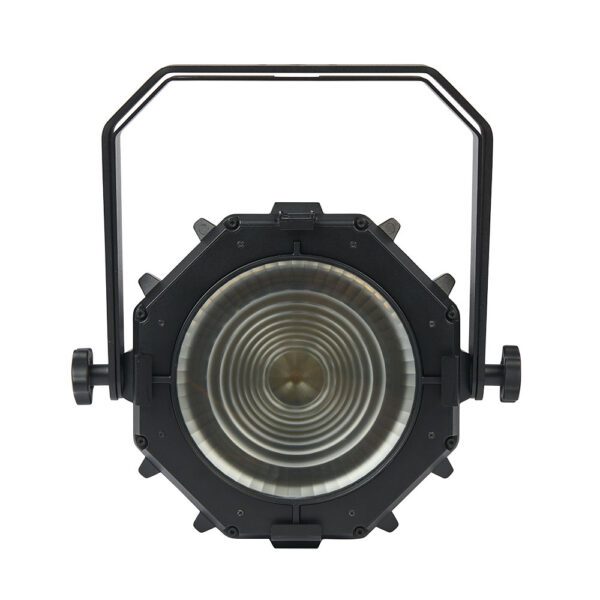

| Physical |
Width excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)
Width including hanging bracket: 371 mm (14.6 in.)
Height excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)
Height including hanging bracket: 394 mm (15.5 in.)
Horizontal fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Depth: 161 mm (6.3 in.)
Weight including hanging bracket: 9.32 kg (20.5 lbs.)
Weight excluding hanging bracket: 7.65 kg (16.9 lbs.)
|

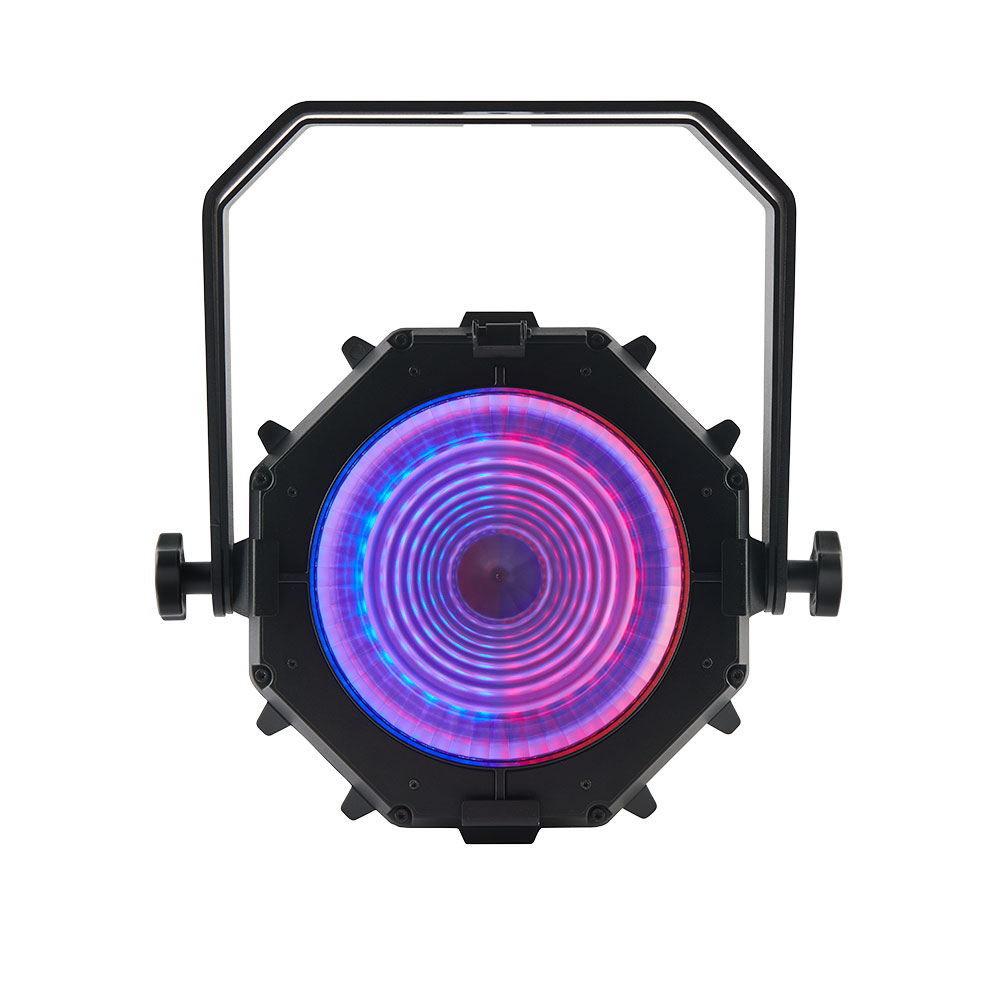

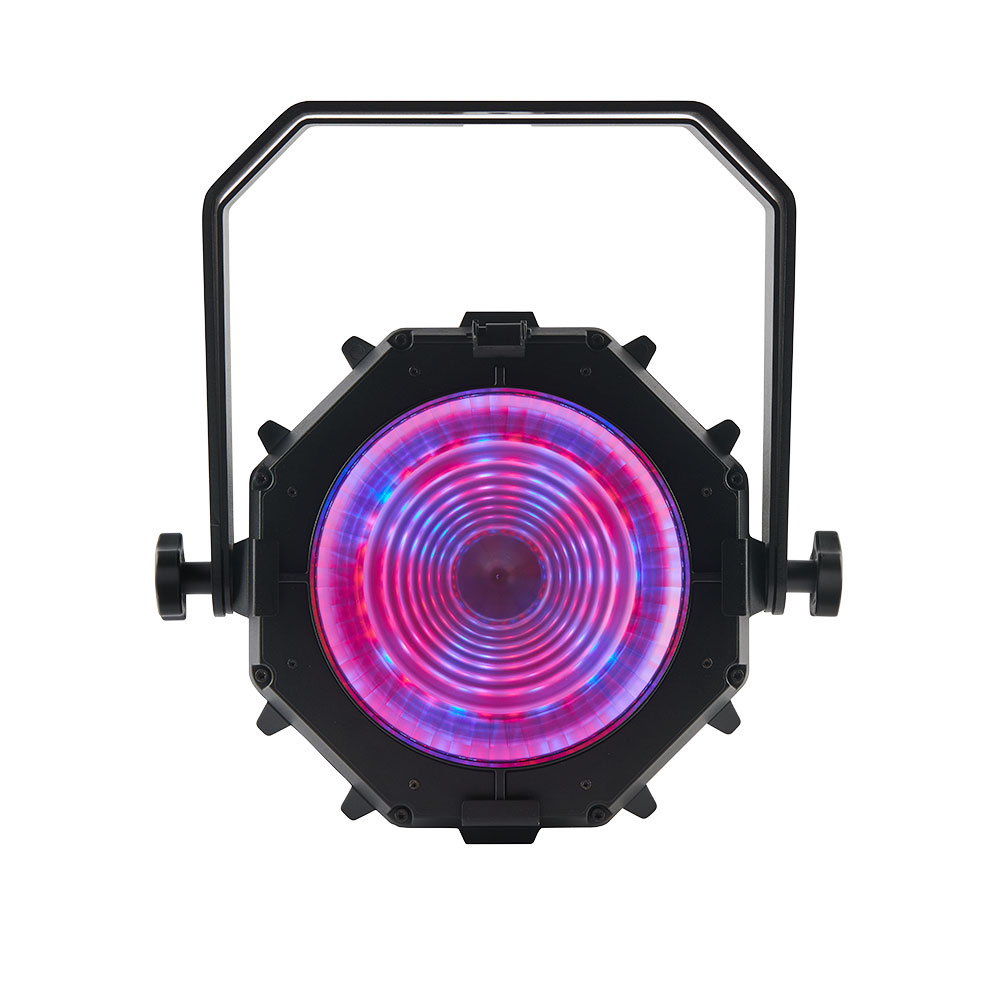

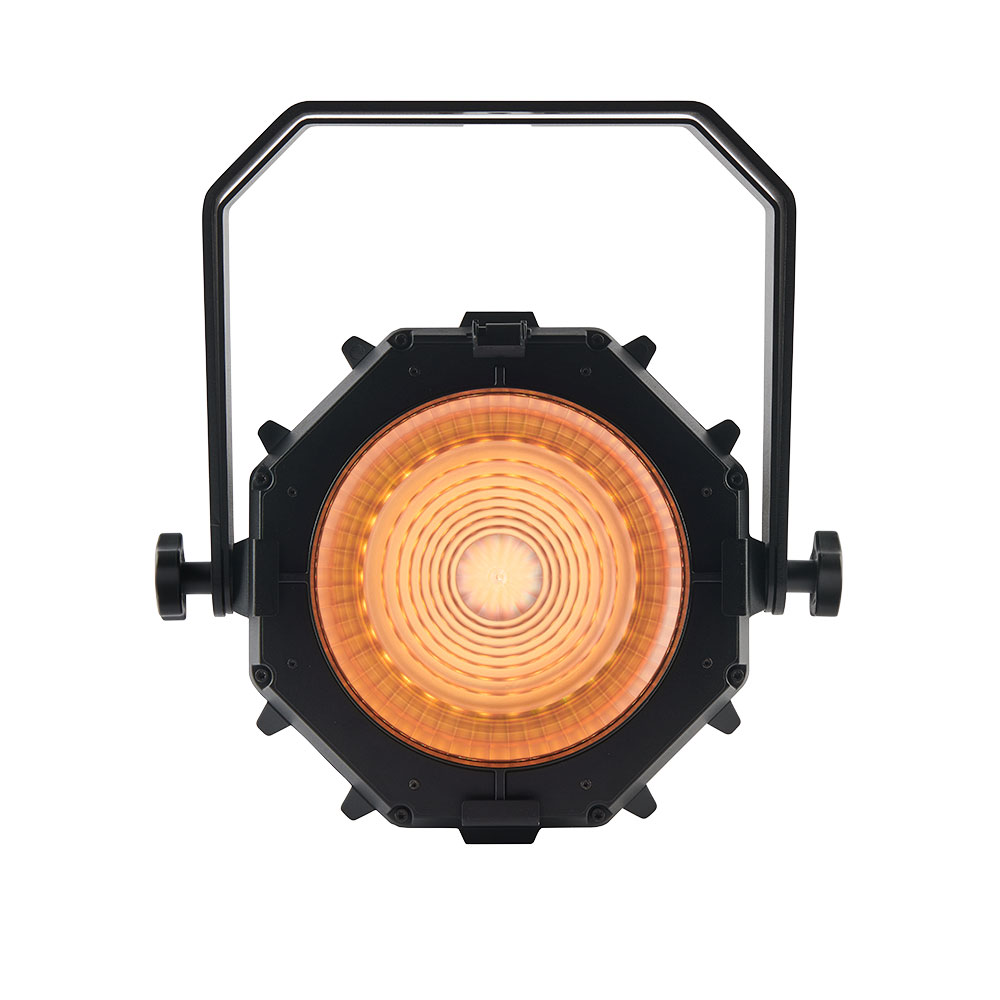

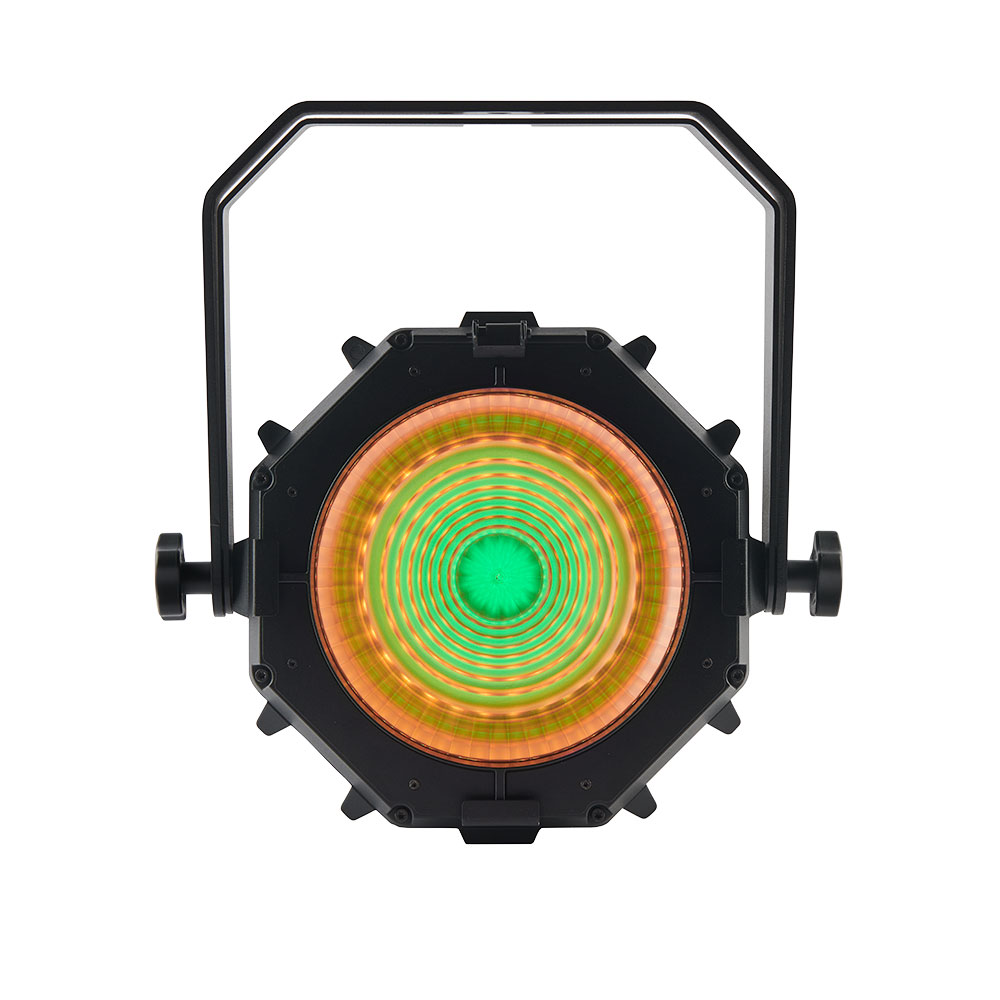

| Dynamic Effects |
Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam Color mixing: RGB, independently variable 0 – 100%
Beam Color temperature control: Variable 2,000 – 11,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation and random color
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 – 100%
Aura Color temperature control: Variable 2,000 – 11,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both
|
| Control & Programming |
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: RDM, RDM over Art-Net or P3
DMX Modes: 1-channel, 3-channel, 4-channel, Compact, Basic, Extended
DMX channels: 1, 3, 4, 10, 27, 243
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: RS-485
Ethernet Transceiver: 10/100 Mbit (with fail-safe bypass)
Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
|
| P3 Video Processing |
Color Resolution: 16 bit per color (48 bit per pixel) (Beam & Aura)
Color Temperature Control: 2,000 – 11,000 K (Beam & Aura)
Synchronization: system-wide
Frame Rate: up to 75 frames/sec
Brightness Control: 0-100% (maintaining full color depth)
Color Gamut Control: full spectrum control (Beam & Aura)
Gamma Correction and Control: fully controllable (Beam & Aura)
|
| Control/User Interface |
Device status: Multi-color status LED
Device test and reset: Pushbutton to call up local test patterns and reset device
|

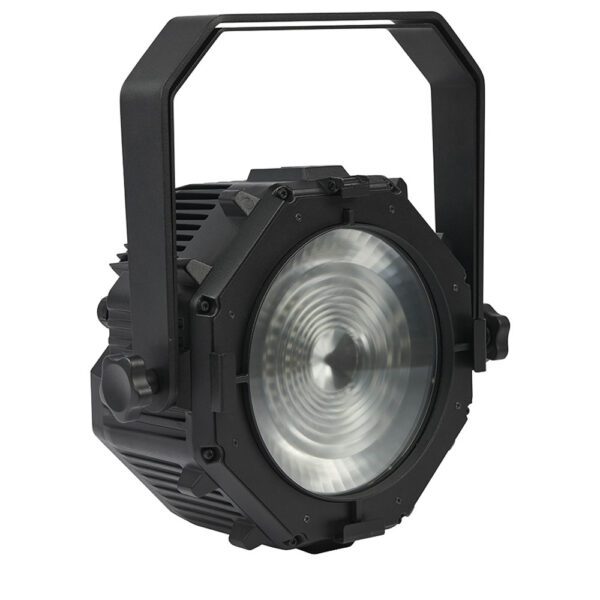

| Optics & Photometric Data |
LED Type: RGBW
Max. total lumen output: 13,000 lumens (boost/strobe mode)
Max. total lumen output: 8,000 lumens (continuous mode)
Center intensity: 170,000 cd (boost/strobe mode)
Center intensity: 103,000 cd (continuous mode)
Beam Angle: 12 Degrees (half peak)
Field Angle: 26 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
CRI (Color Rendering Index): ≥ 83
CQS (Color Quality Scale): ≥ 87
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 83
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 106
TLCI (Television Lighting Consistency Index): ≥ 85
Color Temperature: variable (2,000 – 11,000 K)
Resolution: 16-bit per color
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

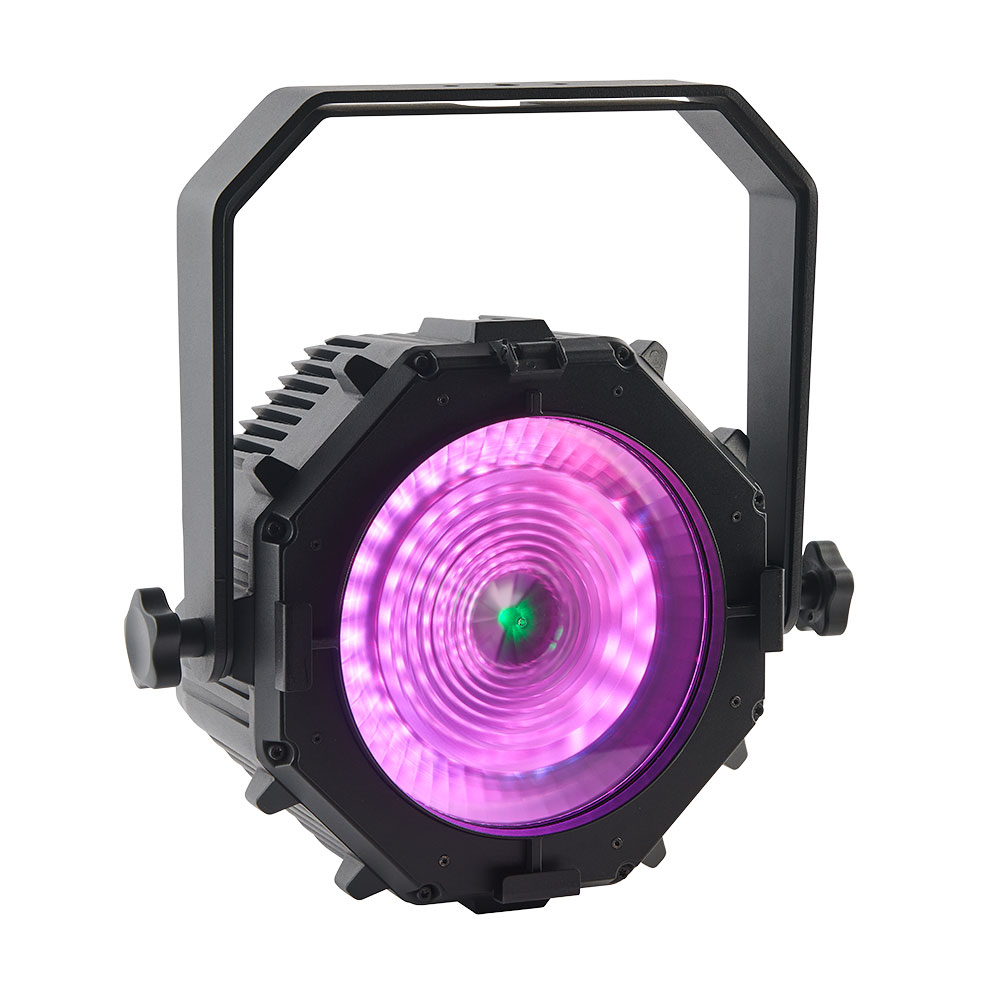

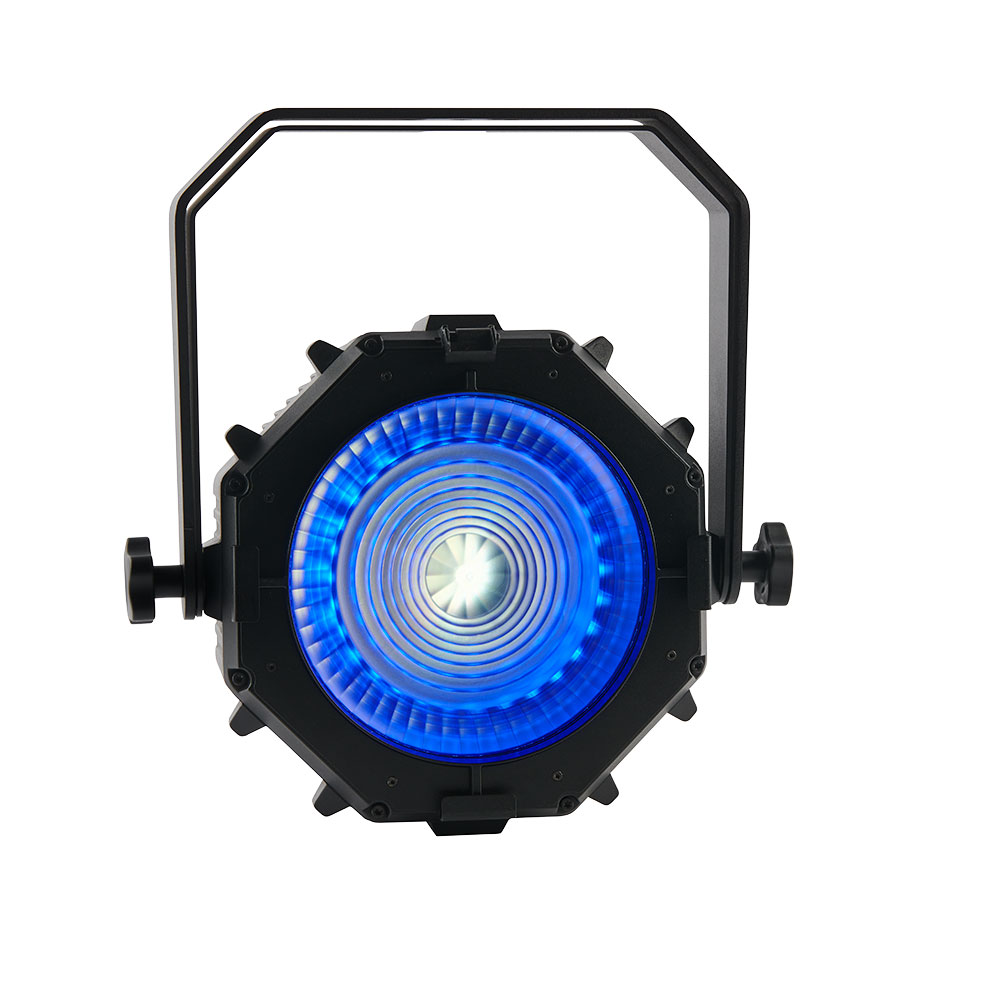

Aura Backlight LEDs
LED Type: RGB
LED Quantity: 72
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
Color Temperature: Variable (2,000 – 11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
|
| Construction |
Housing: Aluminum
Color: Black
Protection rating: IP65
|
| Installation |
Mounting options: hanging from bracket, hanging from clamp attached directly to fixture, hanging from other fixture using interlock mechanism or floor standing using integrated double bracket
Location: indoor or temporary outdoor use
Clamp attachment to hanging bracket: M12
Clamp attachment directly to fixture: M8

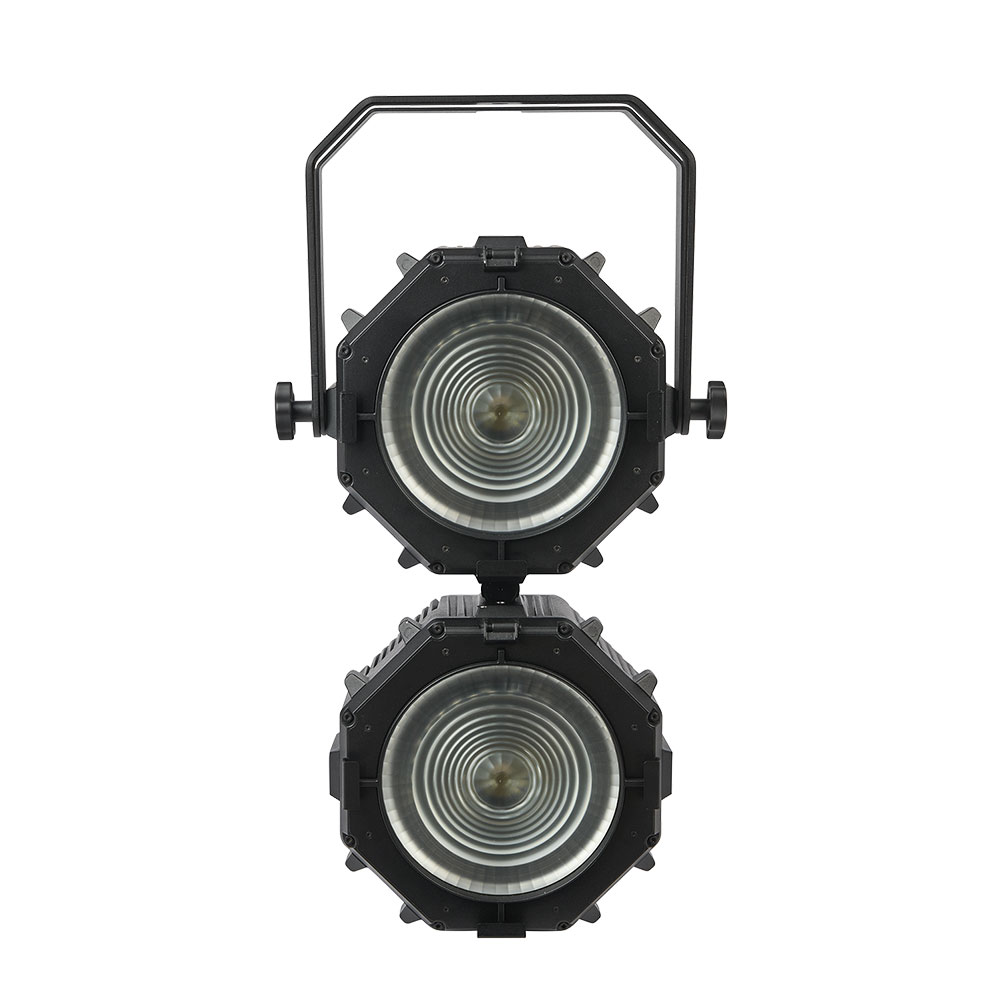

Maximum vertical column height: 4 fixtures
Orientation: Any
Minimum distance to combustible materials: 0.1 m
Minimum distance to illuminated surfaces: 0.5 m
|
| Connections |

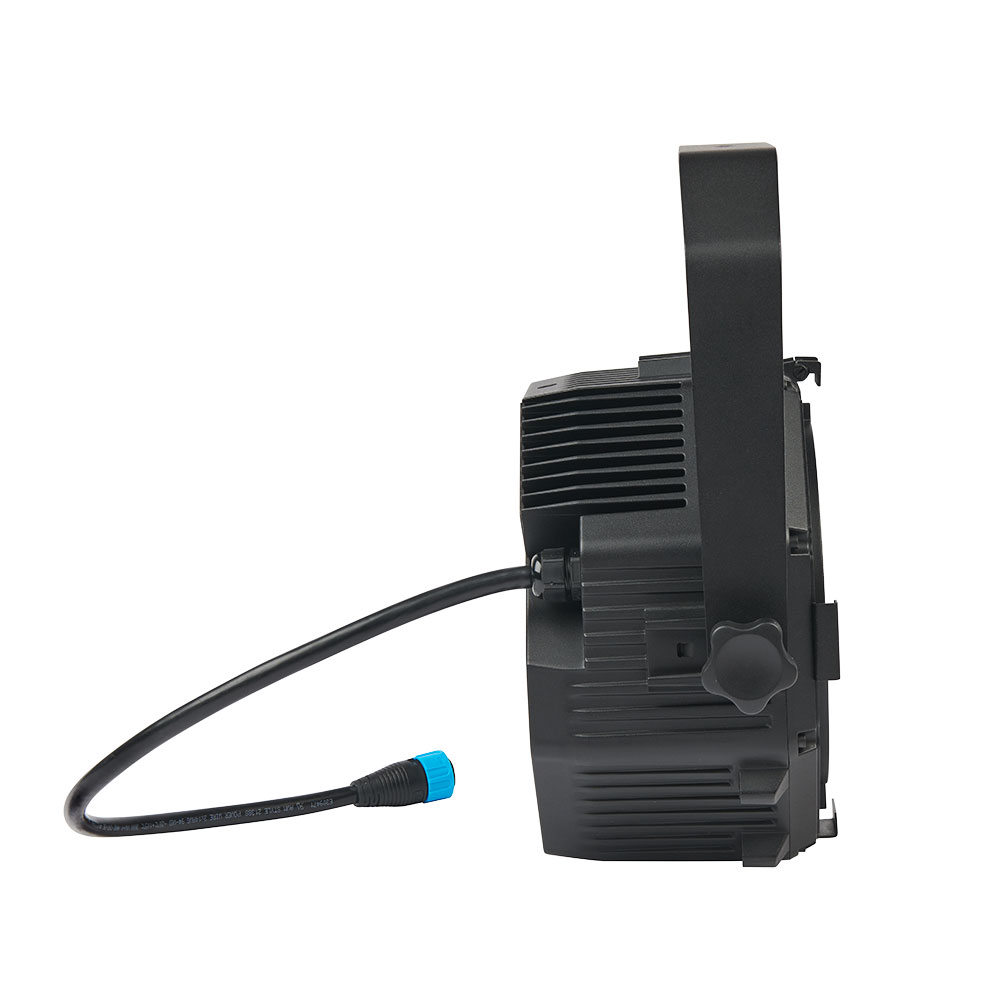

AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible
|
| Electrical |
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.0 A
Typical earth-leakage current: 0.80 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.96 @ 230 V , 0.95 @ 240 V
Max current draw: 4.0 A @ 100 V / 120 V , 1.9 A @ 208 V / 230 V / 240 V
Typical current draw: 3.6 A @ 100 V , 3.0 A @ 120 V , 1.7 A @ 208 V , 1.6 A @ 230 V , 1.6 A @ 240 V *
Power Consumption
Maximum: 400 W
Typical: 358 W *
Idle: 14 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.
|
| Thermal |

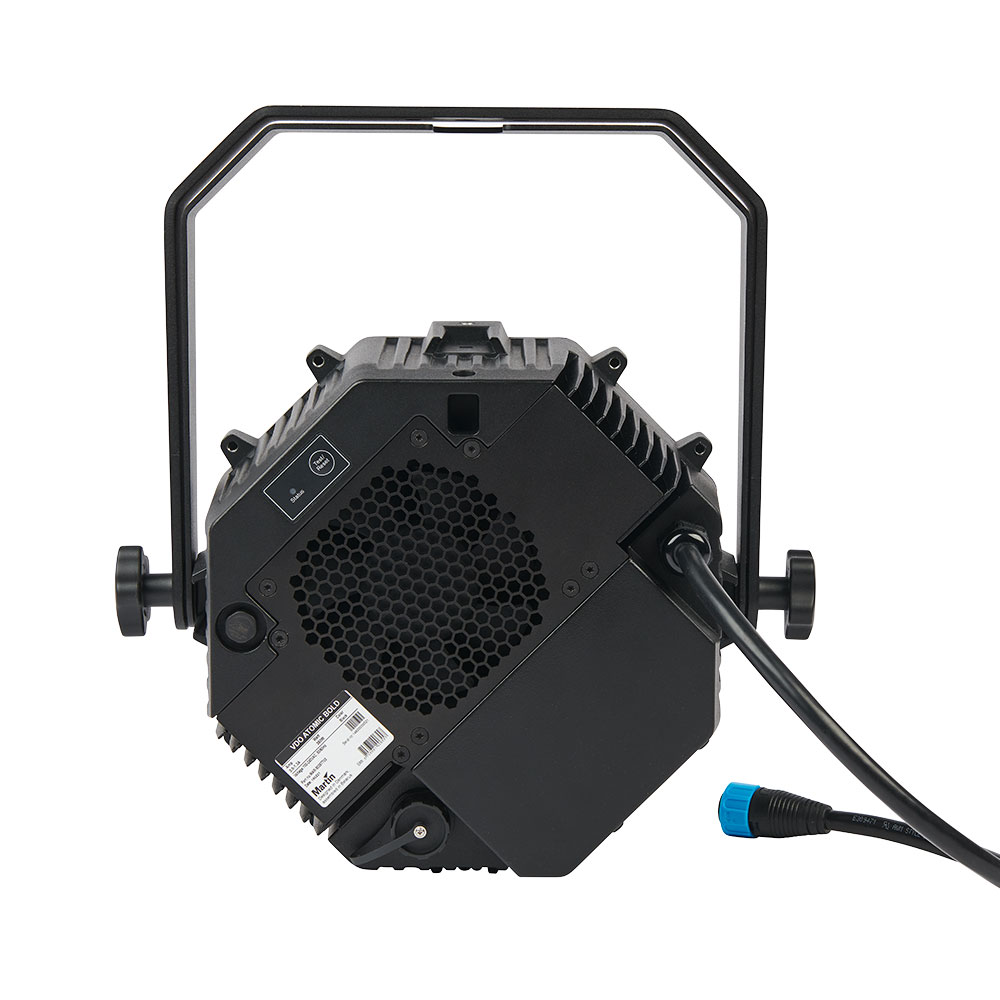

Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40 C
Minimum ambient temperature (Ta min.): 0 C
Typical heat dissipation (calculated, +/- 10%): 1365 BTU/hr
|
| Acoustic Data |
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 25.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 19.2 dB(A)
|
| Environmental |
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 43.3 lm/W
LWR*: 1,395 lm/kg (634 lm/lb)
LWR = Lumen-to-Weight Ratio
|
| Approvals |
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493
EU EMC: EN 55015, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA 22.2 No. 166
Canadian EMC: ICES-003 Class A; ICES-005 Class A
Australia/NZ: RCM
United Kingdom: UKCA
|
