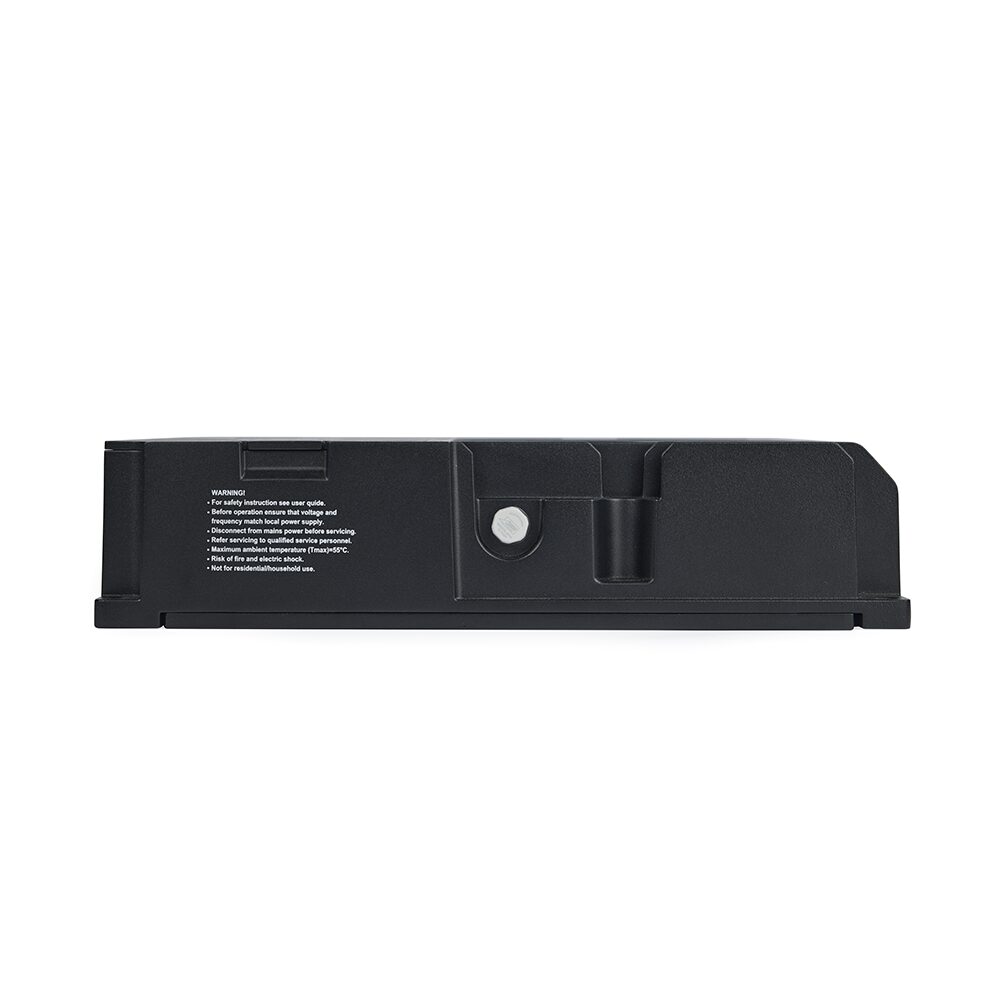

Martin – P3 PowerPort 500 IP Install

Martin

P3 PowerPort 500 IP Install delivers seamless power and data to Martin’s Creative LED fixtures and is ideal for indoor/outdoor install applications.

SKU: MAR-90721202 Categories: , , ,

Description

The Martin P3 PowerPort 500 IP Install delivers seamless power and data to Martin’s Creative LED fixtures and is ideal for indoor/outdoor install applications. It merges stable power delivery with high-speed, high-capacity data distribution, simplifying fixture deployment. The housing is designed for installation in the most harsh environments.

To ensure utmost flexibility for designers and integrators, it can be driven using industry standard protocols, including Art-Net and sACN as well as Martin’s award-winning P3 control protocol. It requires no local configuration or setup, enabling easy deployment and allowing power supplies to be located at significant distances from the lighting fixtures. It supports longer cables, more fixtures per daisy chain, and split branches. The built-in network switch eliminates the need for third-party switches, and power limiting control increases the number of fixtures per daisy-chain while implementing energy-saving measures.

The P3 PowerPort 500 IP Install is a robust and reliable solution, as it protects all inputs and outputs against overload and surge conditions and built-in fail-safe bypass technology prevents single unit failures from disrupting the entire network. In addition, it is a single unit that provides data and power over a single cable to the fixtures. Furthermore, it features local status indication LEDs and a test button, eliminating the need for a person to be physically located at the controller or computer.

All P3 PowerPort-enabled Creative LED fixtures can be paired with the P3 PowerPort 500 IP Install, even on the same daisy-chain.

Features

  • Indoor/Outdoor power+data supply unit for install Martin Creative LED fixtures
  • Ideal for install applications
  • Features 1 power+data output for connection of fixtures
  • Built-in network switch for easy daisy-chaining
  • Status LEDs providing real-time feedback
  • Local test button for easy diagnostics
  • Built-in power-control enables more fixtures per daisy-chain when full output is not needed
  • Built-in Hibernation mode enables energy-saving when system not in use
  • Compatible with Art-Net, sACN and Martin P3

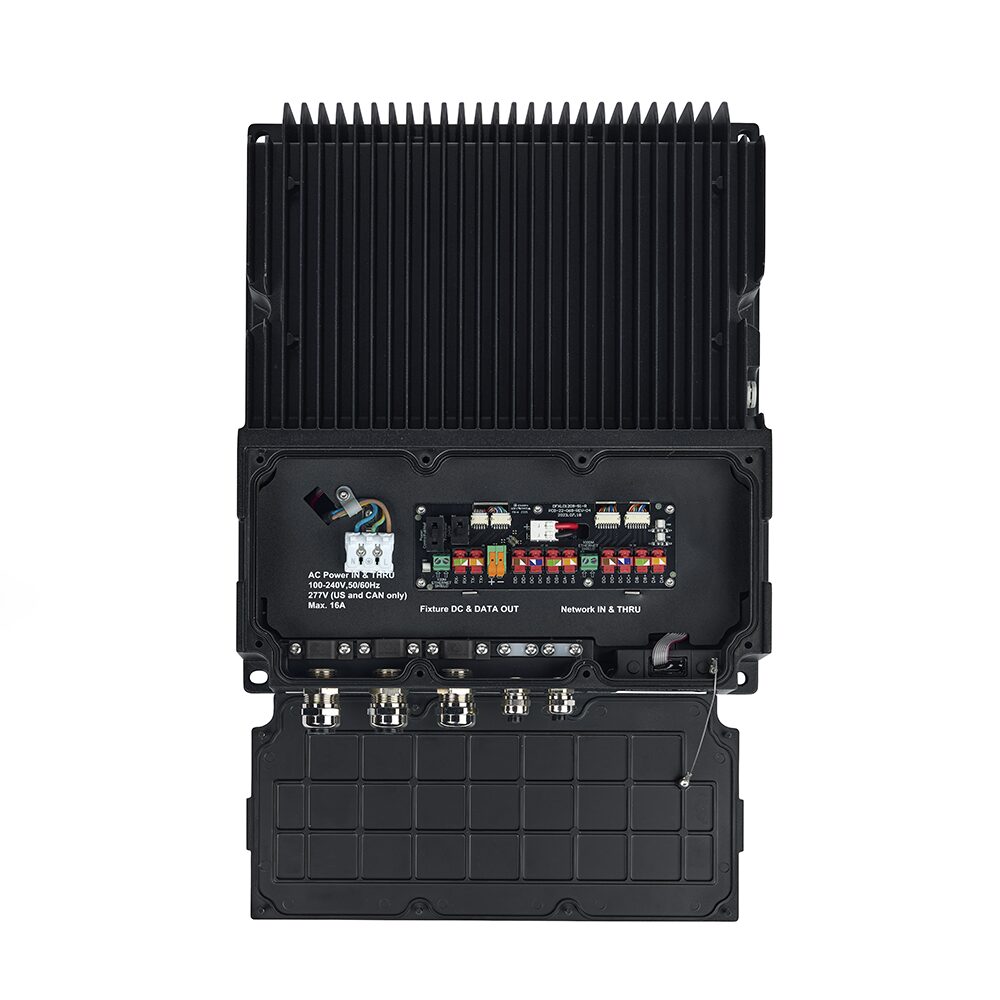

  • Fitted with internal wiring terminals, to facilitate customization of cable lengths on-site
  • Can be wall-mounted
  • IP66 rated

Additional information

Physical

Width: 325.0 mm (12.8 in.)
Height: 84.0 mm (3.3 in.)
Depth: 385.0 mm (15.2 in.)
Weight: 9.5 kg (20.9 lbs.)
Control and Programming

Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
Protocol Detection: Automatic
Settings and Feedback: P3 or RDM over Art-Net
Unit identification: User-settable ID number
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU)
Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN)
Ethernet Transceiver OUT: 100Mbit
Firmware Update: via Ethernet using Martin Companion or P3 System Controller
Control/User Interface External

Power Out Status: 1x Green LED
Ethernet Out Status: 1x Amber LED
Ethernet In/Thru Status 1-2: 2x Green+Amber LED
Device Status: 1x RGB LED
Device test and reset: Pushbutton to call up test patterns on fixtures connected to DCE output and reset device
Control/User Interface Internal

Fixtures Power Mode: DIP switch to force all connected fixtures in normal power, force all connected fixtures in half power or let controller decide (via P3 or RDM)
External User Interface Disable: DIP switch to disable all (5) external Status LEDs and the external pushbutton
Construction

Color: Matte Black
Housing Material: Aluminium
Protection Rating: IP 66
NEMA Enclosure Rating: Type 3
Impact Resistance: IK 08
Corrosion Resistance: ISO 12944-6: 2018; C5 High, Test regime ISO 9227, 1440h
Vibration resistance: 1.0g Sinusoidal (IEC 60068-2-6) and 0.7g RMS Random (IEC 60068-2-64)
Installation

Orientation: Any
Mounting: Flanges for installation on flat surface
Location: indoor or permanent outdoor
Connections

Power In/Thru: Toolless terminal block
Cable Glands: 2x M20*1.5 (power in/thru, supporting cables 8-13 mm) incl. closing plug
Ethernet In/Thru: 2x Toolless splice connection
Cable Glands: 2x M12*1.5 (ethernet in/thru, supporting cables 5-8 mm) incl. closing plug
DC Power output: Toolless terminal block
Network output: Toolless splice connection
Cable Gland: 1x M20*1.5 (DC power and network output, supporting cables 6.5-10.5 mm) incl. closing plug
Surge protection: 4 KV
Output Ports

Quantity: 1
Power: 48 VDC / 10 A
Ethernet: 100Mbit (P3, sACN, Art-Net)
Electrical

AC power: 100-277 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 7.7 A
Typical earth-leakage current: 0.56 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V / 277 V
Max current draw: 5.5 A @ 100 V / 120 V , 3.0 A @ 208 V / 230 V / 240 V / 277 V
Typical current draw: 5.3 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V / 277 V *
Power Consumption
Maximum: 500 W
Typical: 500 W *
Idle: 11 W *
Hibernation: 10 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: output at full capacity with all connected fixtures at full output white.
Idle: output at full capacity with all connected fixtures at zero output.
Hibernation: output disabled; wake-up procedure required to re-use fixtures.
Thermal

Cooling: Convection
Maximum Ambient Temperature (Ta max): 55° C (131° F)
Minimum Ambient Temperature (Ta min): -30° C (-22° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 61° C (142° F)
Typical Heat Dissipation (calculated, +/- 10%): 164 BTU/hr.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Approvals

Global CB Certification/IECEE: IEC 62368-1
EU safety: EN 62368-1
EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3
US safety: UL 62368-1
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 62368-1
Canadian EMC: ICES-003 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Compatible Fixtures

VDO Sceptron XB
Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP Pro
