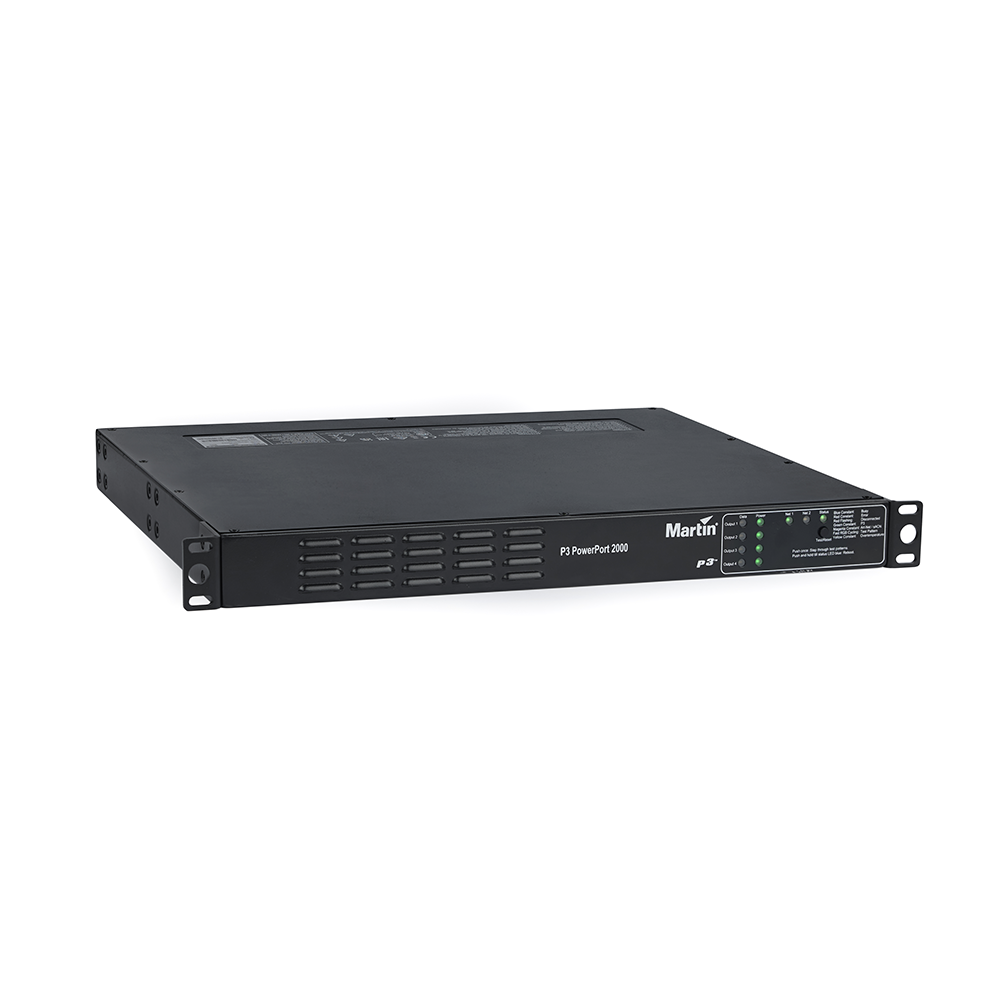

Martin - P3 PowerPort 2000 Front right display leds and power switchMartin - P3 PowerPort 2000 Front right display leds and power switch

Martin – P3 PowerPort 2000

Martin

Indoor Power+Data Unit For Martin Creative LED Fixtures

SKU: MAR-90721200 Categories: , , ,

Description

The Martin P3 PowerPort 2000 delivers seamless power and data to Martin’s Creative LED fixtures and is applicable for indoor-only install and rental applications. It merges stable power delivery with high-speed, high-capacity data distribution, simplifying fixture deployment. The housing caters to rack-, truss- and wall-installation, for maximum deployment flexibility.

To ensure utmost flexibility for designers and integrators, it can be driven using industry standard protocols, including Art-Net and sACN as well as Martin’s award-winning P3 control protocol. It requires no local configuration or setup, enabling easy deployment and allowing power supplies to be located at significant distances from the lighting fixtures. It supports longer cables, more fixtures per daisy chain, and split branches. The built-in network switch eliminates the need for third-party switches, and power limiting control increases the number of fixtures per daisy-chain while implementing energy-saving measures.

The P3 PowerPort 2000 is a robust and reliable solution, as it protects all inputs and outputs against overload and surge conditions and built-in fail-safe bypass technology prevents single unit failures from disrupting the entire network. In addition, it is a single unit that provides data and power over a single cable to the fixtures. Furthermore, it features local status indication LEDs and a test button, eliminating the need for a person to be physically located at the controller or computer.

All P3 PowerPort-enabled Creative LED fixtures can be paired with the P3 PowerPort 2000, even on the same daisy-chain.

Features

  • Indoor-only power+data supply unit for all Martin Creative LED fixtures
  • Suitable for rental and install applications
  • Features 4 power+data outputs for connection of fixtures
  • Built-in network switch for easy daisy-chaining
  • Status LEDs providing real-time feedback
  • Local test button for easy diagnostics
  • Built-in power-control enables more fixtures per daisy-chain when full output is not needed
  • Built-in Hibernation mode enables energy-saving when system not in use
  • Compatible with Art-Net, sACN and Martin P3
  • Fitted with connectors for easy deployment
  • Can be rack-, truss- or wall-mounted

Additional information

Physical

Width: 482.6 mm (19.0 in.) (19” rack-mountable with included rackmount ears)
Height: 44.45 mm (1.75 in.) (rackmount 1U)
Depth: 375.0 mm (14.8 in.)
Weight: 6.8 kg (15.0 lbs.)
Control and Programming

Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
Protocol Detection: Automatic
Settings and Feedback: P3 or RDM over Art-Net
Unit identification: User-settable ID number
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU)
Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN)
Ethernet Transceiver OUT 1-4: 100Mbit
Firmware Update: via Ethernet using Martin Companion or P3 System Controller

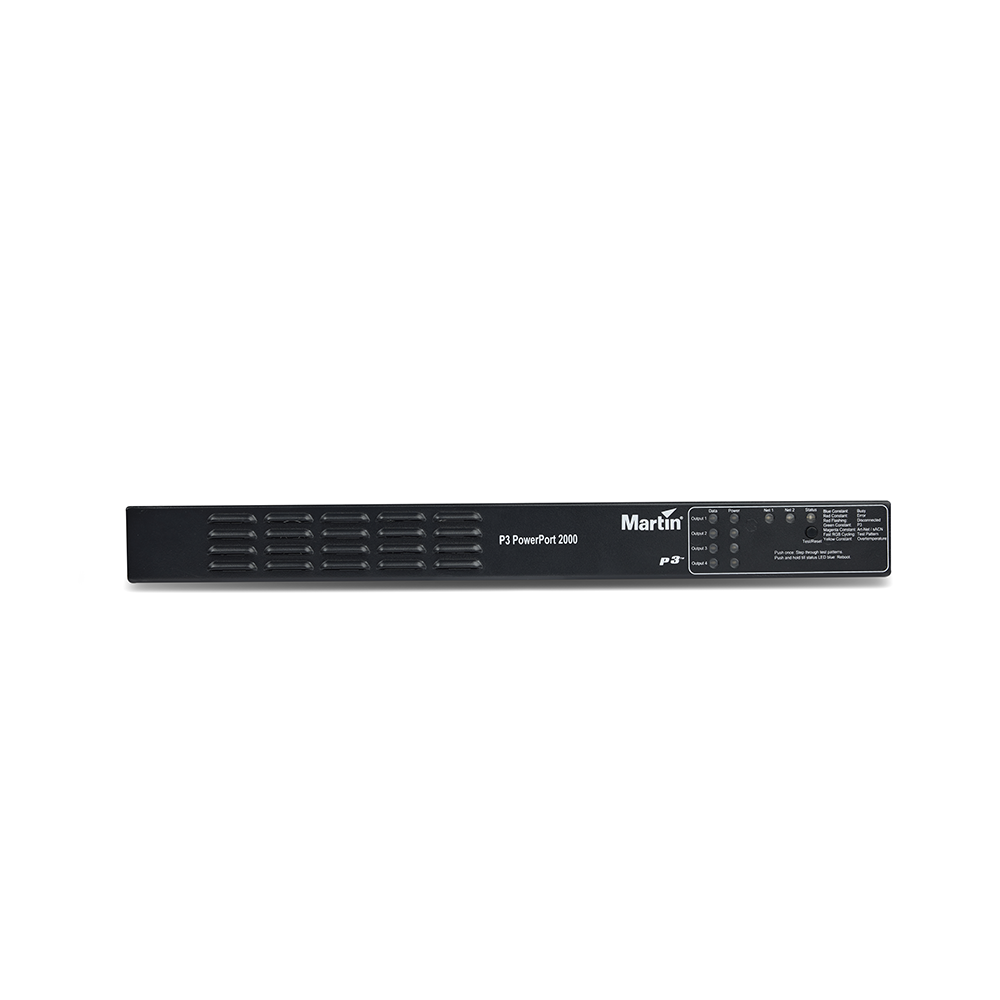

Control/User Interface Frontpanel

Power Out Status 1-4: 4x Green LED
Ethernet Out Status 1-4: 4x Amber LED
Ethernet In/Thru Status 1-2: 2x Green+Amber LED
Device Status: 1x RGB LED
Device test and reset: Pushbutton to call up test patterns on fixtures connected to DCE outputs and reset device
Control/User Interface Backpanel

Fixtures Power Mode: DIP switch to force all connected fixtures in normal power, force all connected fixtures in half power or let controller decide (via P3 or RDM)
Frontpanel Disable: DIP switch to disable all (11) Status LEDs and the pushbutton on the frontpanel
Construction

Color: Matte Black
Housing Material: Steel/Aluminium
Protection Rating: IP 20
Installation

Orientation: Any
19-inch Rackmount: Using supplied rack mounting ears
Wallmount: Using supplied rack mounting ears
Trussmount Horizontal: Using halfcouplers in supplied rack mounting ears
Location: indoor or outdoor protected from elements
Connections

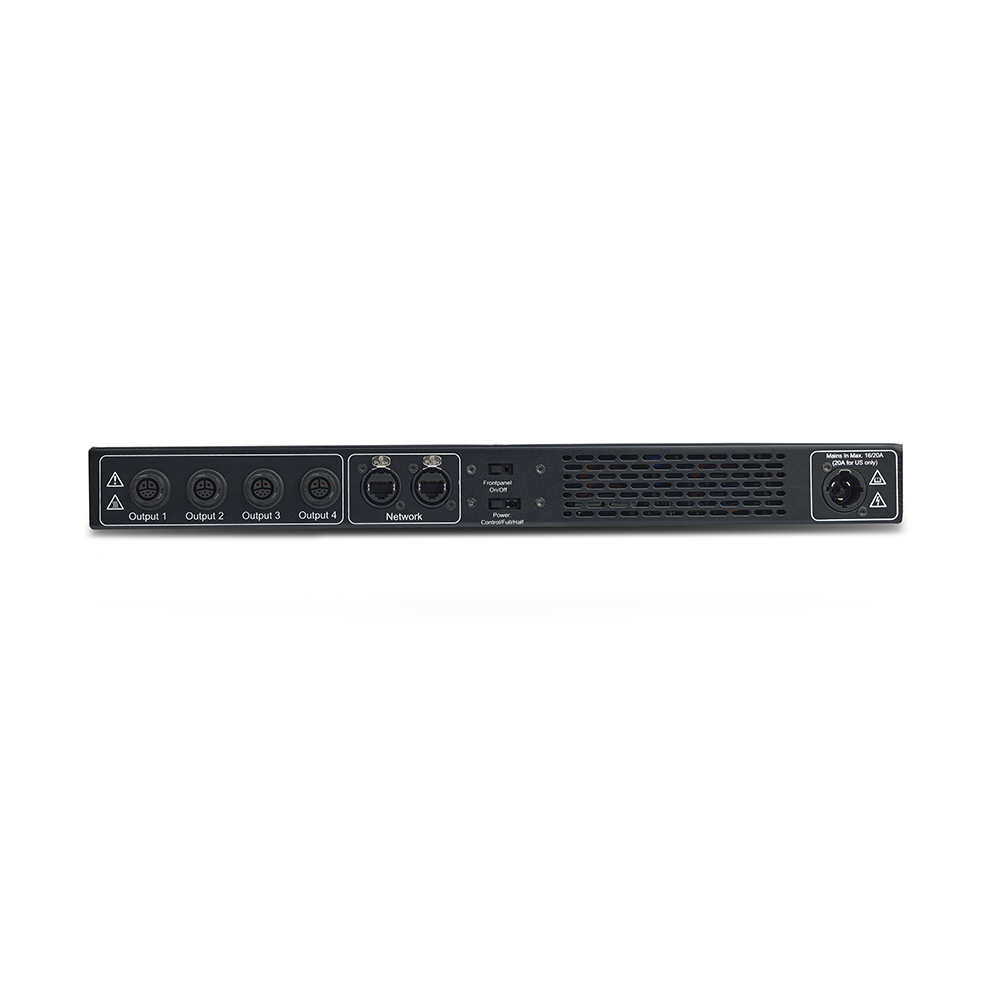

Power In: Neutrik powerCON TRUE1
Ethernet In/Thru: 2x Neutrik etherCON
DC Power and Network output: 4x chassis-mount DCE hybrid connector (7pin)
All connections hot plugging compatible
Output Ports

Quantity: 4
Power at 208-240V AC input: 48 VDC / 10 A per port
Power at 100-120V AC input: 48 VDC / 6.66 A per port
Ethernet: 100Mbit (P3, sACN, Art-Net)
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 11.9 A
Typical earth-leakage current: 2.20 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.98 @ 208 V , 0.97 @ 230 V / 240 V
Max current draw: 15.2 A @ 100 V , 12.6 A @ 120 V , 11.0 A @ 208 V , 10.0 A @ 230 V , 9.6 A @ 240 V
Typical current draw: 14.3 A @ 100 V , 11.9 A @ 120 V , 10.4 A @ 208 V , 9.5 A @ 230 V , 9.1 A @ 240 V *
Power Consumption at 208-240V AC input
Maximum: 2240 W
Typical: 2115 W *
Idle: 24 W *
Hibernation: 24 W *
Power Consumption at 100-120V AC input (lower output capacity)
Maximum: 1500 W
Typical: 1415 W *
Idle: 20 W *
Hibernation: 20 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: all outputs at full capacity with all connected fixtures at full output white.
Idle: all outputs at full capacity with all connected fixtures at zero output.
Hibernation: all outputs disabled; wake-up procedure required to re-use fixtures.
Thermal

Cooling: Forced air (temperature-controlled fans)
Maximum Ambient Temperature (Ta max): 40° C (104° F)
Minimum Ambient Temperature (Ta min): -20° C (-4° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 62° C (144° F)
Typical Heat Dissipation (calculated, +/- 10%): 761 BTU/hr.
Acoustic Data

Sound Pressure Level (LpA) @ 1 m (typical): 57.7 dB(A)
Sound Pressure Level (LpA) @ 1 m (idle): 43.5 dB(A)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inlay and outer packaging
Approvals

Global CB Certification/IECEE: IEC 62368-1
EU safety: EN 62368-1
EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3
US safety: UL 62368-1
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 62368-1
Canadian EMC: ICES-003 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Compatible Fixtures

VDO Sceptron XB
Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP Pro
