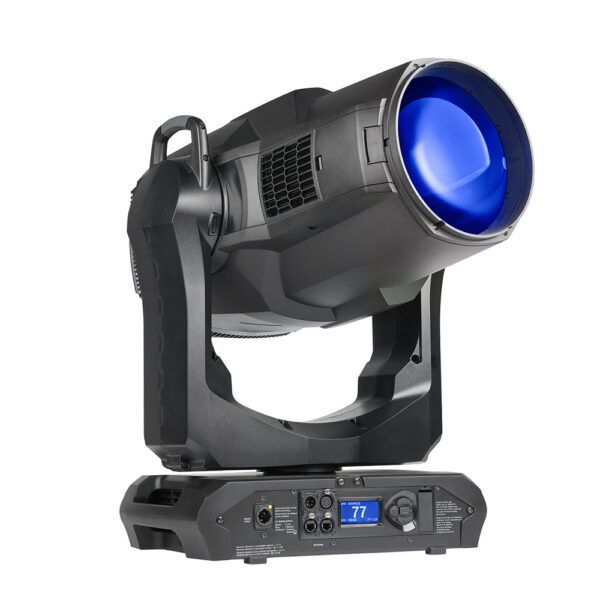

Martin - MAC Ultra Wash front right of moving head showing rear of base contorlsMartin - MAC Ultra Wash front right of moving head showing rear of base contorls

Martin – MAC Ultra Wash

Martin

Ideal for touring, concerts, TV shows and performing arts, supports the broader production market all the way up to the most demanding stage lighting events.

SKU: MAR-90250085 Categories: , , ,

Description

The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash we’ve ever developed. Via it’s 1150 W, 5800 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.

Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output – show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.

Ideal for touring, concerts, TV shows and performing arts, the MAC Ultra Wash supports the broader production market all the way up to the most demanding stage lighting events. Martin set the standard for managing the ratio of weight, size, and power and the MAC Ultra Wash surges ahead with even superior performance.

When it comes to delivering drop-dead wash light performance and workhorse reliability, nothing comes remotely close. MAC Ultra Wash exceeds the boundaries of design as an undeniable, class-leading fixture that sets a steep bar on wash light innovation.

Features

Light Source

  • 1150 W proprietary LED light engine
  • 84 x 20 W white LEDs
  • Minimum LED lifetime: >50,000 hours (see specs for further details)

Photometric Data

  • Light Engine Luminous Output: 90,000 lumens
  • Fixture Luminous Output: 63,500 lumens
  • Peak Luminous Intensity: 5,000,000 cd
  • CCT: 6000 K (+/- 250 K)

Optics

  • 220 mm Front Lens
  • 1:7 zoom range (6.8° – 47.5° beam angle)

Dynamic Effects

  • 0 – 100% continuous dimming and strobe effects
  • Choice of four dimming curves
  • CMY colour mixing
  • Colour temperature control (6000 – 2850 K)
  • Colour wheel with six interchangeable dichroic filters, including a Spectral Enhancement Filter
  • 1:10 Zoom (hyper zoom); 1:7 Zoom (native zoom)
  • Motorized frost
  • Iris
  • Variable edge control
  • Pan: 540°
  • Tilt: 268°
  • P3 videomapping of fixture colour and/or intensity (10 segments)
  • Pre-programmed effects: Two ranges of pre-programmed FX

Cooling and Noise

  • Low noise cooling system
  • User-selectable output vs. sound level control

Construction

  • Height (head straight up): 848 mm (33.4 in.)
  • Height (maximum): 867 mm (34.2 in.)
  • Weight: 39.0 kg (86.0 lbs.)

Control

  • DMX-512 in/out
  • Ethercon in/out for P3, Art-Net, sACN
  • Built in Ethernet switch with fail-safe bypass

Video

Martin MAC Ultra Family: Technical Product Overview

As the largest Martin engineering initiative in a decade, MAC Ultra truly raises the bar for extremely bright and compact lights. The series features Martin’s two strongest workhorses to date—the MAC Ultra Performance and MAC Ultra Wash—which are built to deliver dazzling displays for any event.

Additional information

Physical

Weight: 39.0 kg (86.0 lbs.)
Minimum center-to-center distance in side-by-side installation: 810 mm (31.9 in.)
Length (head): 642 mm (25.3 in.)
Length (base): 468 mm (15.5 in.)
Width (base): 312 mm (12.3 in.)
Width (across yoke): 520 mm (20.5 in.)
Height (head straight up): 848 mm (33.4 in.)
Height (maximum): 867 mm (34.2 in.)
Dynamic Effects

Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 – 100%
Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Iris: Variable 0 – 100%, pulse effects
Frost: Motorized
Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Color temperature control: Variable 6000 – 2850 K
Dimming options: Choice of four dimming curves
Zoom: Motorized
Pan: 540°, coarse & fine control and speed
Tilt: 268°, coarse & fine control and speed
P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Control & Programming

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
DMX channels: 29
Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
DMX Modes: One
16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Local User Interface: Backlit LCD Display with battery-powered operation
Optics

Front lens diameter: 220 mm
Light source: 84 x 20 W White LEDs in a custom Martin engine
Zoom Range Beam (half-peak): 6.8° – 47.5° (1:7)
Zoom Range Field (tenth-peak): 9° – 62° (1:7)
Maximum Total LED Engine Power: 1150 W
Minimum LED Lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data

Light engine luminous output: 90,000 lumens
LED refresh rate : 3000 Hz
Standard
Fixture luminous output: 63,500 lumens
CRI (Color Rendering Index): 66 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66
TM-30 Rg (IES TM-30-15 Gamut Index): 95
CCT: 6000 K (+/- 250 K)
Peak Luminous Intensity: 5,000,000 cd
With Spectral Enhancement Filter at 5300 K
Fixture luminous output: 49,000 lumens
CRI (Color Rendering Index): 78 (+/- 3)
With CTO and Cyan at 3200 K
Fixture luminous output: 19,500 lumens
CRI (Color Rendering Index): 90 (+/- 3)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)

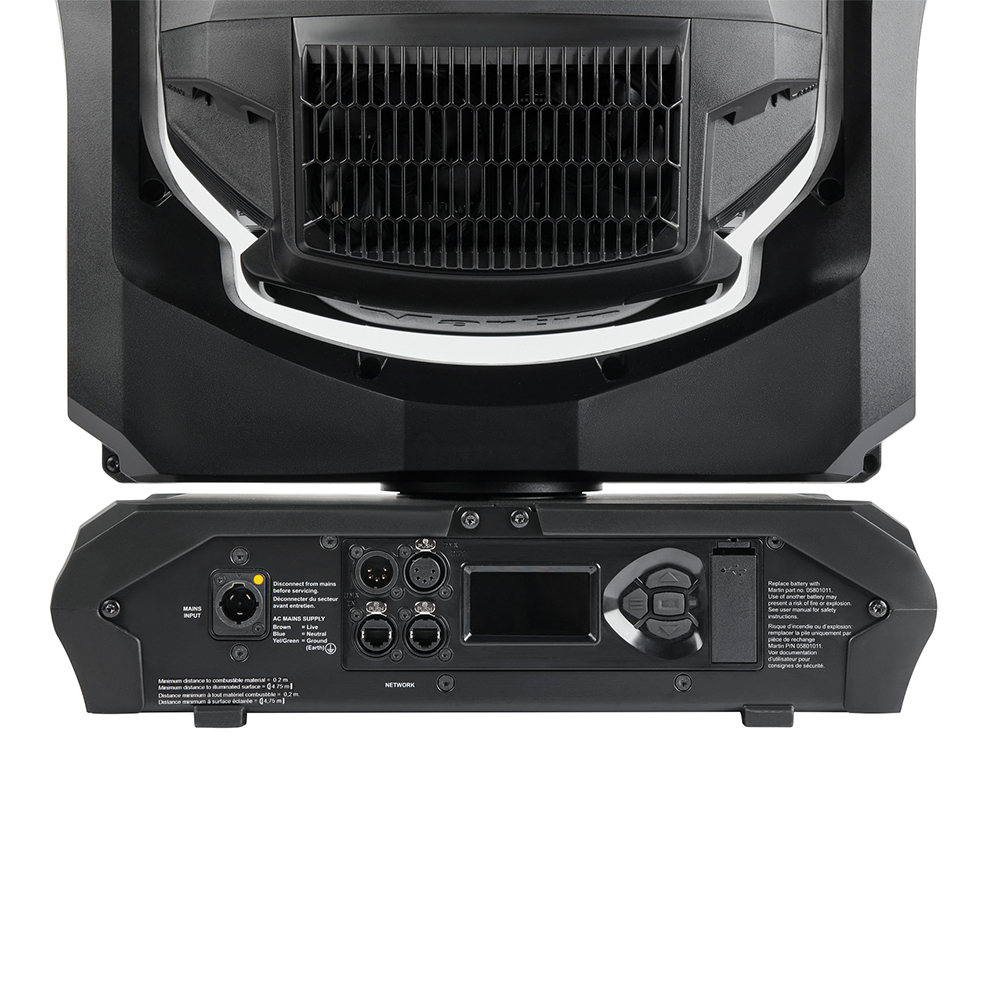

Connections

DMX and RDM data in/out: 5-pin locking XLR
AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON
Firmware from flash memory: USB 2.0 port
Electrical

AC power: 200-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Maximum total power consumption: 1450 W
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Maximum total current at 200 V: 8.0 A
Maximum total current at 240 V: 6.7 A
Power consumption, all effects static, zero light output: 100 W
Typical Power & Current

208 V, 60 Hz: 6.6 A, 1360 W, PF 0.99
230 V, 50 Hz: 6.0 A, 1350 W, PF 0.99
240 V, 50 Hz: 5.7 A, 1350 W, PF 0.99
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PF = power factor.
Thermal

Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F)
Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr.
Acoustic Data

Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.5 db(A)
Warrenty

Fixture: 2 years
Light Engine: 5 years
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 48 lm/w
LWR*: 1,628 lm/kg (738 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 61547; EN 55035; EN 61000-3-2,-11
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Included Items

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Safety and Installation Manual
