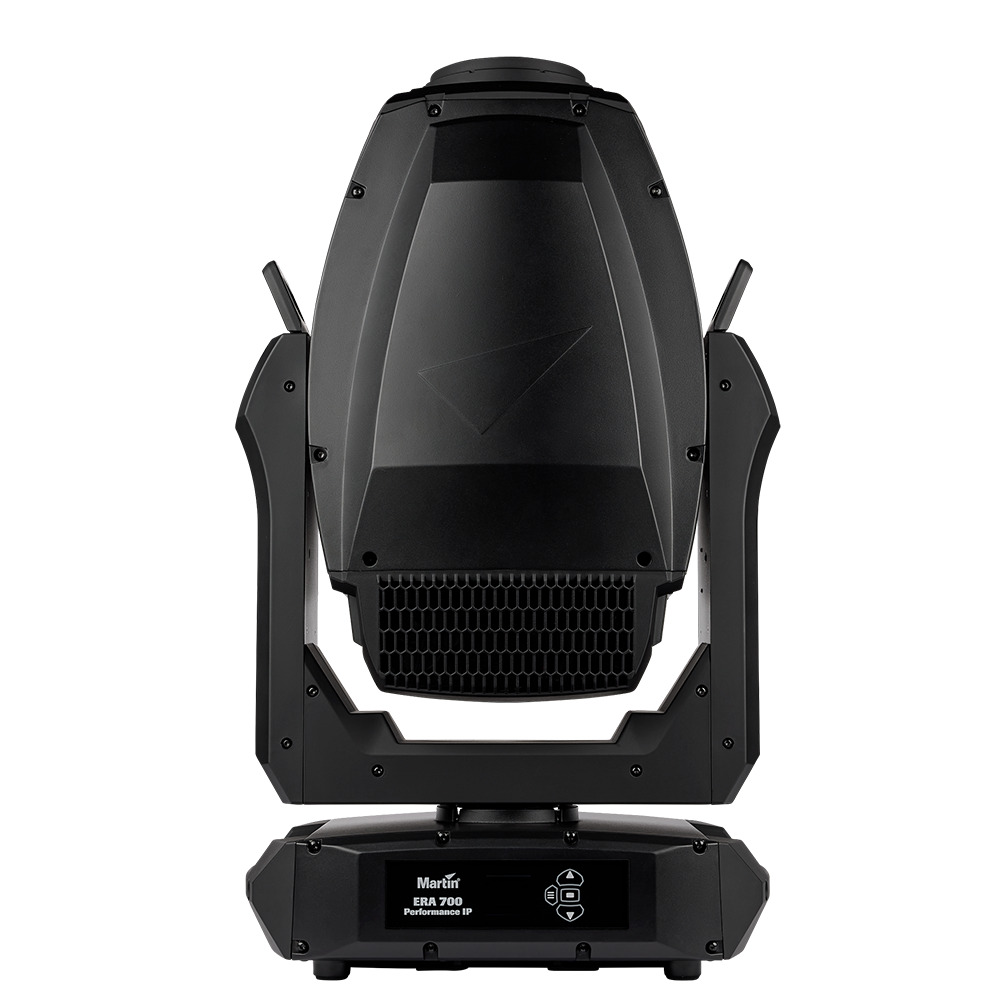

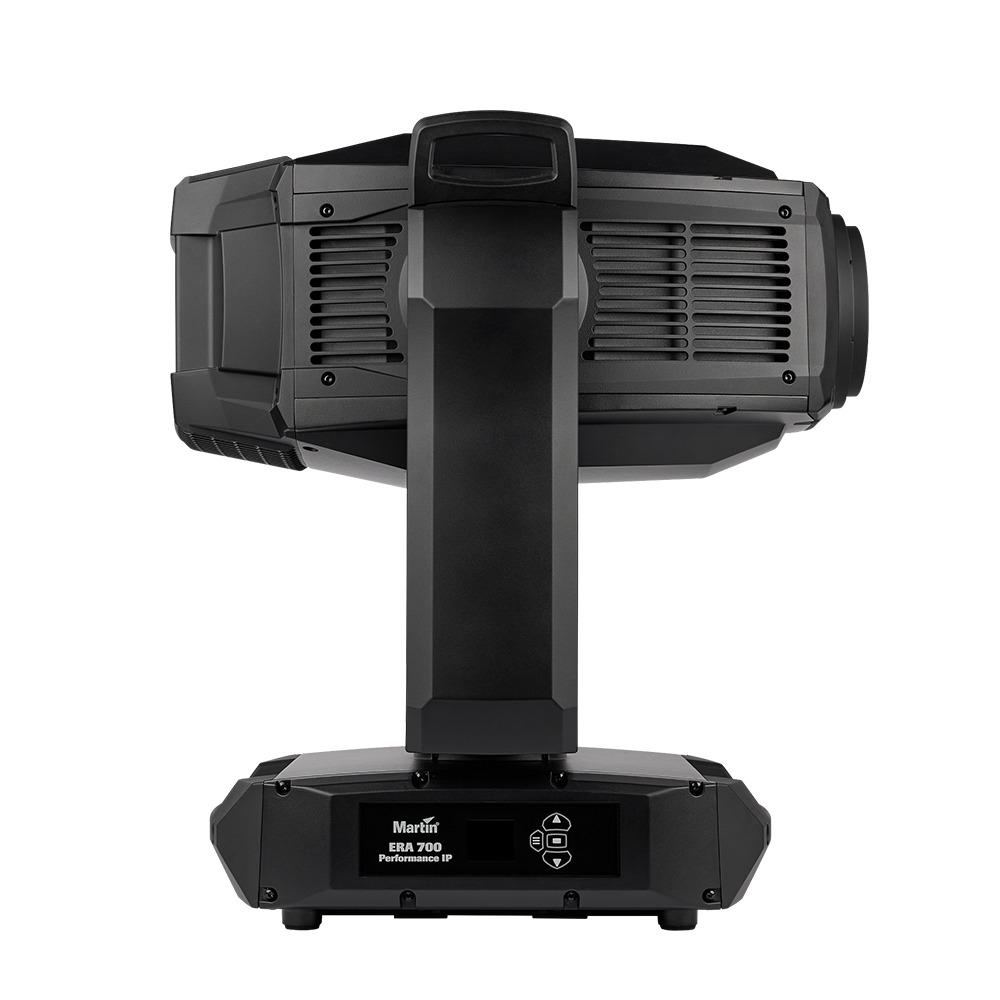

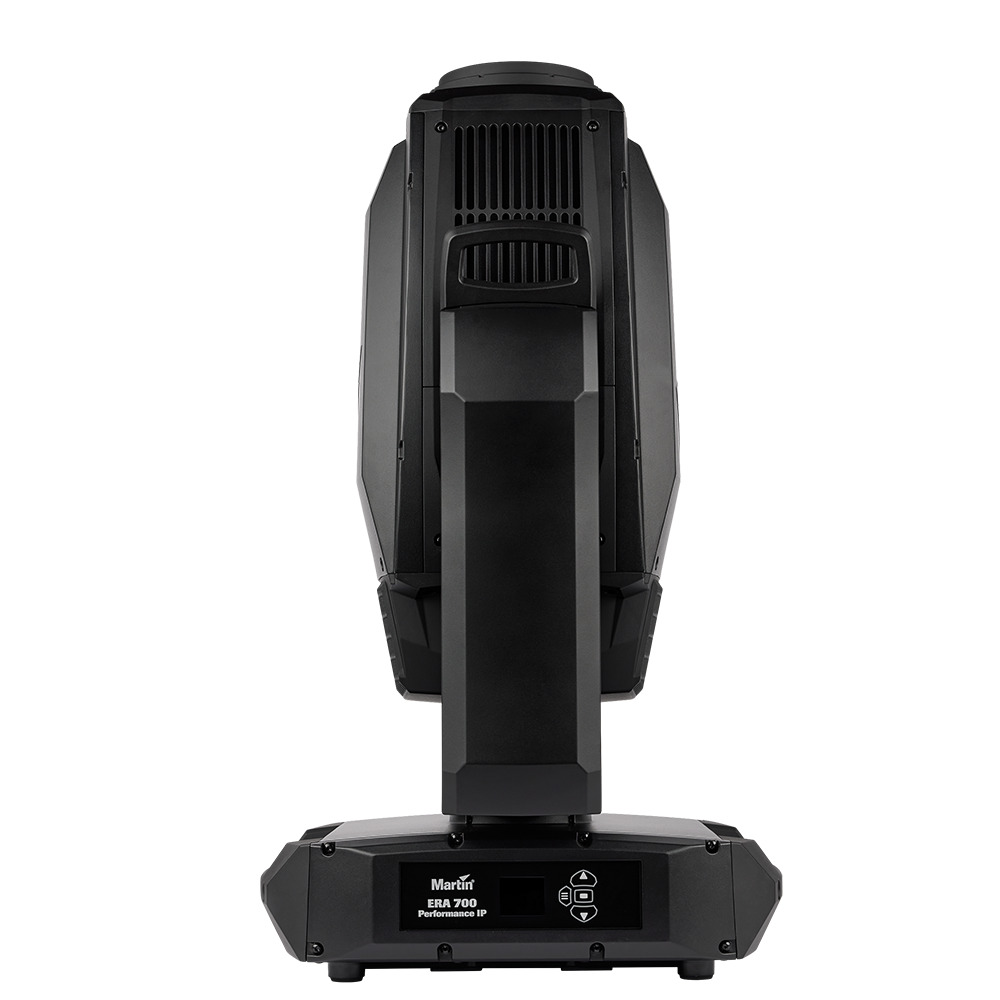

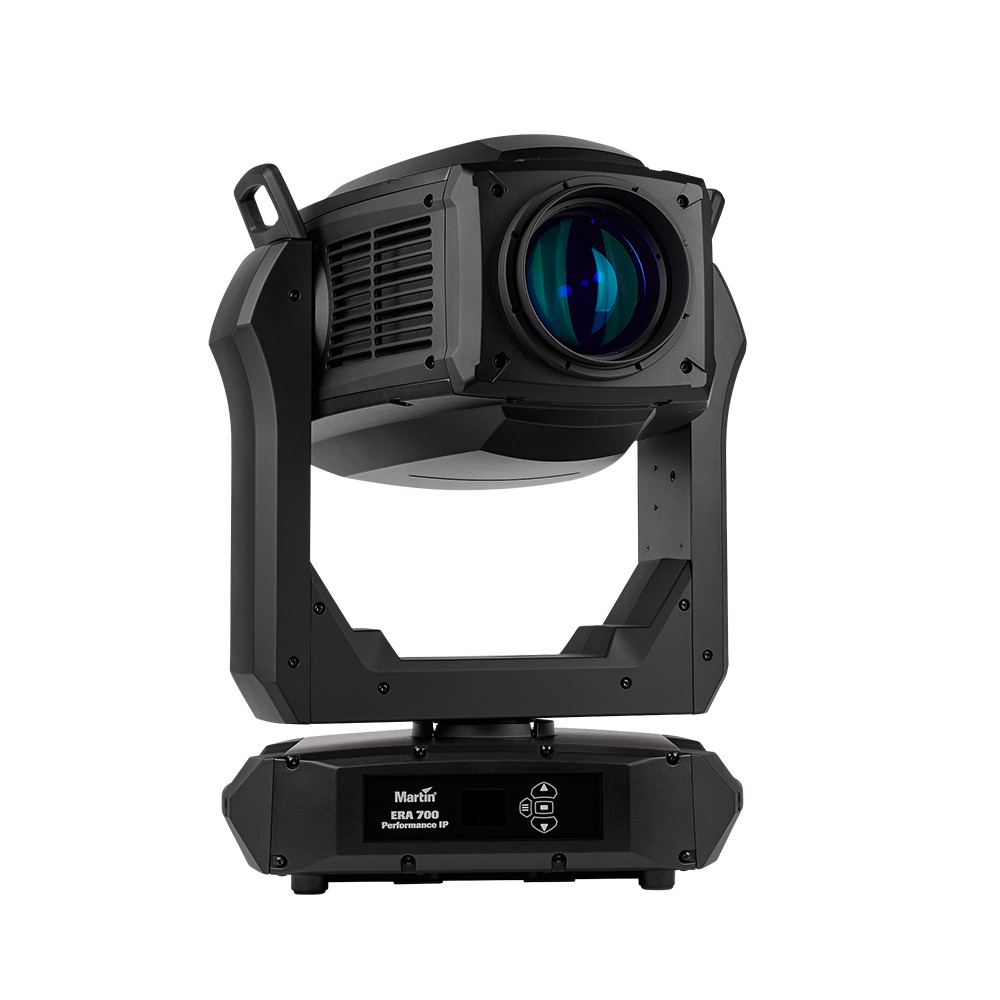

| Physical |
Weight: 39.7 kg (87.3 lbs.)
Length (head): 542 mm (21.3 in.)
Length (base): 436 mm (17.1 in.)
Width (base): 314 mm (12.3 in.)
Width (across yoke): 450 mm (17.7 in.)
Height (head straight up): 759 mm (29.8 in)
Height (maximum): 767 mm (30.2 in)
|
| Dynamic Effects |
Color mixing: CMY, independently variable 0-100%
Color wheel: 7 color filters plus open (incl, Spectral Enhancement Filter)
Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction, shake (flow)
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Color temperature control: Variable 6,500 – 2,700 K
Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
Frost: Soft frost effect and heavy frost effect
Electronic dimming: 0 – 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 540°, coarse & fine control and speed
Tilt: 270°, coarse & fine control and speed
Focus: Motorized
|
| Control And Programming |
Control options: DMX, RDM, Art-Net, sACN
Protocol detection: Automatic

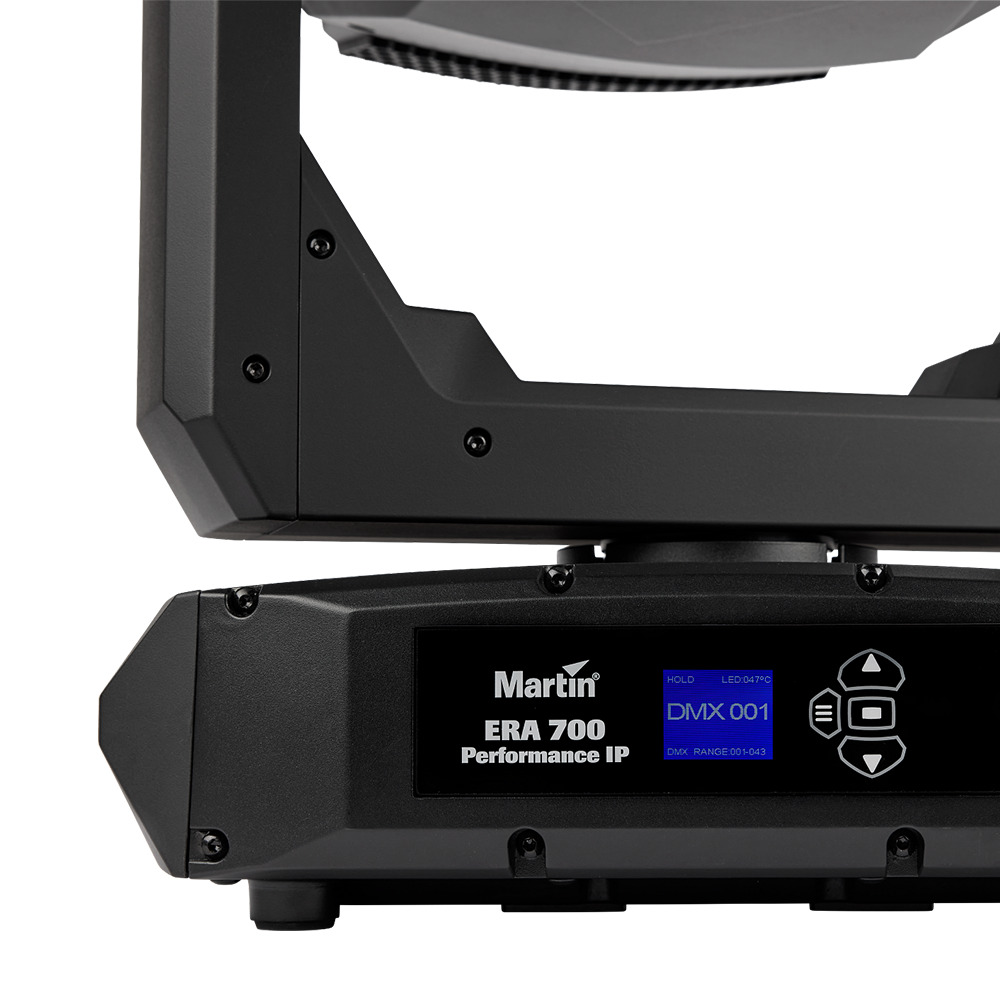

Setting and addressing: Control panel with backlit LCD display and battery powered operation
16-bit control: Dimming, CMY, CTO, Zoom, Focus, Framing, Gobo Rotation/Indexing, Pan and Tilt
DMX channels: Basic 42 Extended 54
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Transceiver: Opto-isolated RS-485
|
| Optics |
Front lens diameter: 120 mm (4.75 in.)
Zoom range: 5.4° to 44° (1:8)
Light source: 680 W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer's figure obtained under manufacturer's test conditions
|
| Photometric Data |
Light engine luminous output: 41,600 lumens
LED refresh rate : 3,600 Hz
|
| Photometric Data With Spectral Enhancement Filter |
Fixture luminous output: 16,420 lumens
CRI (Color Rendering Index): 90
CQS (Color Quality Scale): 88
TM-30 Rf (IES TM-30-15 Fidelity Index): 87
TM-30 Rg (IES TM-30-15 Gamut Index): 106
TLCI (Television Lighting Consistency Index): 73
CCT: 6400 K (+/- 250 K)
|
| Photometric Data Standard |
Fixture luminous output: 26,000 lumens
CRI (Color Rendering Index): 70
CQS (Color Quality Scale): 68
TM-30 Rf (IES TM-30-15 Fidelity Index): 71
TM-30 Rg (IES TM-30-15 Gamut Index): 94
TLCI (Television Lighting Consistency Index): 46
CCT: 6500 K (+/- 250 K)
Peak Luminous Intensity: 1,393,059 cd (narrow)
|
| Construction |
Housing: Recyclable high-impact flame-retardant thermoplastic and cast aluminum
Color: Black & White
Protection rating: IP 65 (IP 66 with anti-tamper box installed)
Corrosion resistance: C5-HIGH
|
| Gobos |
Maximum image diameter: 19 mm (0.75 in.)
Gobo material: Borofloat 33
External diameter: 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.)
Maximum gobo thickness: 1.1 mm (0.04 in.)
Coating: Speciality coating including CT correction
|
| Installation |

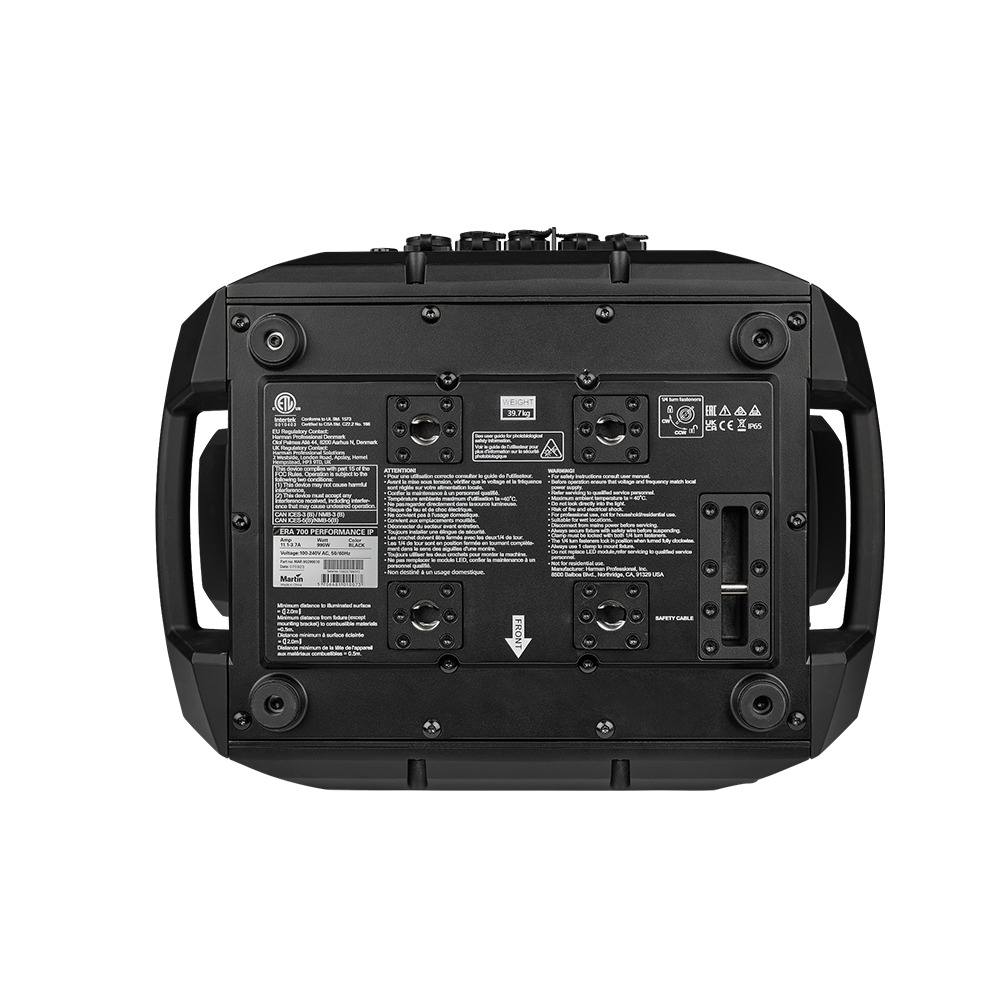

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Wet locations, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
|
| Connections |
DMX and RDM data in/out: 5-pin locking XLR
AC mains power input.: TRUE1 compatible socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet Art-Net, sACN in/out, including fail-safe bypass: Neutrik etherCON
|
| Electrical |
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 14 A
Max leakage current: 0.43 mA
Power Factor: 0.97 @ 100 V / 120 V / 230 V / 240 V
Typical current draw: 11.1 A @ 100 V / 120 V , 3.7 A @ 200 V / 230 V / 240 V *
Power Consumption
Maximum: 990 W
Typical: 856 W *
Idle: 114 W *
Hibernation: 19 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
|
| Thermal |
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): -20° C
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 3375 BTU/hr
|
| Acoustic Data |
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 44.3 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): .38.3 dB(A)
|
| Environmental |
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 29.6 Lm/Watt
LWR*: .655 Lm/Kg
*LWR = Lumen-to-Weight Ratio
|
| Approvals |
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: .EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Korea: KS C 9832, KS C 9835
|
| Included Items |
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001

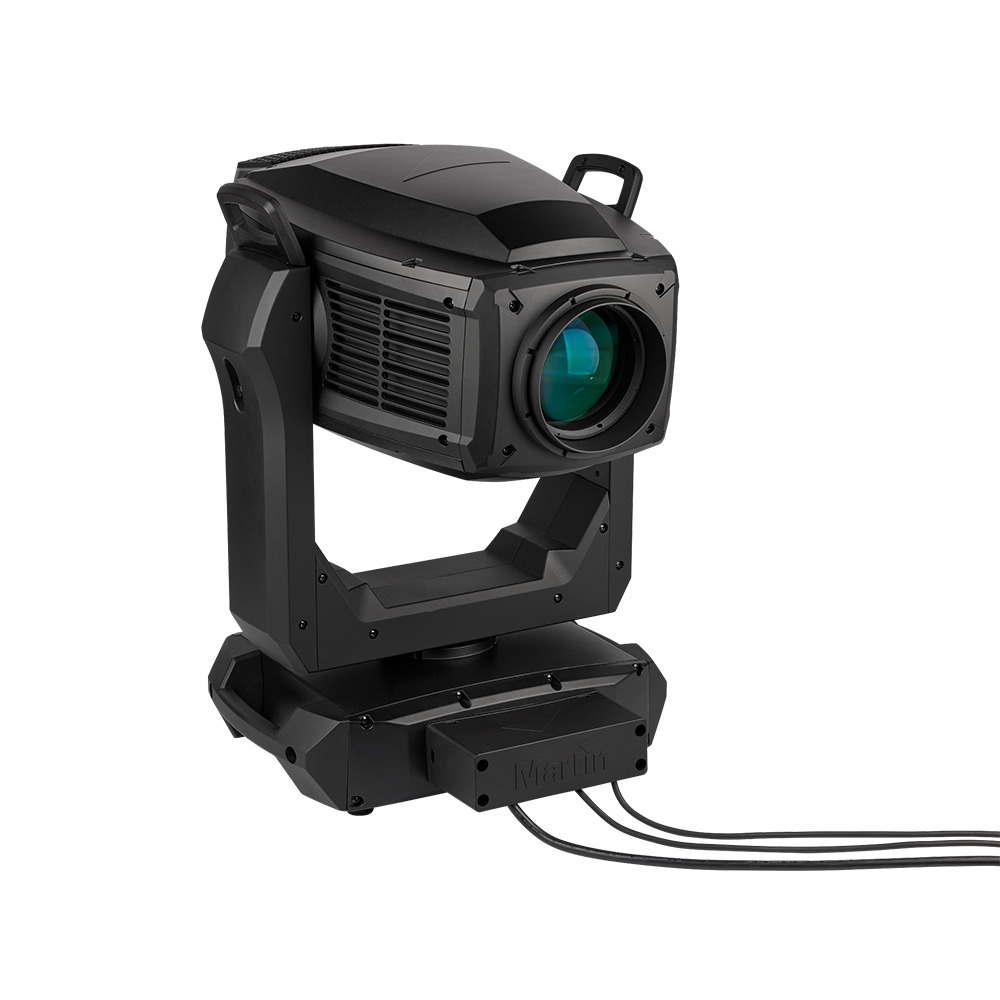

Anti-Tamper Environmental Protection Box
|
