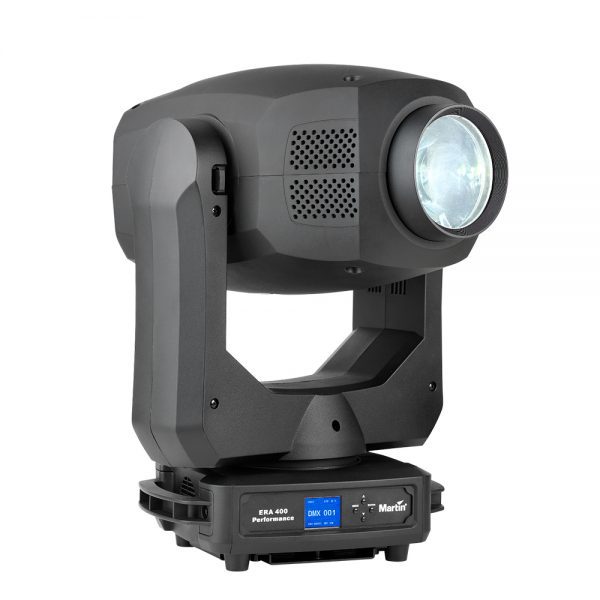

Martin - ERA 400 Performance CLD Moving Head front right fixture overviewMartin - ERA 400 Performance CLD Moving Head front right fixture overview

Martin – ERA 400 Performance CLD

Martin

Bright, compact, tour-worthy moving head that includes a wide variety of effects, especially when combined with the included rotating prism.

SKU: MAR9025121796 Categories: , , ,

Description

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 400 Performance CLD combines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient 300W cold white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional key benefits include 1:3 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prism.

The ERA 400 Performance CLD includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.

Whether being used for small and mid-sized concert and touring, live TV productions, corporate shows, cruise line or houses of worship, the Martin ERA 400 Performance CLD is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.

Feature Quick View

  • Bright 300 watt / 6,500K LED light source
  • 10,000 lumen output
  • Smooth electronic dimming and fast strobe effects
  • Crisp optics with flat field
  • 1:3 Fast zoom
  • CMY colour mixing – Vibrant colour mixing with a superior palette of colours matching the MAC range
  • 9-slot colour wheel –for added colour choice and split colour effects
  • Full Curtain Framing blades with +/- 45° rotation of entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 9 static gobos for great morphing effects
  • Iris – Fast and tight iris
  • 3-facet prism – Real beam separation with rotation and index control for dynamic effects
  • Compact and low weight design

Video

Martin ERA 400 Performance

300W Cold LED-based profile with framing and CMY colour mixing

Additional information

Weight 22.5 kg
Physical

Length: 379 mm (14.9 in.)
Width: 237 mm (9.3 in.)
Height: 632 mm (24.9 in)
Dynamic Effects

Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position.
Prism: Rotating/indexing three-facet prism
Electronic dimming: 0 – 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Zoom: Motorized
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed
Focus: Motorized
Control & Programming

Control options: DMX
DMX channels: 30
16-bit control: Dimming, pan and tilt

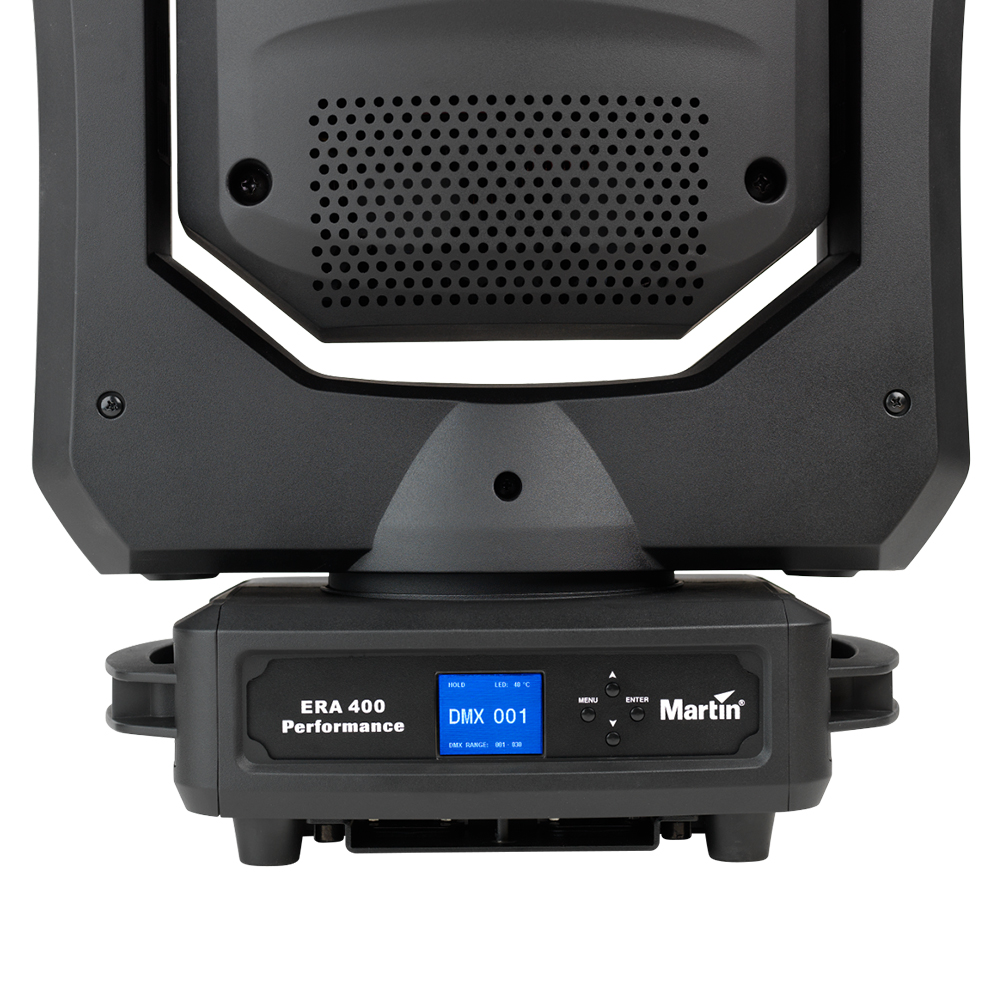

Setting and addressing: Control panel with backlit LCD display
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics

Front lens diameter: 110 mm
Zoom range: 10° – 30°
Light source: 300W LED engine
Minimum LED lifetime: 20000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions
Photometric Data

Light engine luminous output: 26500 lumens
Fixture luminous output: 10000 lumens
CRI (Color Rendering Index) : >70
CCT: 6500 Kelvin
LED refresh rate : 1200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20
Gobos

Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter: 19.0 mm (0.75 in.)
Gobo thickness, maximum: 1.1mm borosilicate glass
Installation

Mounting points: Two quarter-turn brackets for rigging
Orientation: Any

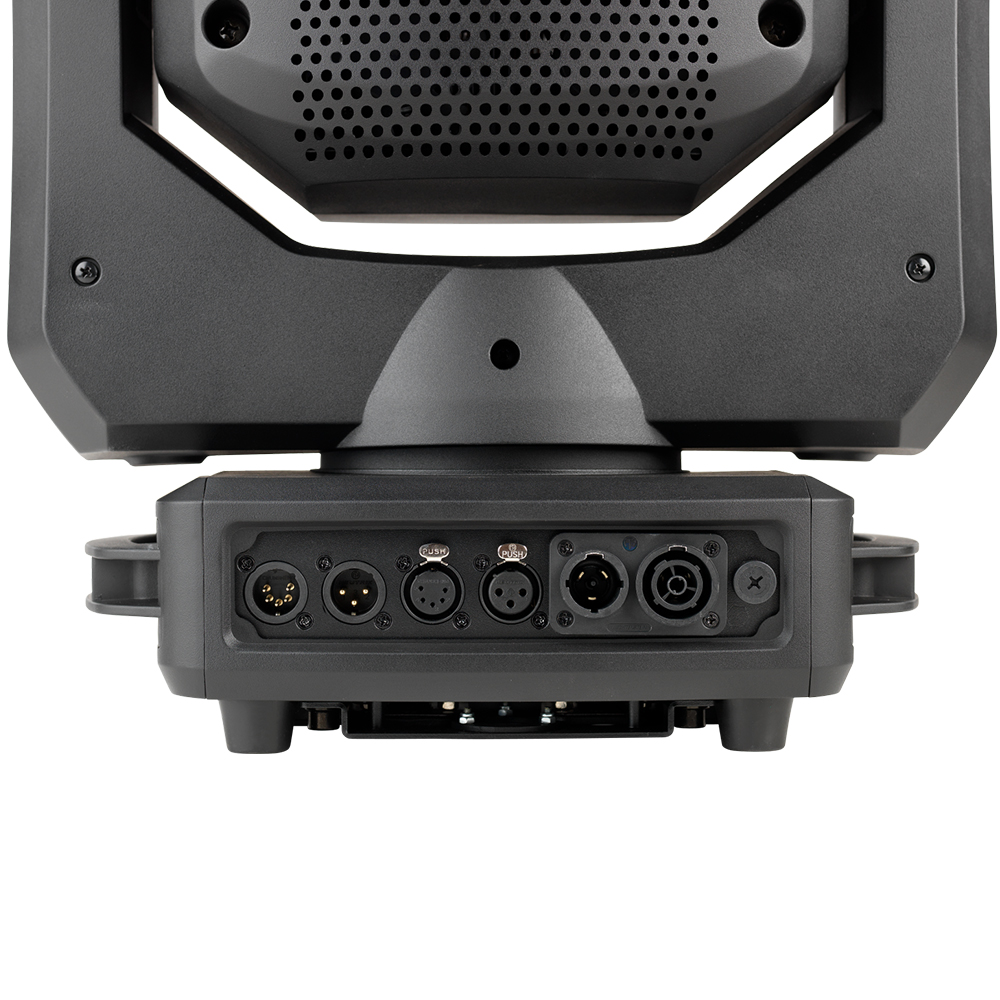

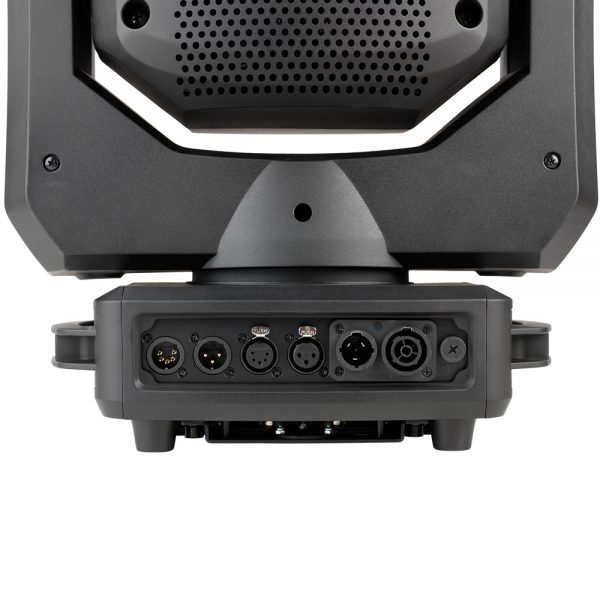

Connections

AC power input: Neutrik powerCON TRUE1
DMX data in/out: 3-pin & 5-pin locking XLR
Electrical

AC power: 100-240V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical Power & Current

120 V, 60 Hz: 3.8A, 455W, PF 0.992
230 V, 50 Hz: 1.96A, 442W, PF 0.968
Steady Power Consumption: 44 W, all effects static, zero light output
Half-cycle RMS inrush current: 6 A (at 230 V, 50 Hz)
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
Thermal

Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)
Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Included Items

2 x Omega brackets for rigging clamp attachment
