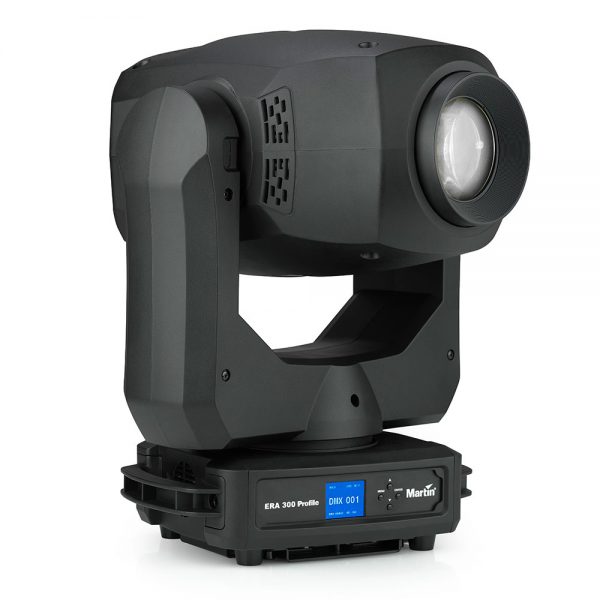

Martin ERA 300 Profile Compact moving head front rightMartin ERA 300 Profile Compact moving head front right

Martin – ERA 300 Profile

Martin

CMY colour mixing moving head designed to fit anywhere. The 260W compact profile with a white LED engine produces sharp gobo projection with a flat field.

SKU: MAR9025109547 Categories: , , , ,

Description

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

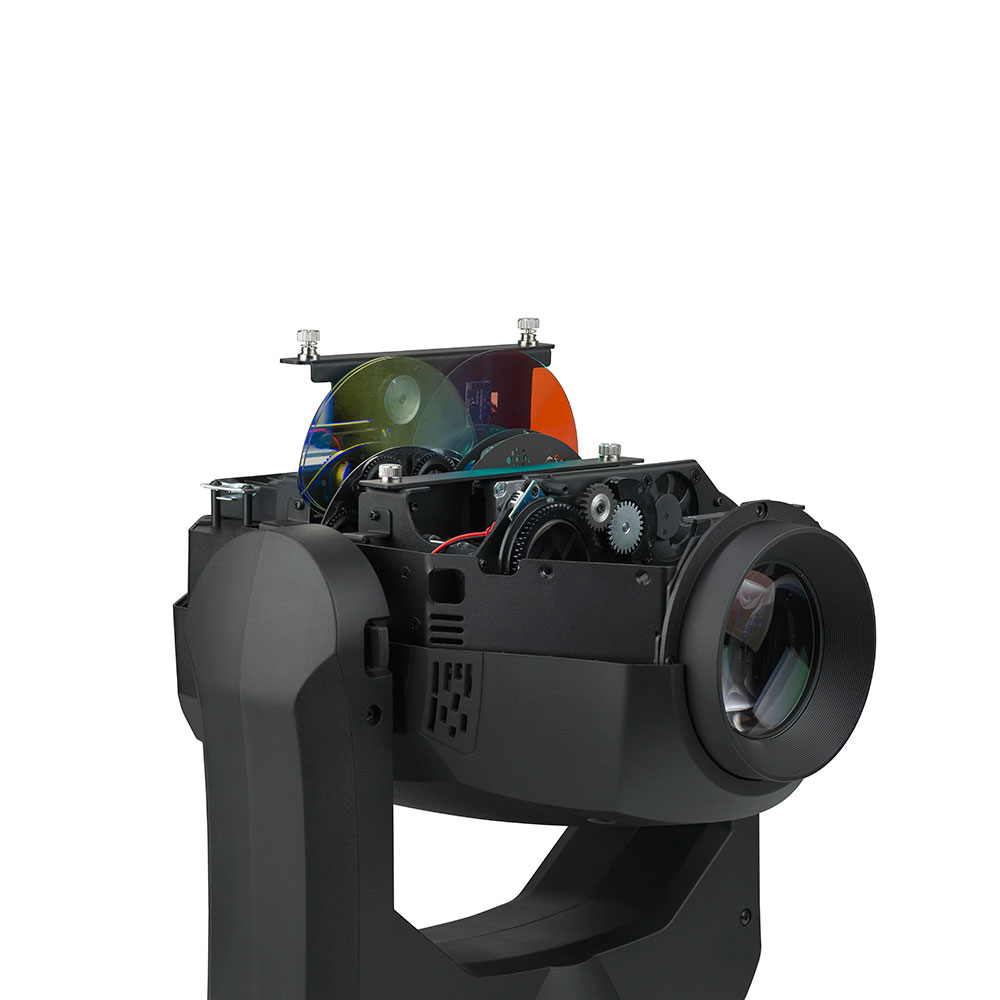

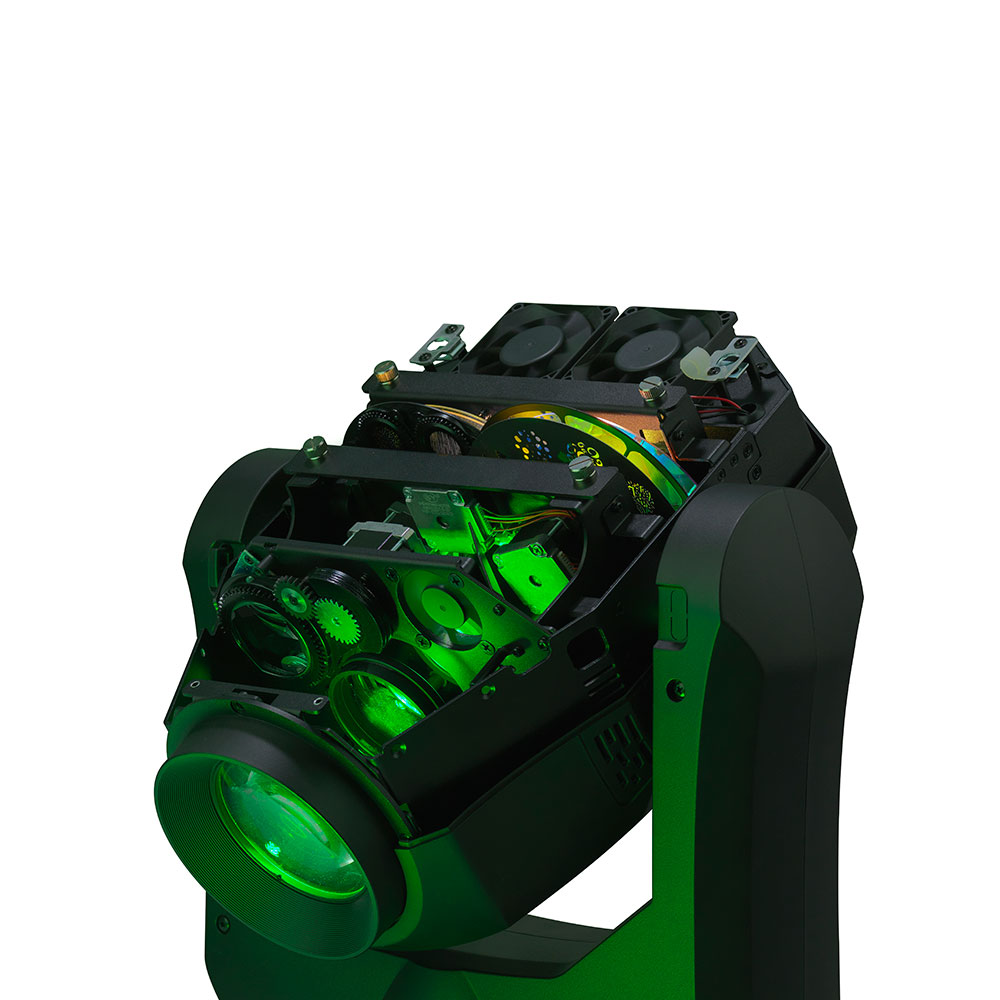

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.

Feature Quick View

  • 260 watt / 6,500K LED light sourcef
  • 9,500 lumen outputf
  • Full feature set including CMY colour mixing and 1:2 zoomf
  • Crisp optics with flat fieldf
  • Very compact and low weight design.



Video

Martin ERA 300 Profile

The Martin ERA 300 Profile is a modern day workhorse offering a wide range of features in a compact moving head design.

Additional information

Weight 17 kg
Physical

Length: 375 mm (14.8 in.)
Width: 217 mm (8.5 in.)
Height: 564 mm (22.2 in.)
Weight: 17kg (38.0 lbs)

Dynamic Effects

Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Beam effects: Rotating three-facet prism
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
Iris: 0-100%
Zoom: Motorized
Electronic dimming: 0 – 100%, four dimming curve options
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed
Focus: Motorized

Control & Programming

Control options: DMX

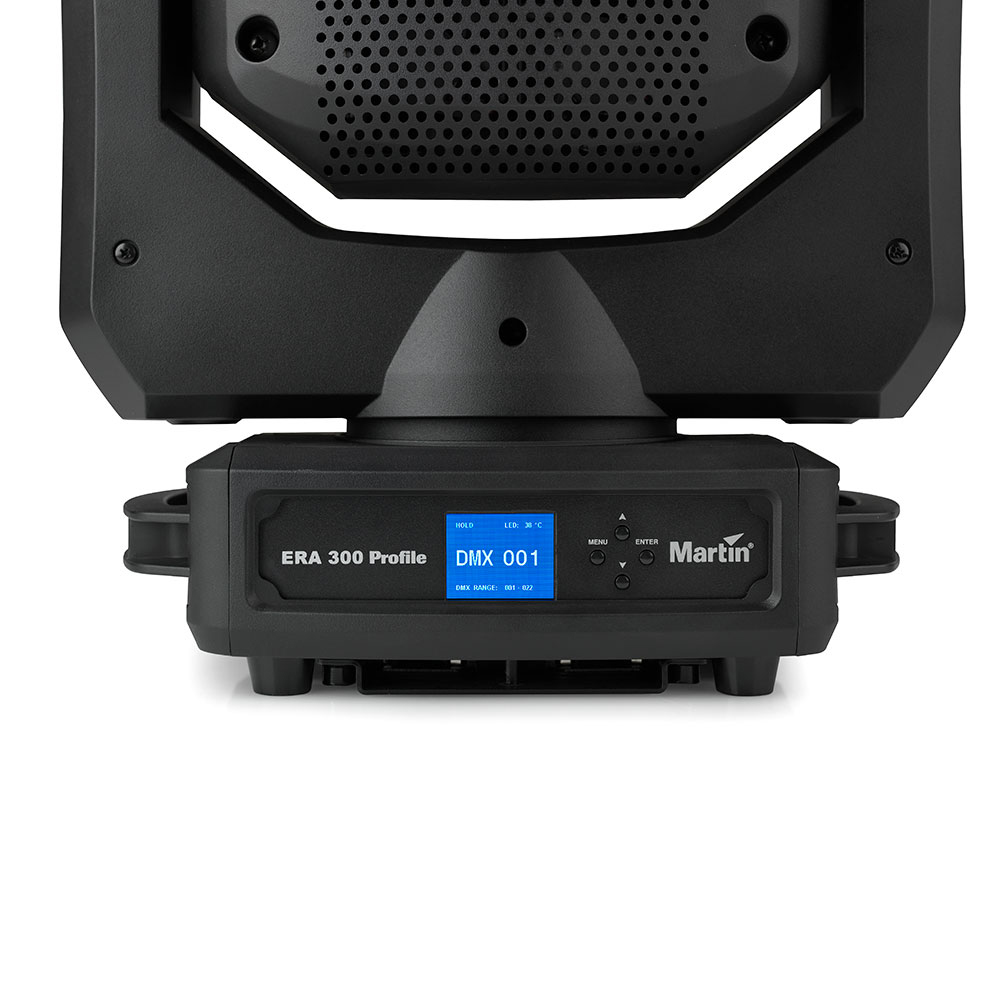

Setting and addressing: Control panel with backlit LCD display
16-bit control: Dimming, pan and tilt
DMX channels: 21
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

Optics

Zoom range: 13° – 28°
Light source: 260W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions.

Photometric Data

Light engine luminous output: 20,000 lumens
Fixture luminous output: 9,500 lumens
CRI (Color Rendering Index) : >70
Color Temperature: 6,500 K
LED refresh rate : 1200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black/White
Protection rating: IP20

Gobo

Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter: 19.0 mm (0.75 in.)
Gobo thickness, maximum: 1.1mm borosilicate glass

Installation

Mounting points: Two quarter-turn brackets for rigging clamps
Orientation: Any

Connections

AC power in, thru: Neutrik powerCON TRUE1
DMX data in/out: 3-pin & 5-pin locking XLR

Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Power Factor: 0.99 @ 120 V / 230 V
Typical current draw: 3.1 A @ 120 V , 1.6 A @ 230 V *
Power Consumption
Typical: 374 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.

Thermal

Cooling: Forced air (temperature regulated, low noise)
Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 1300 BTU/hr
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C

Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 30.3 lm/W
LWR*: 559 lm/kg (250 lm/lb)
LWR = Lumen-to-Weight Ratio

Approval

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM

Included Items

Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets for rigging clamp attachment
