Martin – ELP PAR

Martin

A new benchmark in its class, whether lighting a theatre production, festival, or corporate event. Create stunning beam effects with this versatile LED fixture.

SKU: MAR-90800000 Categories: , , ,

Description

The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.

Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Features

  • Light engine: 7 x 40W RGBW
  • Full-gamut color-calibration system
  • CTC control: 1,800–12,850 K
  • Lumen output: 3,500 lm
  • Intensity: 390,000 cd
  • Zoom: 4.2 – 58°
  • Quick Focus mode allows installation and focusing without the need for a console operator
  • Clear of projection indicators allow quick installation

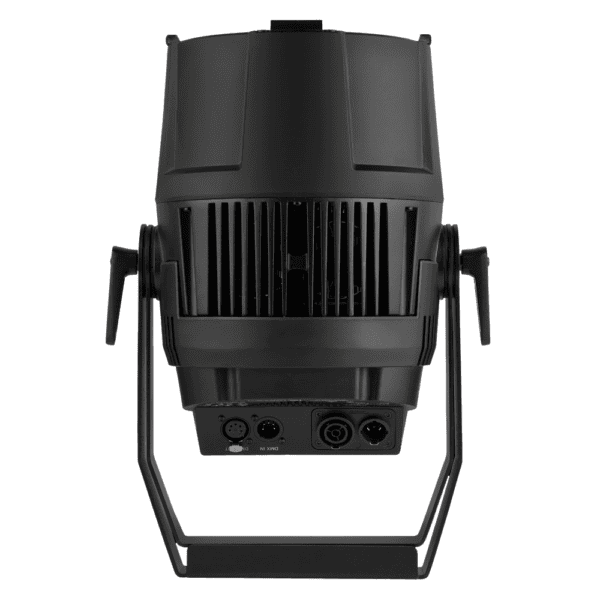

  • Angled power and data connections support a clean cable run that does not impede the fixture or installation
  • Included truss and floor-mounting yoke with omega bracket connectivity
  • Low-noise 33 dB Theatre mode operation
  • IP20 rating
  • Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
  • Weight: 7.8 kg (17.2 lbs.)

Video

Martin Lighting Product Overview: ELP PAR Static RGBW LED Fixture

In this video, we provide a product overview of the Martin by HARMAN ELP PAR Static RGBW LED fixture that sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features. Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Additional information

Physical

Length: 312 mm (12.3 in.)
Width: 287 mm (11.3 in.)
Height: 401 mm (15.8 in.) with bracket
Weight: 7.8 kg (17.2 lbs.)
Dynamic Effects

Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Zoom: Motorized
Color temperature control: Variable 1,800 – 12,850K
Electronic dimming: 0 – 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control And Programming

Control options: DMX, RDM
16-bit fine control: Dimming, RGB, zoom
LED color management modes: Raw, extended and calibrated

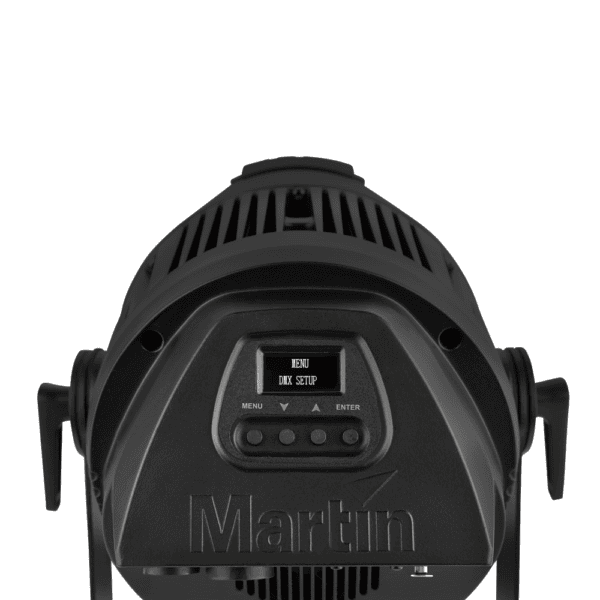

DMX address setting: Control panel with OLED display
DMX channels: 14
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Firmware update: via DMX using Martin Companion
Optics

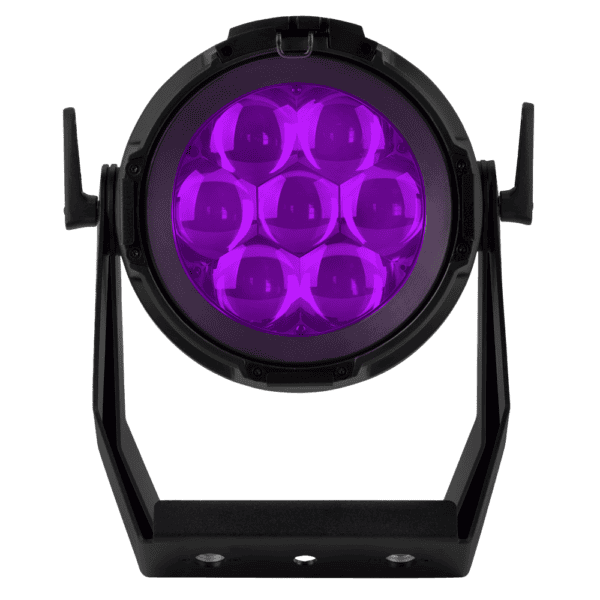

Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.2° – 38.7°
Field angle (one-tenth peak): 5.1° – 58.6°
Cutoff angle (3%): 5.7° – 69.6°
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
Photometric Data

Wide beam: 3,525 lumens
Narrow beam: 1,445 lumens
Fixture Center Intensity Narrow Beam: 390,083 cd
Fixture Center Intensity Wide beam: 9,957 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 77
TM-30 Rg (IES TM-30-15 Gamut Index): 117
TLCI (Television Lighting Consistency Index): 61
CCT: 6,500 K
LED refresh rate – Standard Mode: 3600 Hz
LED refresh rate – Theatre Mode: 19200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Protection rating: IP 20
Installation

Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location: Not for household use, indoor use in dry location only
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

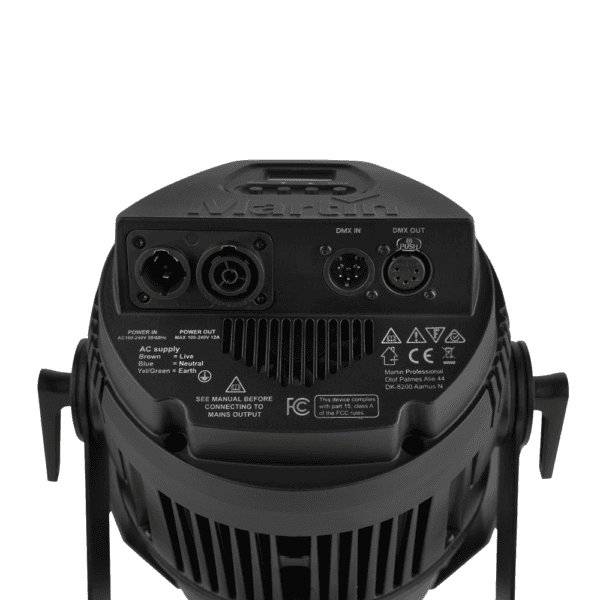

Connections

AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V
Typical current draw: 3.0 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V *
Power Consumption
Typical: 300 W *
Hibernation: 3 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

Cooling: Forced air (temperature regulated, low noise)
Total heat dissipation (calculated): 1170 BTU/hr.
Maximum surface temperature: 65° C (149° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)
Acoustic Data

Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 33.0 dB(A)
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Included Items

Adjustable mounting bracket
Safety and Installation Manual
