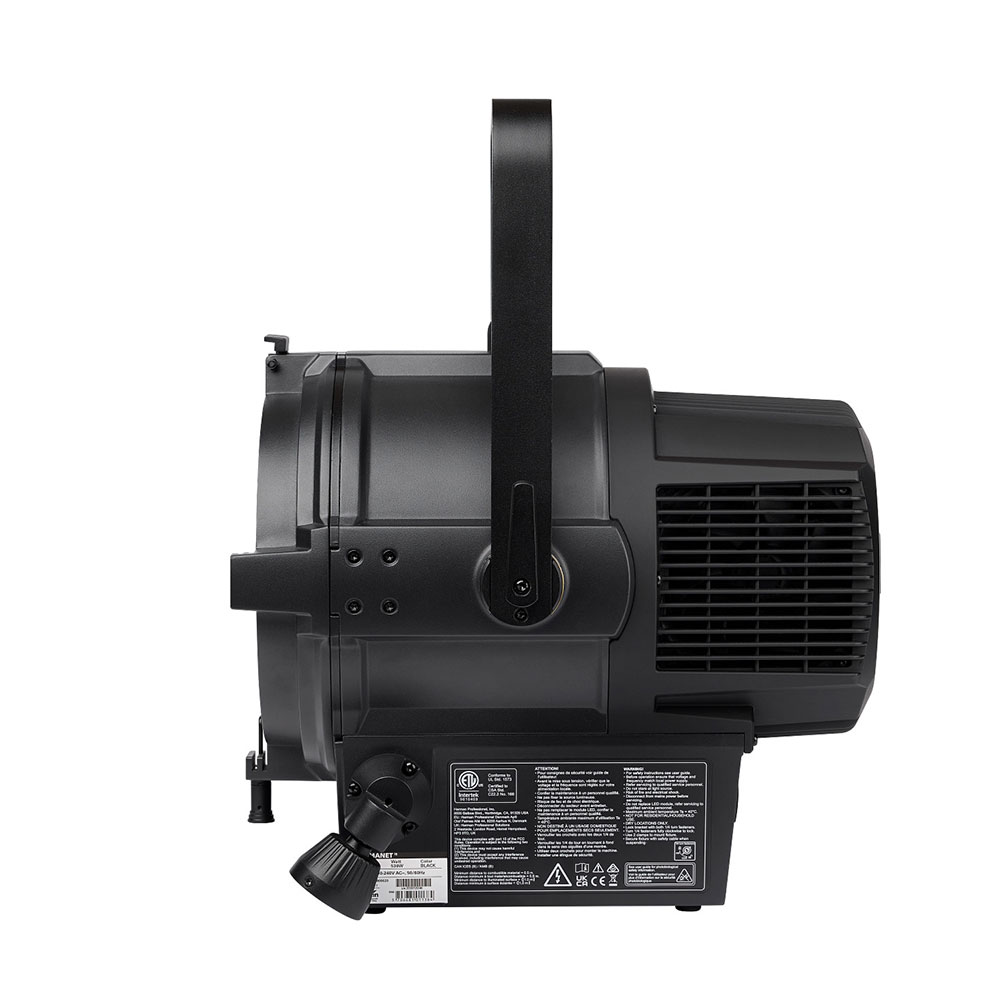

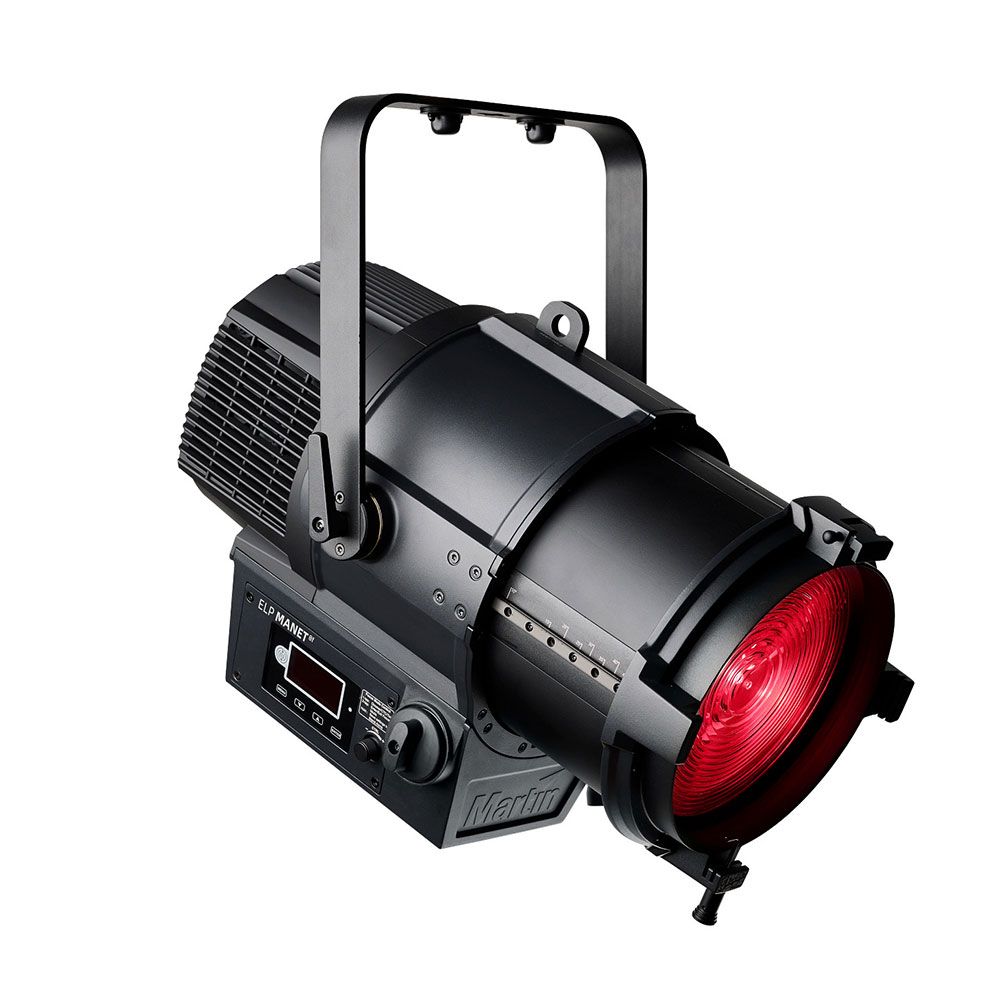

Martin – ELP Manet 8f

Martin

The ELP MANET 8f from Martin Professional redefines static fixture lighting with precision beam control. Inspired by the Latin stage direction “it remains,” it pays tribute to Shakespearean theater and timeless storytelling. Combining classic tungsten-style output with modern LED efficiency, it features a six-color LED light engine for a rich, refined palette and a TM-30 Rf of 95 and a CRI score of 98. A carefully designed 8-inch (200 mm) Fresnel lens, 9° to 50° zoom, and anti-reflective barn doors, deliver smooth, artifact-free fades. With ultra-quiet operation, intuitive controls, and wireless configuration via Martin’s Companion App, ELP MANET 8f offers unmatched performance, flexibility, and artistry—ensuring every moment remains unforgettable.

SKU: MAR-90800020 Categories: , , ,

Description

The ELP MANET 8f from Martin Professional redefines static fixture lighting with precision beam control. Inspired by the Latin stage direction “it remains”, it pays tribute to Shakespearean theater and timeless storytelling. Combining classic tungsten-style output with modern LED efficiency, it features a six-color LED light engine for a rich, refined palette and a TM-30 Rf of 95 and a CRI score of 98. A carefully designed 8-inch (200 mm) Fresnel lens, 9 to 50 degree zoom, and anti-reflective barn doors, deliver smooth, artifact-free fades. With ultra-quiet operation, intuitive controls, and wireless configuration via Martin’s Companion App, ELP MANET 8f offers unmatched performance, flexibility, and artistry-ensuring every moment remains unforgettable.

PRECISION COLOR ACCURACY

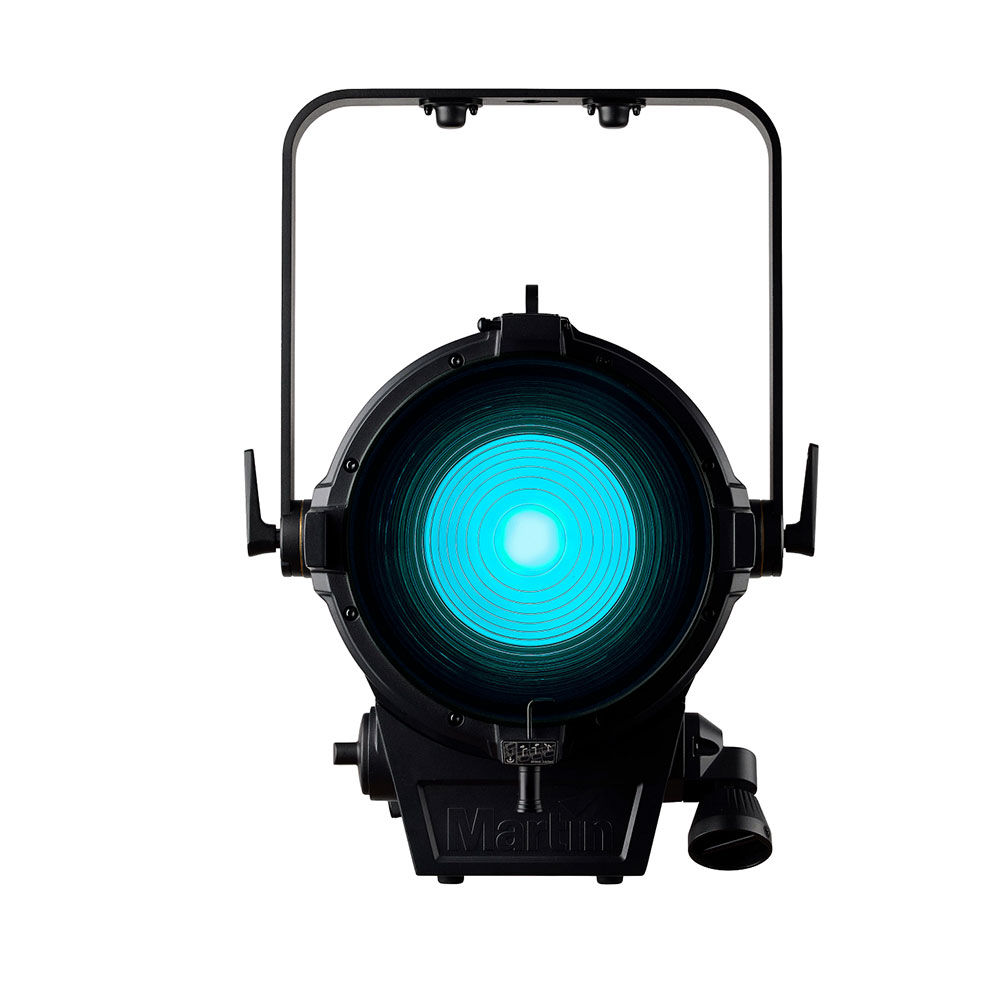

The innovative six-color light engine featuring red, green, blue, amber, lime, and cyan LEDs, delivers a best-in-class TM-30 Rf of 95 and a CRI score of 98 for consistent, vibrant color from saturated primaries to delicate pastels across the full color-temperature spectrum.

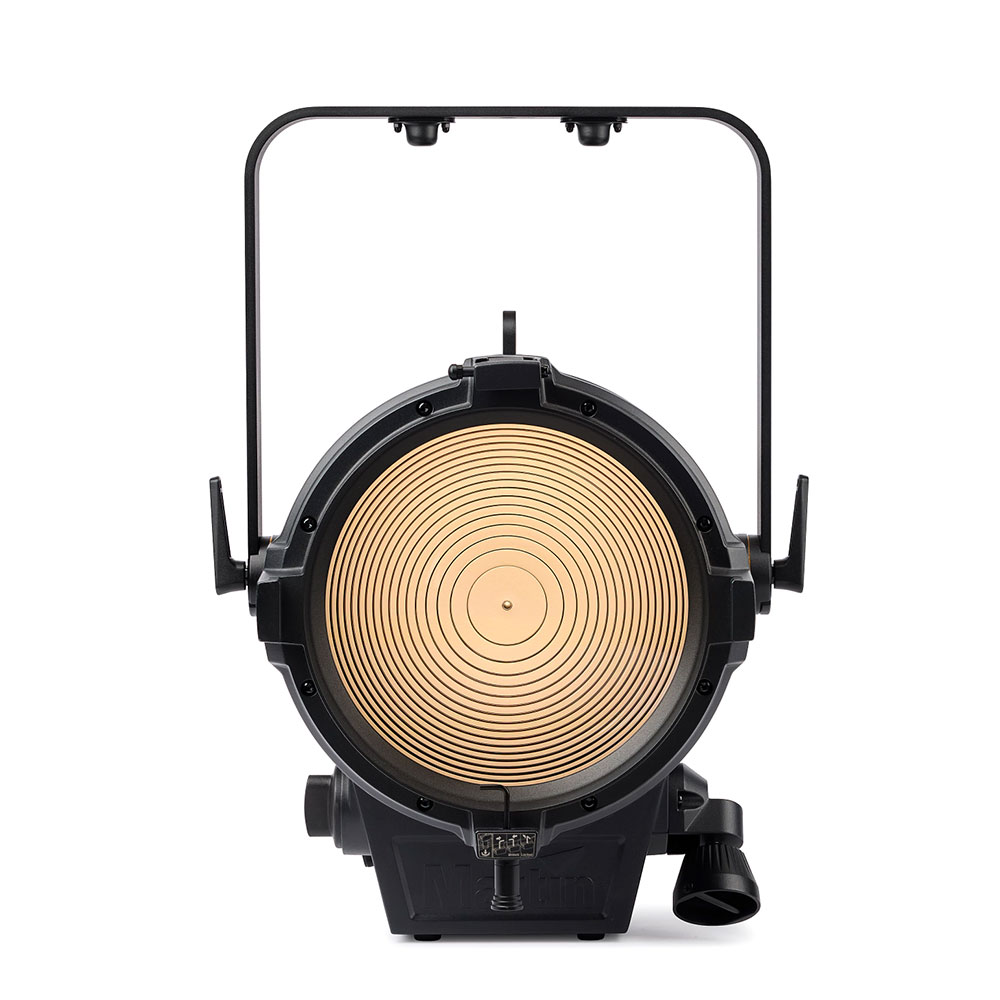

SIGNATURE SOFT-EDGE FRESNEL LENS

A carefully designed 8-inch (200 mm) Fresnel lens produces a uniform wash with a classic soft edge while 13,000 lumens and a 9°-50° zoom range allow this fixture to excel in narrow throws and wide washes.

FULLY LINEAR COLOR-TEMPERATURE CONTROL

Precise adjustment from 1,850 K to 12,500 K in 50 K increments ensures seamless transitions between warm and cool whites as well as fully tracking the black body line via the onboard calibration system

FLEXIBLE INSTALLATION & CONTROL

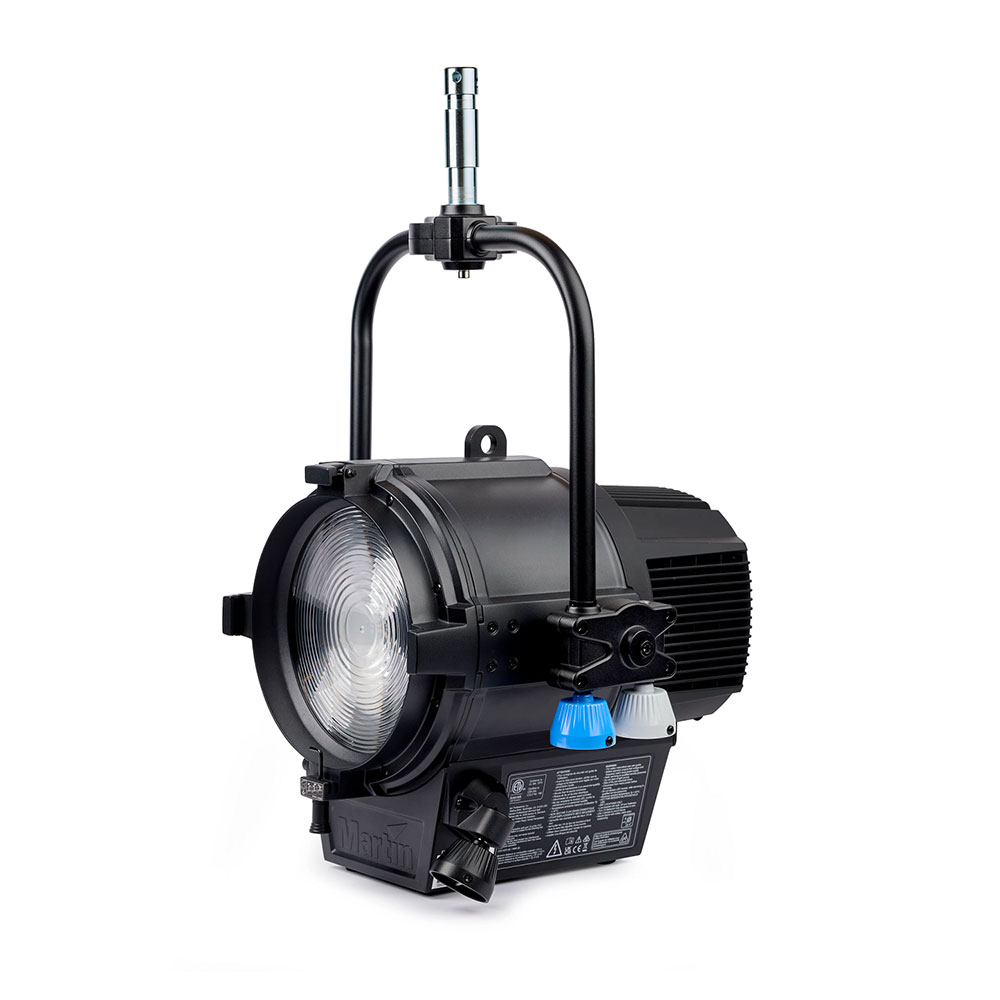

Smooth and precise manual zoom control via the onboard dual controls coupled with the optional pole operated yoke set allows for quick and easy focusing from stage to studio, intuitive menu and control options, including NFC compatibility with the Martin Companion Mobile app that simplifies setup and operation.

Features

  • 13,000+ Lumen Output
  • 6-Color Light Engine with Red, Green, Blue, Amber, Lime, and Cyan LEDs
  • Fully Linear 1,850–12,500 K Color Temperature Control System
  • Carefully designed 8-inch (200 mm) Fresnel Lens
  • Wide Color Gamut
  • Class-Leading Light Quality
  • 9°–50° Manual Zoom Lens
  • High-Resolution Low-End Dimming

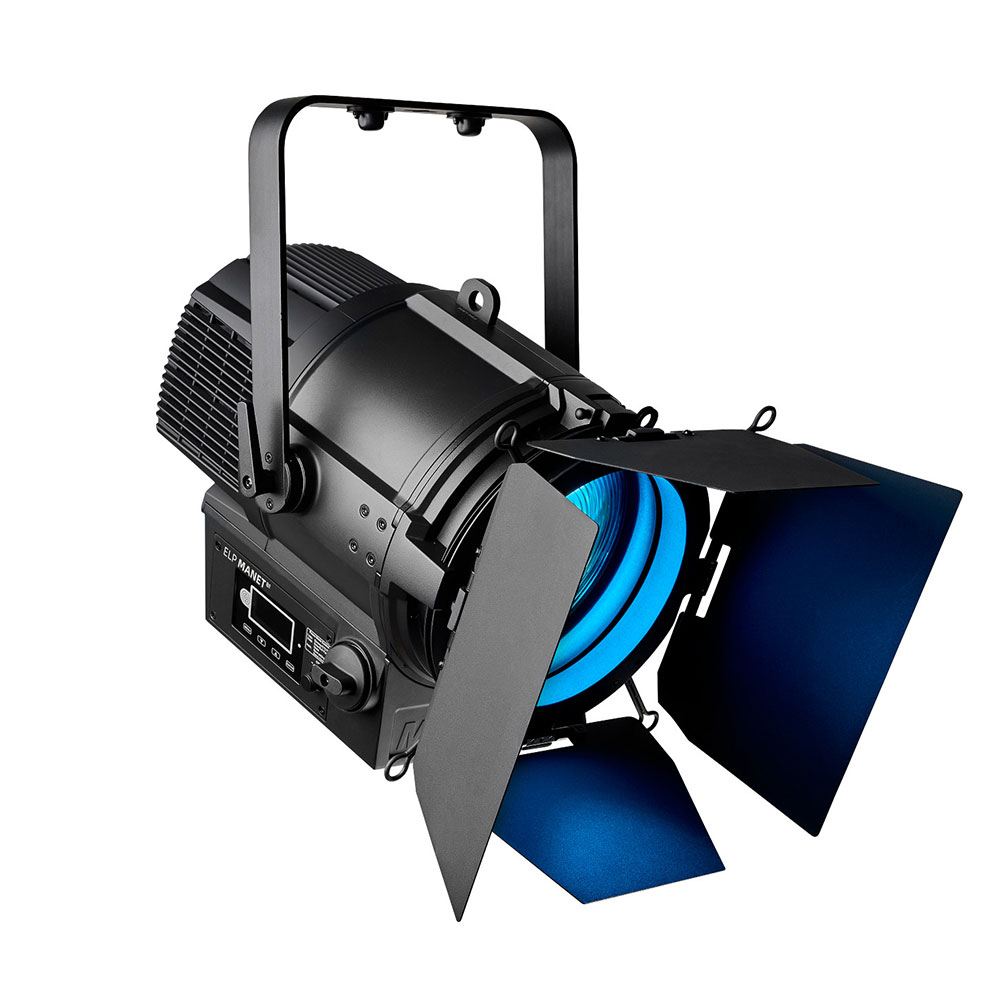

  • Anti-Reflective Barn Doors
  • Flexible Mounting Options
  • Intuitive Control Interface
  • Simple RGB Control with Linear CTC and Tint Channels
  • Ultra Quiet Cooling System
  • NFC interface, supporting configuration and diagnostics via Companion Mobile App

Additional information

Physical

Width: 372.3 mm (14.66 in.)
Height (head forward): 499.30 mm (19.66 in.)
Depth: 404.90 mm (15.94 in.)
Weight: 14.0 kg (30.86 lbs.)
Dynamic Effects

Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves
Color Mixing: RGB(ALC), independently variable 0 – 100%
Color Temperature Control: Variable 1,850 – 12,500 K
Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Virtual Color wheel: 48 color presets, continuous rotation & random color
LED Frequency control: Variable LED PWM control
Control and Programming

Control Protocols: DMX and RDM
DMX Modes: Compact, Basic & Direct
DMX Channels: 11, 17 & 17
16-bit Controllable Parameters: Dimming and Color Mixing
Setting and Addressing: Display Menu, NFC or RDM

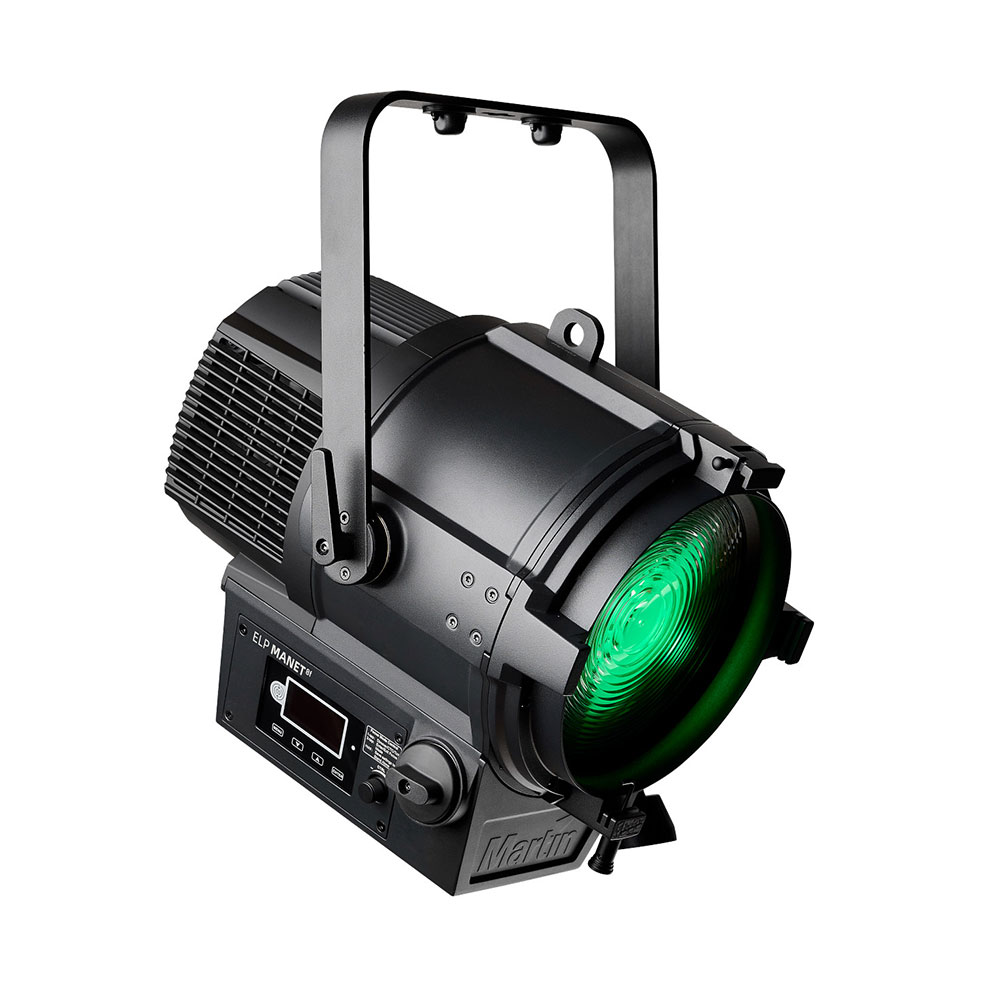

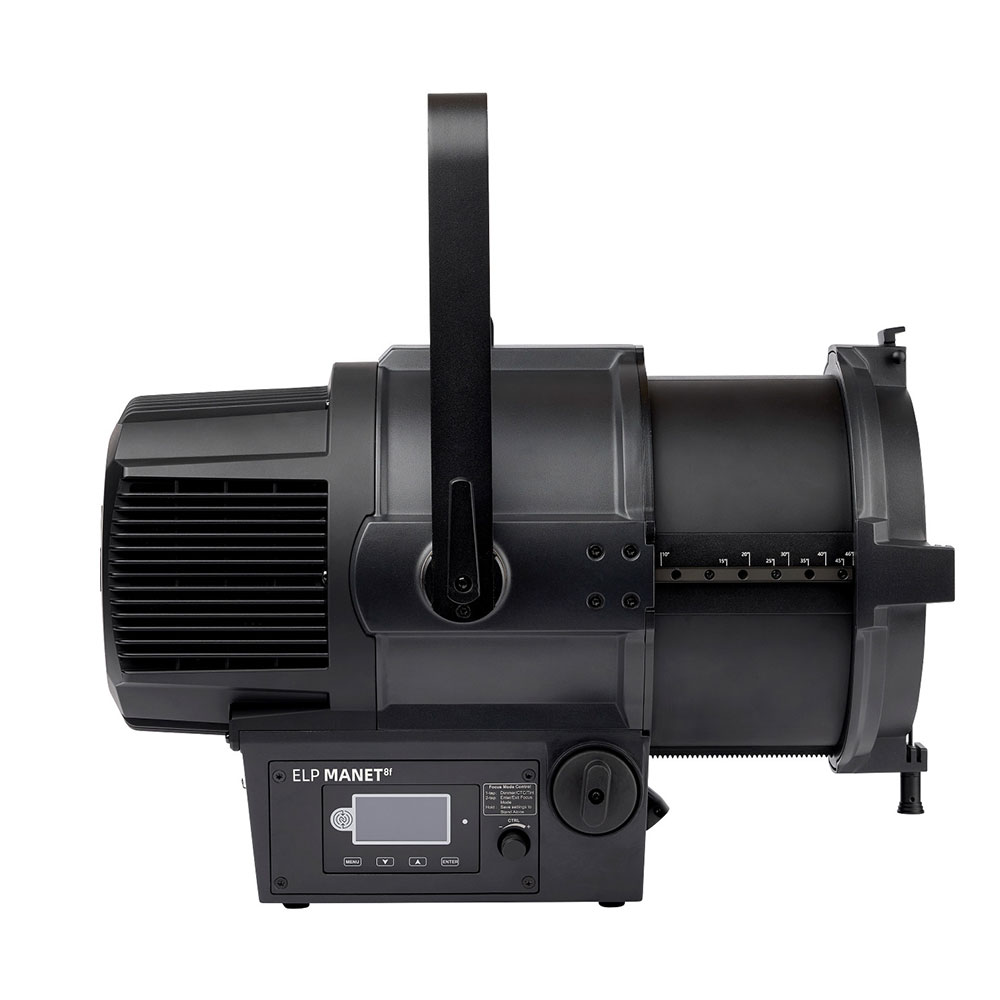

Local User Interface: Backlit LCD Display with integrated NFC antenna
Quick Focus Manual Control: Rotary Encoder
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Firmware Update: via DMX using Martin Companion
Optics

Front Lens Diameter: 200 mm (7.87 in.)
Zoom Range: 1:5.6
Full Zoom Range at Half Peak (Beam Angle): 9° – 50°
Full Zoom Range at Tenth Peak (Field Angle): 17° – 66°
Light Source: 500 W RGBALC COB LED
Max. Total LED Engine Power: 500 W
Minimum LED lifetime: > 20.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Photometric Data

Light Engine Luminous Output: 15,500 lumens
Fixture Luminous Output Wide: 13,100 lumens
Fixture Luminous Output Narrow: 5,600 lumens
CCT: Variable 1,850 K – 12,500 K (+/- 200 K)
CRI (Color Rendering Index) high output mode: ≥90
CRI (Color Rendering Index) high quality mode: ≥98
CQS (Color Quality Scale) high output mode: ≥85
CQS (Color Quality Scale) high quality mode: ≥95
TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥86
TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥95
TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥107
TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥104
TLCI (Television Lighting Consistency Index) high output mode: ≥98
TLCI (Television Lighting Consistency Index) high quality mode: ≥98
LED Refresh Rate: 3,600 Hz with fine adjustment (+/- 2%) (DMX controllable)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white
Construction

Color: Matte black
Protection rating: IP20
Housing Material: Steel & Aluminum
Installation

Mounting points: 1 pair of 1/4-turn points for 106mm (4.17 in.) center-to-center omega bracket, Single M12 / 1/2" hole for rigging clamp, Two guide holes to support industry standard 28mm Spigot accessory
Location: Indoor
Orientation: Any
Minimum distance to combustible materials: 0.2 m (7.87 in.)
Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)

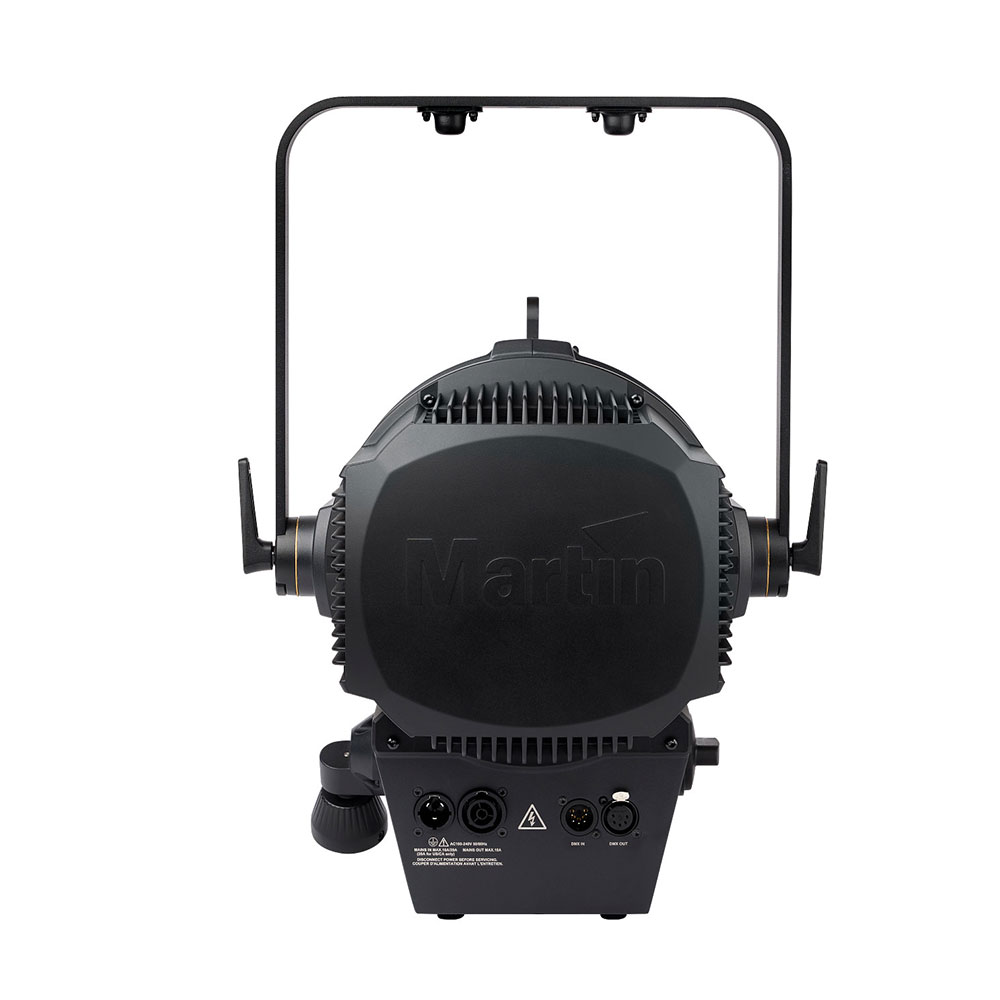

Connections

AC mains power in/thru: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 12.68 A
Typical earth-leakage current: 0.65 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V
Max current draw: 5.3 A @ 100 V / 120 V , 2.2 A @ 208 V / 230 V / 240 V
Typical current draw: 5.26 A @ 100 V , 4.33 A @ 120 V , 2.45 A @ 208 V , 1.92 A @ 230 V , 2.11 A @ 240 V *
Power Consumption
Maximum: 530 W
Typical: 530 W *
Idle: 3.8 W *
Hibernation: TBD W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated high fan speed.
Idle: no output, no effects moving, regulated high fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

Cooling: Forced air (temperature regulated, low noise, user definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Maximum surface temperature, steady state, at 40° C ambient: 68° C (154.4° F)
Total heat dissipation (calculated, +/- 10%): 1808 BTU/hr
Acoustic Data

Sound Pressure Level (LpA) @ 1m (default regulated high fan mode, full output): 26.7dB(A)
Sound Pressure Level (LpA) @ 1m (regulated medium fan mode, full output): 21.1 dB(A
Sound Pressure Level (LpA) @ 1 m (regulated low fan mode, full output): 18.9 dB(A)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC Certified cardboard outer & inner packaging
Efficacy (max output): 24.6 lm/W
LWR*: 928.6 lm/kg (421 lm/lbs.)
* LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Thailand: TISI 1955-2551
Korea: KS C 9832, KS C 9835
Included Items

Adjustable Mounting Bracket
4 leaf Anti-Reflective Manual Barn Door System
Color Filter Frame
Multi-Language Safety and Installation Manual
