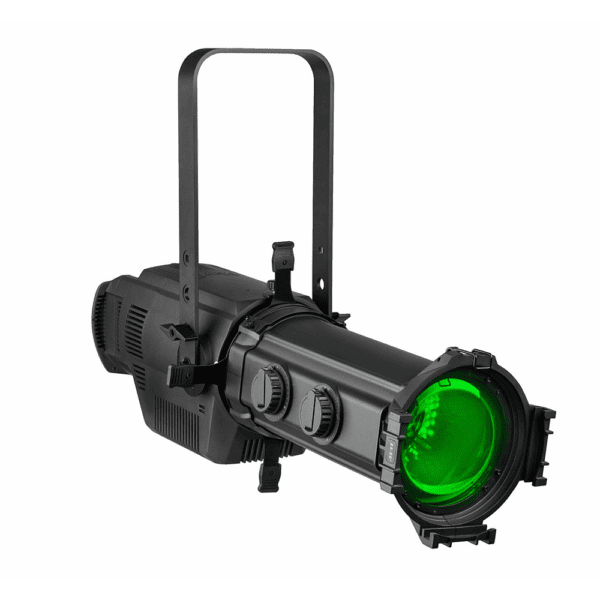

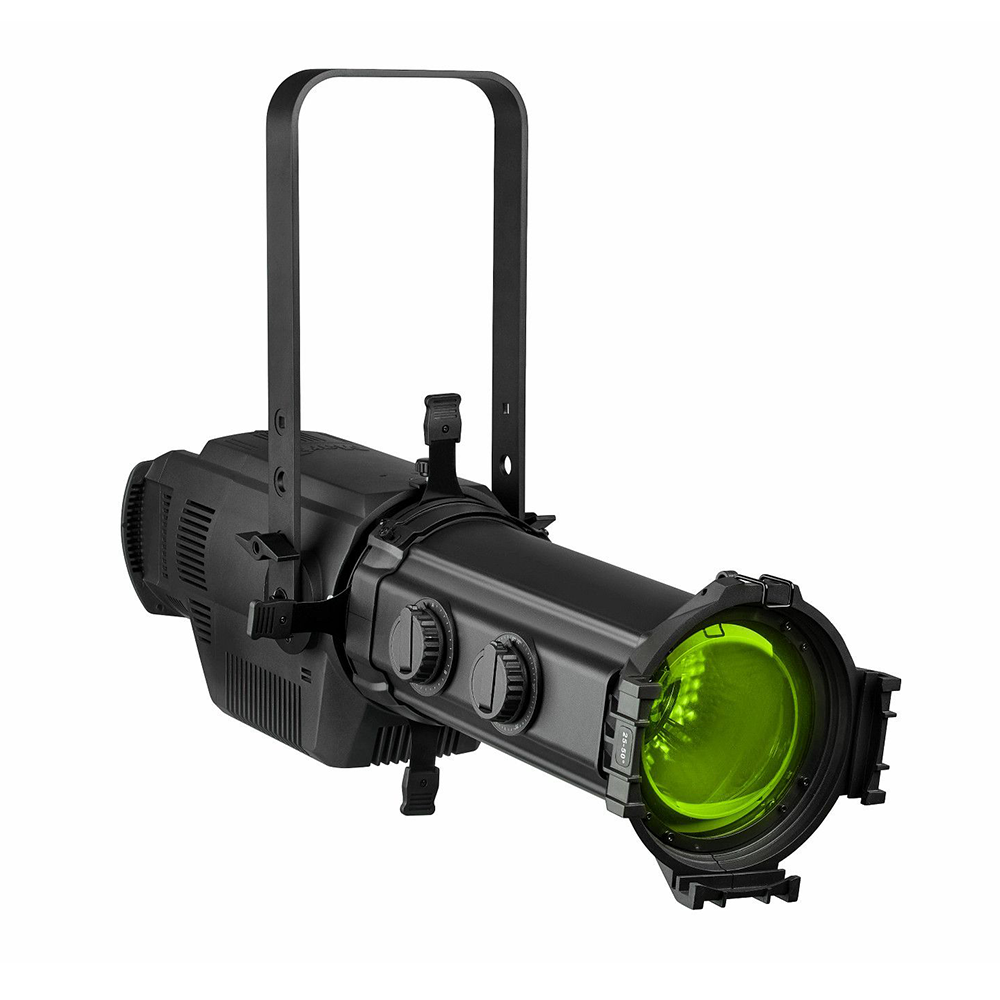

Martin - ELP CL IP ellipsoidal profile fixture front left zoom lens greenMartin - ELP CL IP ellipsoidal profile fixture front left zoom lens green

Martin – ELP CL IP

Martin

LED ellipsoidal profile that provides saturated colours and a class leading output with IP65 compliance for temporary outdoor applications.

SKU: MAR-9045122814 Categories: , , ,
Clear

Description

Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP CL IP offers the same rich saturated colors and class leading output as the original Martin ELP CL but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP CL IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15–30-degree and 25–50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.

Features

  • Legendary Martin quality in LED ellipsoidal light fixtures
  • Advanced optics engineered in Denmark
  • RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colours
  • Class-leading output of 6,900 lumens (in High Output mode)
  • Superior CRI rating of 90 (in high quality mode)
  • Fast focus feature for data free focusing
  • Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
  • IP65 rated for water resistance and complete protection against dust and other particulates
  • 26 colour presets match industry-standard filters
  • 16-bit dimming with 4 selectable dimming curves
  • Compatible with universal accessories such as gel frames and gobo holders and rotators
  • Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
  • Halation colour correction removes atypical blue and brown halos when using Martin lens tubes.
  • Flicker-free operation
  • 4-blade manual framing shutters
  • Center of gravity at yoke for ergonomic use
  • Regulated cooling for ultra-quiet operation
  • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Additional information

Physical

Length: 644 mm (25.4 in.)
Width: 255 mm (10.1 in.)
Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket
Weight: 12.2 kg (26.9 lb.) body only
Dynamic Effects

Color mixing: RGBLA
Color Temperature Range: 2000–10000K
Color selection: 26 color presets
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control and Programming

Control options: DMX, stand-alone
Setting and addressing: Control panel with OLED display or via RDM
16-bit control: Intensity, CTC, RGBLA
DMX channels: 1/10/17
PWM: 600–2400 Hz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Stand-alone programming: Control panel with OLED display
Optics

Light source: 91 x RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
Color temperature: 2000–10000K
Fixed Lens Tube Options: 19°, 26°, 36° and 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
Calibration: White Point Color Calibration
*Figure obtained under manufacturer's test conditions
Photometric Data

Light engine luminous output: 20,000 lumens
High Output Mode
Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85
CCT: 5500 K (+/- 250 K)
High Quality Mode
Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP65
Gobos and Color Frame

Gobo size :
A size, 100 mm OD, 75 mm image*
Gobo size: B size, 86 mm OD, 64.5 mm image*

Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
*Gobo holder not included.
Installation

Mounting: Adjustable bracket
Location: Indoor, outdoor use, suitable for wet locations
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections

AC power in, thru: IP65-rated Neutrik PowerCON TRUE1 TOP
DMX & RDM data in/thru: IP65-rated 5-pin XLR
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V , 1.3 A @ 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal

Cooling: Forced air (temperature-regulated, low noise)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr.
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 28 lm/W
LWR*: 627 lm/kg (284 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-3 (B)/NMB-3 (B); ICES-5 (B)/ NMB-5 (B)
Australia/NZ: RCM
Included Items

Mounting bracket
User manual
