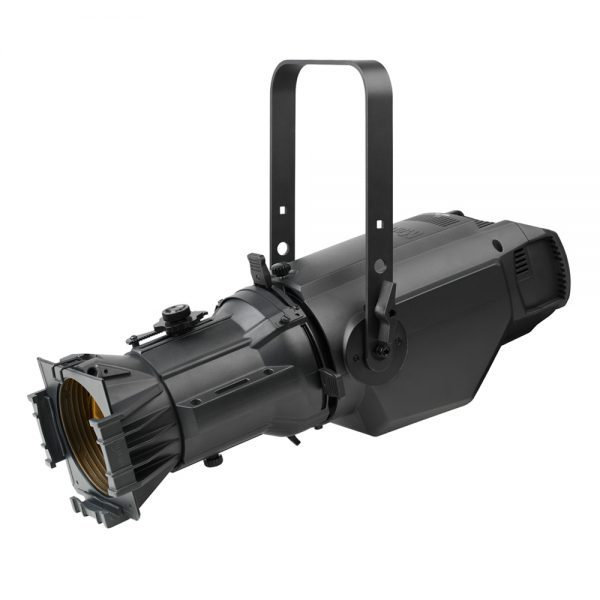

Martin - ELP-CL front left angled down colour frame insertedMartin - ELP-CL front left angled down colour frame inserted

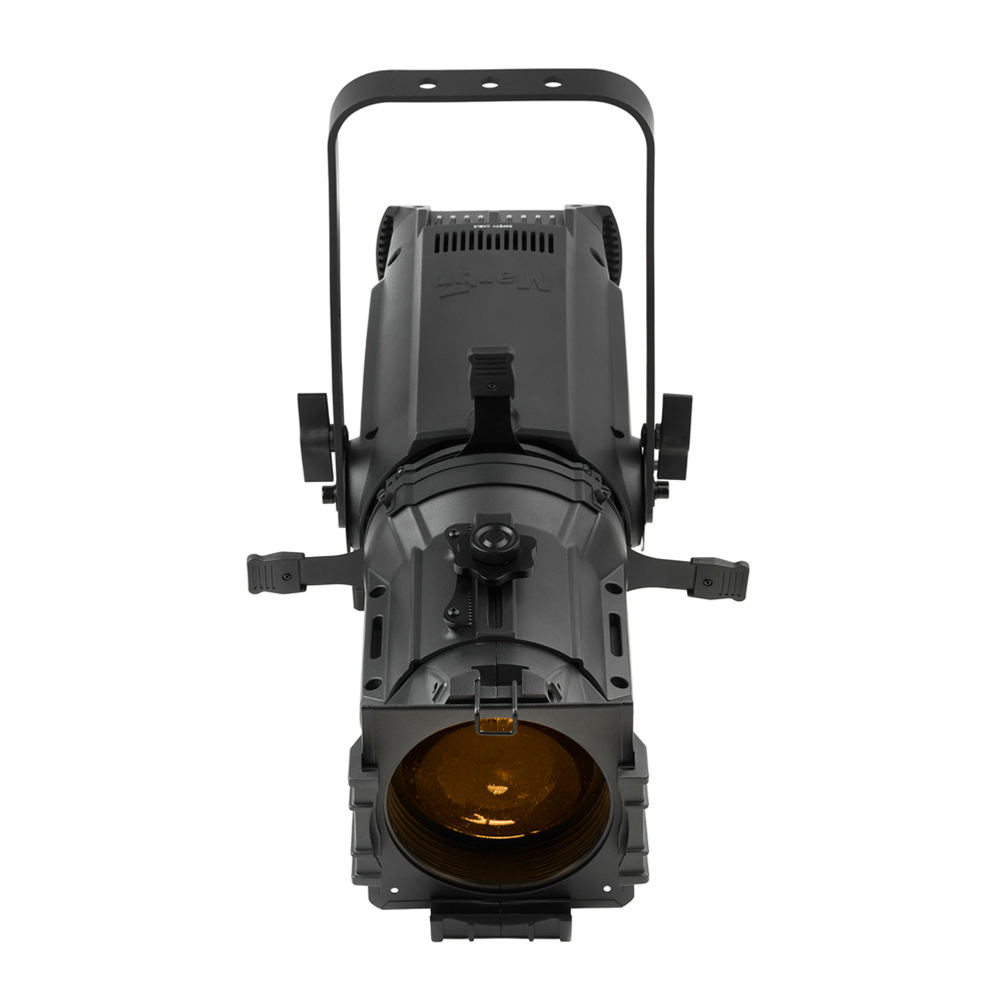

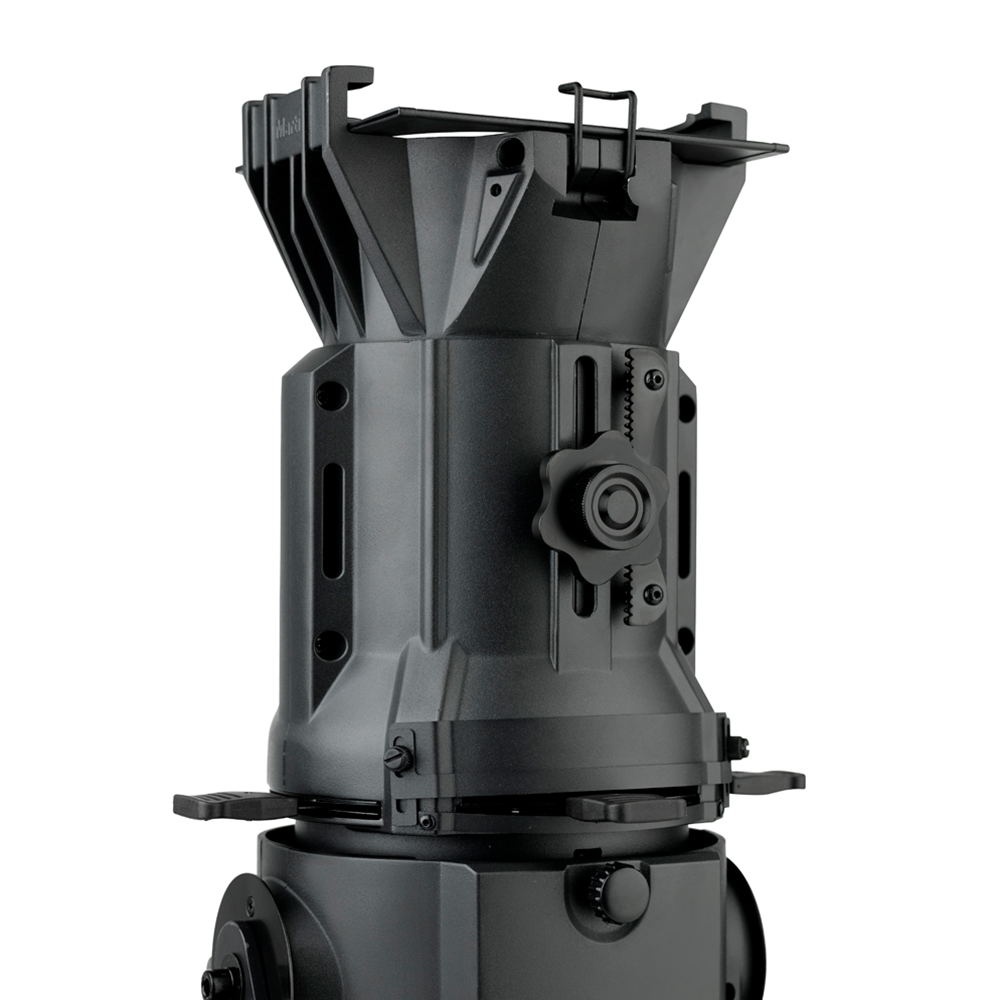

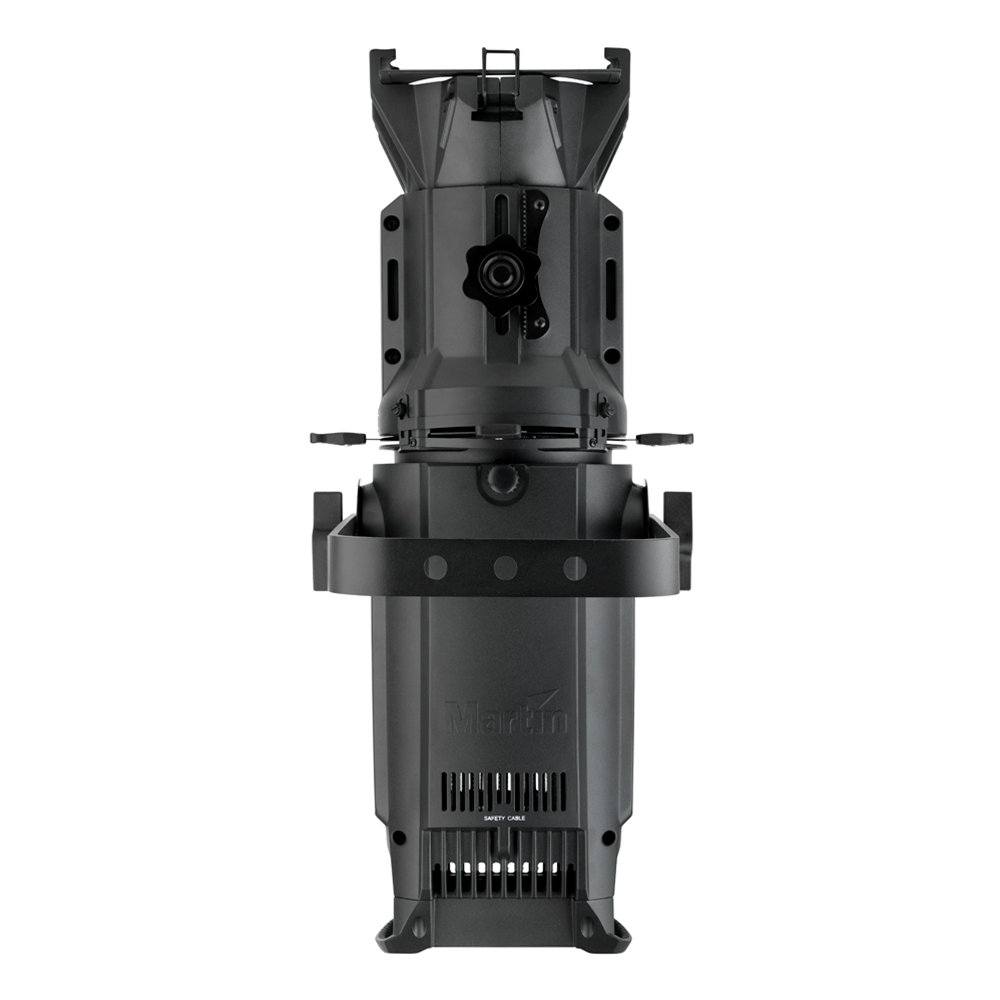

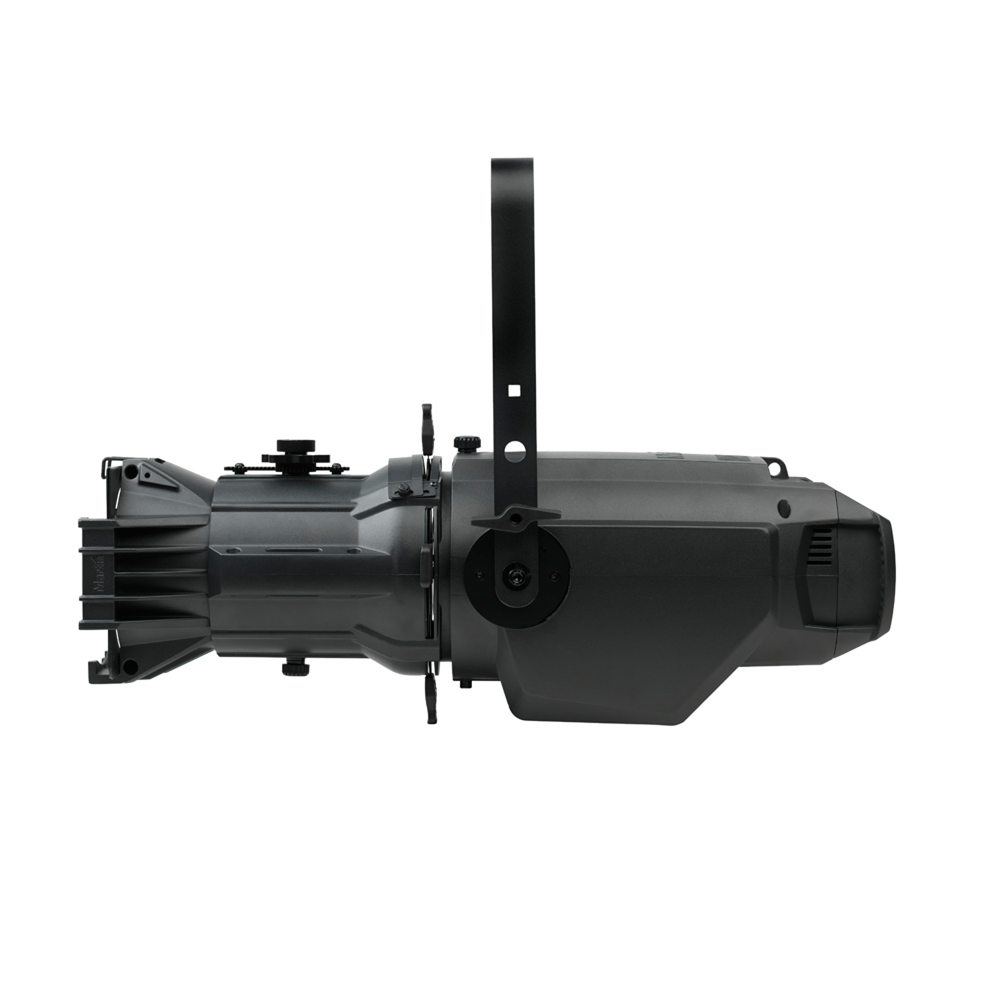

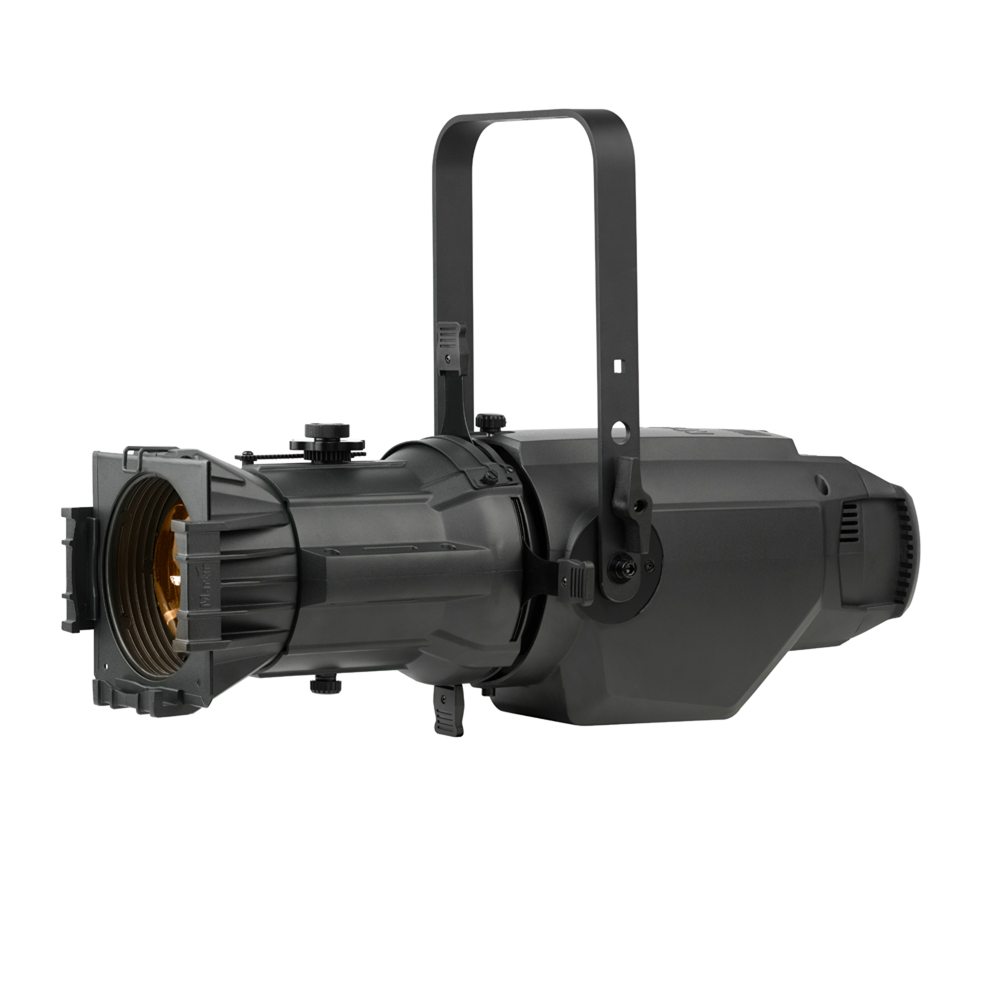

Martin – ELP-CL

Martin

Ellipsoidal profile fixture with data free fast focusing. Vivid colour, 16-bit dimming with four selectable curves and available with a range of lens tubes.

SKU: N/A Categories: , , ,
Clear

Description

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.

Features

  • Impressive light output rating of 6,900 lumens (in High Output mode).
  • Superior CRI rating of 90 (in High Quality mode).
  • Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
  • Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
  • 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
  • Advanced optics engineered in Denmark
  • RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colours
  • 26 colour presets match industry-standard filters
  • 16-bit dimming with 4 selectable dimming curves
  • Flicker-free operation
  • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Video

ELP-CL

Full colour LED ellipsoidal profile

Additional information

Physical

Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs) body only
Dynamic Effects

Color mixing: RGBLA
Color Temperature Range: 2000-10000K
Color selection: 26 color presets
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Control And Programming

Control options: DMX, stand-alone
Setting and addressing: Control panel with OLED display or via RDM
16-bit control: Intensity, CTC, RGBLA
DMX channels: 1/10/17
PWM: 600-2400 Hz
Standalone programming: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics

Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Color temperature: 2000-10000K
Lens tube options: 19°, 26°, 36°, 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
Calibration: White Point Color Calibration
*Figure obtained under manufacturer's test conditions
Photometric Data

Light engine luminous output: 20,000 lumens
High Output Mode
Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85
CCT: 5500 K (+/- 250 K)
High Quality Mode
Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP20
Gobos And Color Frame

Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
*Gobo holder not included
Installation

Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections

AC power in, thru: Neutrik PowerCON TRUE1
DMX and RDM data in/out: 5-pin locking XLR
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V / 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal

Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 28 lm/W
LWR*: 896 lm/kg (406 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Included Items

Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual

Downloads

Data Sheet Download
User Guide Download
